Celestron Labs Digital- Wi-Fi Desktop Microscope

Celestron Labs Digital- Wi-Fi Desktop Microscope

Item #: 44351

In stock

$599.95
$599.95

Free Ground Shipping! Contiguous USA only

30-Day Returns

2-Year Warranty

  • ADVANCED OPTICAL MICROSCOPE WITH INTEGRATED WI-FI: Three plan achromatic objectives (4x, 10x, 40x) and a 12x digital eyepiece deliver 48x, 120x, and 480x magnification with built-in wireless imaging and control.
  • SMART DEVICE VIEWING AND CAPTURE: Stream live images, record video, and measure specimens directly through the Celestron Labs Digital Wi-Fi App for iOS and Android.
  • FLEXIBLE VIEWING AND PORTABLE DESIGN: Use your smart device on the magnetic stand, in your hand, or beside the microscope. The durable housing and integrated carry handle make it easy to move between classrooms, labs, and workspaces.
  • ADJUSTABLE MECHANICAL STAGE WITH LED ILLUMINATION: Smooth X/Y slide controls let you move your specimen, while the adjustable bottom LED lighting provides even illumination.
  • COMPLETE ACCESSORY KIT INCLUDED: You get 5 prepared slides, a calibration ruler, an international AC adapter, and a magnetic smart device stand to get started right away.

Specifications

General
Type of Microscope: Wi-Fi Desktop /w triple objectives
Head: Head has sensor and Wi-Fi module for sending wireless streaming images
Eyepiece Type: CMOS Sensor in lieu of eyepiece (12x magnification)
Sensor Size: 2MP | 1/2.8" Sony IMX290 LQR-XC
Stage Type: Mechanical -Double Layer, 115mm x 125mm (4.52" x 4.92")
Sensor magnification: 12x
Pixel Size: 2.9 μm x 2.9 μm
Memory Type: No memory- uses smart device memory to save images and video
Still image capture resolution: 640x480 | 1280x720 | 1920x1080
Video resolution: 640x480 | 1280x720 | 1920x1080
Shutter trigger position: In device APP
Software: Celestron Labs Digital Wi-Fi APP
Software Compatability: iOS and Android
Nosepiece: Triple with click stop
Objective(s) Type: (3) Finite Plan Achromatic CF objectives on turret
Objective(s) Standard: DIN 35 RMS
Objective(s) Magnification 4x, 10x, 40x
Magnification Range: 48x, 120x, and 480x
FOV: 4x: 37.5mm | 10x: 6.7mm | 40x: .65mm
Objective(s) Thread: WJ 4/5" x 1/36"
Focus Type(s): Course and Fine Focus
Focus Travel (per rotation): 0.7mm to 35.3mm (.027" to 1.39") (est.)
Illumination Type: LEDs (3W/4V- 220V/110V)
Illumination Position(s): Bottom Illuminator
Illumination Adjustability Mechanism: Adjustment dial on base
Power Source: Universal AC Adapter* 100 to 240V, 50/60 hz multi-country plug
Battery Option: Yes. 3AA Batteries for (2 hours) backup power- if needed
Stage: Double layers mechanical stage
Stage size：115mm×125mm (4.5" x 4.9")
Moving range：70mm×30mm (2.75" x 1.18")
Condenser Type: Abbe condenser with iris diaphragm & filter
Condenser N.A.: N.A. 1.25
Port(s) In: AC Adapter/ 5-6V DC, 200-1000mA tip positive electrical input. (Jack should be 5.5mm (.21") OD, 2.1mm (.08") ID and 12.5mm (.49") long) (Final TBD)
Port(s) Out: N/A
AC Adapter: 5-6V DC, 200-1000mA tip positive electrical input. Jack should be 5.5mm (.21") OD, 2.1mm (.08") ID and 12.5mm (.49") long (Final TBD)
Microscope Dimensions: 170mm x 140mm x 330mm (6.7" x 5.5" x 13")
Microscope Weight: 56 oz (1600g)

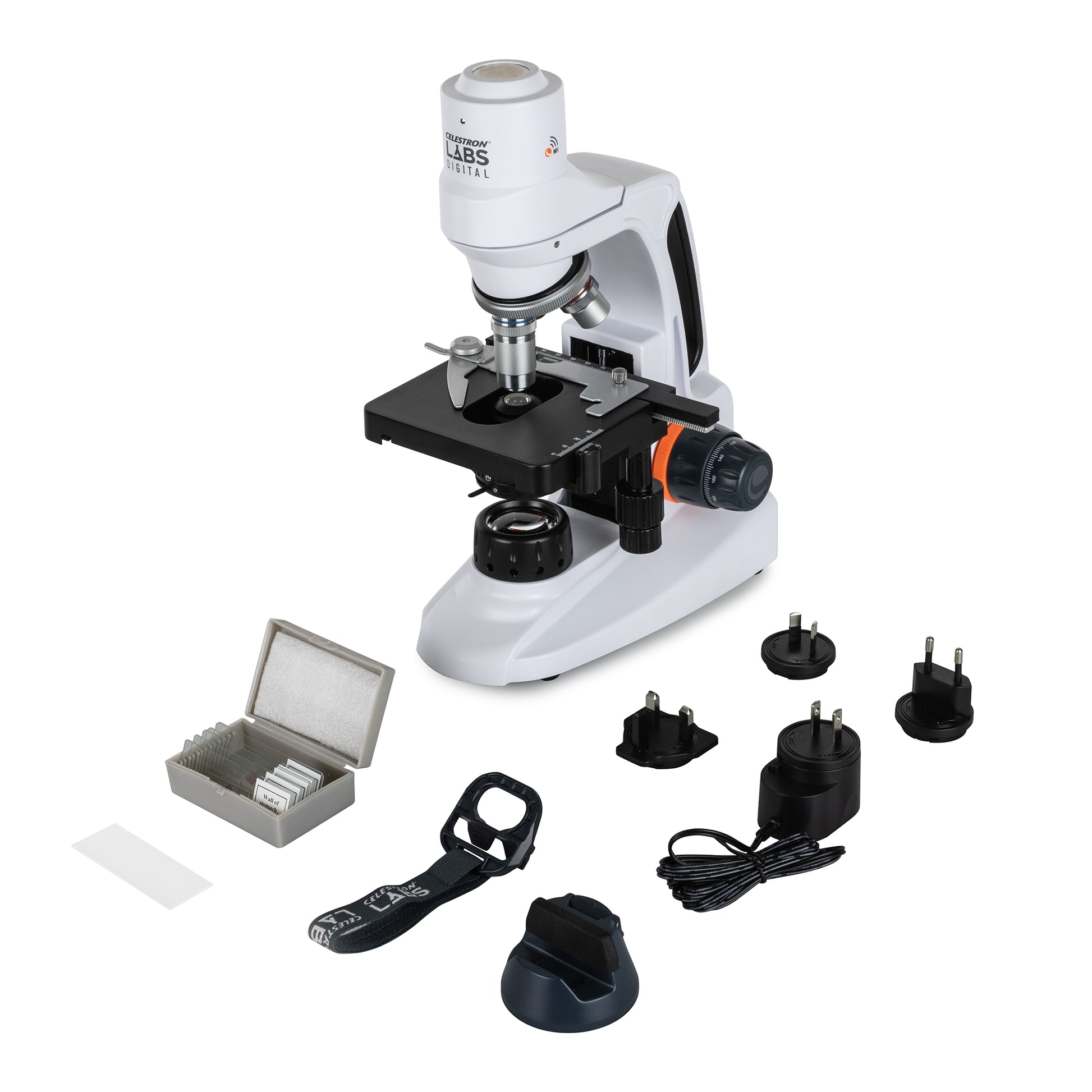

Included Items: 5 Prepared Slides
Calibration slide
AC adapter (4 plug for International)
Unique, optional smart device holder with safety strap
Additional Information
California Prop 65 California Prop 65 Warning

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
View full details

Customers Also Purchased

A True Optical Microscope with Integrated Wi-Fi
The Celestron Labs Digital Wi-Fi Desktop Microscope combines traditional optical performance with built-in digital imaging and wireless connectivity. Instead of viewing through a standard eyepiece, you observe your specimen directly on your smartphone or tablet while retaining the precision of a fully capable biological microscope.

Three plan achromatic objective lenses, 4x, 10x, and 40x, work with a 12x digital eyepiece to deliver 48x, 120x, and 480x total magnification. Rotate the objective turret to move from scanning larger structures to examining fine cellular detail. The plan achromatic optics help maintain sharpness across the field of view while minimizing color distortion, producing clean, accurate images on your screen.

A fully adjustable mechanical stage securely holds your specimen slides and allows smooth X/Y movement. Lower LED illumination provides bright, adjustable lighting, while coarse and fine focus controls let you bring details into clear focus with precision.

Your Smart Device Becomes the Interface

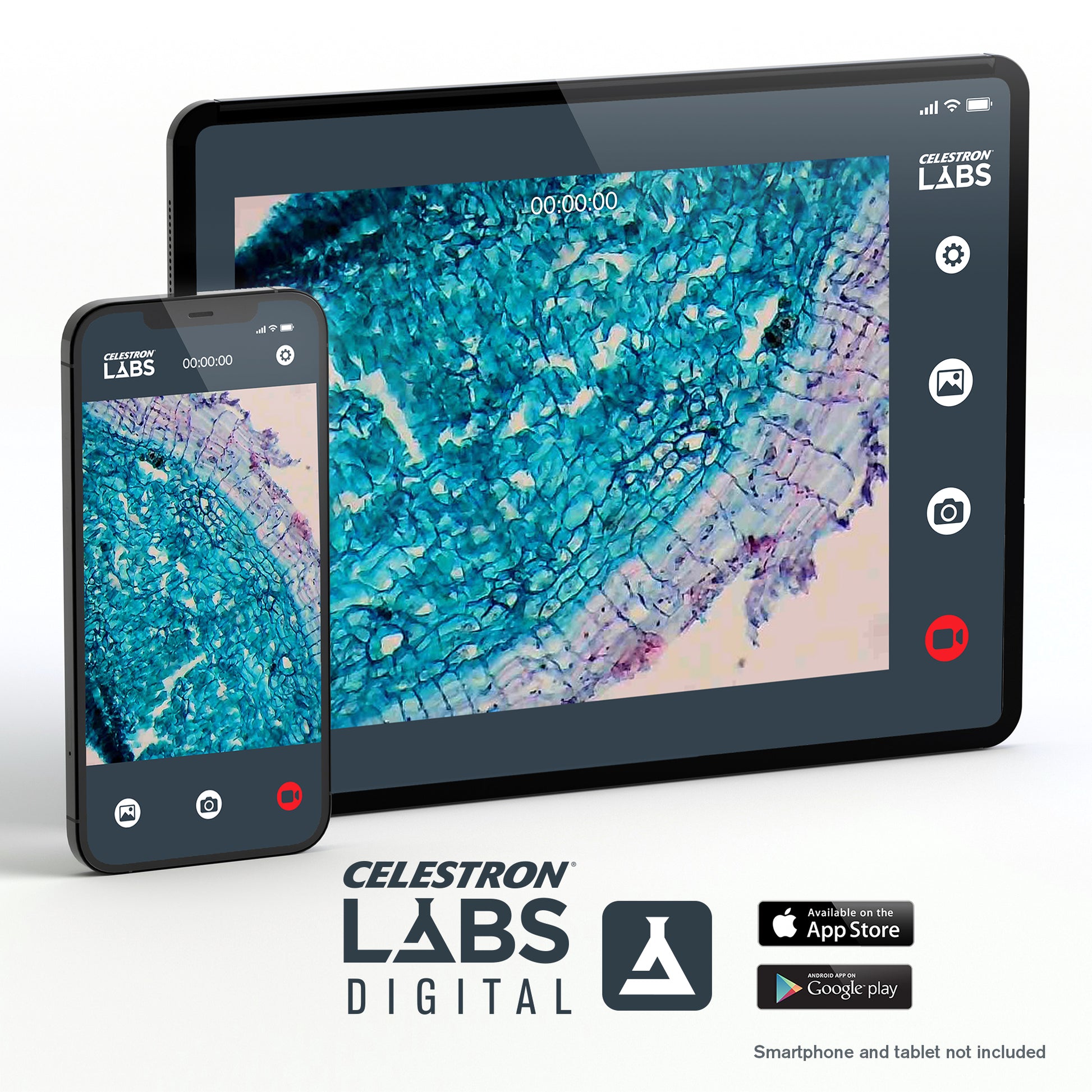

With the Celestron Labs Digital Wi-Fi App for iOS and Android, your smartphone or tablet becomes the microscope’s display and control center. View specimens live, capture still images, record video, and measure samples directly from your device.

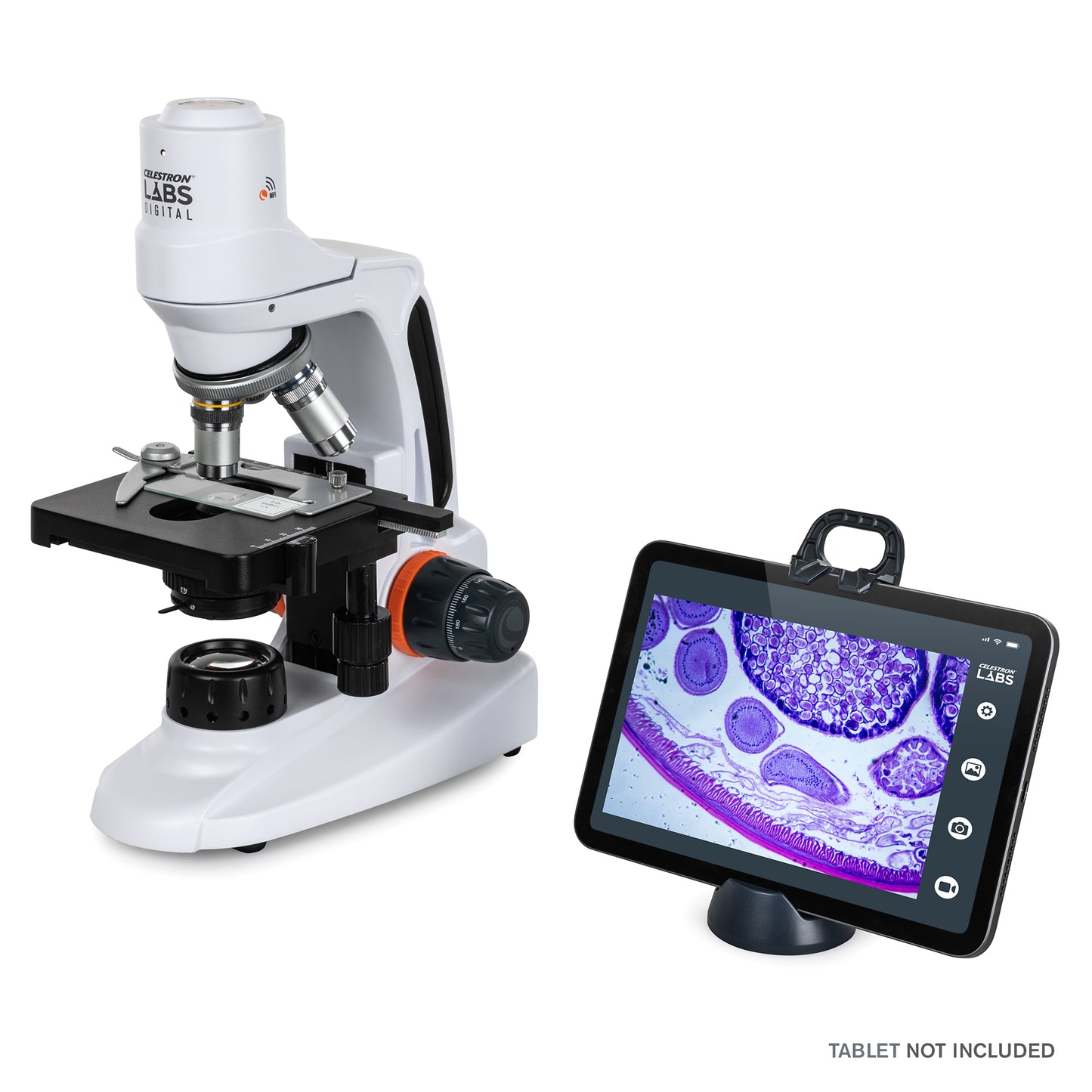

You can use your smart device however it feels most comfortable. Hold it in your hand or secure it to the included stand using the adjustable strap for added stability.

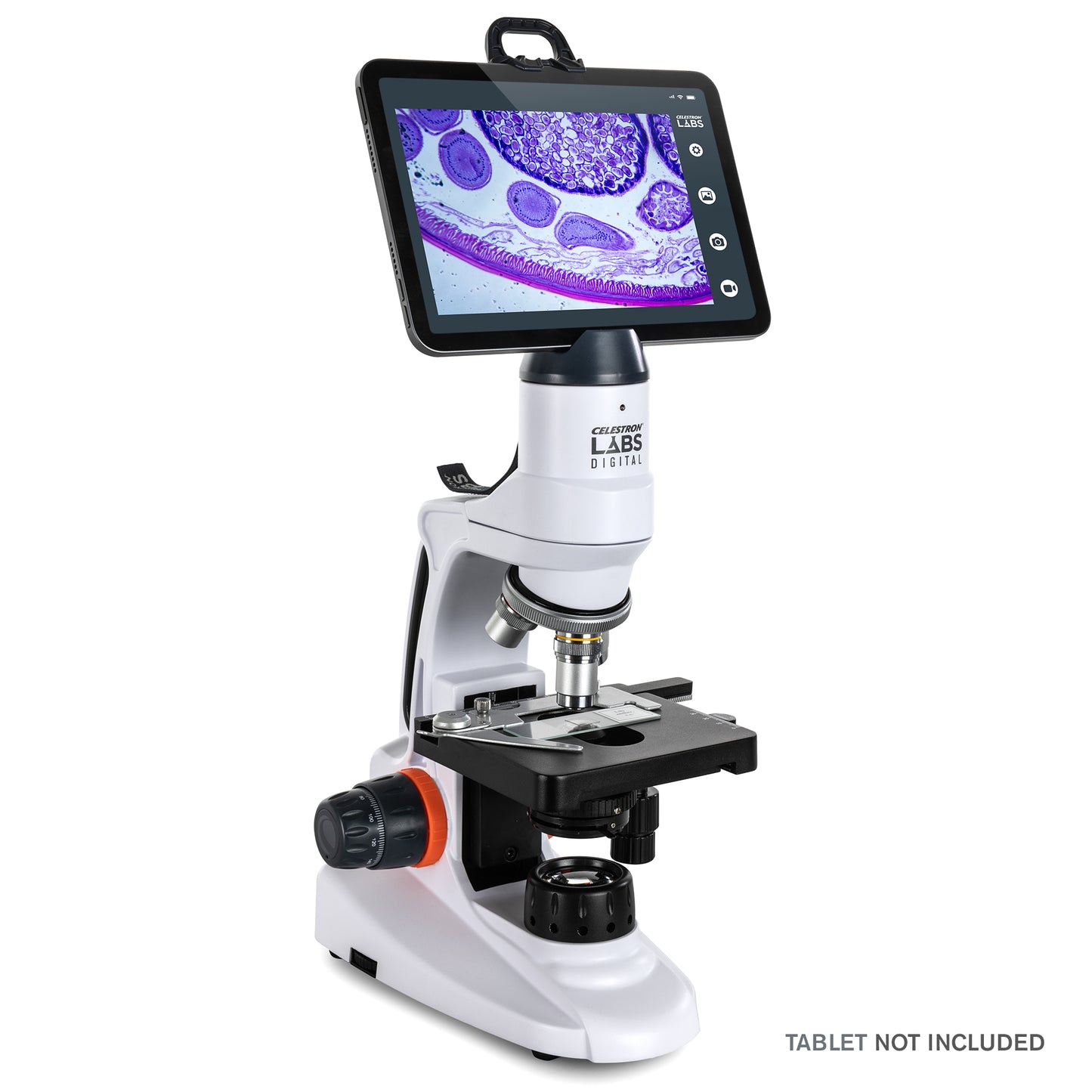

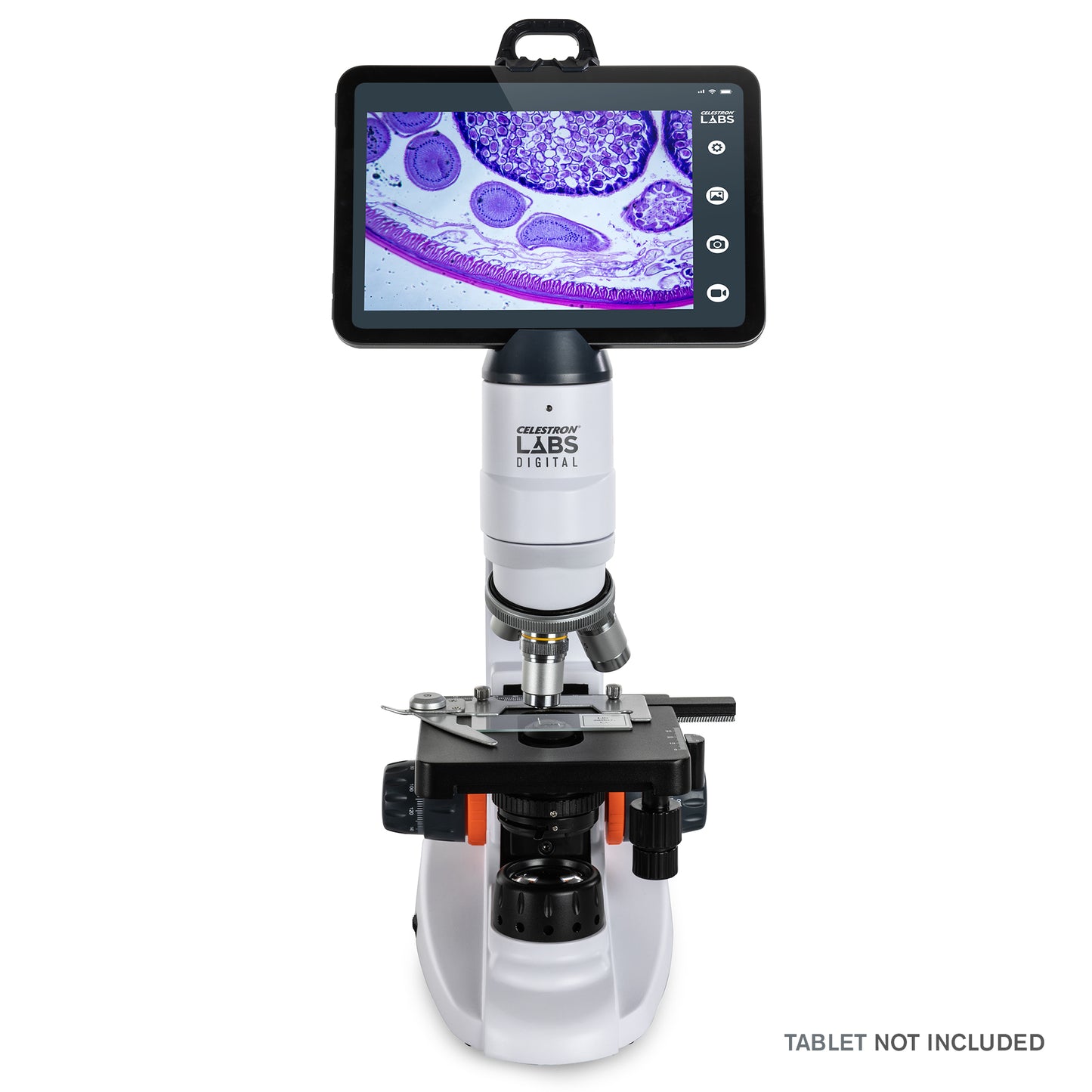

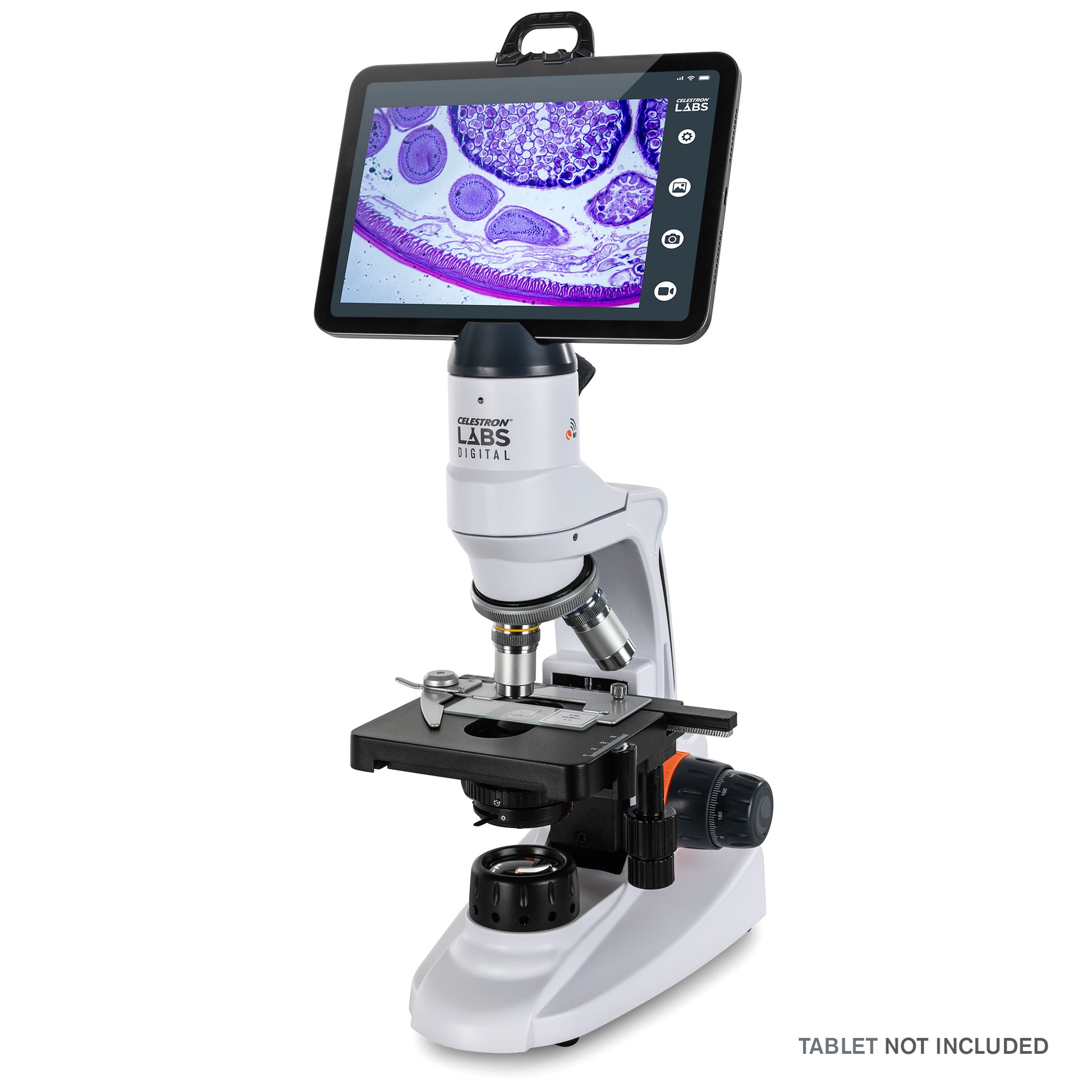

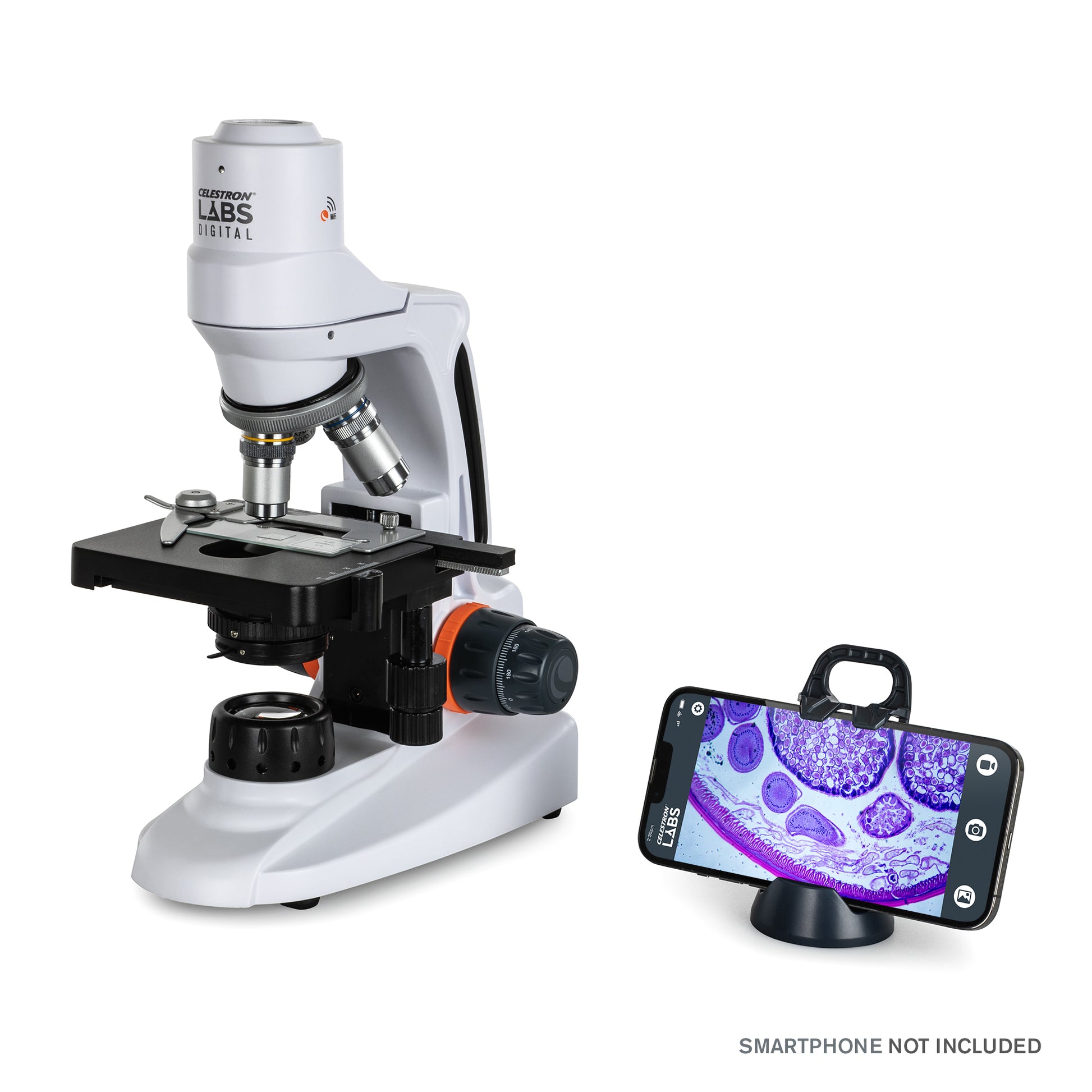

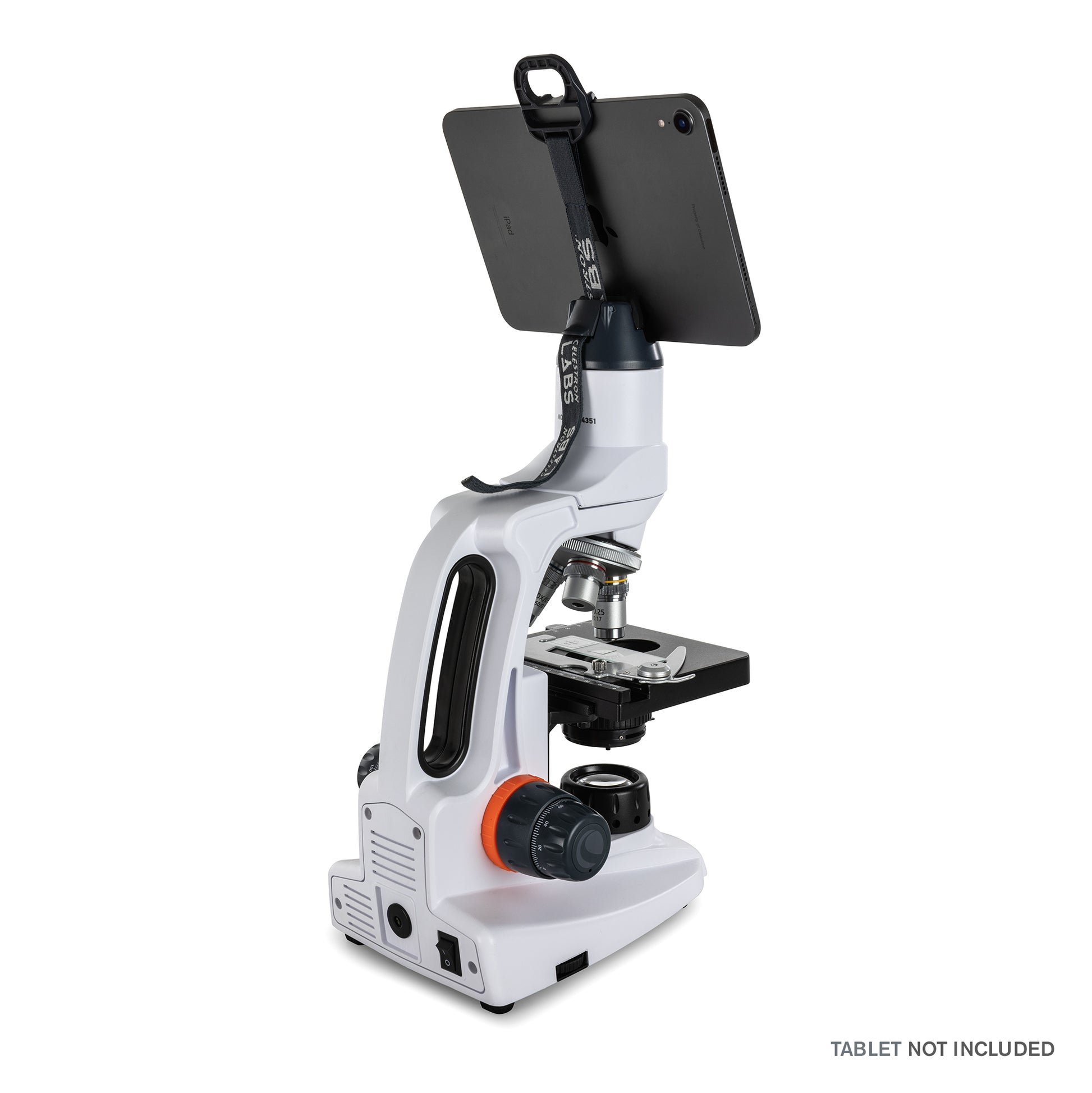

The patent pending stand attaches magnetically to the top of the microscope in place of the traditional eyepiece, keeping your device centered and aligned. If you prefer, you can also place the stand directly on your tabletop beside the microscope.
Whether you’re working solo or in a group, this flexible setup makes it easier to demonstrate concepts, document findings, and share observations without rotating users through a single eyepiece.

Engineered for Portability and Performance

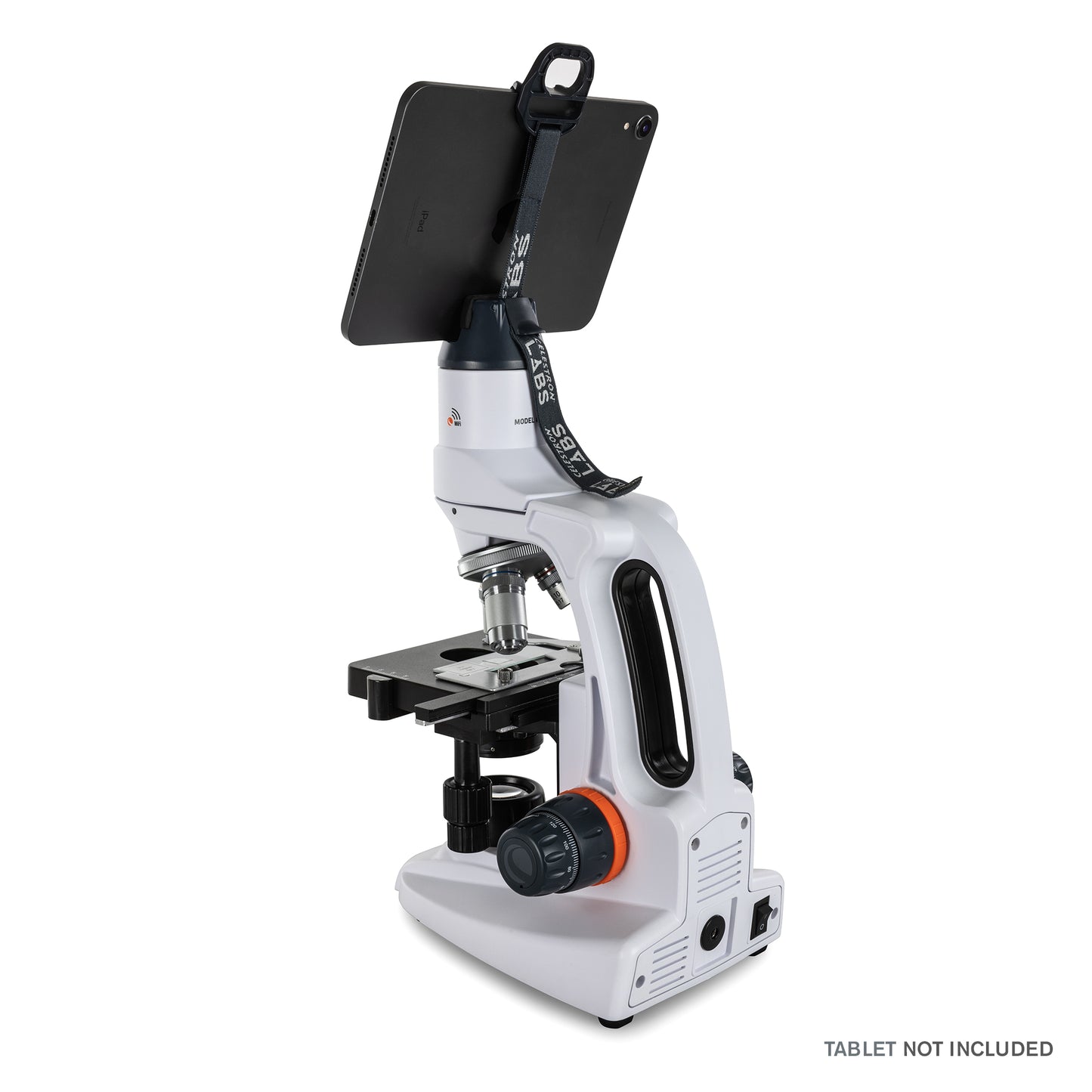

A durable housing and integrated carry handle make the microscope easy to move between classrooms, labs, and workspaces. At just 56 ounces, it’s light enough for students and hobbyists to transport comfortably.

Power the microscope using the included universal AC adapter for extended sessions. Five prepared slides and a calibration ruler are included so you can begin observing and measuring immediately.

Download the app, power on the microscope, and start exploring.
