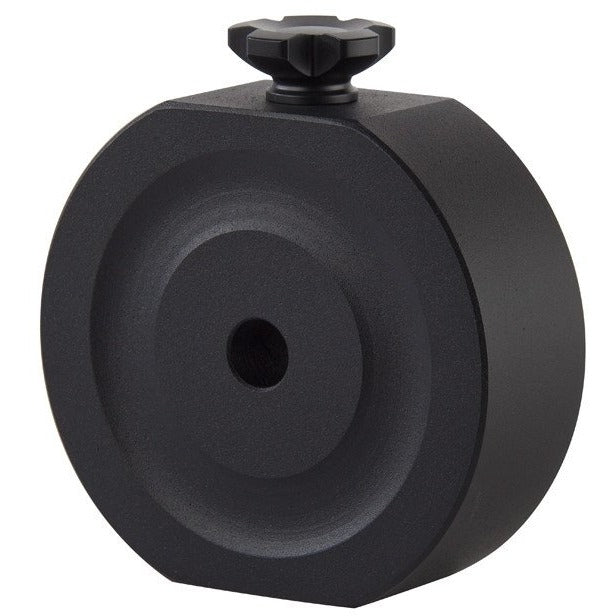

Counterweight, 17 lbs for 19mm Shaft
Counterweight, 17 lbs for 19mm Shaft

Counterweight, 17 lbs for 19mm Shaft

$129.95

In Stock
Item #: 94189 / 94189-CGL
Free Ground Shipping!
Contiguous USA only
Find a Retailer
  • Designed to fit 19mm counterweight shafts
  • Sturdy lock knob keeps the counterweight safely on the shaft
  • For full list of compatible telescopes, please see description section below

Overview

  • Designed to fit 19mm counterweight shafts
  • Sturdy lock knob keeps the counterweight safely on the shaft
  • For full list of compatible telescopes, please see description section below

Customers Also Purchased

Description

Whether you are enhancing your mount setup or buying a replacement part, the counterweight is there to balance weight of the optical tube (OTA) and accessories on the other side of the Right Accession (RA Axis). If you add accessories to your telescope setup (ie camera, guider, etc), you may need to add additional counterweights to off-set the weight.

If the balance is off on one-side or the other, it can do damage to your OTA and setup, the motor gear, and/or may have issues with tracking accuracy.  You can add additional counterweights to improve the responsiveness to the system by reducing the mass inertia, though you need to make sure you space out the counterweights along the shaft to reduce damage to your setup and that it is cost-effective and worth it for your telescope setup.

This counterweight comes with a sturdy knurled knob locks to safely hold in place on the counterweight shaft. The counterweight is designed to fit 19mm counterweight shafts

Below are the counterweights that go with each one of our recent Celestron mounts.

Counterweight Model Weight (pounds) Shaft-hole size (approx) Mount
94203 11 lbs 0.75" Advanced VX/CG-5/CGEM/CGEM II/CGX

94186

11.8 lbs.

0.75"

Advanced VX/CG-5/CGEM/CGEM II/CGX

94286

12 lbs.

0.75"

Advanced VX/CG-5/CGEM/CGEM II/CGX

94189

17 lbs.

0.75"

Advanced VX/CG-5/CGEM/CGEM II/CGX

94187

22 lbs

1.25"

CGX-L/CGE Pro/ CGEM DX




Mount Counterweight Model(s)

Advanced VX

94186, 94189, 94203, 94286

Advanced CG-5

94186, 94189, 94203, 94286

CGEM

94186, 94189, 94203, 94286

CGEM II

94186, 94189, 94203, 94286

CGX

94186, 94189, 94203, 94286

CGX-L

94187

CGE Pro 94187

CGEM DX

94187

Specifications

General
Weight: 17 lbs (7.71 kg)
Counterweight Shaft Diameter: 19mm (0.74")
Counterweight Compatibility: Advanced VX | CG-5 | CGEM | CGEM II | CGX
