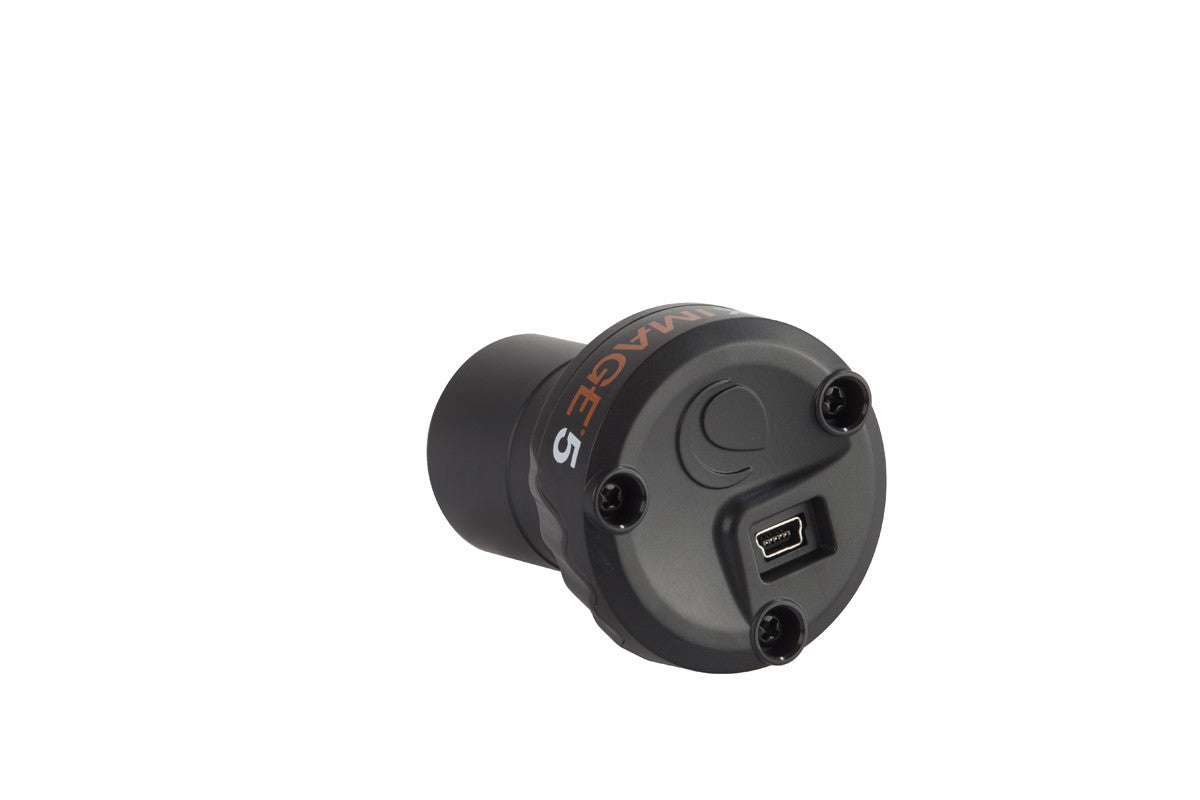

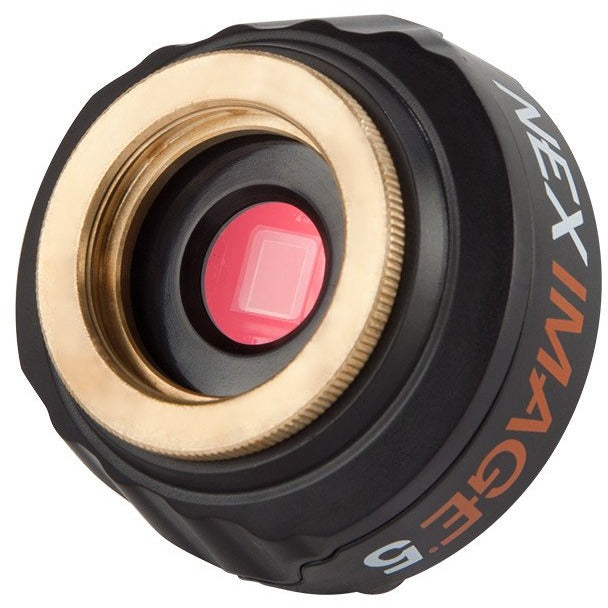

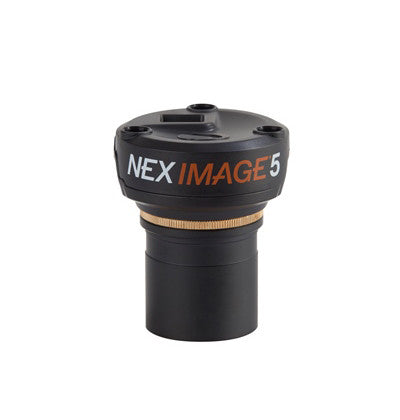

NexImage 5 Solar System Imager (5MP)
Item #: 93711- 5 Mega pixel color sensor with ON Semiconductor’s breakthrough low-noise CMOS imaging technology to dramatically reduce image noise levels
- Software automatically filters out video frames most affected by poor atmospheric conditions, leaving only the sharpest, clearest frames to be stacked and aligned into one high-quality image
- View and capture live video on your computer
- Manually adjust gain, contrast, exposure time, frame rate and color saturation using your PC
- Machined aluminum 1.25" adapter barrel with C-threads for direct threaded connection to almost any telescope
Overview
- 5 Mega pixel color sensor with ON Semiconductor’s breakthrough low-noise CMOS imaging technology to dramatically reduce image noise levels
- Software automatically filters out video frames most affected by poor atmospheric conditions, leaving only the sharpest, clearest frames to be stacked and aligned into one high-quality image
- View and capture live video on your computer
- Manually adjust gain, contrast, exposure time, frame rate and color saturation using your PC
- Machined aluminum 1.25" adapter barrel with C-threads for direct threaded connection to almost any telescope
Customers Also Purchased
Description
Celestron offers a wide array of high-quality, affordable, and user-friendly planetary imagers! Click here to learn more on how to choose an imager that’s right for you.
Capture high-resolution planetary, lunar and solar images with almost any telescope with the NexImage 5 Solar System Imager. Combined with the included software package, NexImage 5 brings out tremendous detail and produces images rivaling those taken with astronomical cameras costing hundreds more.

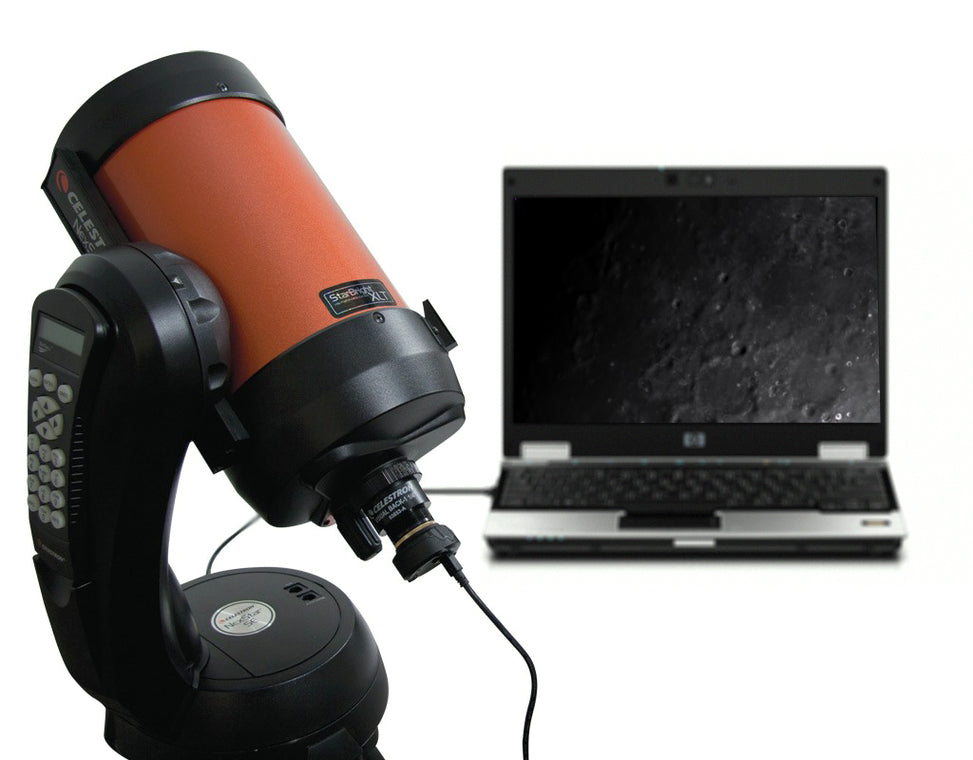

Simply point your telescope at the Moon or a planet and record a quick video. The included software analyzes each frame of video, throws away the fuzzy ones, and perfectly aligns the remaining images. The result is a bright, clear image with the maximum amount of color and detail. NexImage 5 is a great way to get started with astroimaging, especially if you live in a light-polluted area. If you can see the planet the sky, you can image it with NexImage 5!
- 5 Mega pixel color sensor with ON Semiconductor’s breakthrough low-noise CMOS imaging technology to dramatically reduce image noise levels
- Small pixel sizes provide sub arc-second planetary detail with most telescopes
- View and capture live video on your computer
- Software automatically filters out video frames most affected by poor atmospheric conditions, leaving only the sharpest, clearest frames to be stacked and aligned into one high-quality image
- Camera control software allows you to manually change the gain, contrast, exposure time, frame rate and color saturation using your PC
- Selectable “region of interest” sub-framing
- Machined aluminum 1.25" adapter barrel with C-threads for direct threaded connection to almost any telescope
- Can be used with standard 1.25” eyepiece filters
- Integrated IR-cut optical window
- 2x2 and 4x4 binning capability in color
- Progressive scan
- Includes USB 2.0 cable
Specifications
| General | |
|---|---|
| Color or Monochrome: | Color |
| Power Requirements: | Powered by USB |
| USB Cable: | USB 2.0, cable 5' long |
| Camera Housing Construction: | ABS with aluminum connection ring |
| Optical Window: | IR Cutoff Filter |
| Pixel Size: | 2.2 micron square |
| A/D Conversion: | 12 bit |

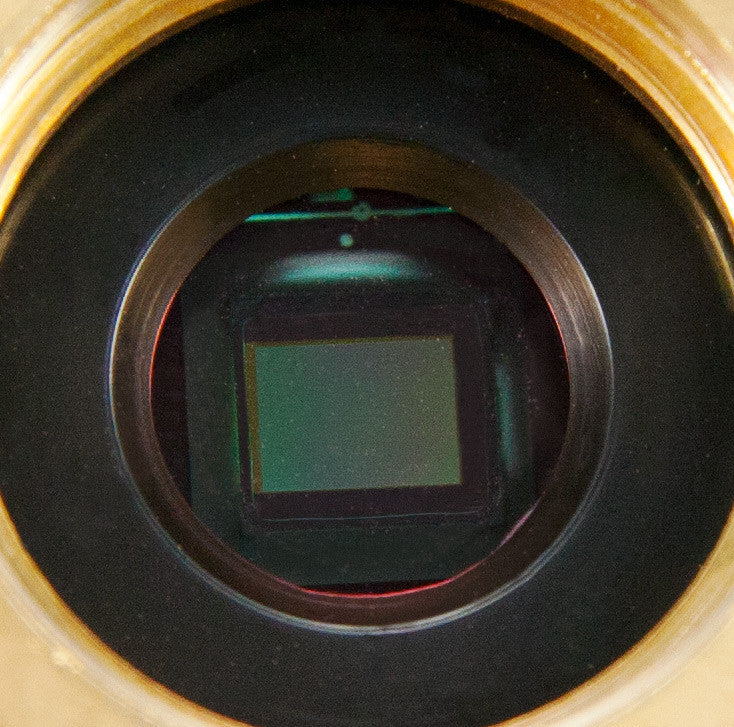

| Imaging Sensor: | ON Semi MT9P031 CMOS |
| Camera Resolution (in Pixels): | 2592 x 1944 |
| Total Number of Pixels: | 5.0 MP |
| Mounting: | 1.25" barrel and C-thread |
| Sensor Size: | 5.7mm x 4.28mm (0.22" x 0.16") |
| Shutter: | Electronic Rolling Shutter |
| Software Compatibility: | iCap | IC Capture | DirectShow |
| Operating Environment: | -22° - 158°F (-30° - 70°C) |
| Sub-Framing: | Hardware Selectable |
| Exposure Range: | 0.0001 to 30 seconds |
| Frames per second: | 6.23 to 52.37 at the lowest resolution, 0.71 to 5.99 at the highest resolution |
| Back Focus Distance: | 13.1mm (0.51") with nosepiece, 10.6mm (0.41") without nosepiece |
| Recommended/Best Usage: | Getting started in lunar, solar, and planetary imaging |
| Weight: | 2.0 oz (57 g) |
| Included Items: | NexImage 5 camera body | 1.25" nosepiece | Software CD| USB cable | Instruction manual |
Accessories
WINNER
WINNER
WINNER
WINNER
WINNER
SELLER
WINNER
SELLER
SELLER
SELLER
SELLER
SELLER
SHIPPING
SELLER
SELLER
SHIPPING
SELLER
SHIPPING
SHIPPING
SELLER
SHIPPING
SHIPPING
SHIPPING
SELLER
SHIPPING
SHIPPING
SHIPPING
SHIPPING
SELLER
SHIPPING
SHIPPING
SHIPPING
FAQ
My NexImage camera is properly connected to my Windows 10 computer, but the camera is not recognized by the iCap software. How can I get iCap to recognize the camera so I can use the software to capture images?
For PCs running Windows 10 versions 1803 or newer, there is a camera privacy setting that grants permission to apps to access the camera. This needs to be enabled in Windows. To do this, go to Settings > Privacy > Camera, and turn on “Allow apps to access your camera.”
Are the NexImage cameras Mac OS compatible?
Yes, using the open source software provided under the Support & Downloads tab on this webpage. oaCapture is used for camera control, and Lynkeos is used for image processing. Please consult the “Open Source Software Installation – Mac OS” document also found under the Support & Downloads tab.
Support & Downloads
| Manuals: |
|---|
| NexImage 5 Instruction Manual (item# 93711) |
| Software & Firmware: |
| iCap 2.5 Camera Control Software |
| Lynkeos, Image Processing Software for Mac OS X |
| NexImage Windows Driver |
| Other Product Files: |
| Open Source Software installation - Mac OS |
