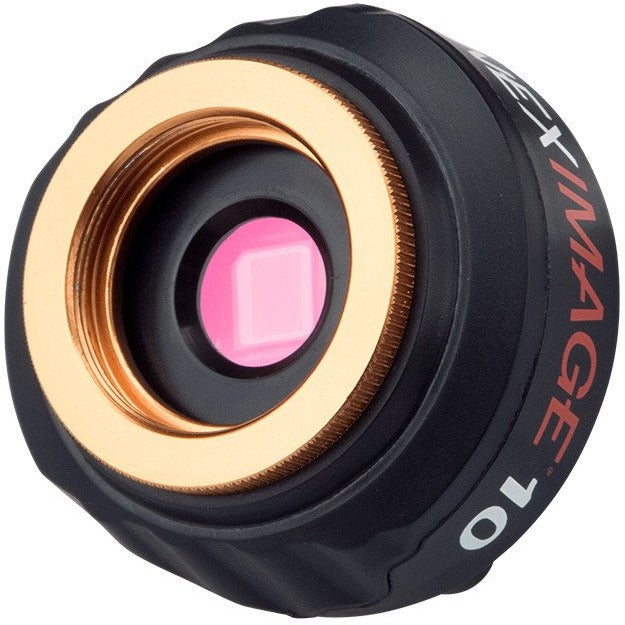

NexImage 10 Solar System Color Imager
Item #: 93708 / 93708-CGL- Easy to use color camera, provides live video for quick focusing
- 3856 x 2764-pixel array with small pixels, provides high resolution images
- Includes Celestron iCap software for image capture and export
- Includes RegiStax stacking software that automatically filters the best images, aligns, and stacks your planetary images
Overview
- Easy to use color camera, provides live video for quick focusing
- 3856 x 2764-pixel array with small pixels, provides high resolution images
- Includes Celestron iCap software for image capture and export
- Includes RegiStax stacking software that automatically filters the best images, aligns, and stacks your planetary images
Customers Also Purchased
Description
You have your new telescope and have observed Saturn and Jupiter. Now you're ready to take the next step and start imaging them. But where do you begin? The Celestron NexImage 10 Solar System Imager is the perfect solution.
The NexImage 10 is our first NexImage series camera to incorporate USB 3.0 SuperSpeed! With more than ten million pixels coupled with high speed data transmission, the NexImage 10 produces clear and detailed planetary images like never before. With super small 1.67µm pixels, smaller telescopes with shorter focal lengths are still going to yield tremendous planetary detail. It’s one of the best valued, high-res USB 3 planetary imaging cameras on the market. Best of all, NexImage includes everything you need to get started, including Celestron's easy-to-use software suite. The iCap capture software and RegiStax stacking software are the same powerful programs included with Celestron's high-end Skyris cameras.
Simply point your telescope at the Moon or a planet and record a quick video. The software analyzes each frame of video, throws away the fuzzy ones, and perfectly aligns the remaining images. The result is a bright, clear image with the maximum amount of color and detail. NexImage 10 is a great way to get started with astroimaging, especially if you live in a light-polluted area. If you can see the planet in the sky, you can image it with NexImage 10!
Now Mac OS X compatible! Refer to oaCapture and Lynkeos downloads in the support section of this page.
Specifications
| General | |
|---|---|
| Color or Monochrome: | Color |
| Power Requirements: | Powered by USB |
| USB: | High-Speed USB 3.0, cable 10' length |
| Camera Housing Construction: | ABS with aluminum connection ring |
| Optical Window: | IR Cutoff Filter |
| Pixel Size: | 1.67 Micron Square |
| A/D Conversion: | 12 bit |
| Imaging Sensor: | ON Semi MT9J003 CMOS |
| Camera Resolution (in Pixels): | 3856 x 2764 |
| Total Number of Pixels: | 10.7 MP |
| Mounting: | 1.25" barrel and C-thread |
| Sensor Size: | 6.4mm x 4.6mm (0.25" x 0.18") |
| Shutter: | Electronic Rolling Shutter |
| Software Compatibility: | iCap | IC Capture | DirectShow | oaCapture |
| Operating Environment: | -40° - 104°F (-40° - 40°C) |
| Sub-Framing: | Hardware ROI |
| Exposure Range: | 0.0001 to 10 seconds |
| Frames per second: | Up to 94 (7 fps at full frame) |
| Back Focus Distance: | 13.1mm (0.51") with nosepiece, 10.6mm (0.41") without nosepiece |
| Recommended/Best Usage: | Getting started in lunar, solar, and planetary imaging |
| Weight: | 2.0 oz (57 g) |
| Included Items: | NexImage 10 camera body| 1.25" nosepiece| Software CD| USB cable| Instruction manual |
Accessories
SELLER
WINNER
WINNER
SELLER
WINNER
WINNER
SELLER
SELLER
SELLER
SELLER
SELLER
SELLER
SELLER
SELLER
SELLER
SELLER
SELLER
SELLER
SELLER
SELLER
SELLER
SELLER
SELLER
SELLER
SELLER
SELLER
SELLER
SELLER
FAQ
My NexImage camera is properly connected to my Windows 10 computer, but the camera is not recognized by the iCap software. How can I get iCap to recognize the camera so I can use the software to capture images?
For PCs running Windows 10 versions 1803 or newer, there is a camera privacy setting that grants permission to apps to access the camera. This needs to be enabled in Windows. To do this, go to Settings > Privacy > Camera, and turn on “Allow apps to access your camera.”
Are the NexImage cameras Mac OS compatible?
Yes, using the open source software provided under the Support & Downloads tab on this webpage. oaCapture is used for camera control, and Lynkeos is used for image processing. Please consult the “Open Source Software Installation – Mac OS” document also found under the Support & Downloads tab.
Support & Downloads
| Manuals: |
|---|
| NexImage 10 Manual |
| Software & Firmware: |
| iCap 2.5 Camera Control Software |
| Lynkeos, Image Processing Software for Mac OS X |
| NexImage Windows Driver |
| Other Product Files: |
| Open Source Software installation - Mac OS |
