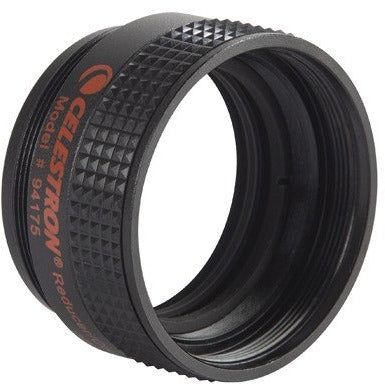

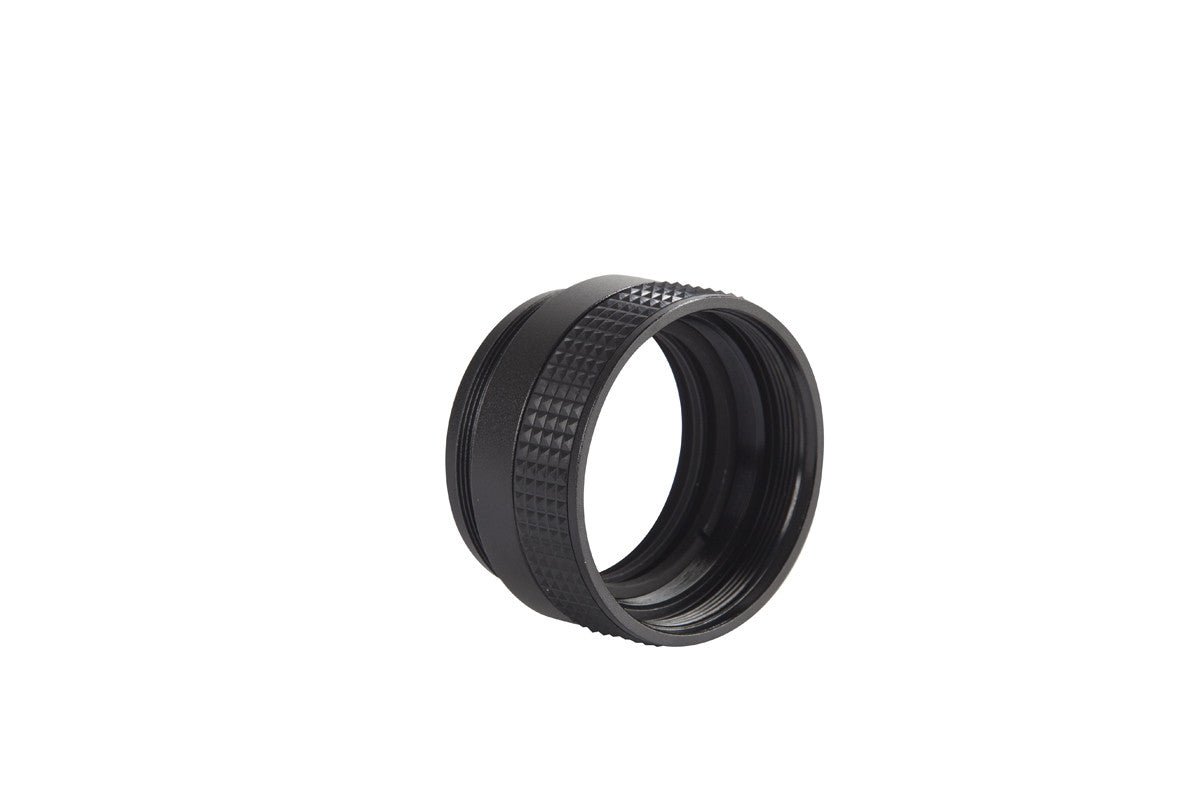

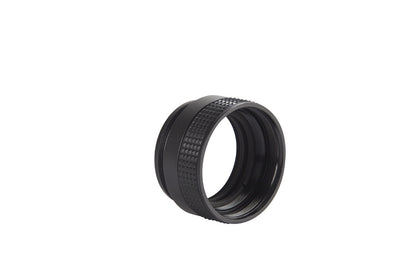

Reducer - Corrector
Item #: 94175 / 94175-CGL- Unique focal reducer and field corrector lens accessory
- Reduces the focal length and f/ ratio of your Schmidt-Cassegrain telescope by 37%
- Provides a dual focal ratio instrument, without sacrificing image quality
- Compatible with all Schmidt-Cassegrain telescopes (see compatible list in description)
Overview
- Unique focal reducer and field corrector lens accessory
- Reduces the focal length and f/ ratio of your Schmidt-Cassegrain telescope by 37%
- Provides a dual focal ratio instrument, without sacrificing image quality
- Compatible with all Schmidt-Cassegrain telescopes (see compatible list in description)
Customers Also Purchased
Description
Imagine having two telescopes in one — a long focal length instrument for lunar and planetary work and a short focal length scope for deep sky observing and astrophotography. With the Celestron Reducer/Corrector Lens, that’s precisely what you get.
Achieve shorter focal length
Explicitly designed for Celestron Schmidt-Cassegrain telescopes, this unique lens reduces your telescope’s focal length and f/ ratio by 37%, turning your long focal length telescope into a fast, short focal length instrument. A f/10 focal ratio now achieves a f/6.3, while an f/11 focal ratio now achieves a f/7. For visual use, this means you get lower power with the same eyepiece and a wider field of view. Photographically you also get a wider field and much shorter exposures.
How to Use
The Reducer/Corrector is easy to install by threading the unit onto the rear cell of your Schmidt-Cassegrain telescope (or the reducer plate of the C11 and C14). Once installed, you can add additional accessories like T-Adapters, 1.25” Visual Back, Star Diagonal, or Off-Axis Guider.
The Reducer/Corrector can also be used for terrestrial digiscoping. The faster f/ratio allows you to use slower film or shoot in lower light level situations and still properly expose your subject. This fully multi-coated lens provides maximum light transmission with near full-field illumination.
Place the plastic covers on the lens when not in use to reduce the dust collection.
Body
The lens is housed in machined aluminum for are machined aluminum black anodized. The internal surfaces are blackened and glare-threaded to provide the highest contrast. The lens has a knurled surface, providing a tremendous gripping surface for threading/unthreading.
Due to the design, the Reducer/Corrector lens does diminish a small amount of field curvature common to all Schmidt Cassegrain telescopes but does not eliminate it. High power views will provide flatter fields all the way to the edge, both visually and photographically.
Reducer/Corrector Compatibility List
| Compatible | |
|---|---|
| C5 - Found in StarSense Explorer, Astro Fi WiFi, NexStar SE, and Advanced VX |
C6 |
|
C8 |
C9.25 |
|
C11 |
C14 |
| Not Compatible | |
|---|---|
| EdgeHD optical tubes | Maksutov-Cassegrain optical tubes |
| Refractor optical tubes | Newtonian Reflector optical tubes |
Specifications
| General | |
|---|---|
| Lens Coating: | Fully Multi-coated |
| Material: | Machined aluminum |
| Compatible: | Celestron Schmidt-Cassegrain telescopes (C5, C6, C8, C9.25, C11, C14) | No EdgeHD tubes |
| Dimensions: | 56mm (2.2") in diameter, 34mm (1.34") long |
| Weight: | 4.3 oz (121.90 g) |
