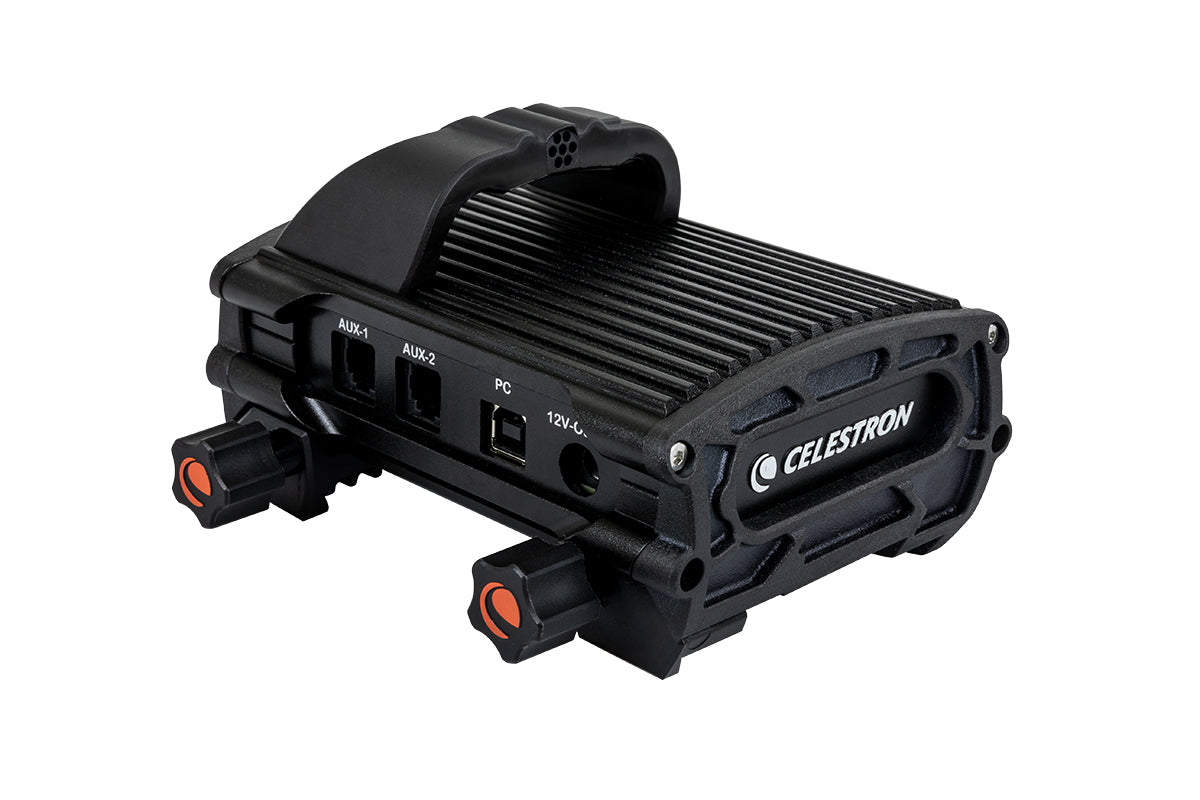

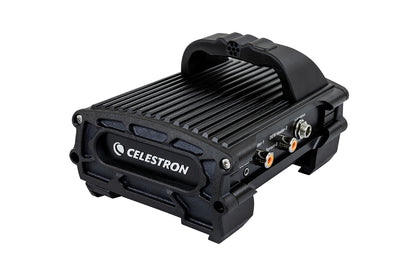

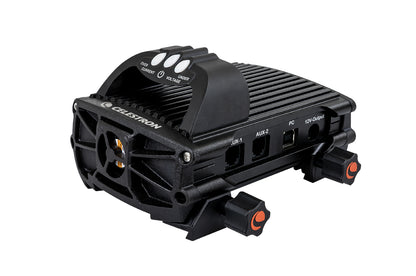

Used - Smart DewHeater Controller 2X
Item #: U94035 / 94035-CGLPlease note: This is a gently used item. For complete product details, specs, and extras, please visit the original product page.
Gently Used, Fully Trusted
At Celestron, we believe the cosmos should be within everyone’s reach. That’s why our gently used items have been rigorously inspected and are in full working order—even if they show a few signs of past adventures. When you purchase this product, you’ll also enjoy the same comprehensive warranty as our new items, giving you confidence and peace of mind to explore the night sky.
Clear skies and happy stargazing!
Overview
Please note: This is a gently used item. For complete product details, specs, and extras, please visit the original product page.
Gently Used, Fully Trusted
At Celestron, we believe the cosmos should be within everyone’s reach. That’s why our gently used items have been rigorously inspected and are in full working order—even if they show a few signs of past adventures. When you purchase this product, you’ll also enjoy the same comprehensive warranty as our new items, giving you confidence and peace of mind to explore the night sky.
Clear skies and happy stargazing!
Customers Also Purchased
Description
Specifications
| General | |
|---|---|

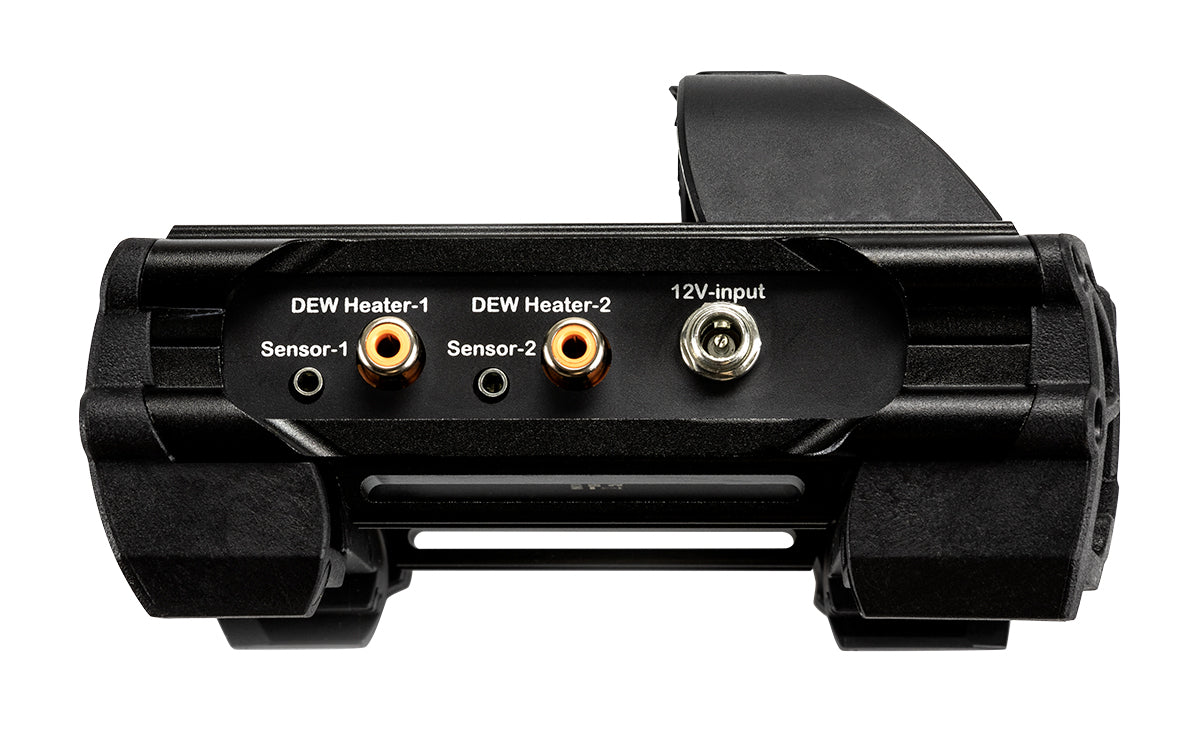

| Dew Heater Ports: | 2x ports, RCA jack, compatible with Celestron Dew Heater Rings and other 3rd party vendor heating straps |
| Thermistor ports: | 2x ports (one for each dew heater port), 2.5mm Audio jack, compatible with Celestron Dew Heater Rings and optional Celestron Thermistor |
| 12V DC power output port: | 12V DC barrel connector jack (5.5mm/2.1mm), 7A max |

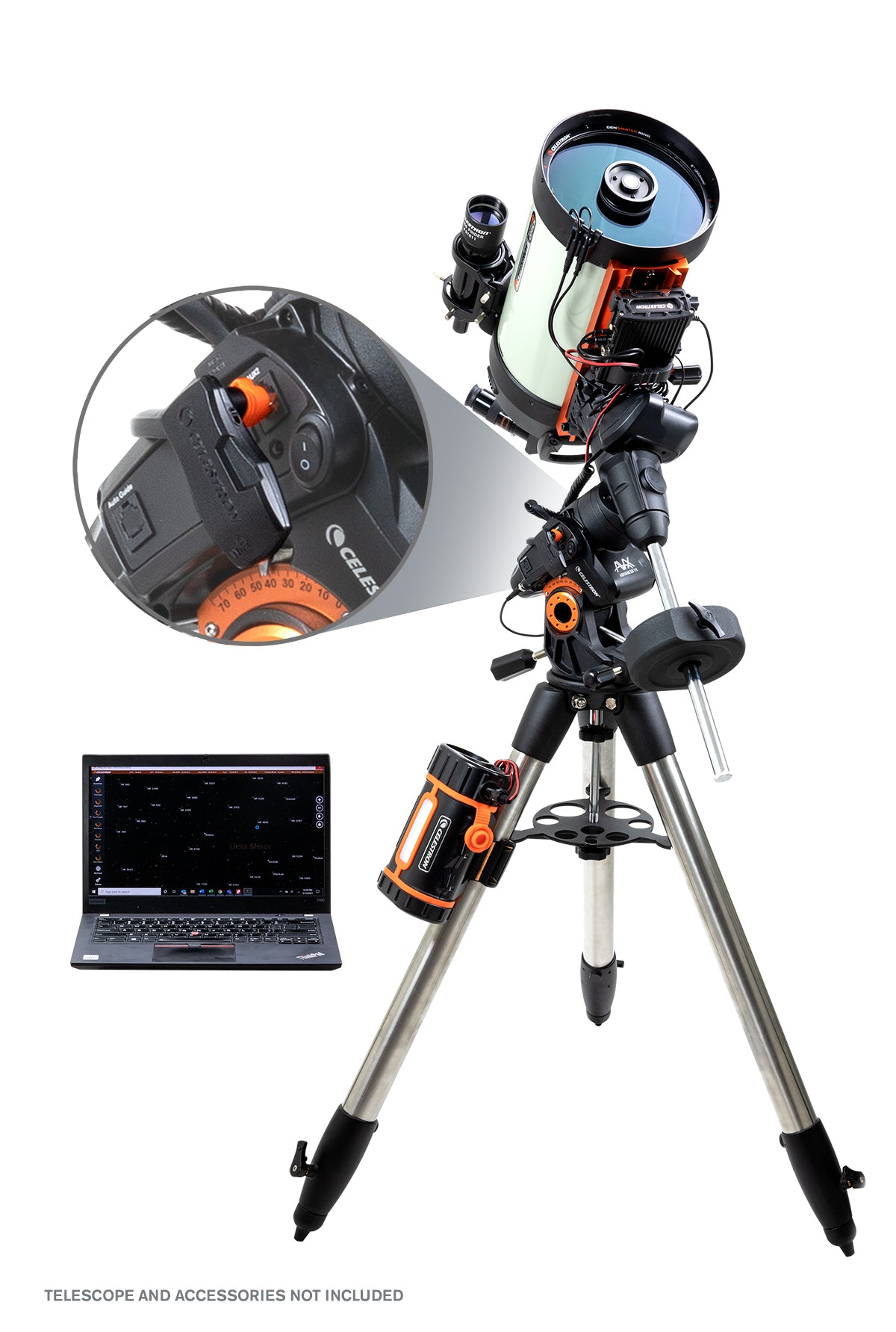

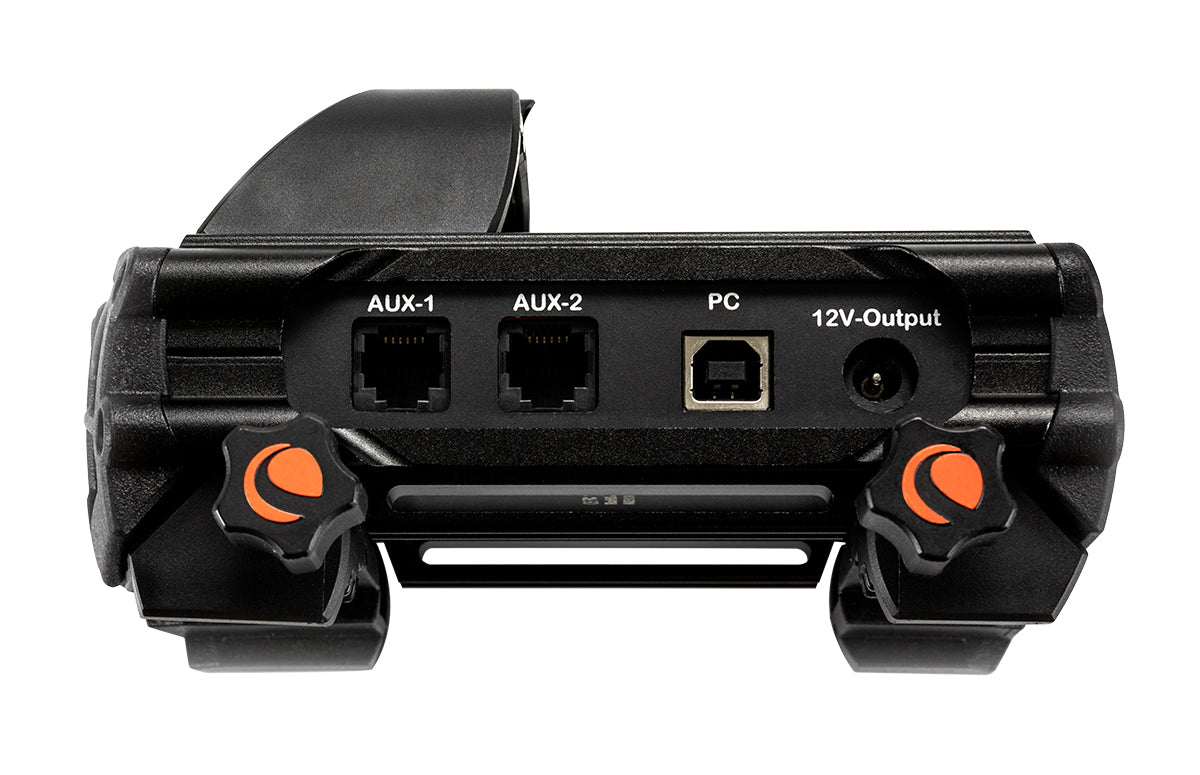

| AUX ports: | 2x ports, allows connection to Celestron mounts for HC control, also allows connection of optional accessories |

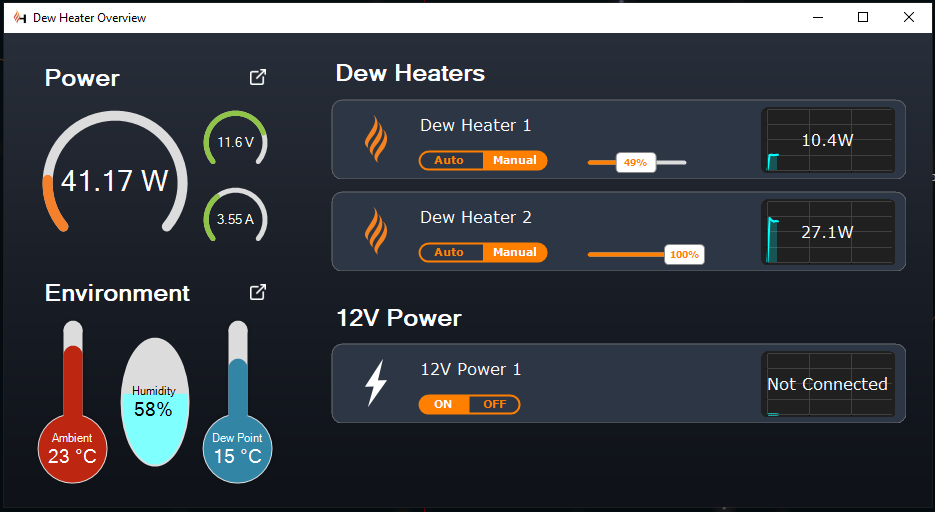

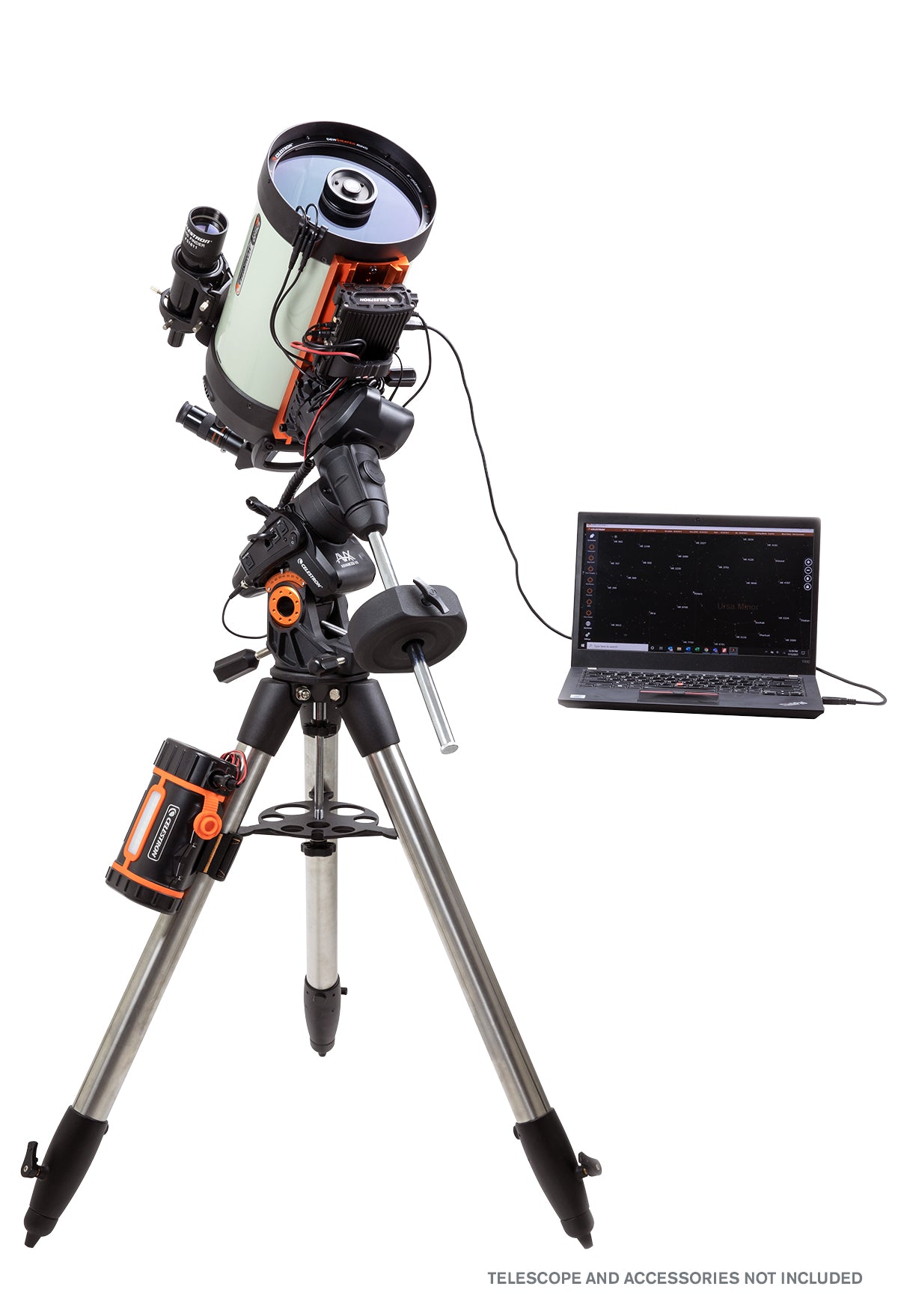

| PC port: | USB 2.0 Type B, allows connection to PC for control with CPWI |
| 12V DC power input port: | Threaded barrel connector jack, 5.5mm/2.1mm, 10A max input |

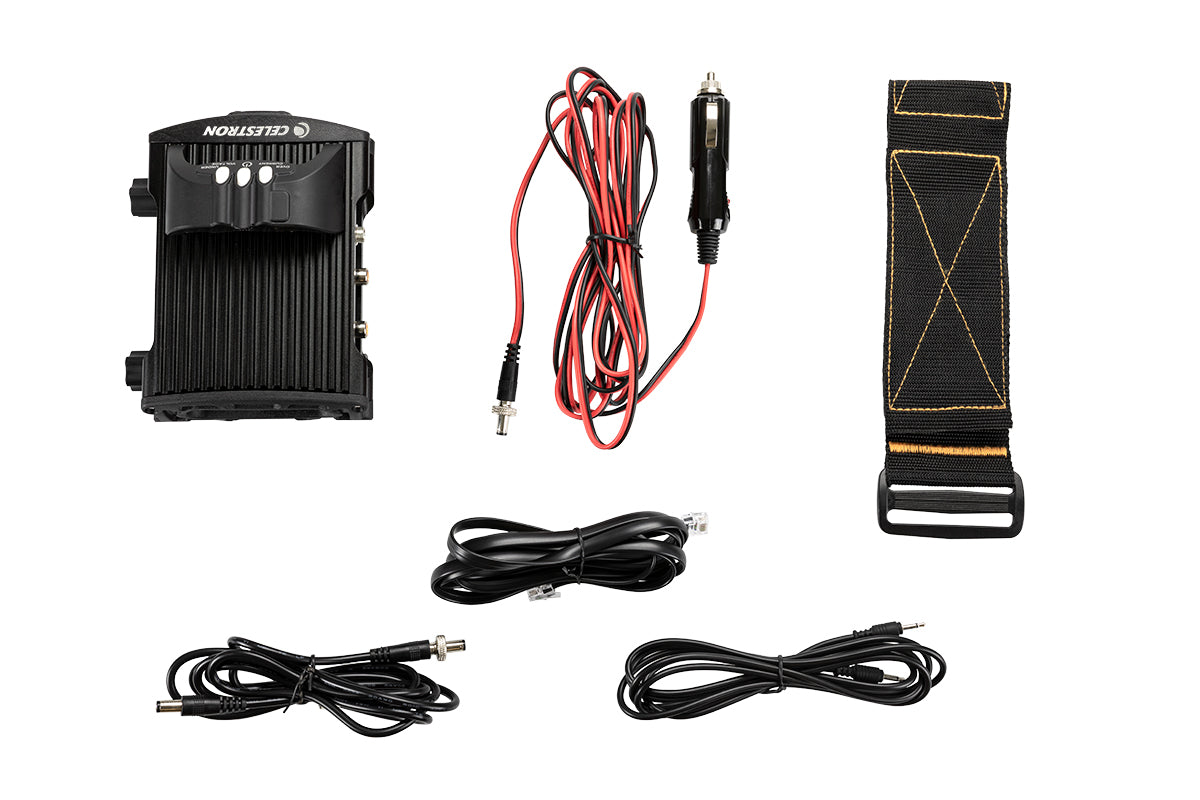

| Included power cable: | Cigarette lighter plug on one end, threaded barrel connector on other end (5.5mm/2.1mm) , 10 ft. long, 10A fuse protected |
| Environmental sensor: | Measures ambient temperature and humidity, integrated into enclosure "bridge" to thermally isolate |

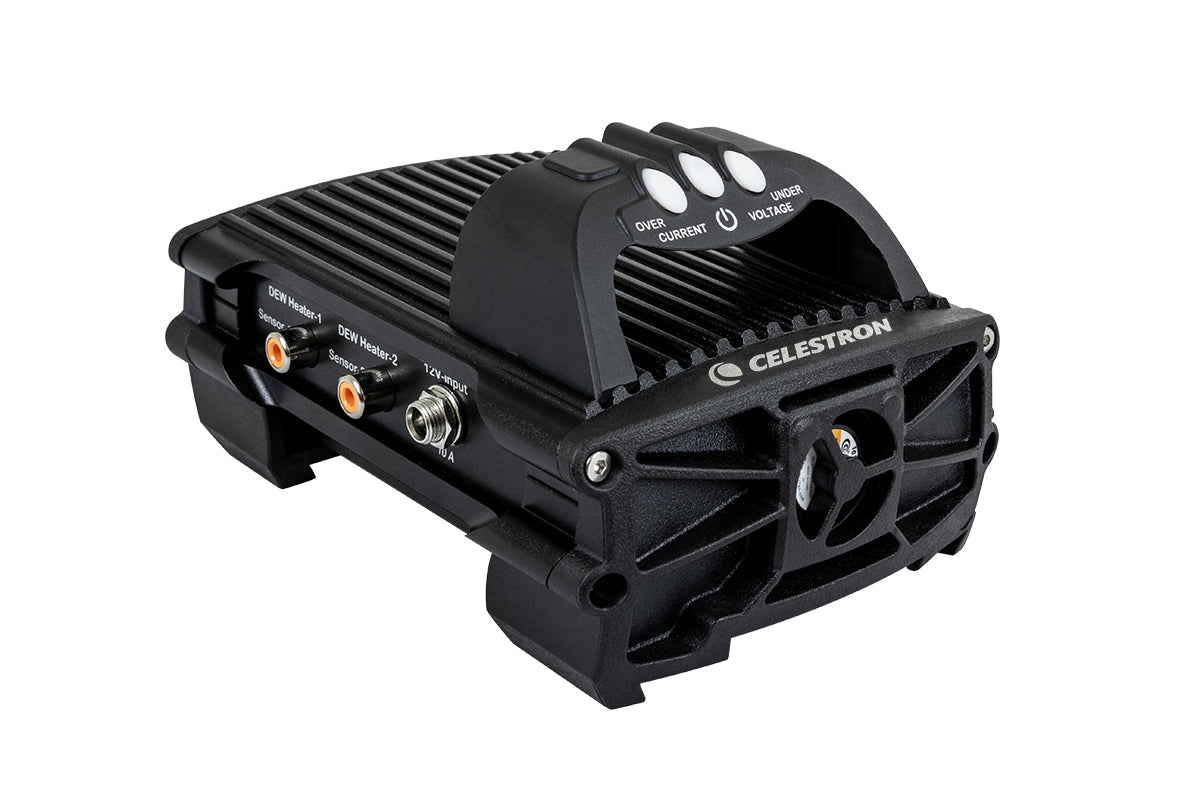

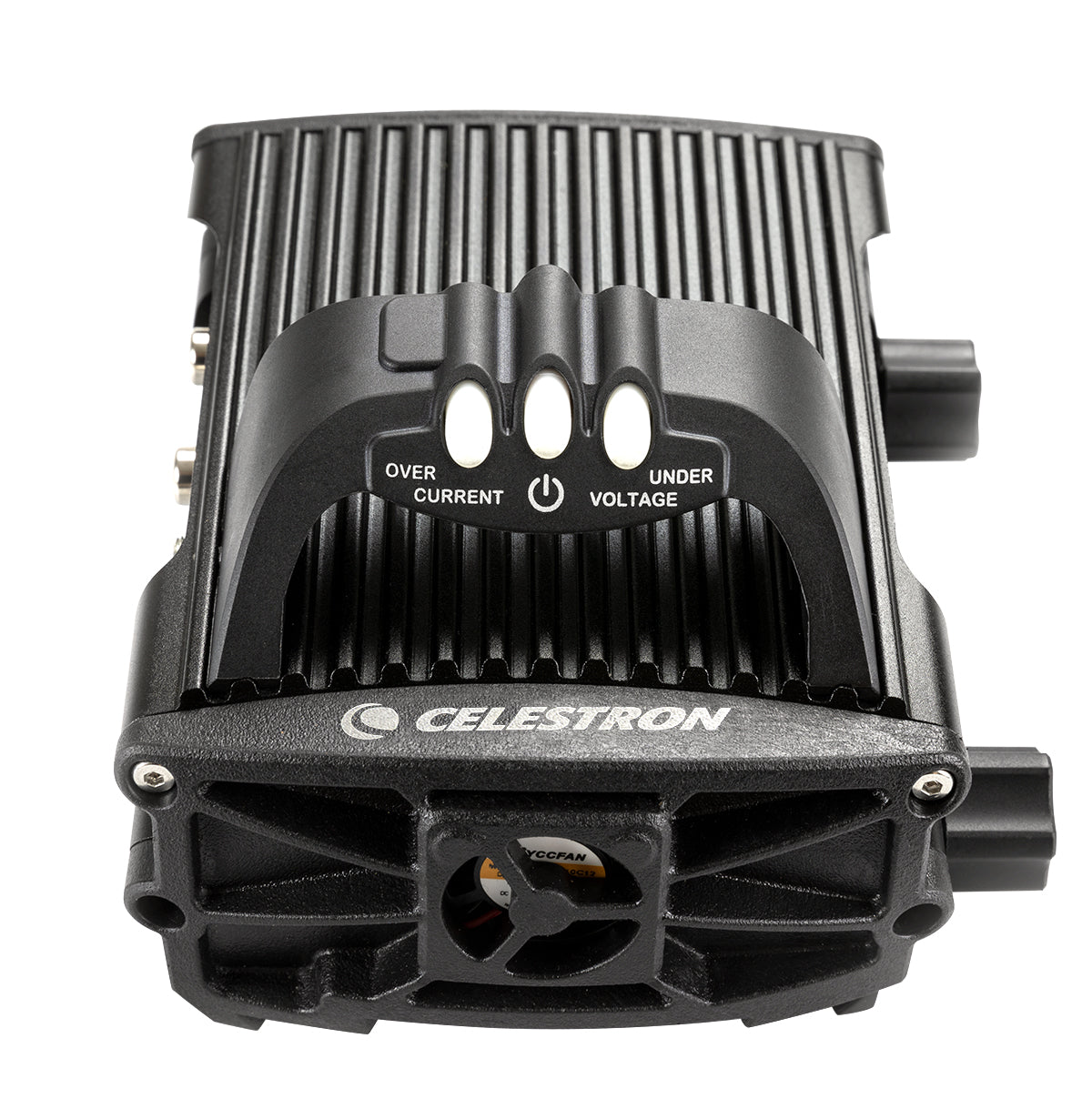

| Enclosure construction: | Aluminum with integrated fan |

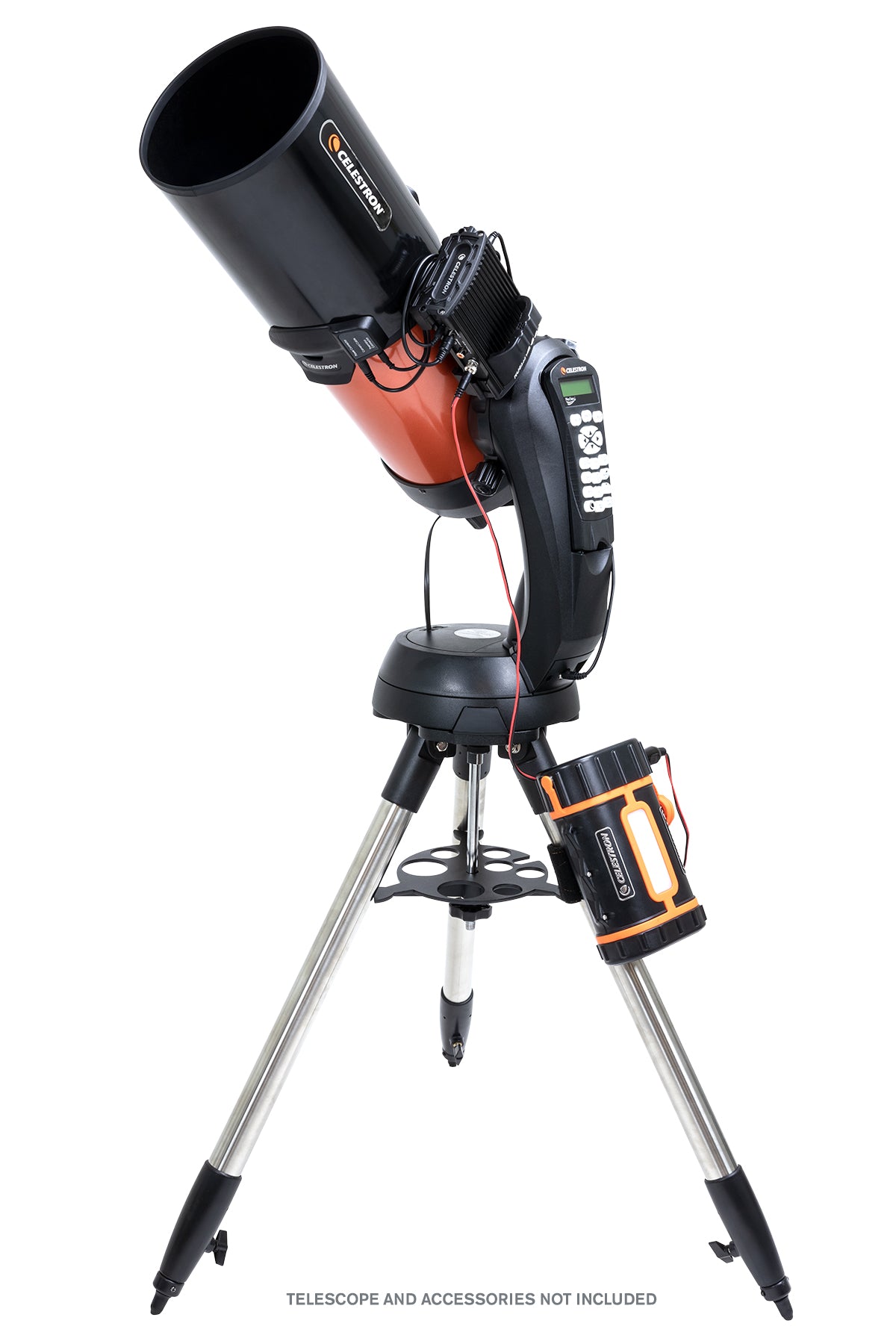

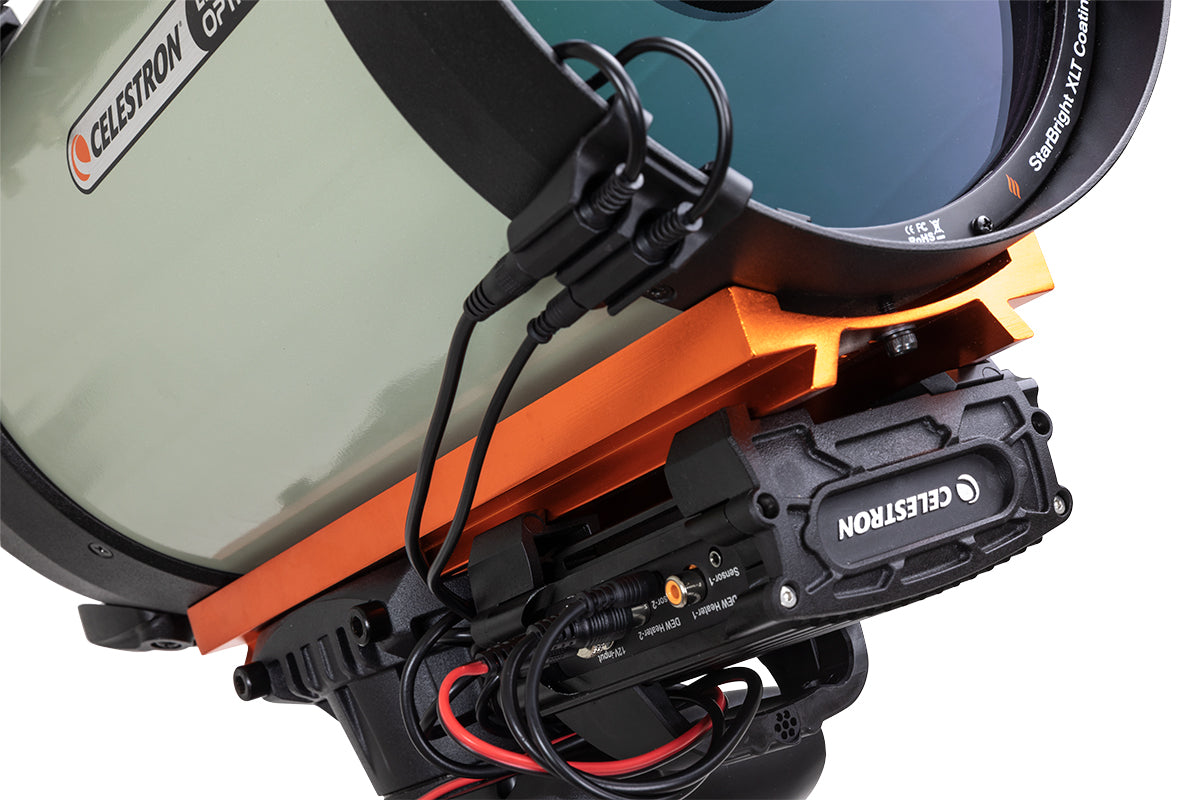

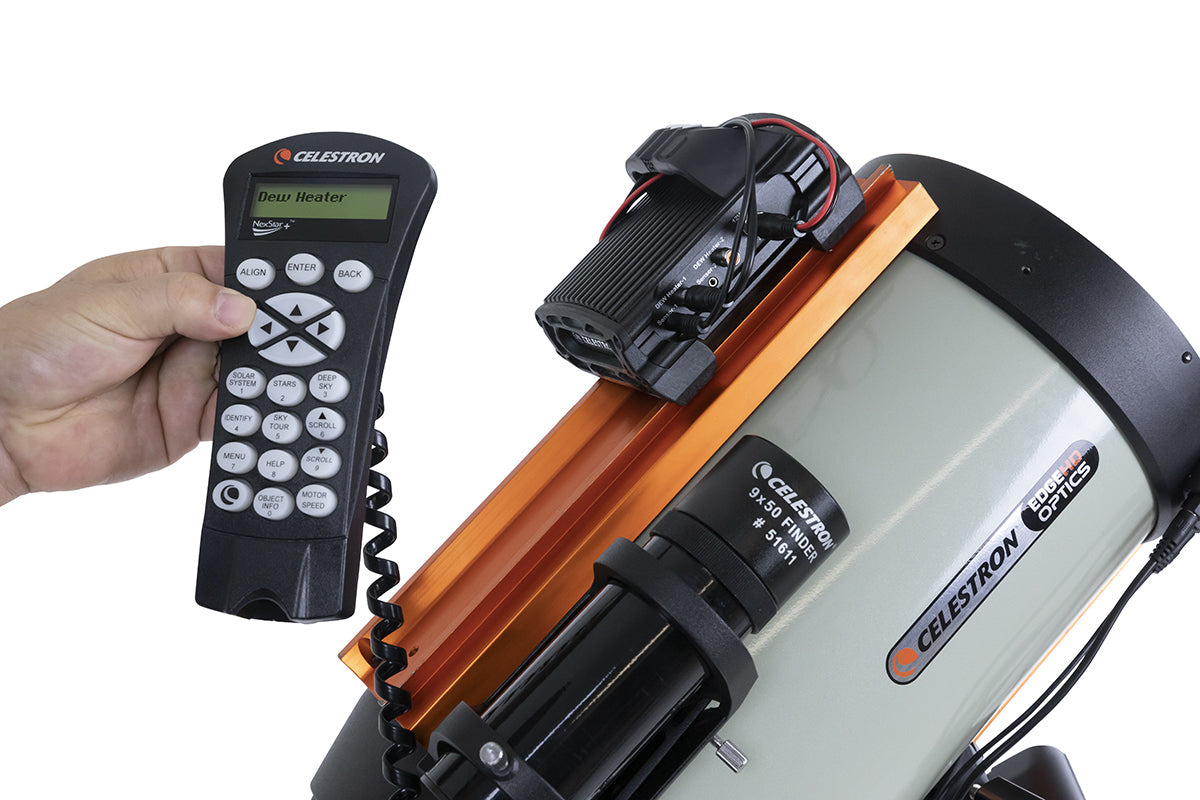

| Clamp: | Fits CG-5 and CGE dovetails (also can be strapped onto tripod leg) |
| Electronic protections: | Fuse protected, reverse polarity protected, low voltage cut-off |
| Weight: | 1.2 lbs (544.3 g) |
| Dimensions: | 139.7mm x 114.3mm x 82.55mm (5.5" x 4.5" x 3.25") |
Videos
Accessories
SELLER
SELLER
SELLER
SELLER
SELLER
SELLER
SELLER
SELLER
SELLER
SELLER
SELLER
SELLER
SELLER
SELLER
SELLER
SELLER
FAQ
Celestron offers several options for powering the Smart DewHeater Controllers. Which one is best for my setup?
To answer this question, you’ll need to consider how, where, and for how long you want to run your system. Here are some critical specifications to evaluate for each potential power source.
- “Max current output” indicates the maximum amount of current that the power source can deliver to the controller. The current draw from all the devices you connect to the controller should not exceed this amount.
- For batteries only: The “battery capacity” specification will help you determine how long a given battery will run your system. First, add up the total power (in watts) required by all your devices. Then, multiply that number by the number of hours you wish to power the setup. If the result exceeds the battery capacity listed below, you’ll need a larger battery or more than one battery to last through the night. (Note: This specification does not apply to AC adapters, as their capacity is unlimited when they are connected to an AC power outlet.)
#18763 PowerTank Lithium LT
- Max current output: 3A
- Battery capacity: 73.3Wh
#18771 PowerTank Lithium
- Max current output: 3A
- Battery capacity: 84.4Wh
#18768 PowerTank Lithium Pro
- Max current output: 10A
- Battery capacity: 158.7Wh
#18774 PowerTank
- Max current output: 10
- Battery capacity: 84Wh
#18777 PowerTank 17
- Max current output:10A
- Battery capacity: 204Wh
#18778 AC Adapter – 2A
- Max current output: 2A
#18780 AC Adapter – 5A
- Max current output: 5A
I understand that the printed instruction manual I received in the box may not be the latest version. Where can I find the most recent version?
You can always find up-to-date instruction manuals for any Celestron product by visiting the product’s page on www.celestron.com. Manuals are in the Support & Downloads tab. For your convenience, here are direct links to the controllers’ manuals:
• Smart DewHeater Controller 2x
• Smart DewHeater and Power Controller 4x
The threaded plug on my older Celestron AC Adapter - 5A (#18780) does not thread onto the controller's threaded power jack, and the power input becomes intermittent as a result. What is the problem?
The older Celestron AC Adapter - 5A has a slightly different thread specification for the plug and will not connect properly to the Smart DewHeater Controller's power input jack as a result. We recommend purchasing a new Celestron AC Adapter - 5A, as the newer model has compatible threads on its plug.
Is there an ASCOM driver available for the Smart DewHeater Controllers?
Not currently but we expect to have one within the next couple of months. Please check back soon.
