Ultima Edge - 10mm Flat Field Eyepiece - 1.25"
Item #: 93450 / 93450-CGL- 10mm parfocal Ultra Flat Field eyepiece designed for 1.25” focusers
- Incredibly crisp views from center to edge of field
- Fully multi-coated, 5-element lens design for excellent light transmission
- Wide 60° apparent field of view allows you to see more of the night sky
- Generous 16mm eye relief and fold-down rubber eyeguard for comfortable viewing with or without eyeglasses
- Molded rubber grip ring for non-slip handling
Overview
- 10mm parfocal Ultra Flat Field eyepiece designed for 1.25” focusers
- Incredibly crisp views from center to edge of field
- Fully multi-coated, 5-element lens design for excellent light transmission
- Wide 60° apparent field of view allows you to see more of the night sky
- Generous 16mm eye relief and fold-down rubber eyeguard for comfortable viewing with or without eyeglasses
- Molded rubber grip ring for non-slip handling
Customers Also Purchased
Description
See the whole picture with Ultima Edge. These flat-field eyepieces were designed to provide an ultra-sharp, ultra-clear, crisp image from the center all the way to the edge of the field of view. The 10mm Ultima Edge eyepiece features fully multi-coated optics and a 5-element lens design, maximizing light transmission.
The Ultima Edge 10mm has a generous 60° field of view, perfect for viewing planets, stars and the Moon’s surface. This eyepiece provides high power magnification, perfect for those times when you want to get up close to smaller objects.
Body

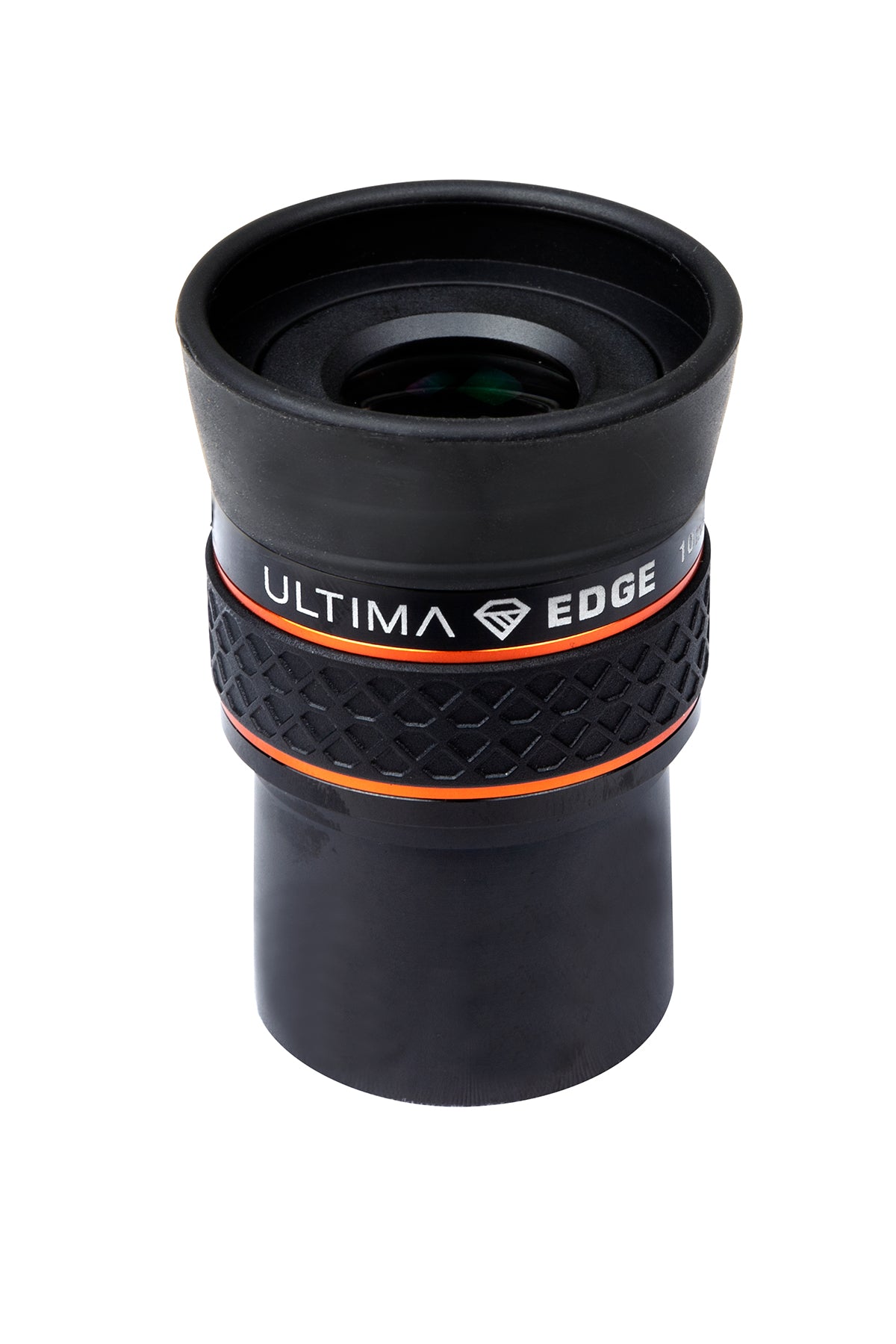

The 10mm Ultima Edge eyepiece’s main housing is machined from high grade aluminum with a black anodized outer surface.
Its 1.25" mounting barrel is internally threaded to accept threaded to accept standard 1.25" filters and adapters. It is compatible with 1.25” star diagonals and focusers. On the exterior of the eyepiece, you will find a uniquely designed, molded rubber grip ring for non-slip handling during observing sessions, even if you have gloves on.

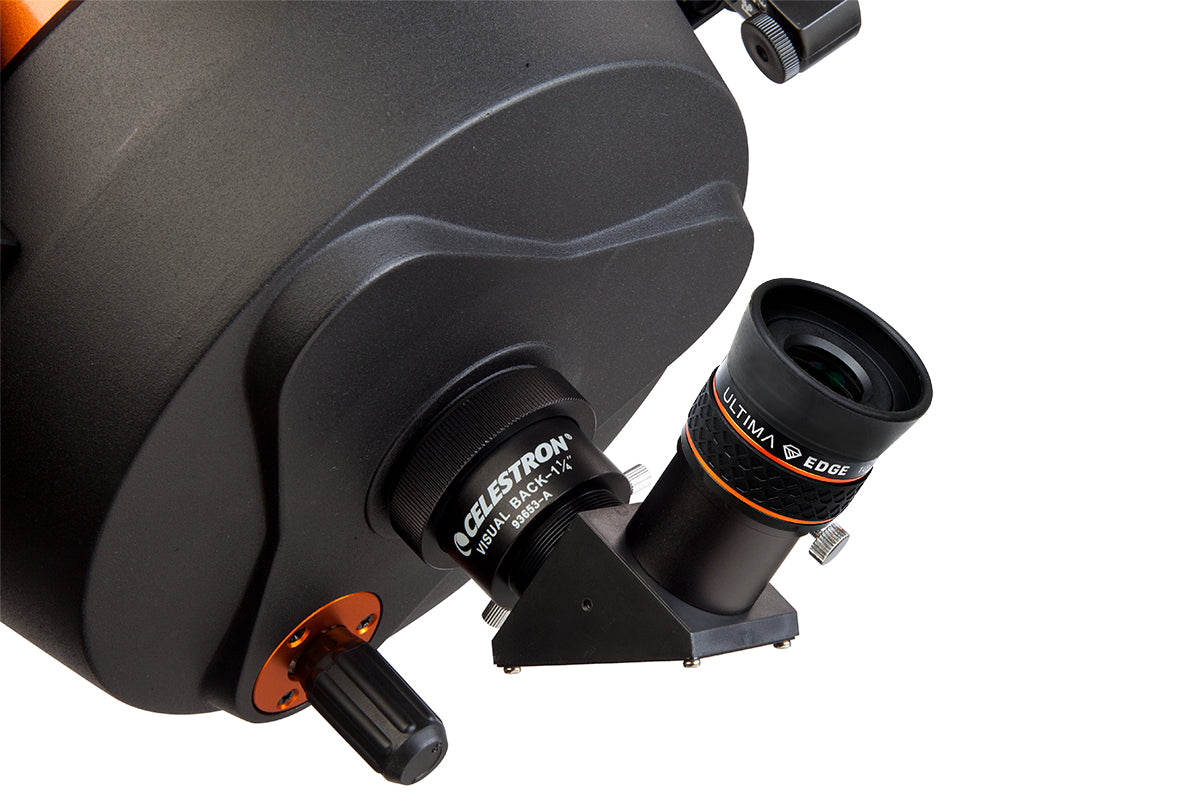

Viewing through the 10mm Ultima Edge eyepiece is comfortable for both eyeglass wearers and non-eyeglass wearers alike, thanks to the fold-down rubber eyecups and long eye relief of 16mm.
Convenient Parfocal Design
Spend more time observing and less time focusing! When you buy more than one Ultima Edge eyepiece, you can switch between them without refocusing thanks to their parfocal design. With a set of Ultima Edge eyepieces in your kit, you'll be able to enjoy a wide range of high and low power views—and switch between them quickly and easily. That means you can get more out of every observing session.
NOTE: Ultima Edge 24mm is not a parfocal eyepiece. Ultima Edge eyepieces are only parfocal within the line and do not maintain focus when swapped with parfocal eyepieces from other brands or series.Specifications
| General | |
|---|---|
| Barrel Size Diameter: | 1.25" (31.75mm) |
| Focal Length: | 10mm (.39") |
| Field Stop Diameter: | 14.7mm (.58") |
| Apparent Field of View: | 60° |
| Optical Design: | Proprietary |
| Number of Lens Elements: | 5 |
| Number of Lens Groups: | 4 |
| Optical Coatings: | Fully Multi-Coated |
| Eye Relief: | 16mm (.63") |
| Parfocal: | Yes |
| Filter Threads: | 1.25" (M28.5X0.6) |
| Eye Guard: | Yes- roll up |
| Body Material: | Aluminum |
| Weight: | 2.82 oz (80 g) |
| Dimensions: | 58mm x 36.5mm x 36.5mm (2.28" x 1.44" x 1.44") |
