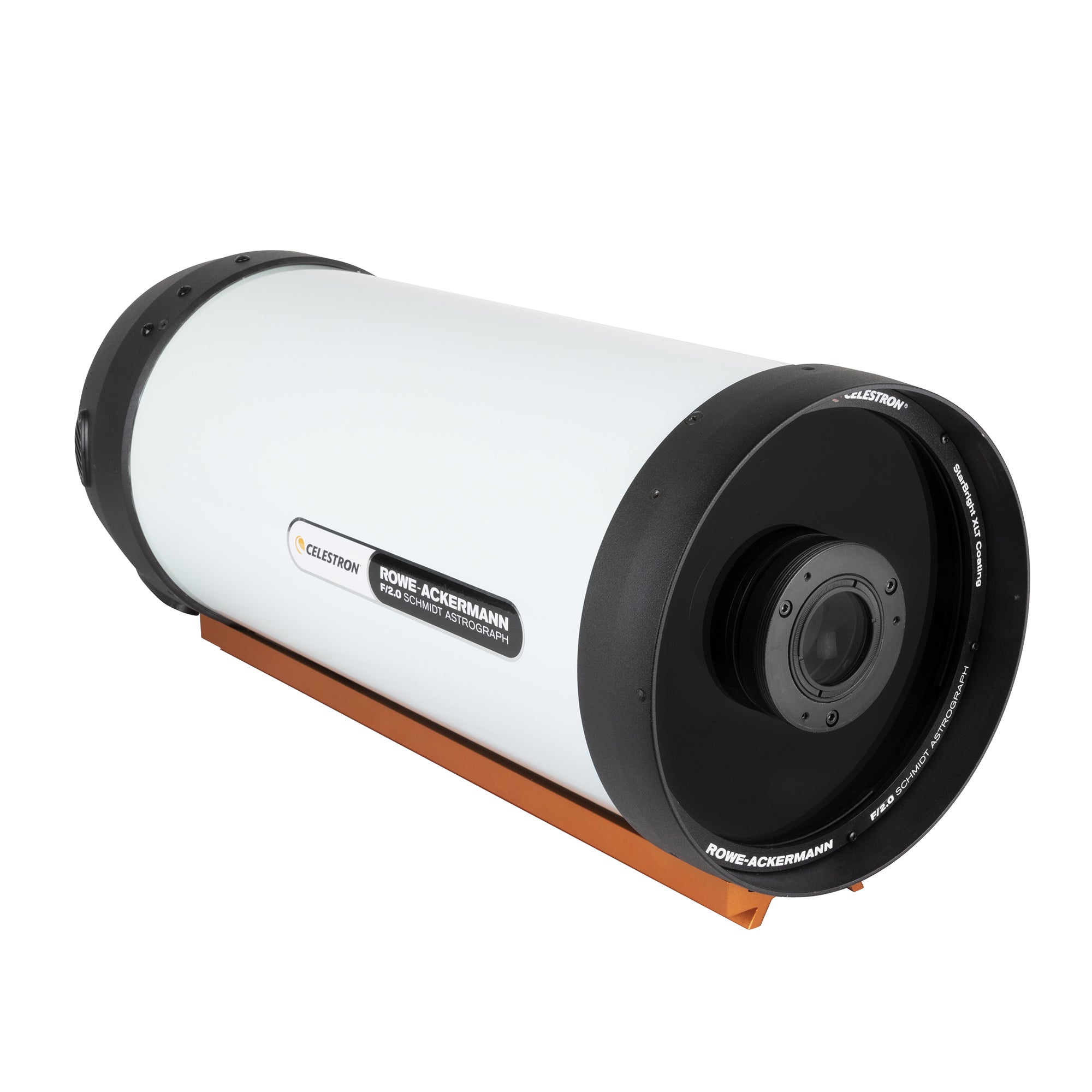

8” Rowe-Ackermann Schmidt Astrograph (RASA 8) Imaging Kit
Item #: 91079 / 91073-CGL- A Winning Astrophotography Kit – Combine the legendary 8" Rowe-Ackermann Schmidt Astrograph with two must-have filters—the Light Pollution Reduction Filter and the Hα-Hβ-OIII Filter—for a blazing-fast f/2.0 system that can produce stunning images of a wide array of astroimaging targets.
- Ultra-fast Rowe-Ackermann Schmidt f/2.0 Optics – Don't spend hours capturing your images—with RASA 8's f/2.0 optical system, you can gather the same image brightness 25 times faster than an f/10 system. And RASA 8 images aren't just bright and full of detail; they're also free from optical defects like field curvature, coma, astigmatism, and chromatic aberration.
- Patented Technology that Researchers Trust – Beyond imaging, RASA is the perfect tool for detecting errant space junk and asteroids. Scientists and government agencies use RASA arrays to monitor the space environment and protect our satellites.
- Built for Today's Cameras – Designed with color astronomical CMOS cameras, smaller CCD cameras, and mirrorless cameras in mind, RASA 8's flat field provides pinpoint stars and excellent performance across an entire APS-C sensor.
- Ultra-Stable Focus System – A precision linear ball bearing virtually eliminates image shift. RASA performs over a wider spectral range than most telescopes, from 400 nm to 800 nm, so more of the light passing through the astrograph is in sharp focus.
- Includes Two RASA Imaging Filters – When you purchase this kit, your RASA is ready to handle a variety of imaging targets and observing conditions right out of the box. The Light Pollution Reduction Filter and Hα-Hβ-OIII Filter enhance your images of faint targets like nebulae by blocking light pollution, improving image contrast, and darkening the sky background. Celestron engineers designed each filter to fit seamlessly into RASA 8's optical path.
Overview
- A Winning Astrophotography Kit – Combine the legendary 8" Rowe-Ackermann Schmidt Astrograph with two must-have filters—the Light Pollution Reduction Filter and the Hα-Hβ-OIII Filter—for a blazing-fast f/2.0 system that can produce stunning images of a wide array of astroimaging targets.
- Ultra-fast Rowe-Ackermann Schmidt f/2.0 Optics – Don't spend hours capturing your images—with RASA 8's f/2.0 optical system, you can gather the same image brightness 25 times faster than an f/10 system. And RASA 8 images aren't just bright and full of detail; they're also free from optical defects like field curvature, coma, astigmatism, and chromatic aberration.
- Patented Technology that Researchers Trust – Beyond imaging, RASA is the perfect tool for detecting errant space junk and asteroids. Scientists and government agencies use RASA arrays to monitor the space environment and protect our satellites.
- Built for Today's Cameras – Designed with color astronomical CMOS cameras, smaller CCD cameras, and mirrorless cameras in mind, RASA 8's flat field provides pinpoint stars and excellent performance across an entire APS-C sensor.
- Ultra-Stable Focus System – A precision linear ball bearing virtually eliminates image shift. RASA performs over a wider spectral range than most telescopes, from 400 nm to 800 nm, so more of the light passing through the astrograph is in sharp focus.
- Includes Two RASA Imaging Filters – When you purchase this kit, your RASA is ready to handle a variety of imaging targets and observing conditions right out of the box. The Light Pollution Reduction Filter and Hα-Hβ-OIII Filter enhance your images of faint targets like nebulae by blocking light pollution, improving image contrast, and darkening the sky background. Celestron engineers designed each filter to fit seamlessly into RASA 8's optical path.
Includes These Celestron Technologies
Customers Also Purchased
Description
Armed with the RASA 8 Imaging Kit, you can create stunning, deep-sky astroimages in minutes and seconds—not hours or days!—even from a light-polluted backyard. Discover the fun and excitement of astroimaging the easy way with the acclaimed Rowe-Ackermann Schmidt Astrograph (RASA) telescope and two indispensable imaging filters: the Light Pollution Filter and Hα-Hβ-OIII Filter. Whether you're new to imaging or a seasoned pro, you'll enjoy unparalleled convenience and stunning results—even when photographing the most elusive deep-sky targets.
RASA: Imaging at the Speed of Light
At Celestron, we love astroimaging. But we're well aware of the challenges our favorite hobby can sometimes involve: trekking long distances to dark skies, precisely aligning and guiding an equatorial mount, and capturing hours of very long exposures to gather enough photons to see the spiral arms and faint details of our favorite celestial objects. In a quest to solve all those challenges, our engineers joined forces with storied optical designers Dave Rowe and Mark Ackermann to create RASA.
While a traditional SCT telescope places the imaging sensor at the Cassegrain focus at the rear of the telescope, RASA places the sensor at the prime focus at the front of the telescope. Instead of imaging at f/10 like you do with an 8" Schmidt-Cassegrain (SCT), RASA works at lightning speed, f/2—25 times faster! In 10 minutes with RASA, your image is as bright as it would be in 4+ hours with an SCT (albeit with a wider field of view).
When you image with a RASA 8, you can use much shorter exposure times. Add a sensitive camera and the proper "live stacking" software, and the 8" RASA can provide an almost real-time "observing" experience—even from the city. View images on a computer in seconds that are brighter and more detailed than you'd see through a much bigger telescope with the naked eye. Or capture and stack lots of short exposures and process the data; you'll be stunned at the details you can bring out.
What's more, RASA's speed lessens the tracking demands on your mount. You’ll be using shorter sub-exposures so you won't need to track accurately over extended periods. In many cases, you won't even need to use an autoguider. And since RASA 8 weighs just 17 lb, it pairs perfectly with a wide variety of mounts, including the grab-and-go Advanced VX.
Although RASA has revolutionized the world of astroimaging, its influence goes far beyond astroimaging. Researchers and government agencies around the world have discovered that RASA is the ideal tool for detecting errant space junk and asteroids. Arrays of RASAs are deployed worldwide, scanning the skies and protecting our satellites in orbit.
Flat-field Performance Perfectly Paired with Today's Cameras
The 8" RASA delivers a flat field without optical aberrations for razor-sharp stars across a wide field of view. It can capture detailed deep-sky astronomical images at a fraction of the cost of other slower and smaller telescope designs, like refractors.
The RASA 8" has many of the same thoughtfully designed features as its "big brother" RASA 11, including the integrated air-cooling system, internal filter mount, and sturdy CGE dovetail mounting bar. Purely designed for imaging, the 8" RASA cannot be used visually. The focal plane is located at the front of the optical system, so it cannot accommodate a traditional eyepiece.
Unlike the 11" and 14" RASA, which both work with DSLR and large astronomical cameras, we designed the 8" model with color astronomical CMOS cameras, smaller CCD cameras, and mirrorless cameras in mind. (RASA 8 does not work with standard DSLR cameras.) It is optimized for sensors with up to a 22mm diagonal but performs well with sensors up to a 32mm diagonal. The APS-C sized sensors used in many mirrorless cameras are a good choice. Note that 42mm full-frame sensors can also work, but performance diminishes at the edges of the sensor, and field illumination is reduced. We don't recommend pairing RASA 8 with any camera body more than 4" in diameter. See the chart below to determine if your camera is compatible with RASA 8.

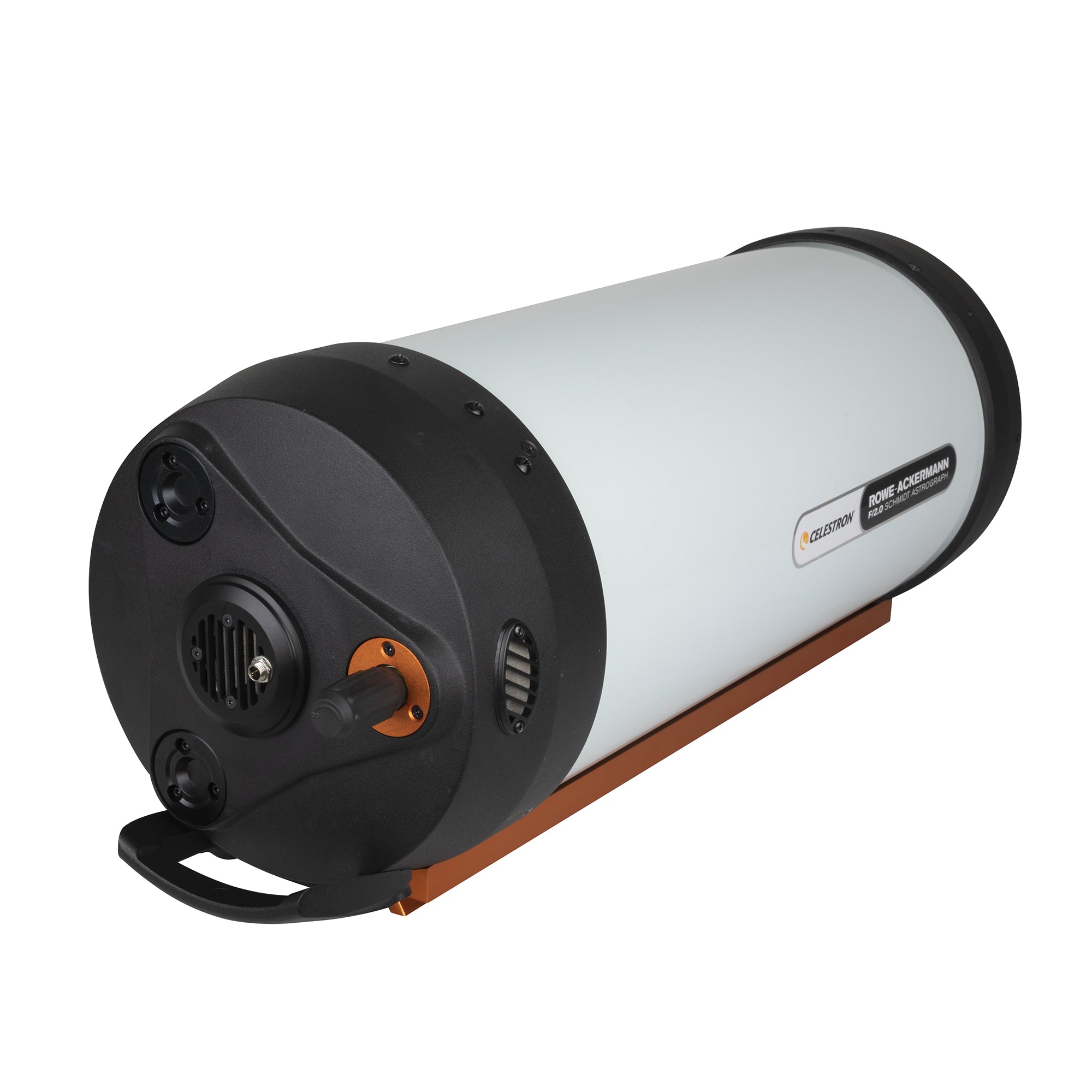

Ultra-Stable Focus System
With the launch of the 8" RASA, Celestron unveiled a new focuser design that mitigates lateral movement of the primary mirror when focusing, slewing, or tracking with the astrograph. Precise focusing is easier and more stable than ever. The key to the Ultra-Stable Focus System is a precision linear ball bearing, which we individually test during assembly to ensure optimal results.

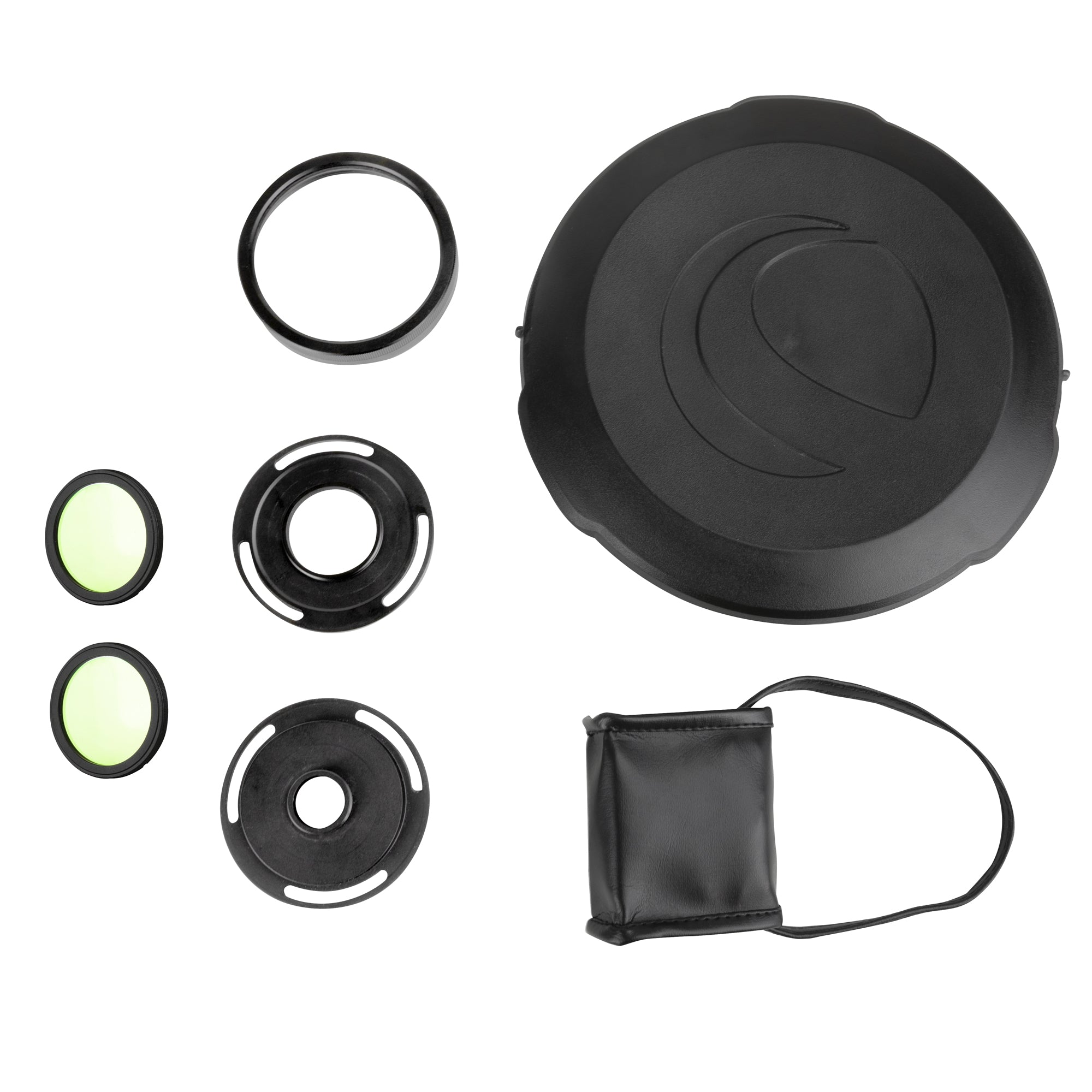

Includes Two Must-have RASA 8" Imaging Filters

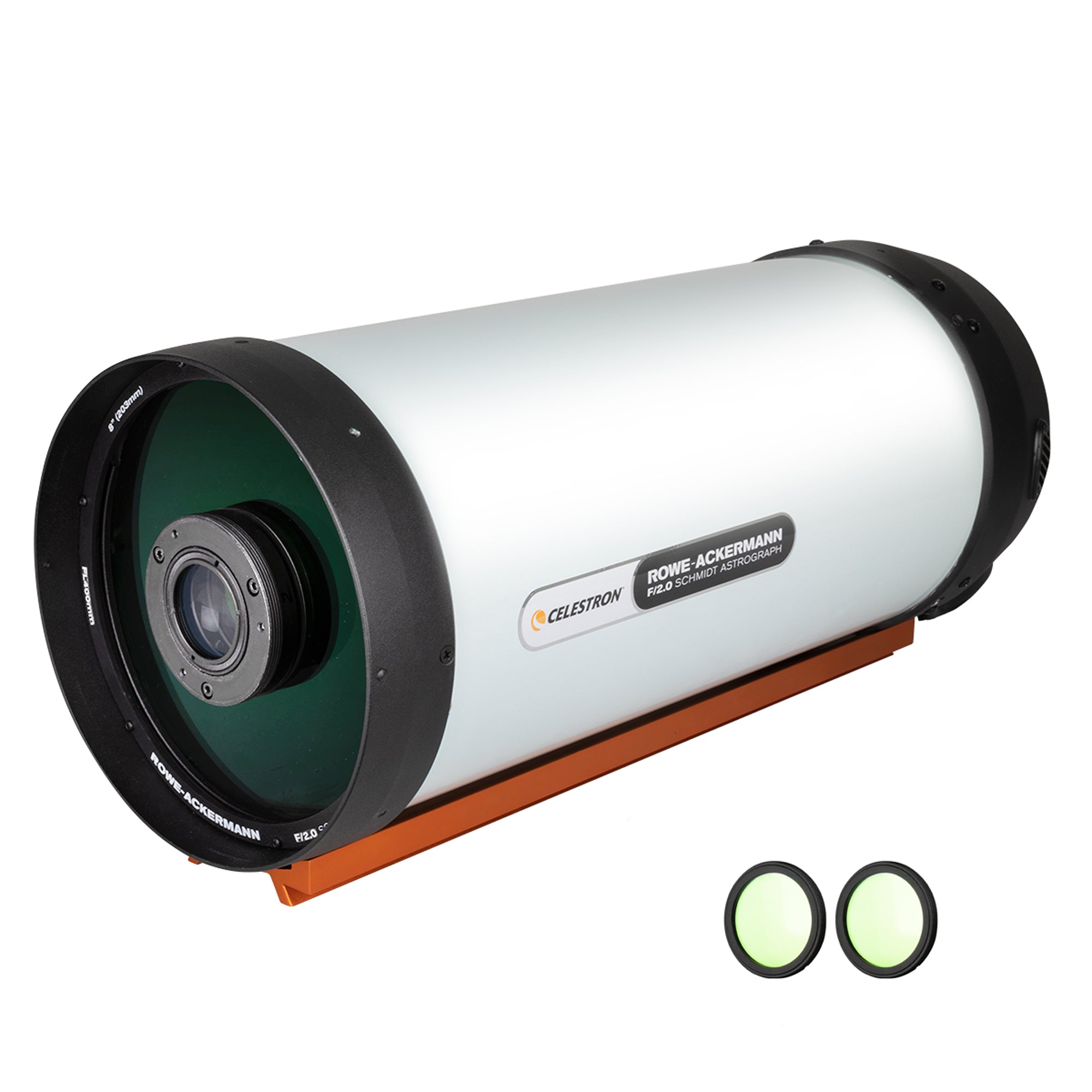

Along with the RASA 8" optical tube, this kit also includes the H-alpha H-beta OIII Imaging Filter and the Light Pollution Imaging Filter. This kit maximizes your RASA 8" telescope's potential to capture stunning images under any sky conditions, ensuring precise targeting of specific celestial objects and optimal light transmission.

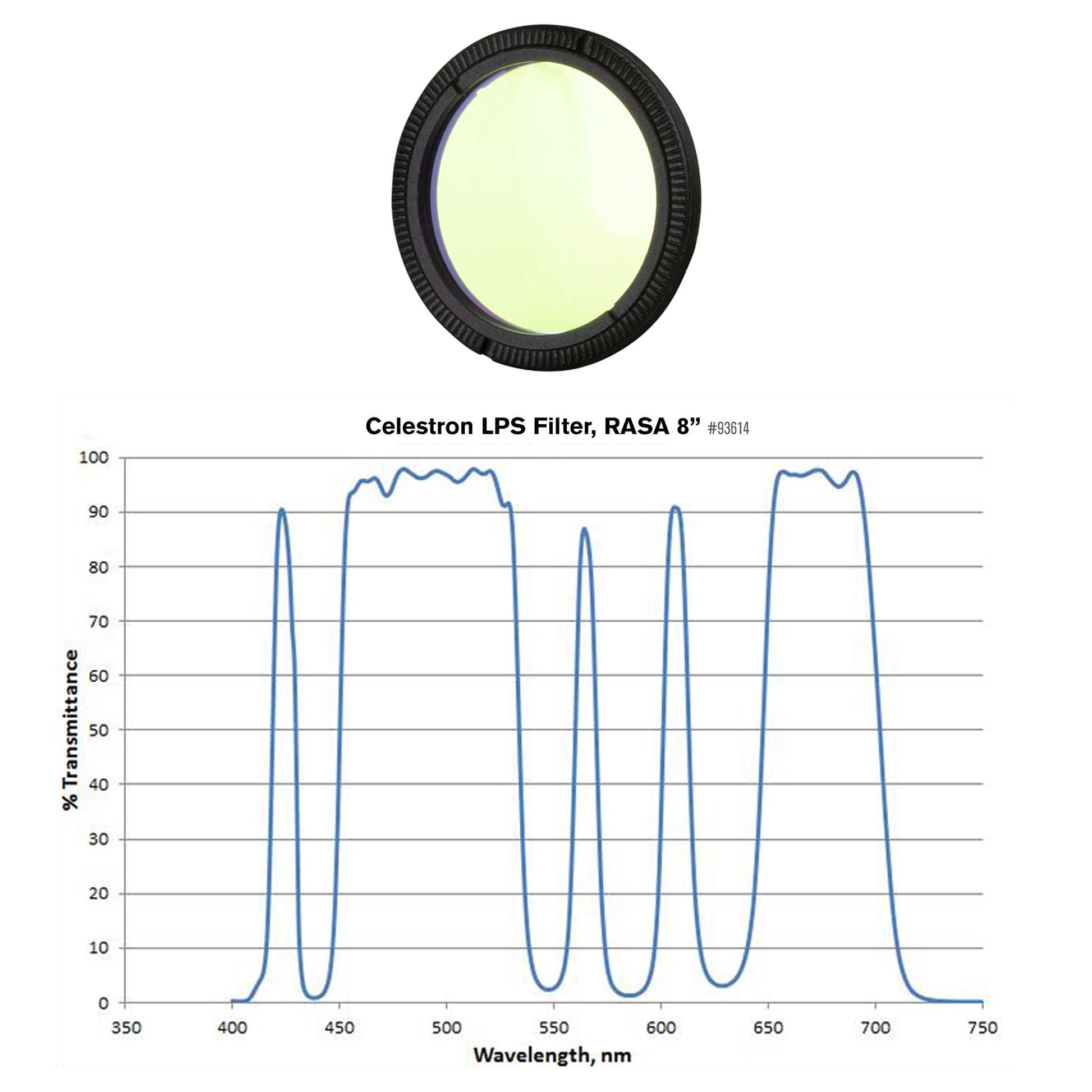

Light Pollution Imaging Filter - This broadband filter effectively blocks specific wavelengths of artificial light while allowing the desired wavelengths of light emitted by celestial objects to pass through. When you add this filter to your RASA, you'll see vibrant, detailed celestial objects that "pop" against a dark sky background with excellent overall contrast. This filter blocks light from some of the most common sources of artificial and natural light pollution between 400 and 700 nm (i.e., the visible spectrum), including high- and low-pressure sodium-vapor streetlights, mercury-vapor streetlights, and natural airglow caused by oxygen in the atmosphere.
Unlike some light pollution filters, Celestron's filter blocks only specific areas of the spectrum instead of wide regions. This helps to maintain image brightness and color balance. In addition, particular wavelengths associated with emission nebulae, such as H-α (656nm), H-β (486nm), OIII (496nm and 501nm), and SII (672nm), are highly transmitted, ensuring minimal loss of image brightness for those objects.

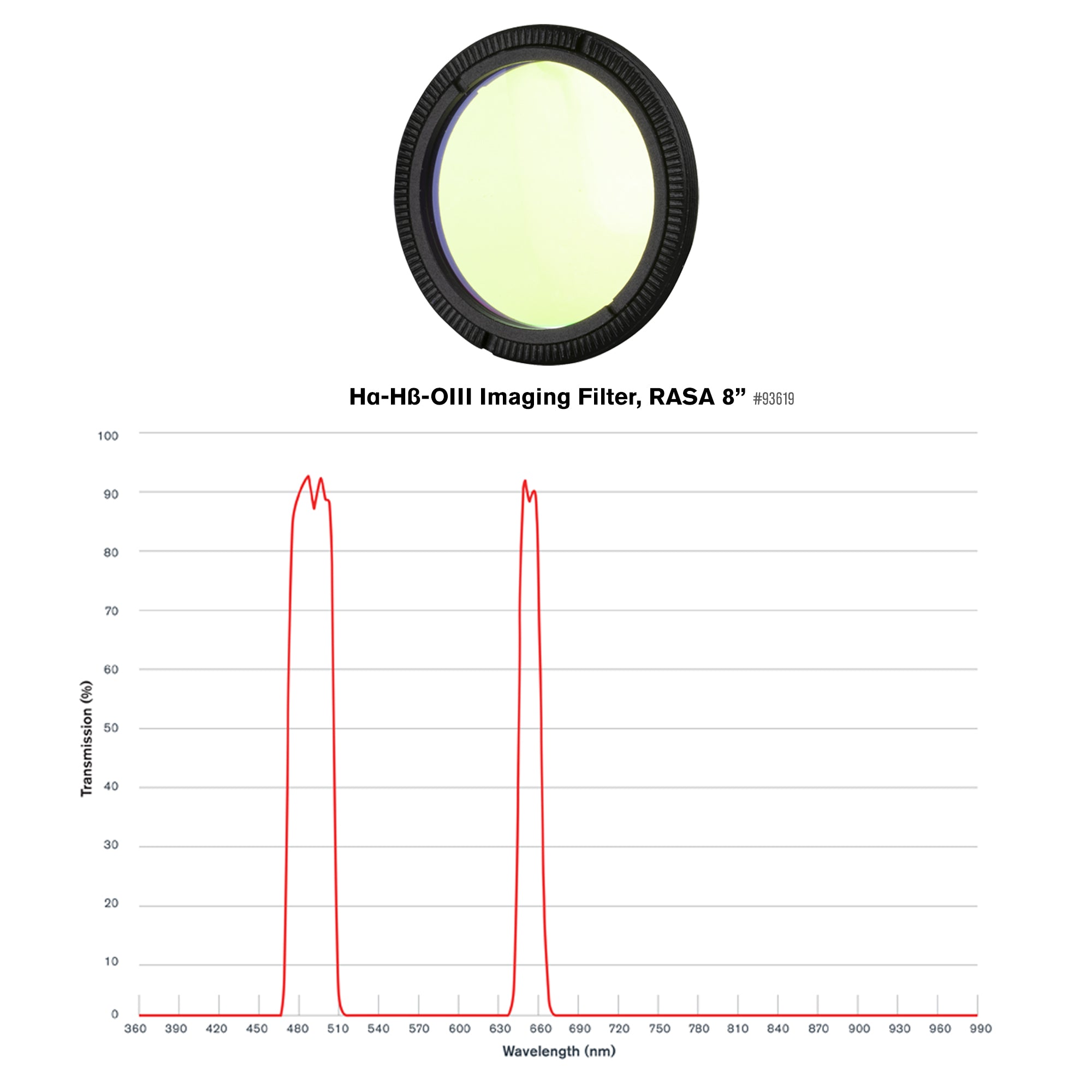

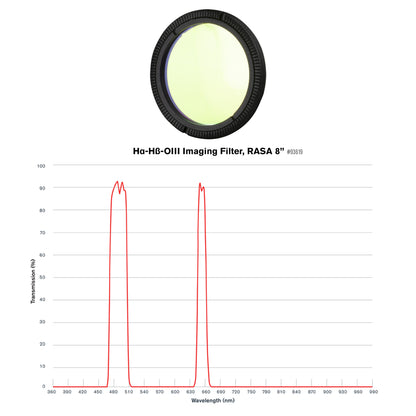

H-alpha H-beta OIII (Hα-Hβ-OIII) Imaging Filter – The specialized Hα-Hβ-OIII Imaging Filter, also known as the Nebula Filter, is a narrowband filter that allows very high transmission of select wavelengths of light from emission nebulae while blocking the rest of the spectrum. You'll immediately notice much higher contrast in your images, even from your light-polluted backyard! And since the transmission at the critical wavelengths is so high, the nebulae are not dimmed—only the background is made blacker.
The Hα-Hβ-OIII Imaging Filter is perfect for imaging emission nebulae like the North America Nebula (NGC 7000), Lagoon Nebula (M8), Orion Nebula (M42), and the Carina Nebula (NGC 3372). The transmission spectrum for the Hα-Hβ-OIII Imaging Filter is 85% or greater at key wavelengths (486nm, 496nm/501nm, 656nm) and less than 0.5% transmission elsewhere. And while other nebula filters can't keep up with RASA's fast optics and end up blocking some of the the wrong wavelengths, this filter is engineered to pair perfectly with this ultra-fast f/2 system.
Both the Light Pollution Filter and the Hα-Hβ-OIII Imaging Filter are custom-engineered to work with RASA 8, so they won't block any of the "good" wavelengths, specifically targeting light pollution and other undesired wavelengths. The filters fit directly into the internal filter mount in RASA 8's front lens cell, where the optical window normally mounts. To use a filter, you first remove and replace the clear window with the desired filter. Since you are not introducing new layers of glass into the system when you swap out the window with the filter, you maintain RASA's exacting performance.
Each filter has a plastic storage case to safely store the filter or the optical window that came with your RASA when not in use. You will also receive a spectral transmission graph unique to each individual filter, verifying its performance.
| Camera | Compatible with RASA 8? | Adapter required |
|---|---|---|
| Astronomical CMOS/CCD camera with C-mount | Yes | C-mount adapter (included) |
| Astronomical CMOS/CCD camera with M42-thread mount | Yes | M42 adapter (included) with M42 extension tubes (not included) |
| Astronomical CMOS/CCD camera with other mount | Yes | Custom camera adapter |
| Canon mirrorless with APS-C sensor | Yes |
(sold separately) |
| Sony mirrorless with APS-C sensor | Yes |
(sold separately) |
| Canon mirrorless with full frame (42mm) sensor | Yes, but not optimized across the full sensor |
(sold separately) |
| Sony mirrorless with full frame (42mm) sensor | Yes, but not optimized across the full sensor |
(sold separately) |
| DSLR | No | -- |
Technology
Unique Optical Design

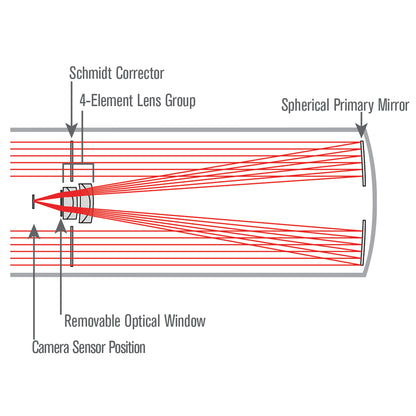

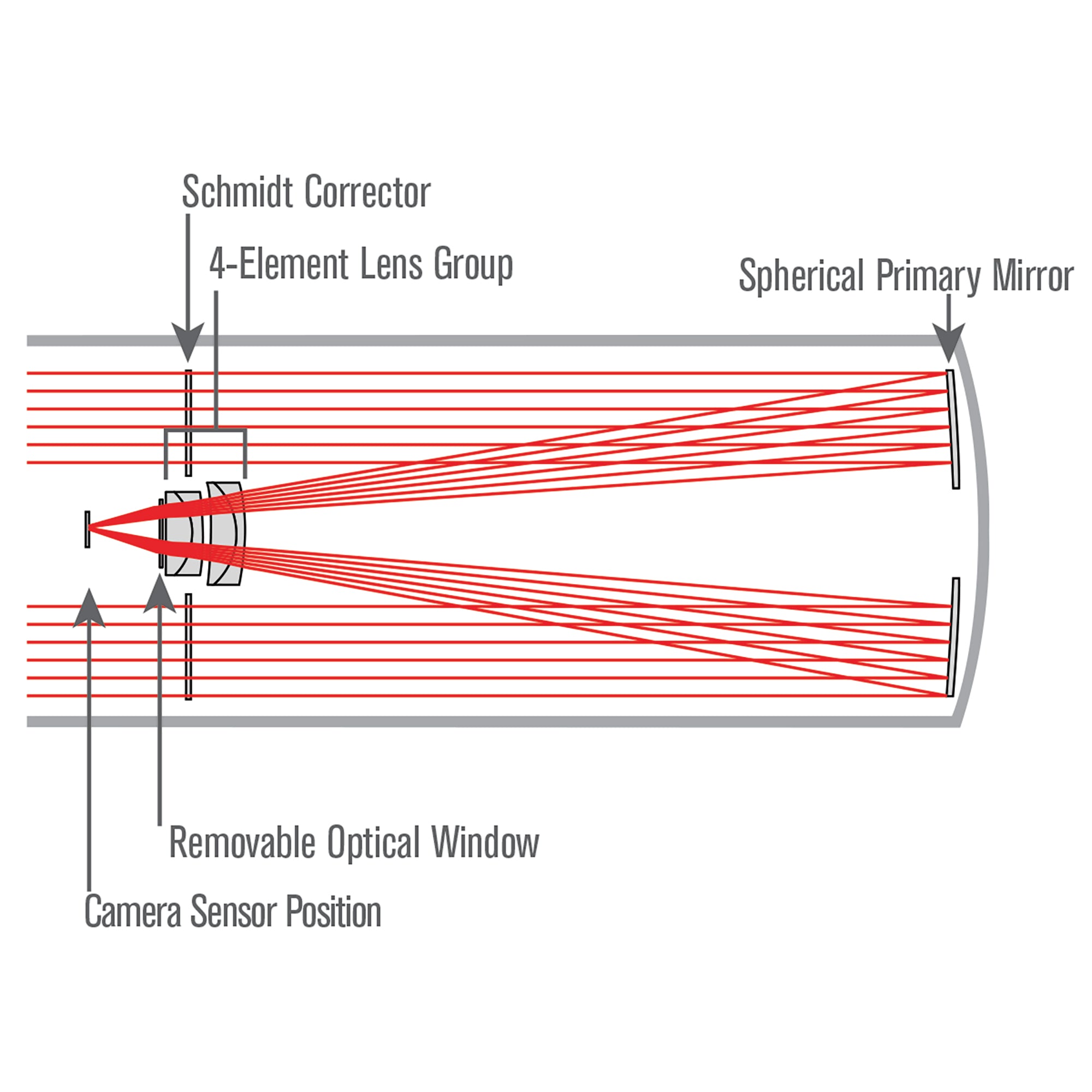

RASA’s optical design is patented (US 2016/0299331 A1). The design consists of a Schmidt corrector, primary mirror, lens group, and optical window. The lens group contains 4 elements and utilizes rare-earth elements. Unlike many telescopes that only perform well over the visible spectrum (400-700nm), the 8” RASA’s optics are designed to perform over a wider spectral range, from 400nm – 800nm. This allows more of the light emitted from the astronomical object to be sharply focused in the image.
With many imaging systems, adding an extra piece of flat glass such as a filter does not change optical performance. However, that is not the case with super-fast optical systems like the RASA. Our engineers addressed this by designing the RASA with a removeable optical window, so you can maintain peak optical performance if a filter is added or if a camera has its own optical window. Celestron offers a Light Pollution Imaging Filter designed specifically for the 8” RASA, which mounts in place of the optical window.
All refractive optical surfaces are coated with StarBright XLT coatings, while the primary mirror uses enhanced aluminum coatings. This maintains high light transmission through the entire optical system.
When compared with “Hyperstar SCT” systems, the RASA 8 provides better optical performance and field illumination.
Specifications
| Optical Tube Info: | |
|---|---|
| Optical Design: | Rowe-Ackermann Schmidt Astrograph |
| Aperture: | 203mm (8") |
| Focal Length: | 400mm (15.74") |
| Focal Ratio: | f/2.0 |
| Central obstruction diameter: | 93mm (3.66") (46% of aperture diameter) |
| Light Gathering Power (Compared to human eye): | 843x |
| Resolution (Rayleigh): | 0.68 arc seconds |
| Resolution (Dawes): | 0.57 arc seconds |
| Image Circle: | 22mm (.86") Ø, 3.15° |
| Useable field: | 32mm (1.26") Ø, 4.6°, only minimal performance loss at edge of FOV |
| Wavelength range: | 400 - 800 nm |
| Spot size: | < 2.3 μm RMS across image circle |
| Optical Coatings: | StarBright XLT |
| Off-axis Illumination: | 93% at 11mm (.43") off-axis |
| Optical Window: | 46mm (1.81") Ø |
| Back focus with included camera adapter: | 25mm (.98") |
| Back focus from top of threaded collar: | 29mm (1.14") |
| Optical Tube: | Aluminum |
| Optical Tube Length: | 628mm (24.7") |
| Optical Tube Diameter: | 235mm (9.3") |
| Focuser: | Precision Bearing System (PBS) |
| Finderscope: | Not included |
| Optical Tube Weight: | 17 lbs (7.7 kg) |
| Other Features: | Air-cooling system, integrated filter mount |

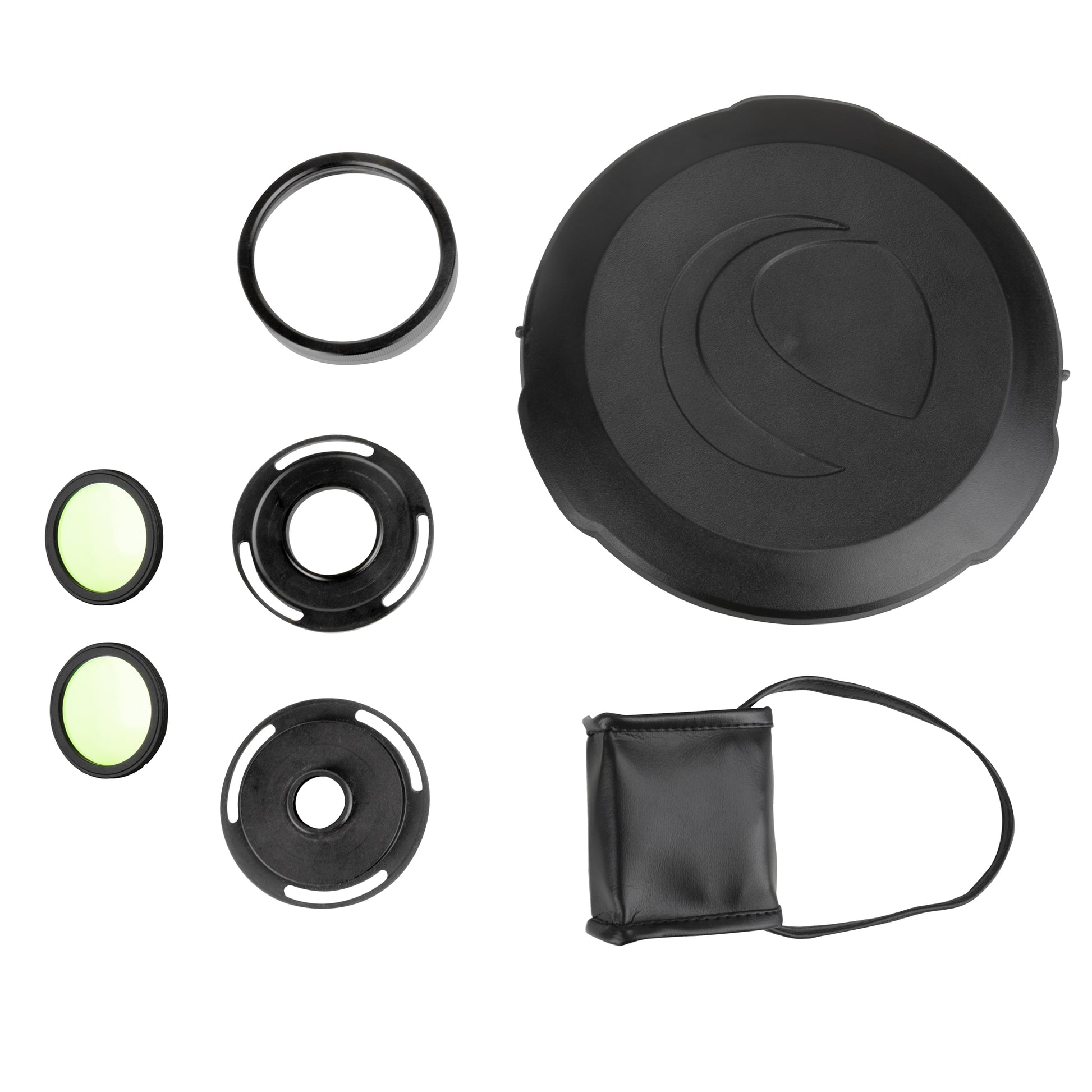

| Included items: | 42mm (1.65") T-thread camera adapter | C-thread camera adapter | Fan battery pack | Light Pollution Imaging Filter | Hα-Hβ-OIII Imaging Filter |
| Dovetail: | CGE Dovetail Bar |
Reviews
Sky & Telescope’s Hot Products 2019 Award
"Incredibly fast optical speeds allow deep-sky imaging with short exposures, opening up a new world of scientific- and recreational-astrophotography possibilities."
Read Full Review
Accessories
SELLER
SHIPPING
SHIPPING
FAQ
Why can’t the Rowe-Ackermann Schmidt Astrograph (RASA) 8 be used visually?
The optics produce an image at the front end of the telescope, not the back. Therefore, you cannot look through the RASA 8 with your eyes because your head will block the light from entering the telescope. The RASA 8 is an astrograph designed specifically for deep-sky astronomical imaging.
Why was the RASA 8 designed to have a camera mount at the front of the telescope?
The RASA 8 optical design uses a prime focus focal plane position in order to obtain its super-fast F/2.0 focal ratio. This necessitates the camera having to be mounted at the front of the astrograph.
Won’t the camera block the incoming light?
The RASA 8 optical design has its own central obstruction which is caused by the sub-aperture lens assembly at the front of the telescope. The lens assembly has an outer diameter of 93mm. If a camera’s body is smaller than this, it will not block any light from reaching the camera sensor. If the camera body is larger than this, then it will block some of the incoming light. As long as the camera body does not greatly exceed about 120mm diameter, the effect on images is negligible.
What cameras can be used with the RASA 8?

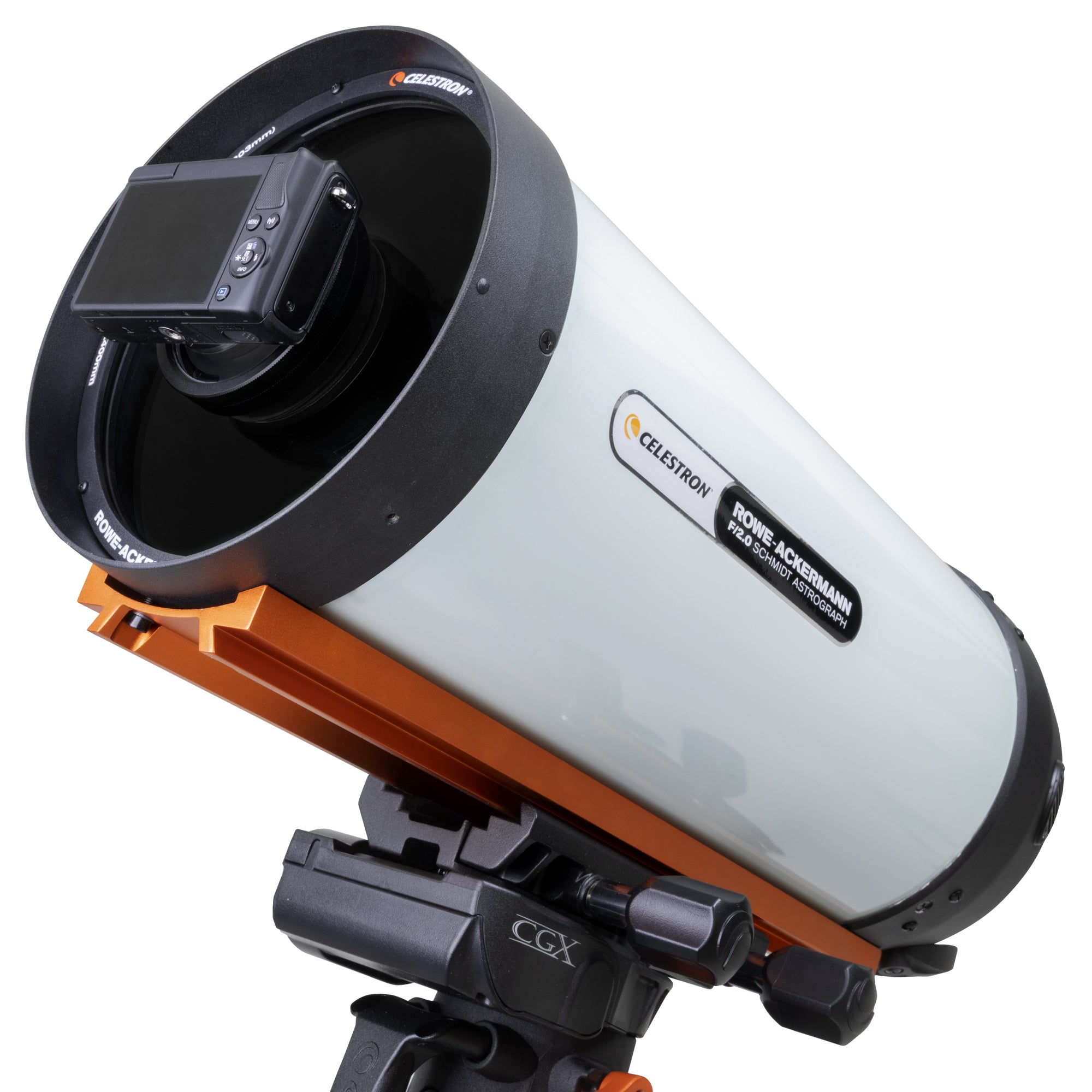

The RASA 8 can be used with many astronomical CMOS and CCD cameras. It also works well with mirrorless digital cameras. Two key considerations are the size of the camera body (should not exceed about 120mm in diameter), and the camera’s backfocus distance (cannot exceed 25mm). Color or monochrome sensors can be used, although color sensors are easiest to use since the RASA 8 cannot accommodate a filter wheel (see question #7).
Why can’t a DSLR be used with the RASA 8?
The body size of a DSLR is too large compared to the front aperture of the RASA 8, and therefore blocks too much of the incoming light. Also, the DSLR requires too much backfocus (55mm) for the RASA 8, so the camera sensor cannot be placed at the required location relative to the astrograph. For DSLR imaging, we recommend the RASA 11.
What about camera cables in front of the optics?
Camera cables which cross the front of the RASA 8 do not block much light and, don’t have a significant effect on images. To minimize any potential diffraction spike around the brightest stars, camera cables can be positioned to cross the aperture in a curved pattern, rather than a straight line.
Will I need additional camera adapters for my camera?
It depends on what camera you are using. For cameras with a C-mount, no additional adapters are required. For cameras which mount with a 42mm thread, a 42mm (or T-thread) spacer ring to place the camera sensor at the proper backfocus distance relative to the optics will be needed. (Note: With the included 42mm camera adapter, the backfocus distance required is 25mm. So, subtract the backfocus distance specification for your camera from 25mm, and that is the length of the M42 spacer ring you will need. If the camera has a backfocus distance of more than 25mm, it cannot be used with the RASA 8.) For Sony and Canon mirrorless cameras, Celestron offers optional camera adapters. For other cameras, a custom camera adapter will be needed.
What is the difference between the image circle and the useable field?
The image circle is the diameter at the focal plane (i.e. where the camera sensor is positioned) which the astrograph’s performance was optimized for. The useable field is the diameter at the focal plane where the performance of the astrograph is excellent. Most astrographs only mention the useable field in their specifications.
What if my camera’s sensor is larger than the useable field?
The RASA 8 has a useable field of 32mm. A sensor with a diagonal size larger than that, such as a full-frame mirrorless camera, can be used, but there will be some drop off in optical performance and field illumination in the corners of the image. This may require cropping during image processing.
Can filters be used with the RASA 8?

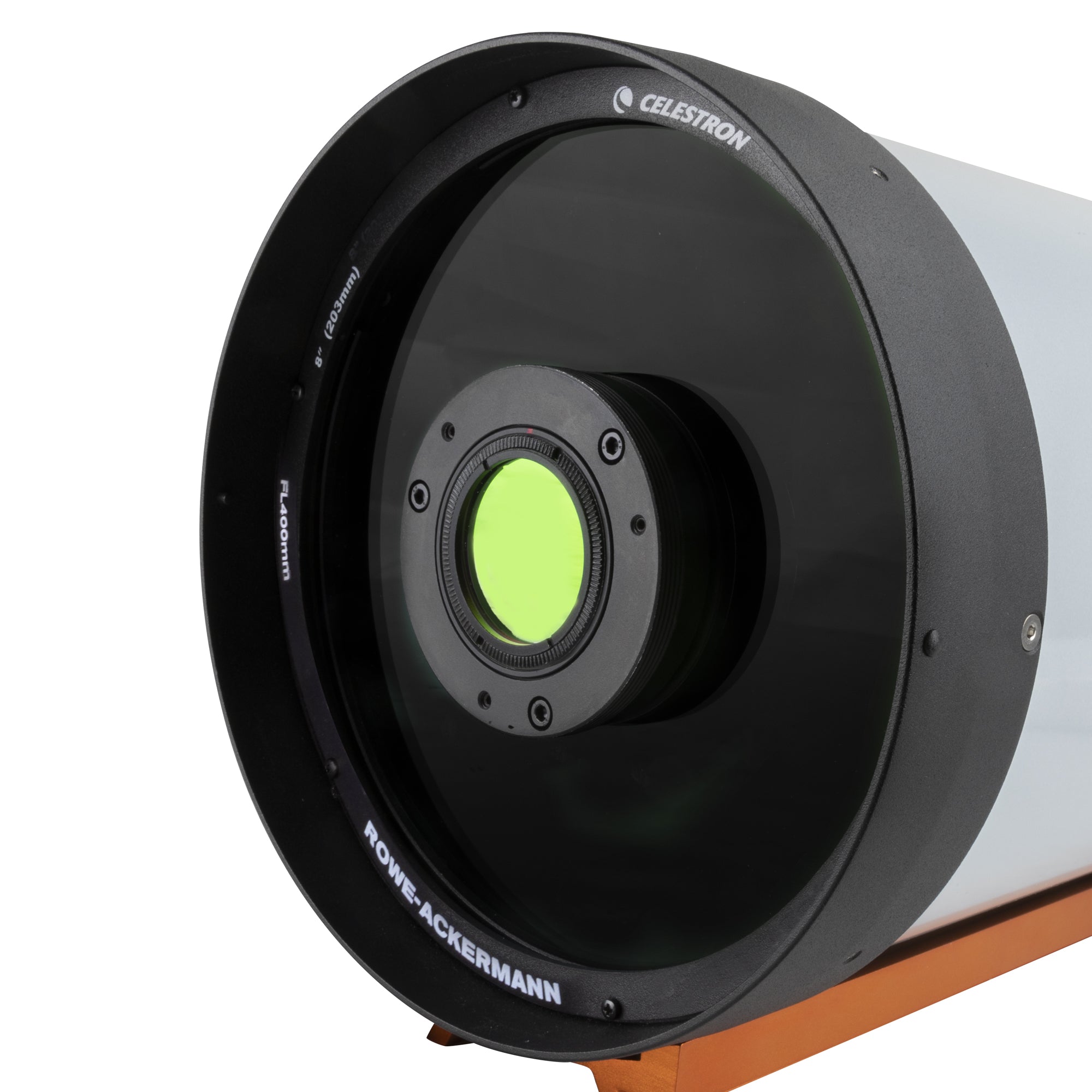

The RASA 8 has a removeable optical window which can be replaced with a filter. Currently, Celestron offers a Light Pollution Reduction Filter for the RASA 8. Filter “sliders” offered by some manufacturers may also work with some cameras. A filter wheel cannot be used, since the filter wheel would have to mount in front of the optics and would block too much of the incoming light.
Why does the RASA 8 have a removeable optical window?
With such a fast optical system, you cannot add a filter into the light path without adversely affecting the optical performance. With a removeable optical window, you can replace the window with a filter with no loss of performance.
Why is the fast focal ratio (F/2.0) of the RASA 8 such a big deal?
Because it allows much shorter exposures to be used to capture detail in fainter astronomical objects. This makes getting good images much easier and quicker. With a sensitive high-speed camera along with live image stacking software, you can see images in “real-time” on your computer screen.
What mounts can be used with the RASA 8?
Any mount which can accept a CGE (or Losmandy D) dovetail bar and can handle at least 20 lbs. The RASA 8 weighs 17 lbs, and you’ll also need to account for the weight of your camera and any other accessories.
Will I need to collimate (i.e. align) the optics?
The optics are aligned at the factory, and should not normally need adjustment. However, there are screws which adjust the tilt of the lens assembly should collimation adjustment ever be needed.
What is focus shift, and how does the Ultra-Stable Focus System (USFS) help to minimize it?
Focus shift is when the image in your camera moves a little bit when focusing. This can make critical focusing more challenging. The RASA 8 focuses by moving the primary mirror inward-and-outward. If the mirror moves at all laterally, then focus shift will result. The USFS works by using a precision linear ball bearing on the shaft that supports the primary mirror. This constrains any lateral motion of the primary mirror and minimizes focus shift. This also helps prevent any unwanted lateral motion of the primary mirror (also known as “mirror flop”) as the astrograph is pointed to different positions in the night sky.
What is the extended spectral range (400-800 nm) and what is the benefit?
Most telescopes are designed to perform well over the visual spectrum (i.e 400-700nm). The RASA 8 optics were designed to perform over a wider spectral range, from 400-800nm. This means that light from 700nm-800nm will be well focused in the RASA 8, allowing more of the light emitted from the astronomical object to be sharply focused in the image. For cameras which have spectral response in the 700-800nm range, you’ll get brighter and sharper images and won’t necessarily need to use an IR-cut filter.
What else might be needed with the RASA 8?
A finderscope can be useful for visually finding objects or for initial alignment of your computerized mount with the night sky. The RASA 8 has mounting holes for a finderscope. If doing longer exposures, you may want to consider using a guide scope and autoguider in order to provide the best tracking performance with your mount. For convenient mounting of a guide scope, Celestron offers a CGE dovetail accessory mounting bar which connects to the top of the RASA 8 and allows easy installation of guide scope rings. Perhaps the most useful accessory is a focus motor, this permits focusing from the computer which is controlling the camera and/or mount. A focus motor which is compatible with the RASA 8 will soon be introduced by Celestron.

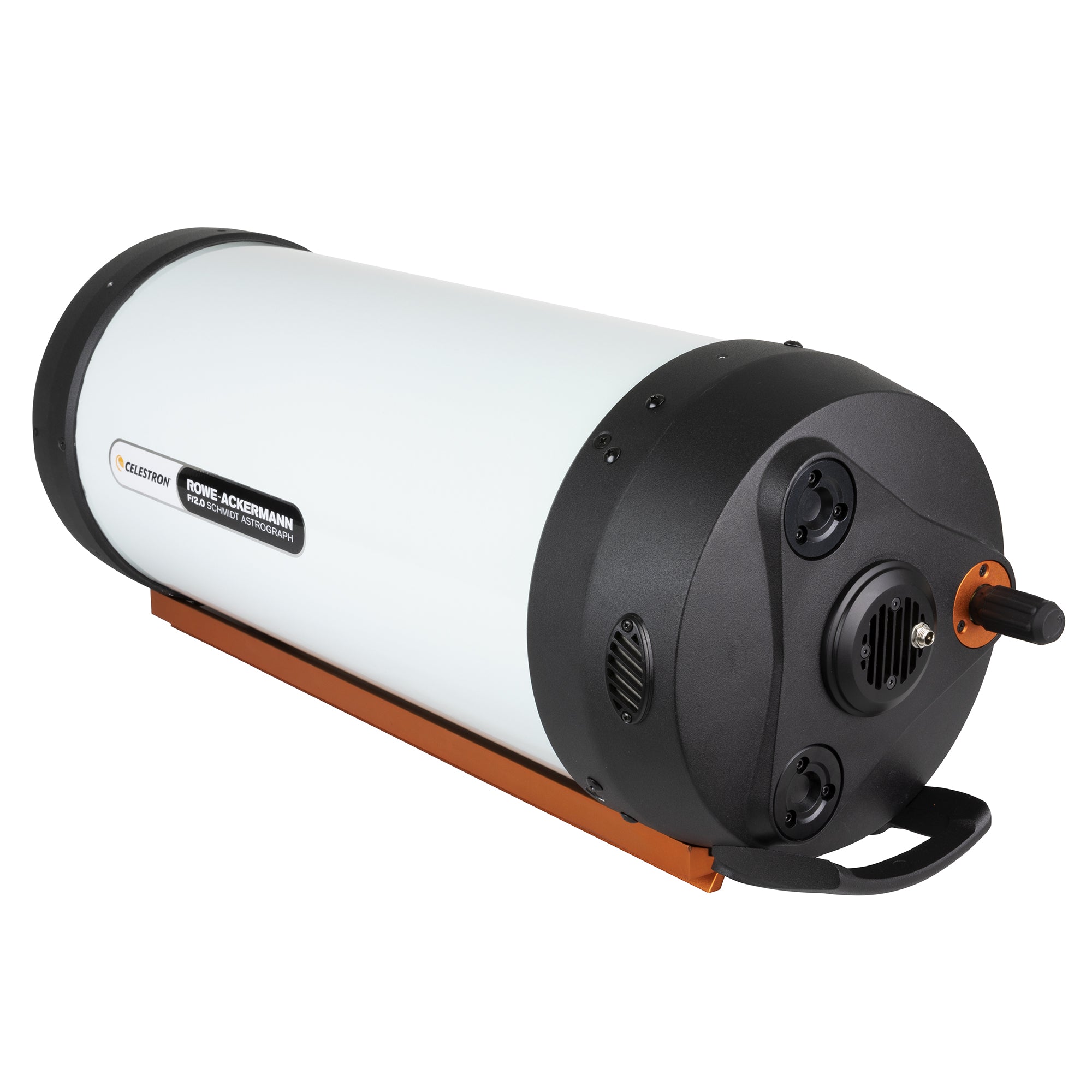

What is the purpose of the integrated air-cooling system?
The RASA 8 will perform the best when its optics have reached thermal equilibrium with the outside air. The cooling system uses a fan and vents to pull air through the astrograph and around the primary mirror in order to help the RASA 8 reach thermal equilibrium more quickly.
What is the difference between RASA 8 and an 8” SCT or EdgeHD using the Starizona Hyperstar accessory?
The RASA 8 provides better optical performance and better field illumination than an 8" SCT or Edge HD with a Hyperstar accessory. The Hyperstar accessory provides great flexibility for an SCT or EdgeHD optical system, as it allows the telescope to be used at two different focal lengths. When imaging at F/2.0 however, it cannot provide the performance of the RASA 8.
What about dew?
Just like any telescope design which uses a lens at the front of the telescope, the RASA 8 Schmidt corrector lens can be susceptible to dew under certain environmental conditions. To prevent dew when the outside temperature drops below the dew point, we recommend using a dew shield or dew heater.
What is the heaviest recommend load for mounting a camera onto the RASA 8?
We recommend a load of no more than 20 lbs. at 4.5 inches away from the 8" Schmidt corrector.
Why is there a black ring around the edge of the primary mirror in my RASA 8 V2??
The very edge of the primary mirror is opaque black to ensure best image quality. The optical quality at the very edge of any primary mirror is generally not quite as good as the rest of the surface due to manufacturing processes. This “edge blackening” eliminates this region of the mirror, and is not uncommon for larger primary mirrors, especially those with a fast focal ratio. The RASA 8 optical design is affected by this more than other Celestron models due to its very fast focal ratio (F/2.0), hence the decision to incorporate edge blackening for this model only.
Support & Downloads
Browse the Series
11" Rowe-Ackermann Schmidt Astrograph (RASA 11) V2 Optical Tube Assembly (CGE Dovetail)
CGX 1100 Rowe-Ackermann Schmidt Astrograph (RASA) Equatorial Telescope
CGX-L 1100 Rowe-Ackermann Schmidt Astrograph (RASA) Equatorial Telescope

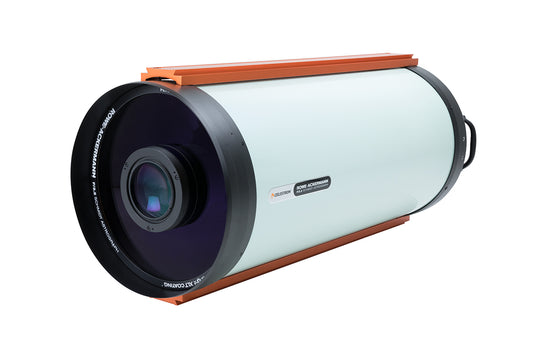

36 cm Rowe-Ackermann Schmidt Astrograph (RASA 36) V2 Optical Tube Assembly (CGE Dovetail)
