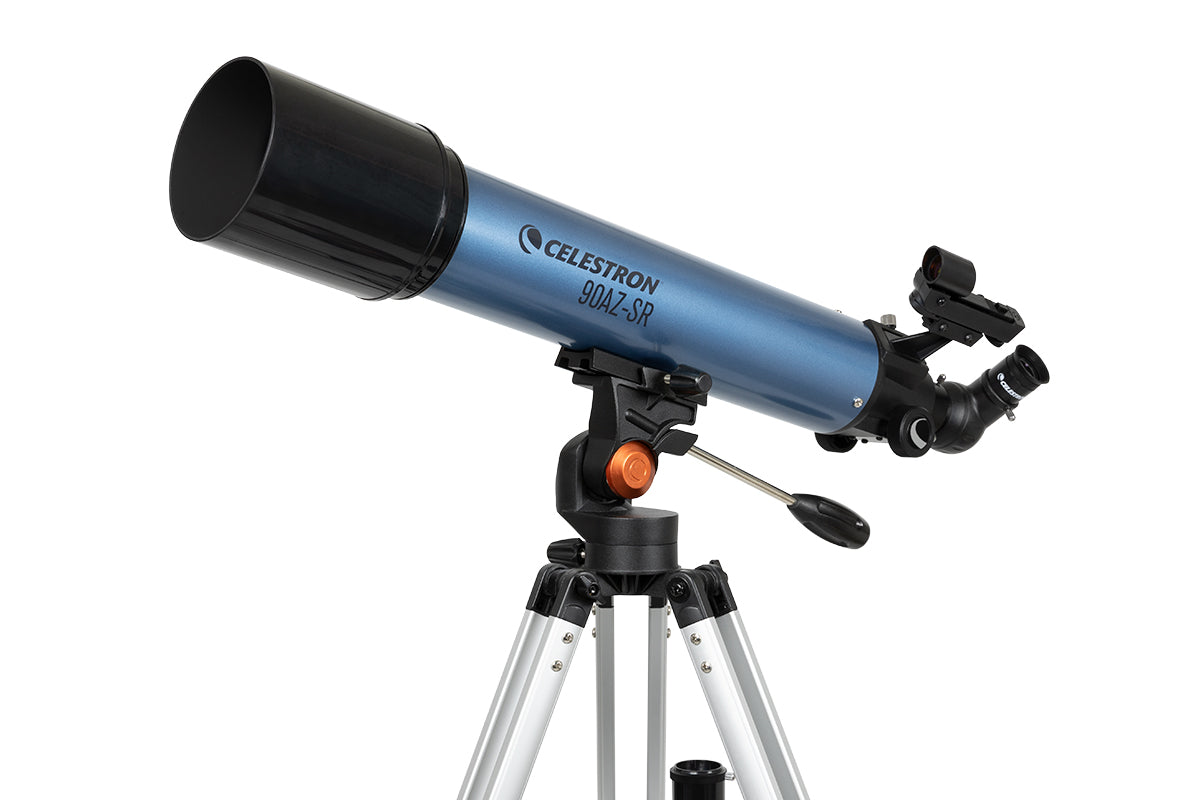

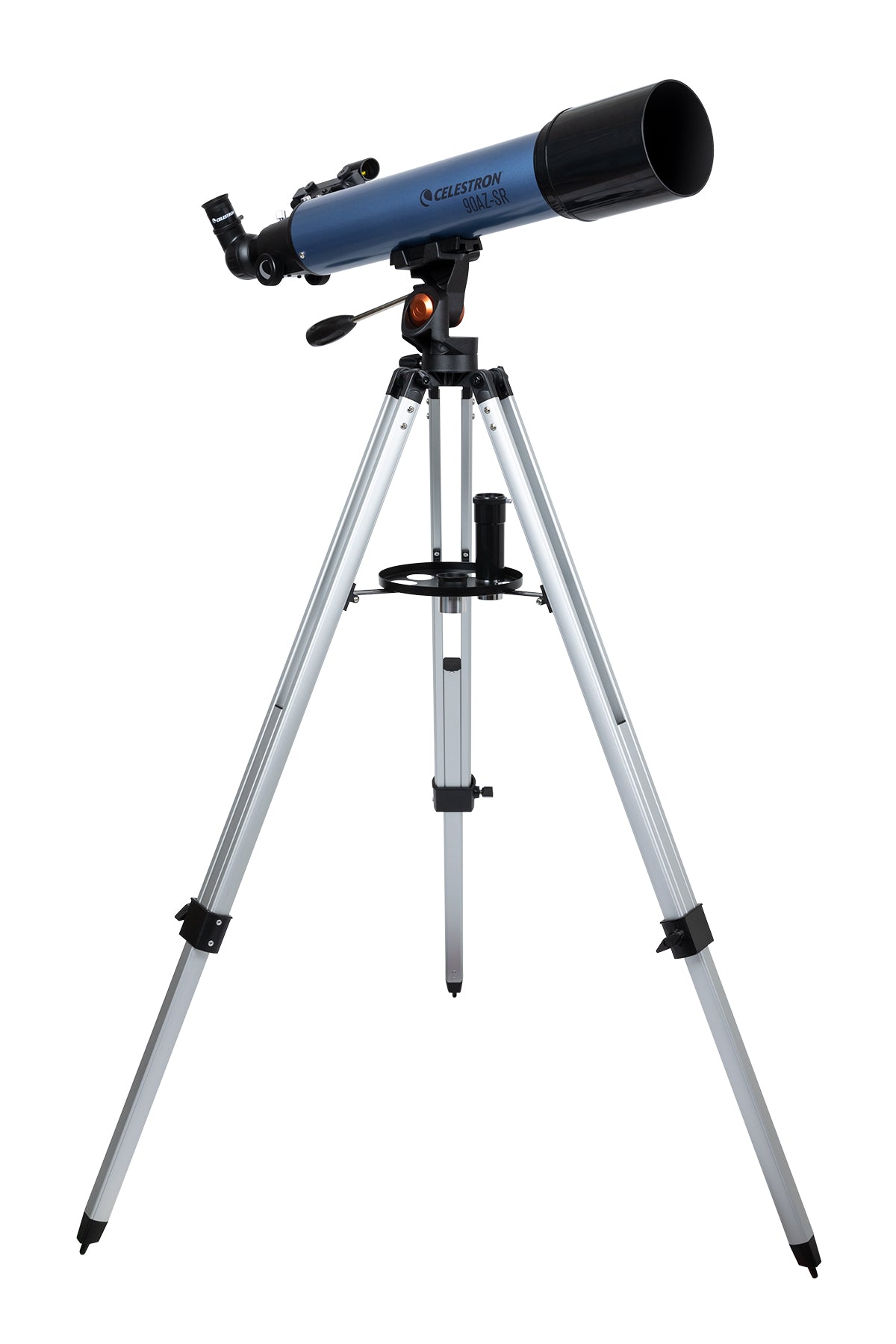

90AZ-SR Refractor Telescope
Item #: 22129- 90mm refractor telescope with fully multi-coated glass optics and a lightweight frame.
- Observe in no time with a quick and easy, no-tool setup.
- Accessories include: two eyepieces (20mm and 10mm), erect image star diagonal, StarPointer™ red dot finderscope, and an integrated smartphone adapter.
- Panning handle Alt-Az control with clutch for smooth and accurate pointing.

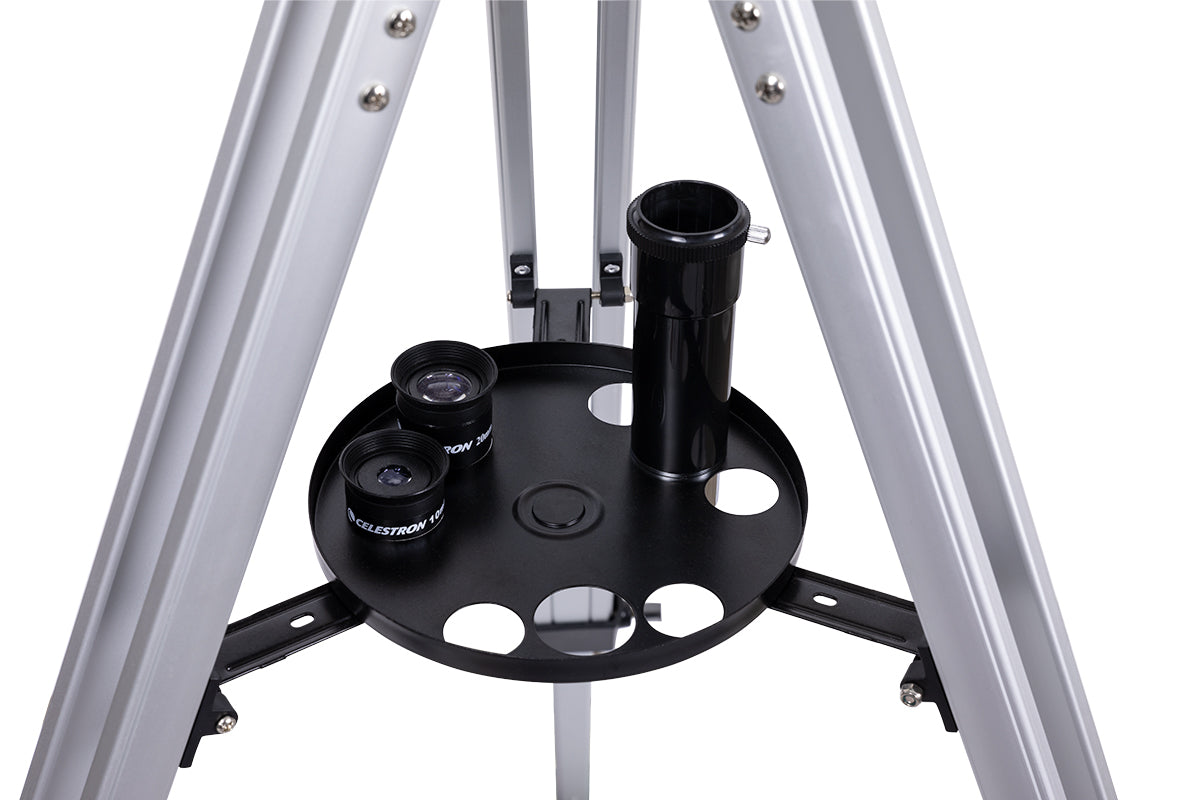

- Adjustable height tripod includes an accessory tray.
Overview
- 90mm refractor telescope with fully multi-coated glass optics and a lightweight frame.
- Observe in no time with a quick and easy, no-tool setup.
- Accessories include: two eyepieces (20mm and 10mm), erect image star diagonal, StarPointer™ red dot finderscope, and an integrated smartphone adapter.
- Panning handle Alt-Az control with clutch for smooth and accurate pointing.
- Adjustable height tripod includes an accessory tray.
Description

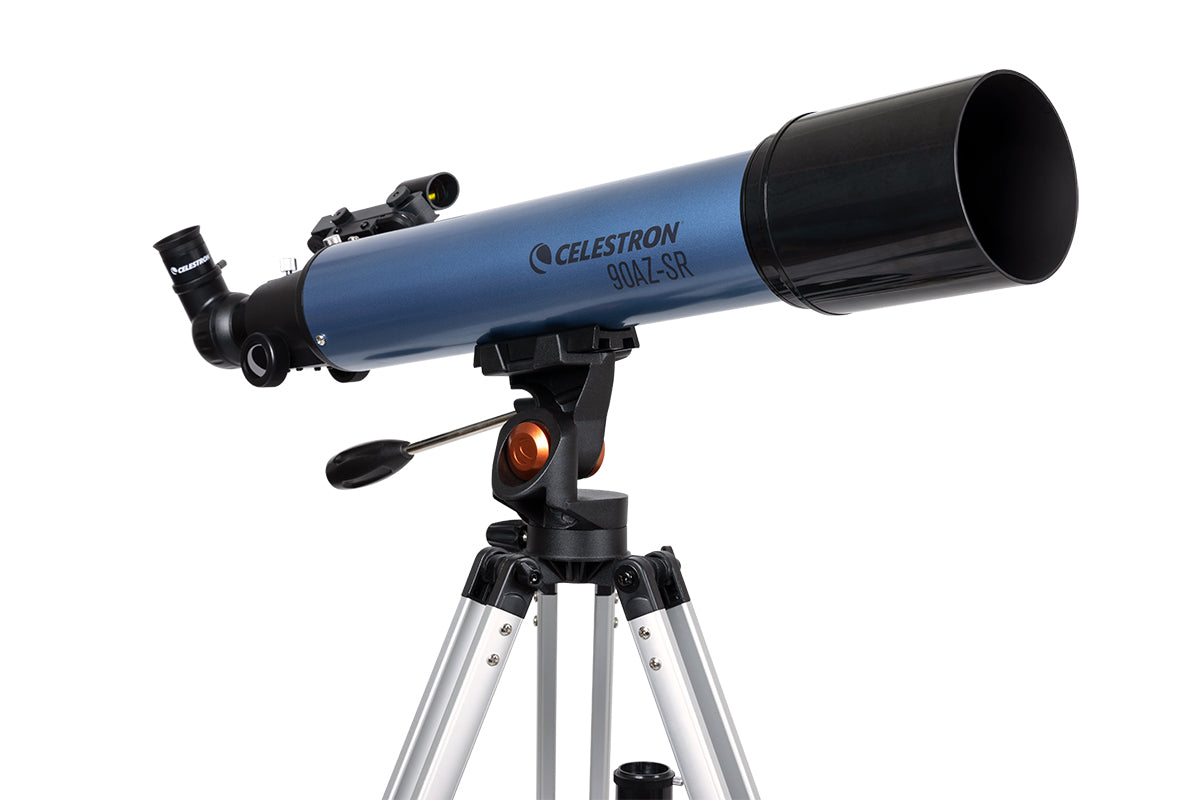

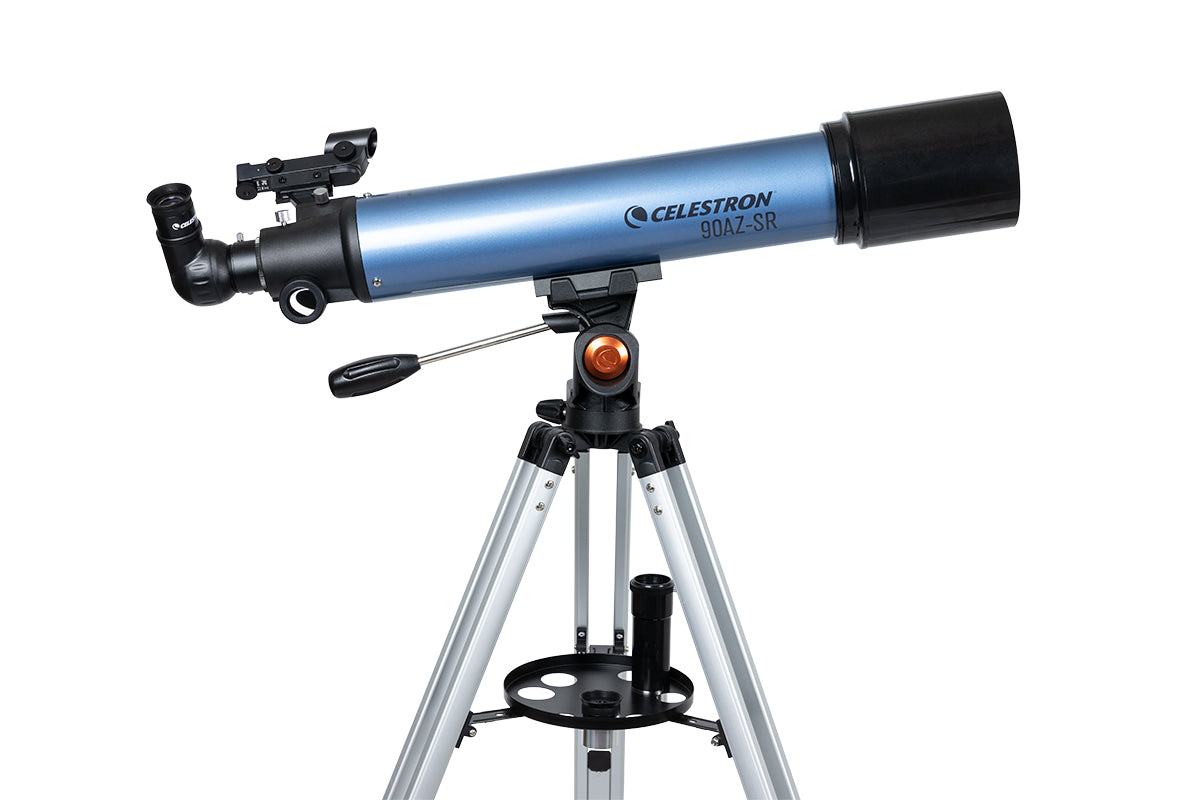

The 90AZ-SR is a refractor telescope perfect for terrestrial and celestial viewing on the go. The 90AZ-SR can view the planets, moon, star clusters and brighter deep sky objects like the Orion Nebula and Andromeda Galaxy at night and with the erect image star diagonal makes the optical tube ideal for using as a spotting scope during the day.

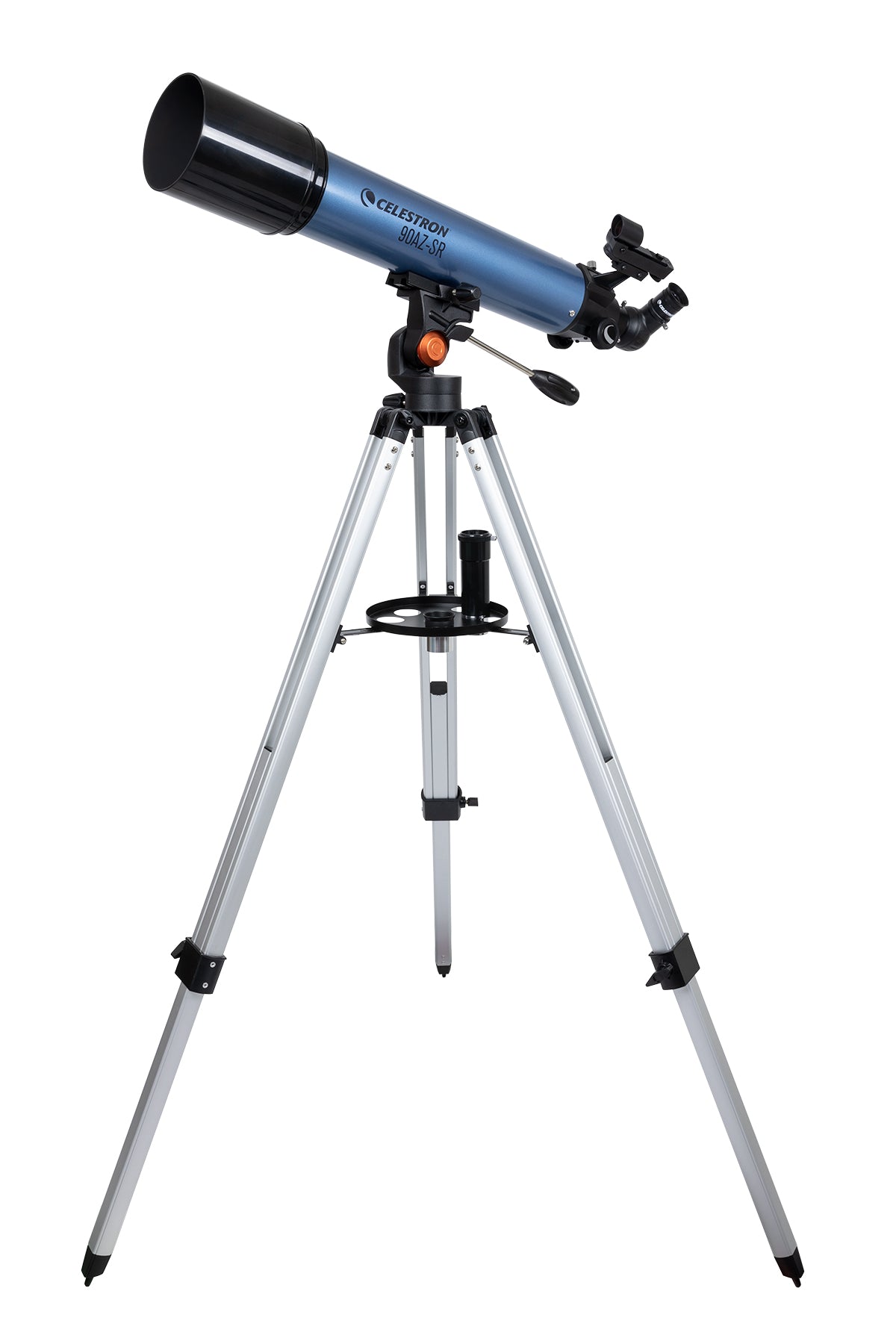

Setting up the telescope is a breeze and will have you observing in no time. Even on your first time out, you can assemble the telescope and its accessories in just a few minutes. The adjustable tripod legs allow you to customize the telescope’s height or place it on raised surfaces like a picnic table. The total telescope kit is lightweight and perfect for impromptu observing sessions or transporting wherever life’s adventures take you.

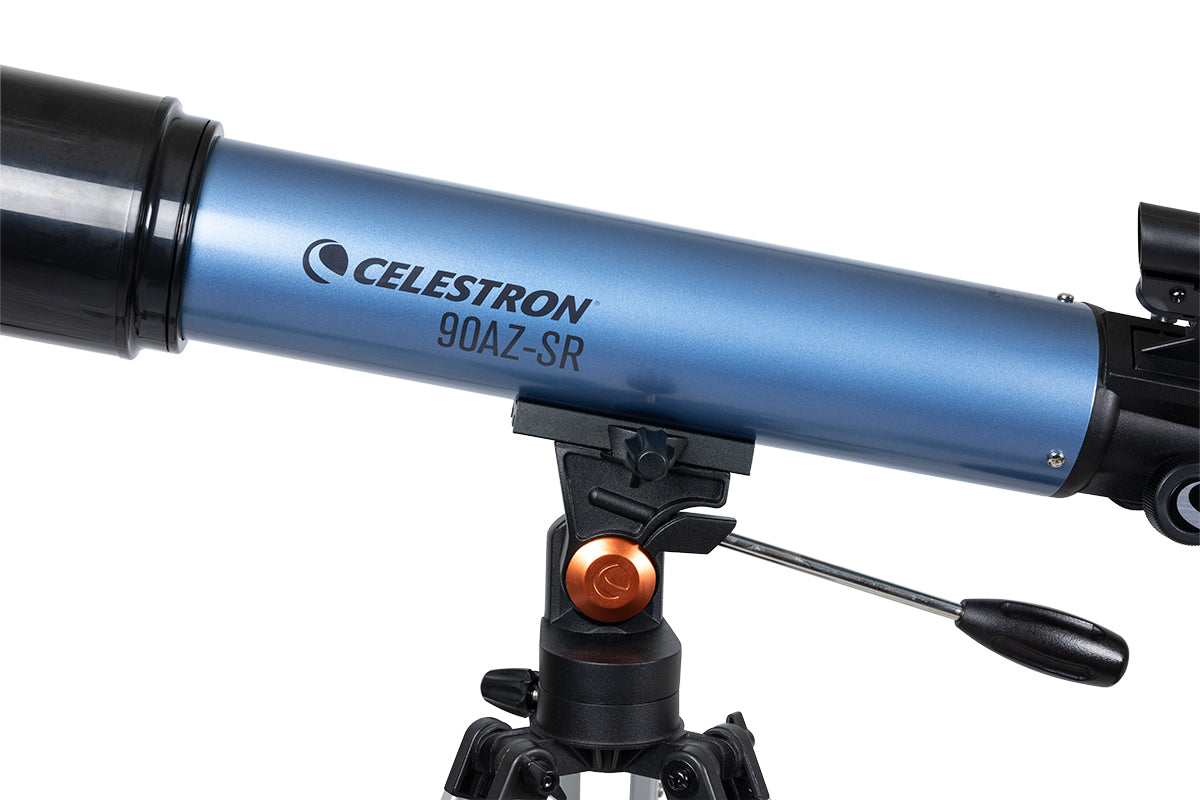

Manual Alt-Azimuth telescope
Navigate the sky with a panning handle Alt-Az control with clutch for smooth and accurate pointing. Move the clutch in an up/down, left/right fashion to track your object in the eyepiece.
Accessories Included

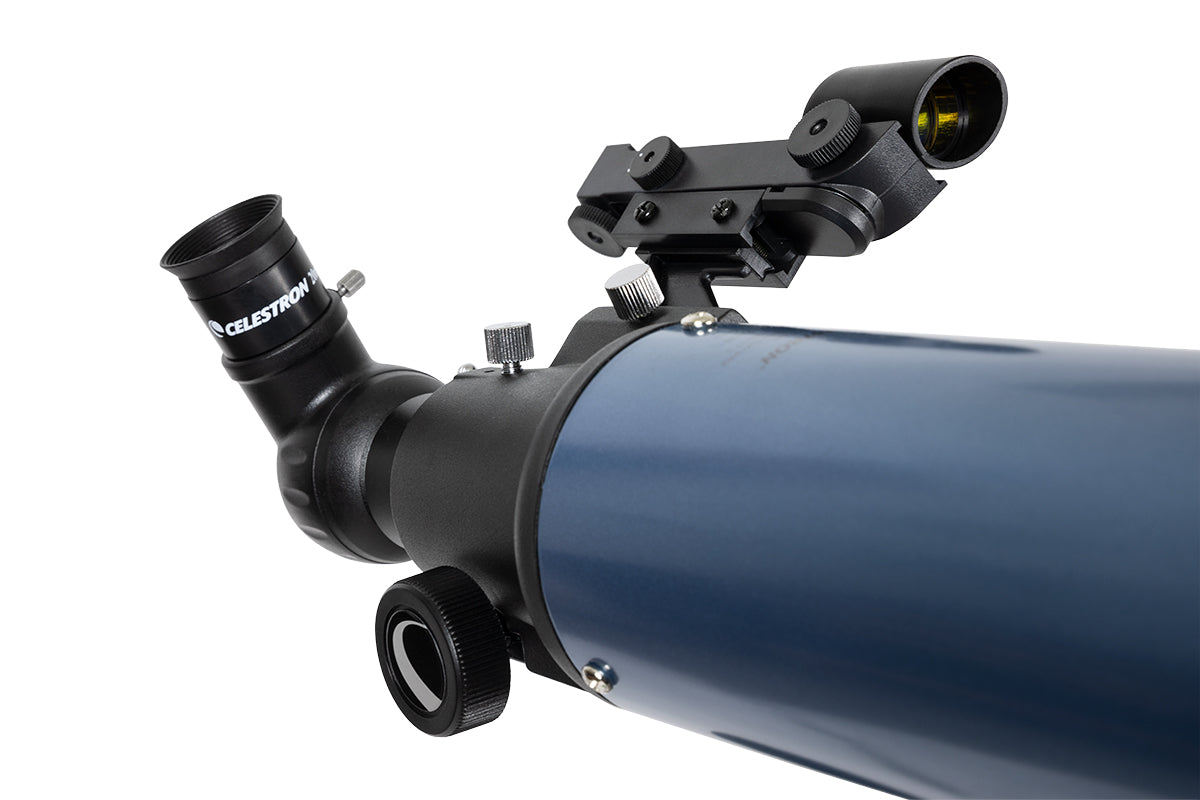

The 90AZ-SR comes with two eyepieces (20mm and 10mm), 3x Barlow lens, a 90° erect image diagonal, a smartphone adapter, and a StarPointer™ red dot finderscope. The two eyepieces offer different magnifications to view your intended object. The erect image diagonal allows for right-side-up viewing ideal for terrestrial subjects but can also be used for celestial objects. The StarPointer™ red dot finderscope will help you quickly center an object in your eyepiece for easier observing.

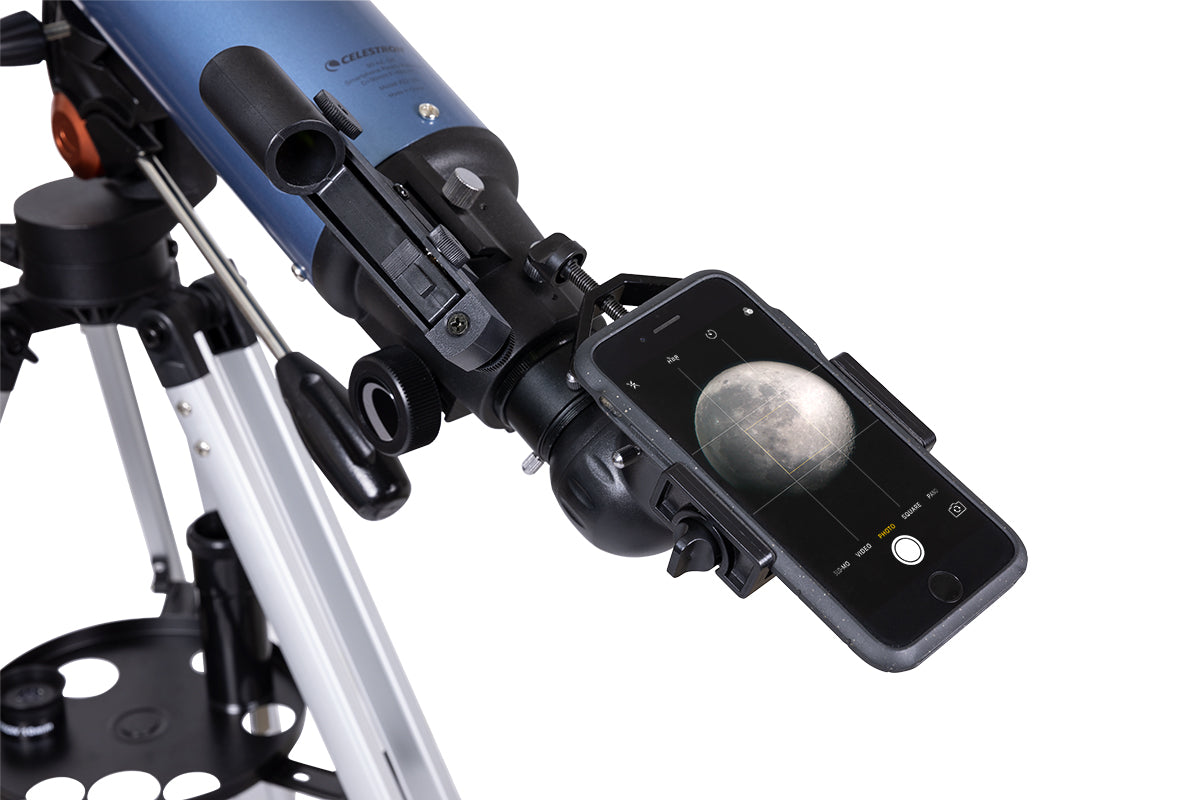

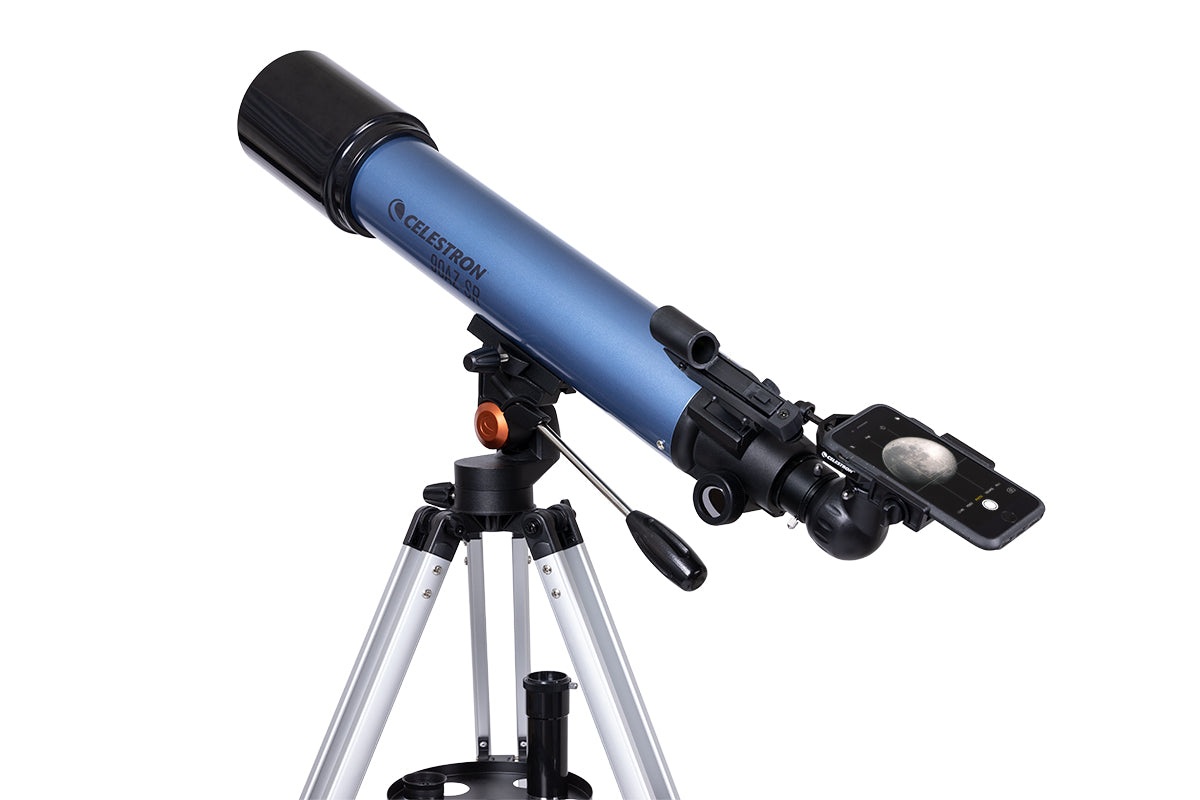

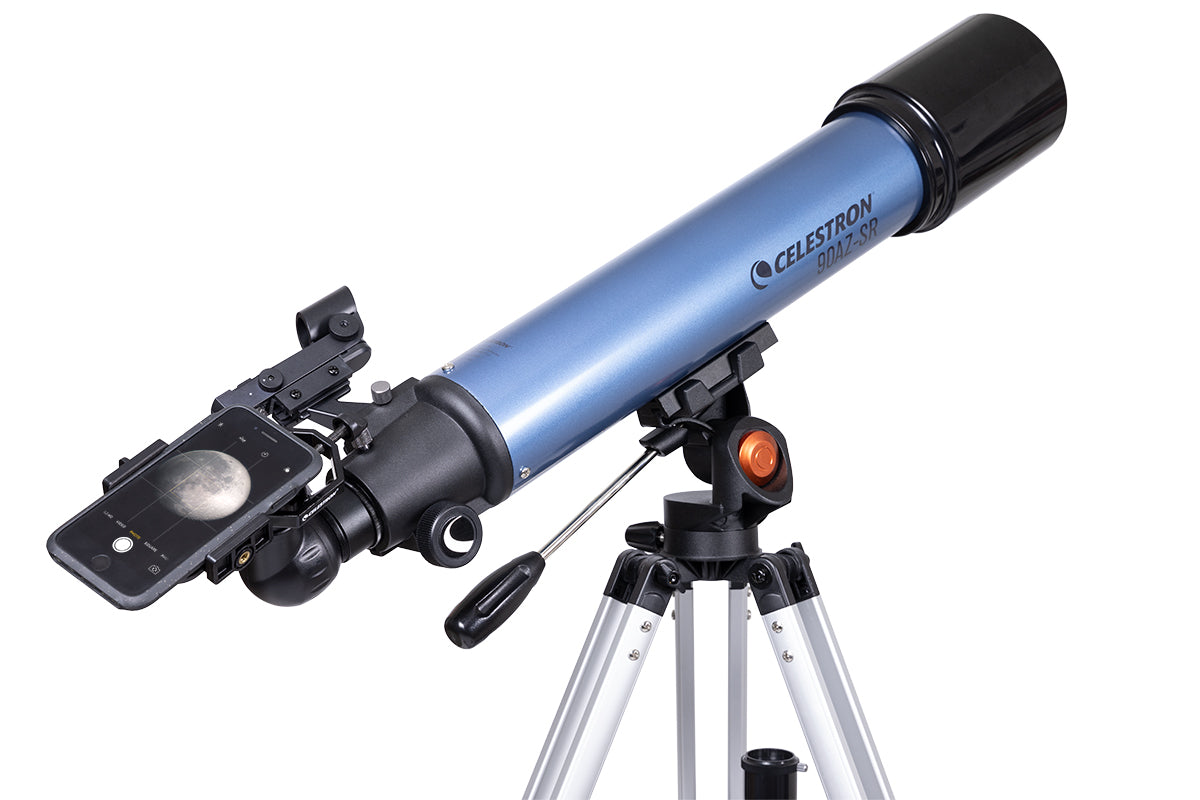

Smartphone Adapter
Image celestial or terrestrial objects with this smartphone adapter! With its light, rigid frame, this accessory allows you to connect any smartphone to any telescope eyepiece with an outside diameter of 45mm or smaller. The additional magnification provided by the eyepiece allows your phone to capture great images of the Moon, planets, and terrestrial targets like birds and wildlife. This smartphone adapter installs easily by clamping over the top of an eyepiece. The smartphone is held in position with the help of tightening knobs that securely lock your phone in place. While the vast majority of smartphones can be used with the case on, some very large and/or bulky phone cases (such as folio style cases) may need to be removed for the phone to fit in the adapter.
Starry Night Software
Download Celestron’s Starry Night Software and learn about the night sky, celestial objects, and how to plan your next observing session. Celestron Starry Night Software is the premier astronomy software package on the market, providing resources and knowledge to view our solar system and beyond.
Specifications
Optical Tube Info: | |
---|---|
Optical Design: | Refractor |
Aperture: | 90mm (3.54") |
Focal Length: | 660mm (25.98") |
Focal Ratio: | f/7.3 |
Optical Coating: | Fully Multi-Coated glass optics |
Focal Length of Eyepiece 1: | 20mm (0.78") Kellner (1.25") |
Magnification of Eyepiece 1: | 33x |
Focal Length of Eyepiece 2: | 10mm (0.39") Kellner (1.25") |
Magnification of Eyepiece 2: | 66x |
Barlow lens: | 3x |
Star Diagonal: | Erect image 90° (1.25") |
Finderscope: | StarPointer™ red dot finderscope |
Other Accessories: | SkyPortal App |
Resolution (Rayleigh): | 1.55 arc seconds |
Resolution (Dawes): | 1.29 arc seconds |
Light Gathering Power: | 165x the unaided eye |
Highest Useful Magnification: | 198x |
Lowest Useful Magnification: | 33x |
Limiting Stellar Magnitude: | 12.3 |
Mount Info: | |
Tripod: | Steel, 1.25" diameter, 47" max height |
Included Items: |
Optical tube Mount with tripod and folding accessory tray connected 90° erect image diagonal 20mm and 10mm Kellner eyepieces StarPointer™ red dot finderscope Smartphone adapter Starry Night basic software Free download of SkyPortal |
