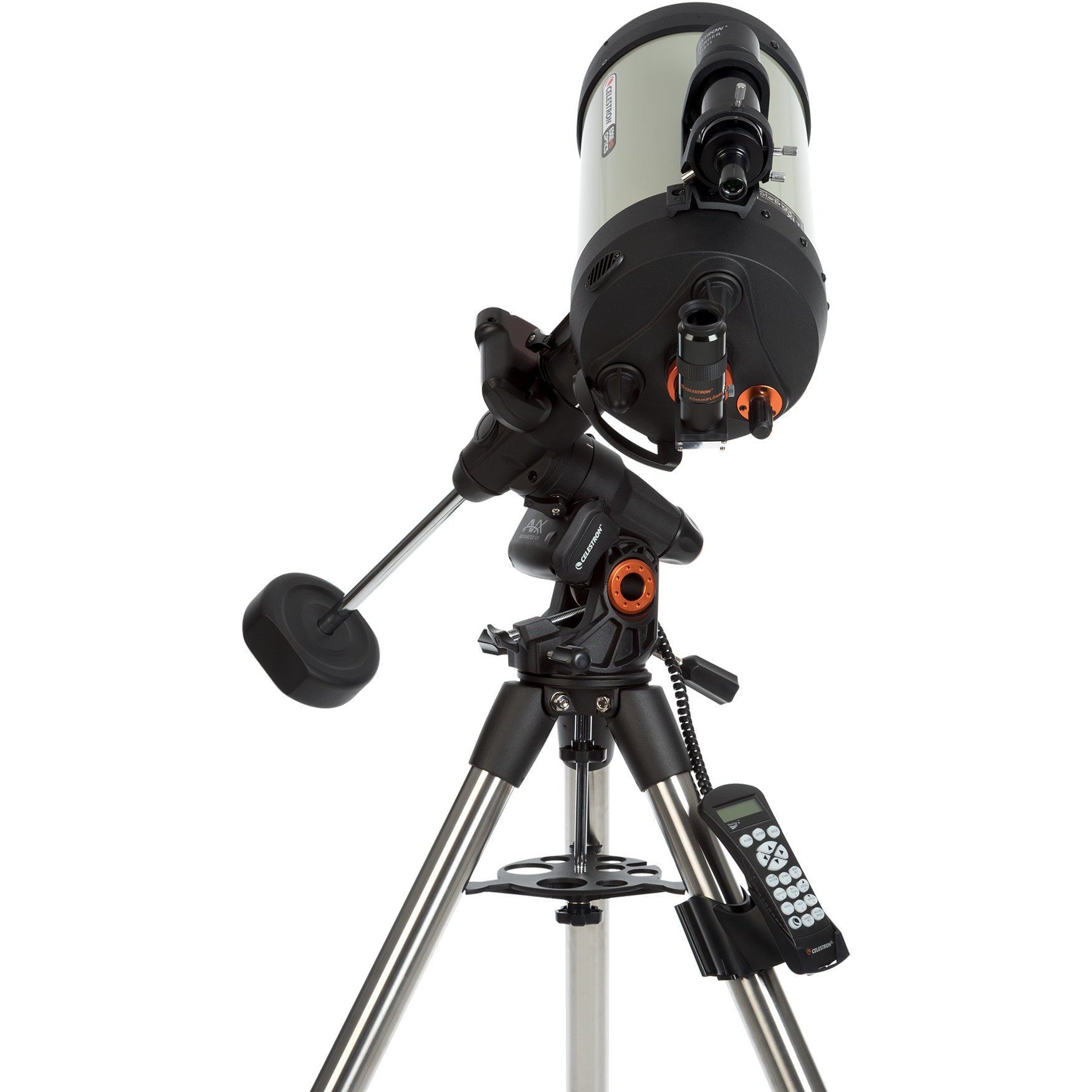

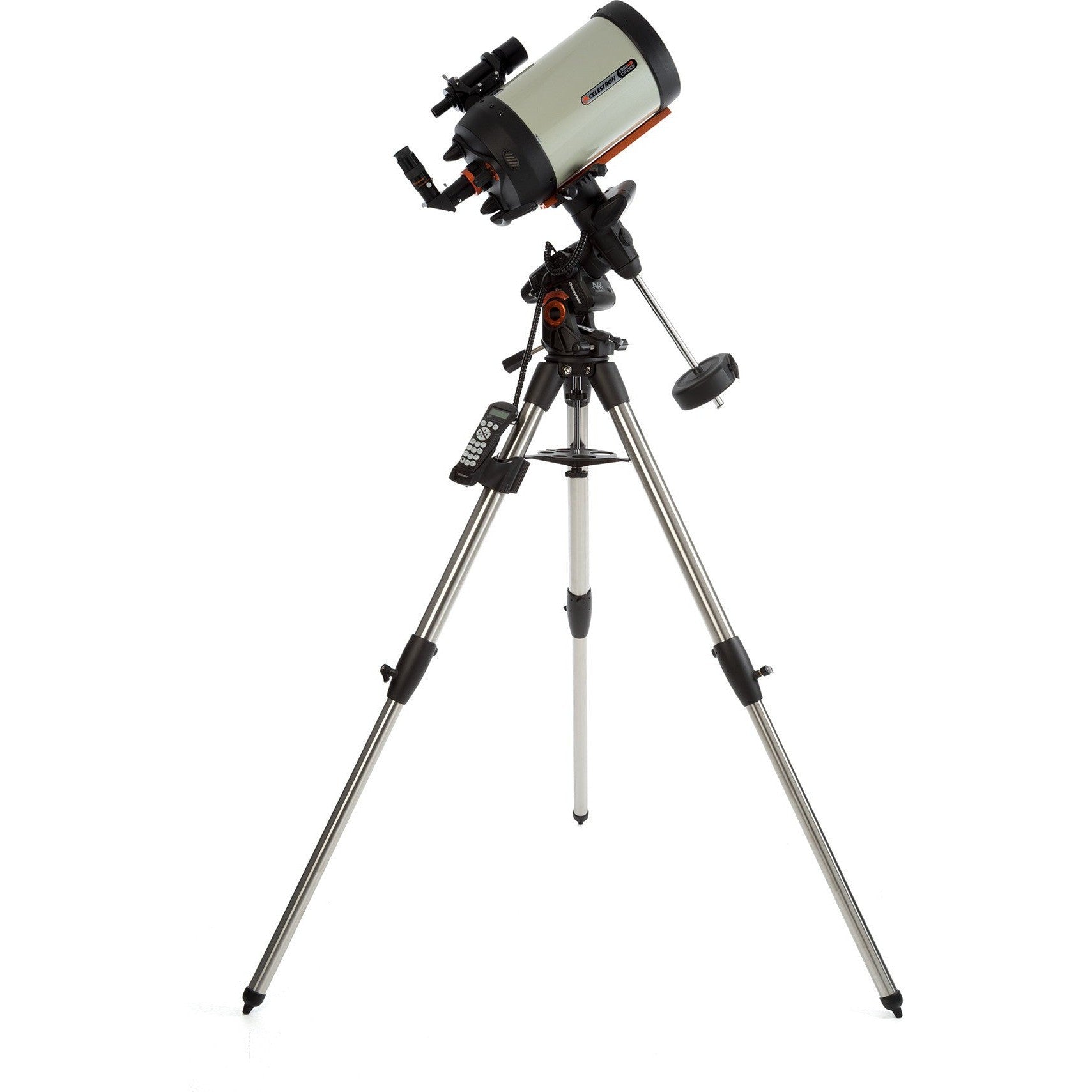

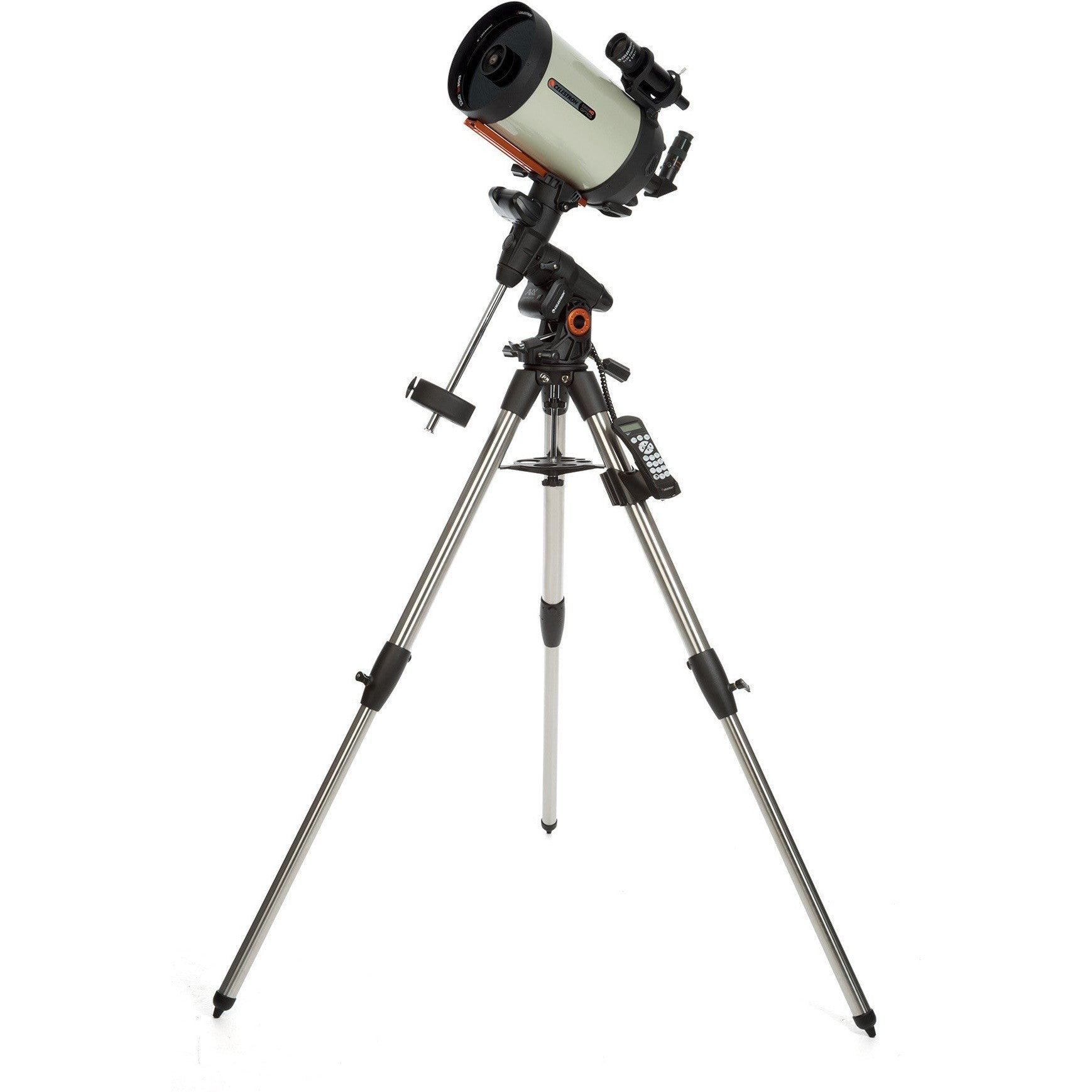

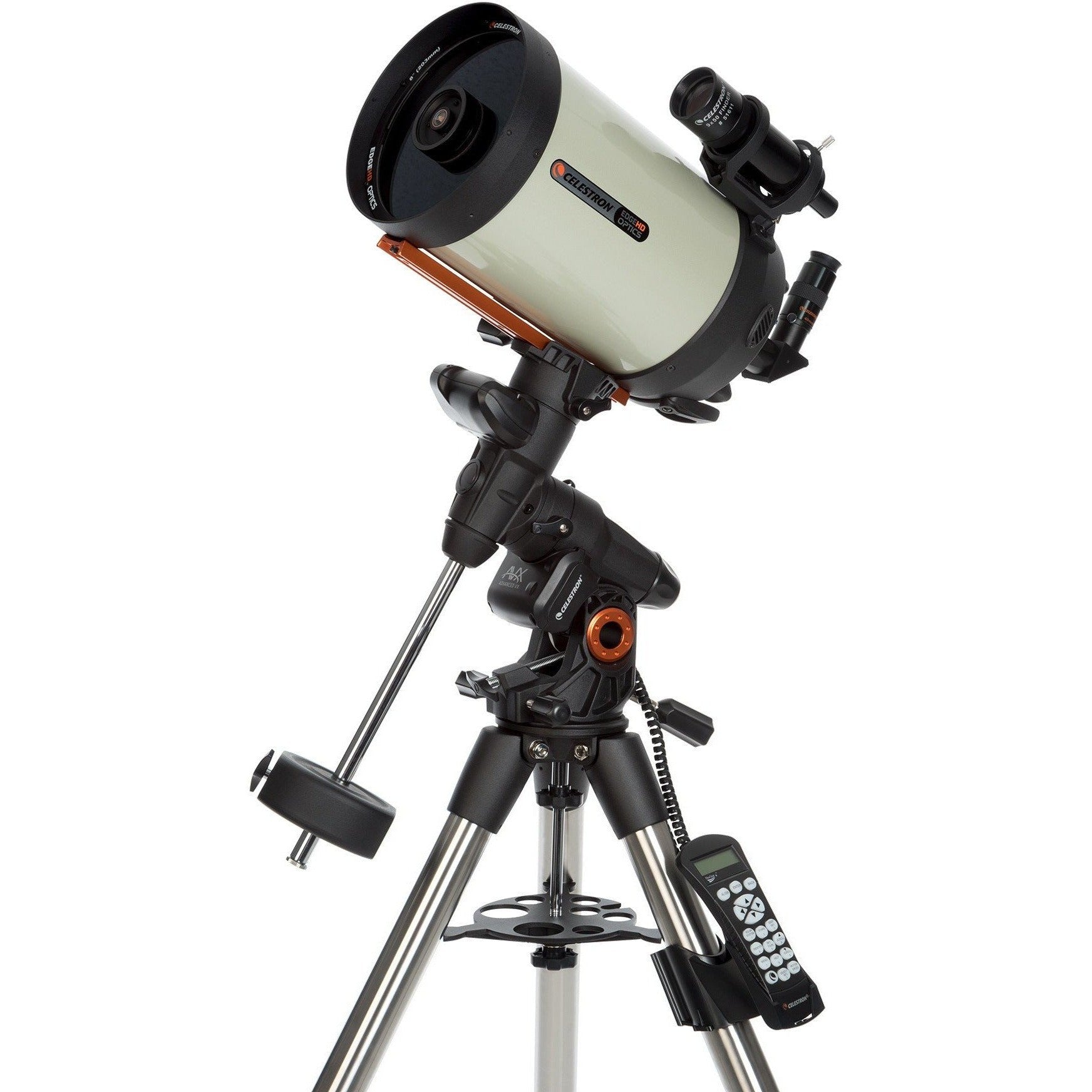

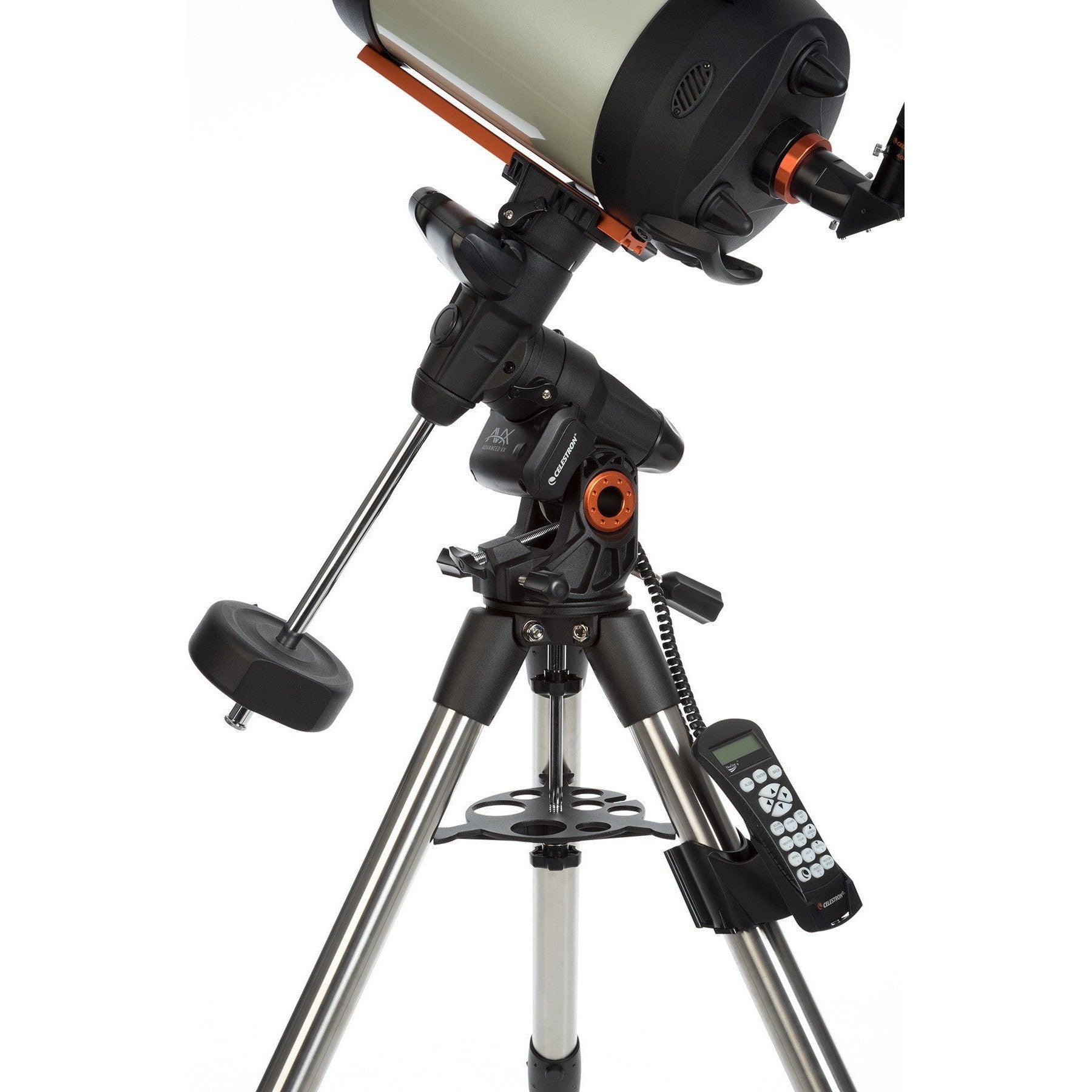

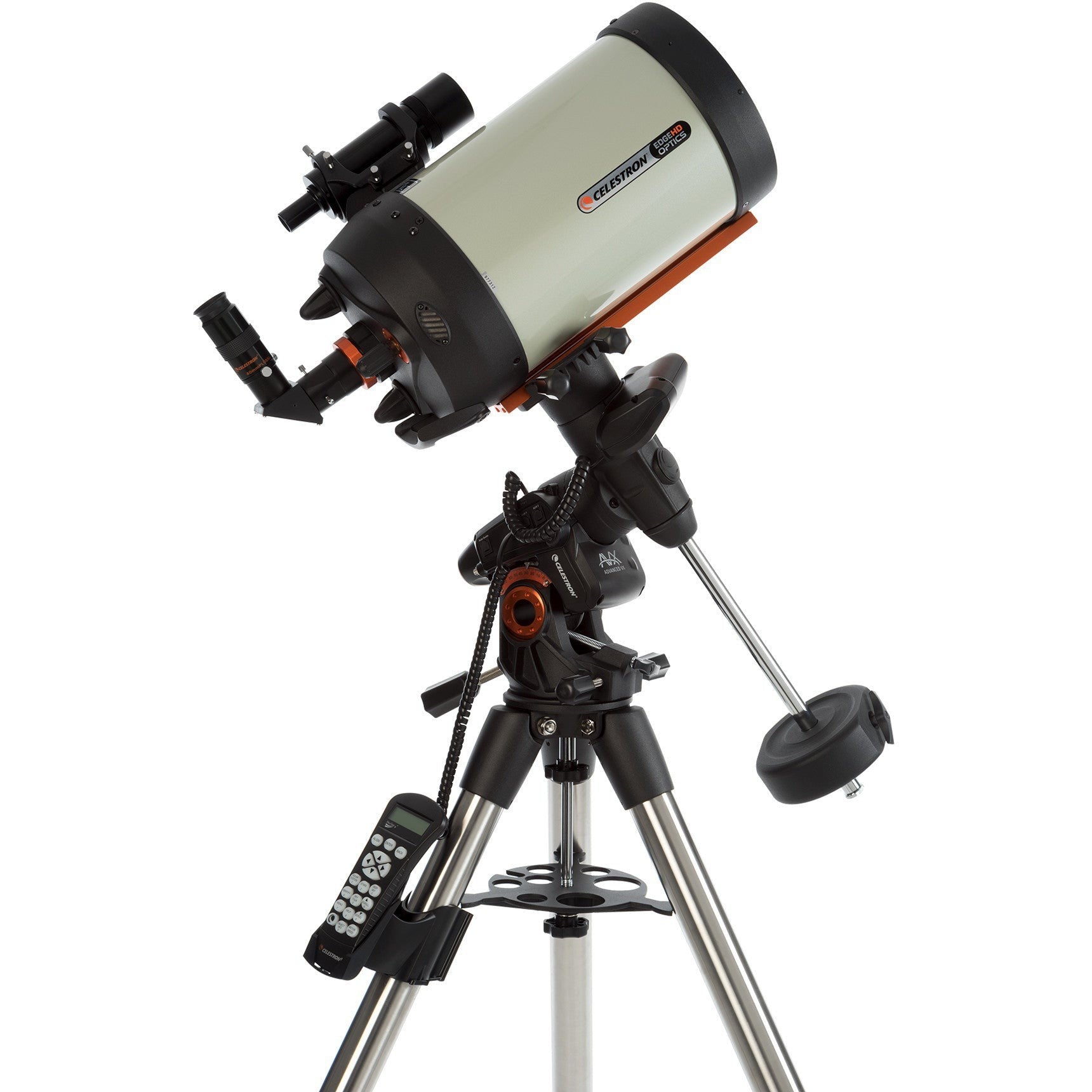

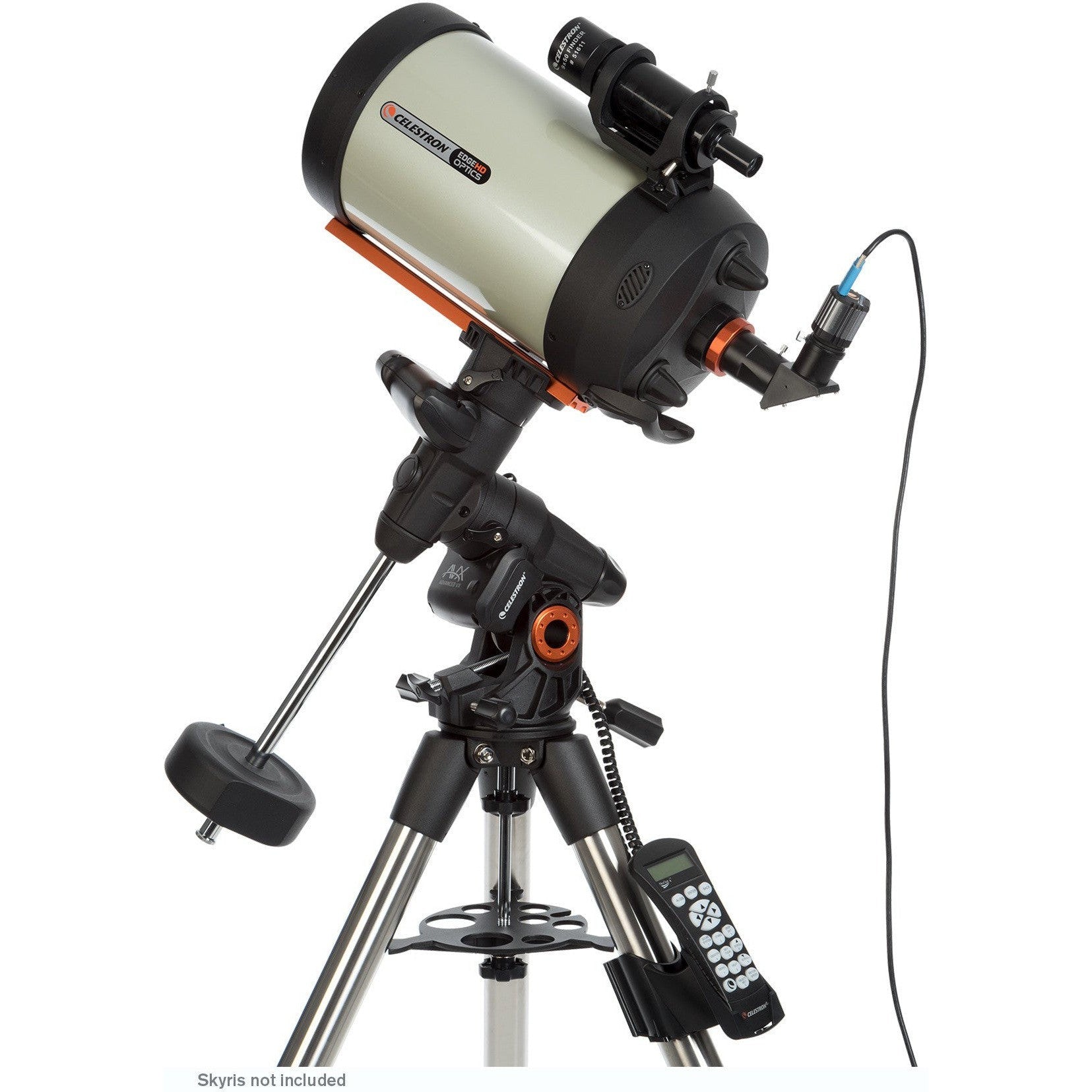

Advanced VX 8" EdgeHD Telescope
Item #: 12031 / 12031-CGL- 8” (203.2mm) f/10 EdgeHD includes StarBright XLT coatings for better light transmission
- EdgeHD optical design fully corrects for coma and field curvature, delivering a truly flat field
- The most compact and portable of Celestron’s German equatorial mounts offers the same rigidity as our larger mounts with minimal flexure and an improved industrial design
- Holds a maximum instrument capacity of 30 lb
- Every feature an astroimager wants: PEC, an autoguider port, the ability to image across the meridian, and more
- Dual saddle plate is compatible with narrow CG-5 dovetails and wider CGE dovetail. Also compatible with Vixen format dovetails longer than 100mm, but not compatible with Losmandy D format plates.
- Latitude range allows the mount to perform between 7° and 77° latitude

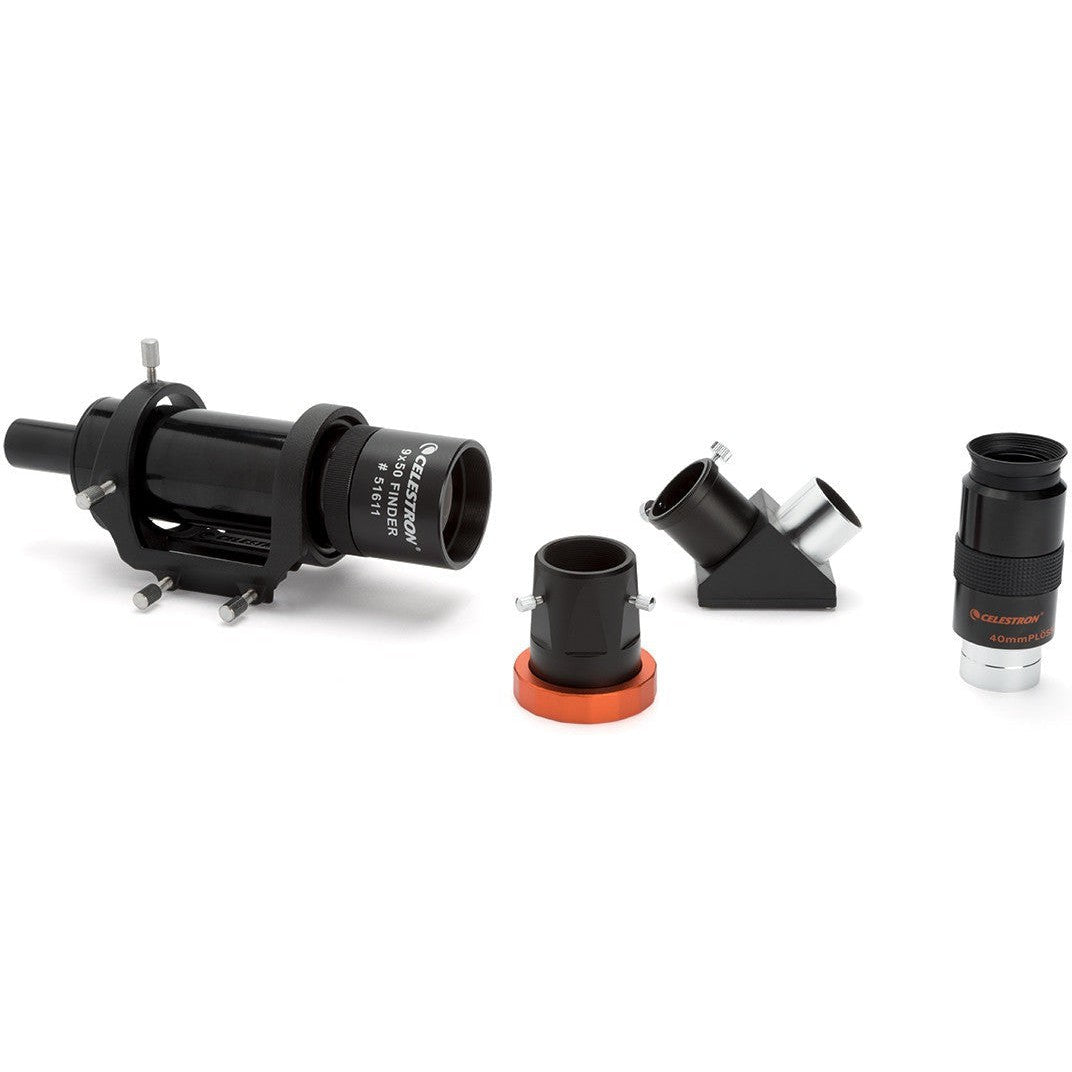

- Accessories include a 40mm eyepiece, 1.25” star diagonal and 9x50 finderscope
Overview
- 8” (203.2mm) f/10 EdgeHD includes StarBright XLT coatings for better light transmission
- EdgeHD optical design fully corrects for coma and field curvature, delivering a truly flat field
- The most compact and portable of Celestron’s German equatorial mounts offers the same rigidity as our larger mounts with minimal flexure and an improved industrial design
- Holds a maximum instrument capacity of 30 lb
- Every feature an astroimager wants: PEC, an autoguider port, the ability to image across the meridian, and more
- Dual saddle plate is compatible with narrow CG-5 dovetails and wider CGE dovetail. Also compatible with Vixen format dovetails longer than 100mm, but not compatible with Losmandy D format plates.
- Latitude range allows the mount to perform between 7° and 77° latitude
- Accessories include a 40mm eyepiece, 1.25” star diagonal and 9x50 finderscope
Includes These Celestron Technologies
Compatible With
Customers Also Purchased
Description

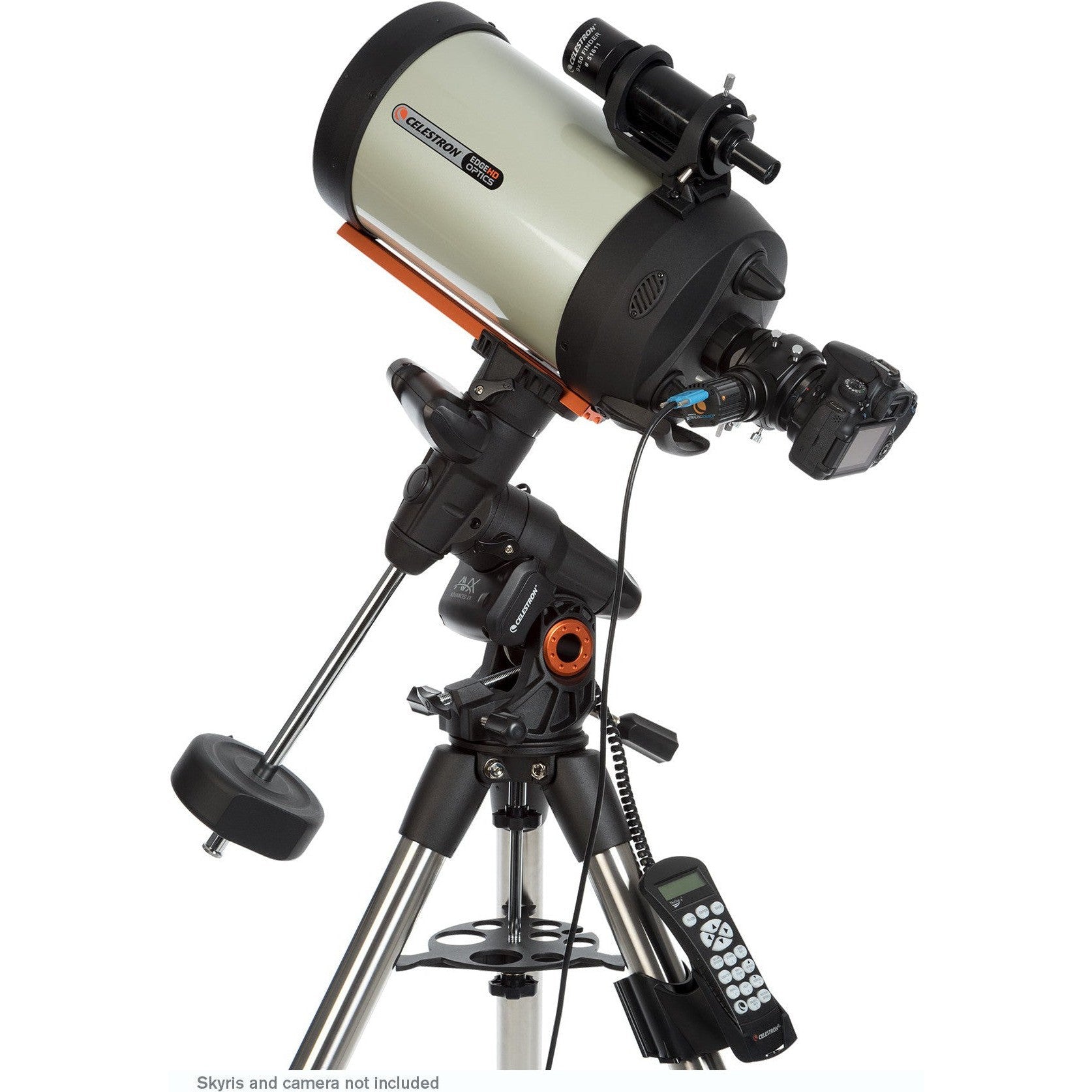

The Advanced VX (AVX) sets a standard in mid-level telescopes, providing many of the features found on Celestron’s most sophisticated German equatorial mounts at an extremely affordable price. The Advanced VX 8” EdgeHD telescope combines the groundbreaking new Advanced VX mount with Celestron’s best optics, the EdgeHD optical system. This setup offers the astroimager maximum versatility – allowing up to 3 different f-stop configurations. Users can attach a camera to the rear of the telescope and shoot at f/10 or attach our 8” EdgeHD focal reducer to shoot at f/7. Additionally, EdgeHD is Fastar/Hyperstar compatible, giving imagers the option to shoot at ultra-fast f/2. No matter which configuration you choose, EdgeHD technology gives you pinpoint stars all the way to the edge of the CCD sensor. The Advanced VX mount is designed to provide superior performance while taking advantage of Celestron’s most advanced technologies: All-Star Polar Alignment, Celestron PWI telescope control software, SkyAlign, and permanently programmable periodic error correction (PPEC).
If you’re an experienced imager, you’ll love taking this portable mount to a dark sky site and enjoying all the conveniences of a larger observatory mount. Or, if you’re new to imaging, Advanced VX will help you get started with the hobby and keep up with your needs for years to come.
Computerized German equatorial mount
The Advanced VX is the smallest of Celestron’s German equatorial mounts. The computerized GoTo capability automatically tracks objects as they move across the night sky. The Advanced VX mount includes ports for a hand control, an autoguider, and 2 AUX ports for optional accessories. The NexStar+ hand control gives you instant access to all the functions your mount has to offer. With automatic slewing and menu descriptions, any level of astronomer can master this mount in just a few observing sessions. The Advanced VX also has an impressive tripod for its class with a 2” diameter steel tripod legs providing an extra-wide stance for improved stability.
Payload capacity
The payload capacity for the Advanced VX is 30 lb. It offers a sturdy platform for any of the Advanced VX optical tubes, even when paired with optional accessories like StarSense AutoAlign, Focus Motor, a finderscope, and a camera. Celestron's payload capacity does not include the weight of the counterweights.

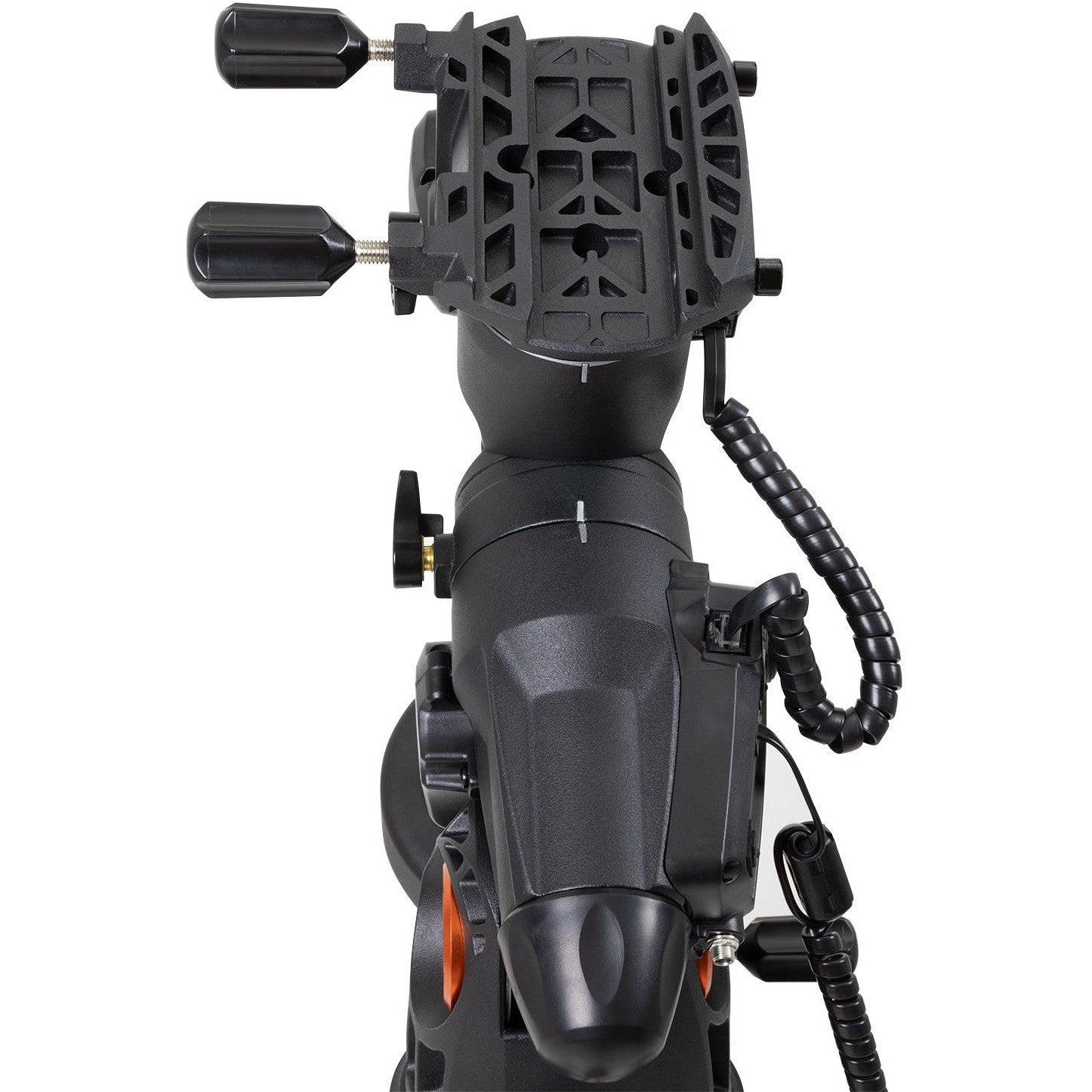

Dual saddle plate
As of early 2019, Advanced VX mounts include a dual saddle plate that accommodates both CG-5 and CGE-style dovetail. Switching between the two saddle plates is as simple as moving the hand knobs into a separate set of holes. You can use an Advanced VX mount with virtually any optical tube within its weight limit. Compatible with Vixen format dovetails 100mm or longer, not compatible with Losmandy D format plates (regardless of plate manufacturer).

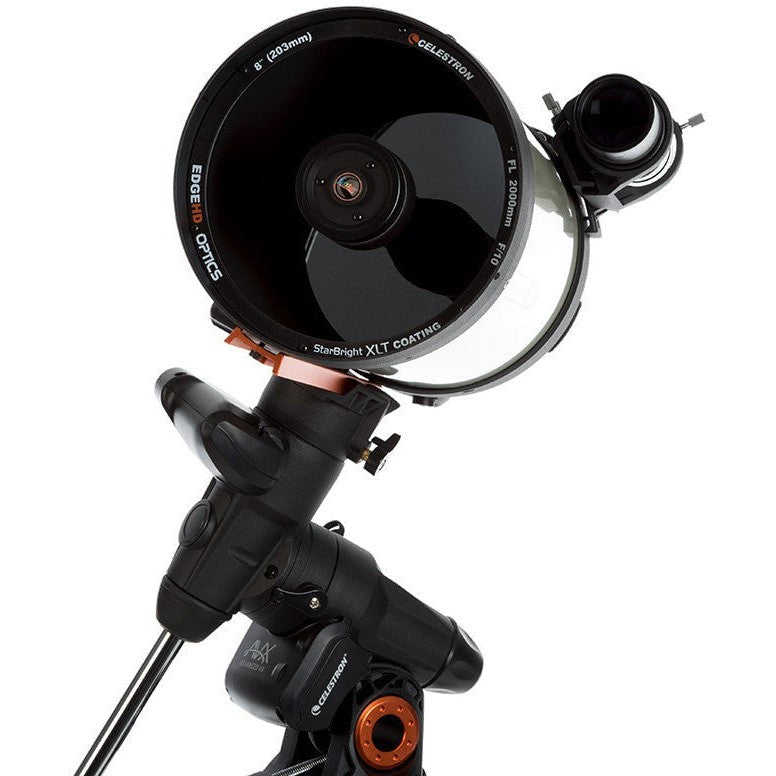

EdgeHD Optics
The revolutionary EdgeHD optical design produces aberration-free images with pinpoint stars all the way to the edge of the field-of-view of today’s largest imaging sensors and wide-field eyepieces. EdgeHD’s unique design virtually eliminates both field curvature and off-axis coma, providing an astrograph-quality system.
For more information on EdgeHD Optics, click here.
Software
Celestron PWI Telescope Control Software
Your Ultimate Astronomy Software Suite
All current Celestron computerized telescopes include Celestron PWI (CPWI), the most advanced astronomy software suite provided with any consumer-grade telescope. Celestron’s experts co-developed CPWI with the engineers at PlaneWave Instruments. The result is an all-in-one solution offering you many of the same features used on PlaneWave’s observatory-class telescopes.
- Graphical planetarium interface with PointXP advanced mount modelling allows you to add 100+ points to your alignment model for the most accurate pointing and tracking possible
- Ideal for remote observatory setups: save and re-load your alignment and park your scope
- Provides a complete ASCOM telescope interface to allow control of the telescope from third party software applications
For more information on CPWI and to see the user interface, click here.
Starry Night Software
Included with your purchase is a free download of Celestron’s Starry Night Special Edition Software. This advanced software by Simulation Curriculum offers detailed information about celestial objects and helps you plan your next observing or imaging session. The Special Edition software also allows you to control your telescope via computer.
Specifications
| Optical Tube Info: | |
|---|---|
| Optical Design: | EdgeHD |
| Aperture: | 203.2mm (8") |
| Focal Length: | 2032mm (80") |
| Focal Ratio: | f/10 |
| Focal Length of Eyepiece 1: | 40mm (1.57") |
| Magnification of Eyepiece 1: | 51x |
| Finderscope: | 9x50 |
| Star Diagonal: | 1.25" Star Diagonal |
| Optical Tube: | Aluminum |
| Highest Useful Magnification: | 480x |
| Lowest Useful Magnification: | 29x |
| Limiting Stellar Magnitude: | 14 |
| Resolution (Rayleigh): | .69 arc seconds |
| Resolution (Dawes): | .57 arc seconds |
| Light Gathering Power (Compared to human eye): | 843x |
| Secondary Mirror Obstruction: | 64mm (2.5") |
| Secondary Mirror Obstruction by Diameter: | 31% |
| Secondary Mirror Obstruction by Area: | 9.77% |
| Optical Coatings: | StarBright XLT |
| Optical Tube Length: | 432mm (17") |
| Optical Tube Diameter: | 238mm (9.37") |
| Optical Tube Weight: | 14 lbs (6.35 kg) |
| Dovetail: | CG-5 Dovetail bar |
| Mount Info: | |
| Mount Type: | Computerized Equatorial |
| Instrument load capacity: | 30 lbs (13.6 kg) |
| Height adjustment range (includes mount and tripod): | 1118mm - 1626mm (44" – 64") |
| Tripod Leg Diameter: | 50.8mm (2") Stainless Steel |
| Latitude adjustment range: | 7° - 77° |
| Mount Head Weight: | 17 lbs (7.71 kg) |
| Accessory Tray: | Yes |
| Tripod Weight: | 18 lbs (8.16 kg) |
| Weight of Counterweights: | 1 x 12 lbs |
| Slew Speeds: | 9 slew speeds - max speed 4°/second |
| Tracking Rates: | Sidereal, Solar and Lunar |
| Tracking Modes: | EQ North and EQ South |
| GPS: | N/A |
| Dovetail Compatibility: | Dual saddle plates (CG-5 and CGE saddle) |
| Number of Auxiliary Ports: | 3 AUX Ports (1 hand control and 2 AUX Ports for optional accessories |
| Autoguide Port: | Yes |
| USB Port: | Yes, input on Hand Control |
| Power Requirements: | 12V DC 3.5A (tip positive) |
| Motor Drive: | DC servo motors |
| Alignment Procedures: | 2-Star Align, 1-Star Align, Solar System Align, Last Alignment, Quick Align |
| Periodic Error Correction: | Yes |
| Computerized Hand Control: | 2 line x 18 character backlit Liquid Crystal Display, 19 LED backlit buttons, USB 2.0 Port for PC connection |
| NexStar+ Database: | 40,000+ objects, 100 user defined programmable objects. Enhanced information on over 200 objects |
| Software: | Celestron Starry Night Special Edition Software and SkyPortal App |
| Total Kit Weight: | 61 lbs (27.67 kg) |
| Included Items: |
Advanced VX Equatorial Head and tripod Accessory Tray 1 x 12 lbs counterweight NexStar+ Hand Control DC Power Cable (item# 18769) Hand Control Holster |
Videos
Accessories
SELLER
SELLER
SELLER
SELLER
SELLER
SELLER
SELLER
SELLER
SELLER
SELLER
FAQ
I have an optical tube equipped with a Losmandy D dovetail mounting plate. Will this work with the improved Advanced VX (AVX) mount?
No, the Losmandy D dovetail plate will not fit the improved AVX mount. The improvement to the AVX mount allows it to be used with CGE format dovetail plates, but not Losmandy D format plates. The CGE and Losmandy D formats are similar, but not exactly the same. Losmandy plates are a millimeter or so wider, but CGE plates allow more surface area contact with the dovetail clamp.
What prevents the Losmandy D plates from working with the improved AVX?
The improved AVX can accept a dovetail with a maximum width of 74.5mm. The Losmandy D plate is a bit wider than that. Also, the improved AVX requires the height of the dovetail undercut to be at least 10.2mm, and the Losmandy D has a dovetail undercut which shorter than that.
So, how do I mount my optical tube with a Losmandy D dovetail plate onto the improved AVX?
You’ll need to replace the Losmandy D dovetail plate with a compatible dovetail plate, such as the Celestron #94214 CGE Universal Mounting Plate.
I have a Losmandy D format dovetail plate, but it is not manufactured by Losmandy. Will it work with the improved AVX?
No, if the dovetail plate uses the Losmandy D format, then it is not compatible with the improved AVX, regardless of the manufacturer of the plate.
I have an optical tube equipped with a Vixen dovetail mounting plate. Will this work with the improved AVX mount?
Yes, the improved AVX, like the original AVX, is compatible with Vixen format dovetail plates. However, the plate must have a dovetail length of 100mm or greater.
Why does my Vixen dovetail, or CG-5 dovetail, need to have a dovetail length of at least 100mm?
The knobs on the AVX that hold the dovetail plate in place are spaced 90mm apart. If the dovetail length is less than 100mm, then both knobs cannot come into contact the dovetail simultaneously. See the below engineering drawing.
My optical tube has a Vixen or CG-5 dovetail plate with a dovetail length of less than 100mm. How do I mount it onto the AVX?
You’ll need to replace the dovetail plate with a compatible dovetail plate, such as the Celestron #94213 Universal Mounting Plate, CG-5.
What is the heaviest recommend load for mounting a camera in the Fastar / HyperStar configuraton?
We recommend a load of no more than 20 lbs. at 4.5 inches away from the 8" Schmidt corrector.
