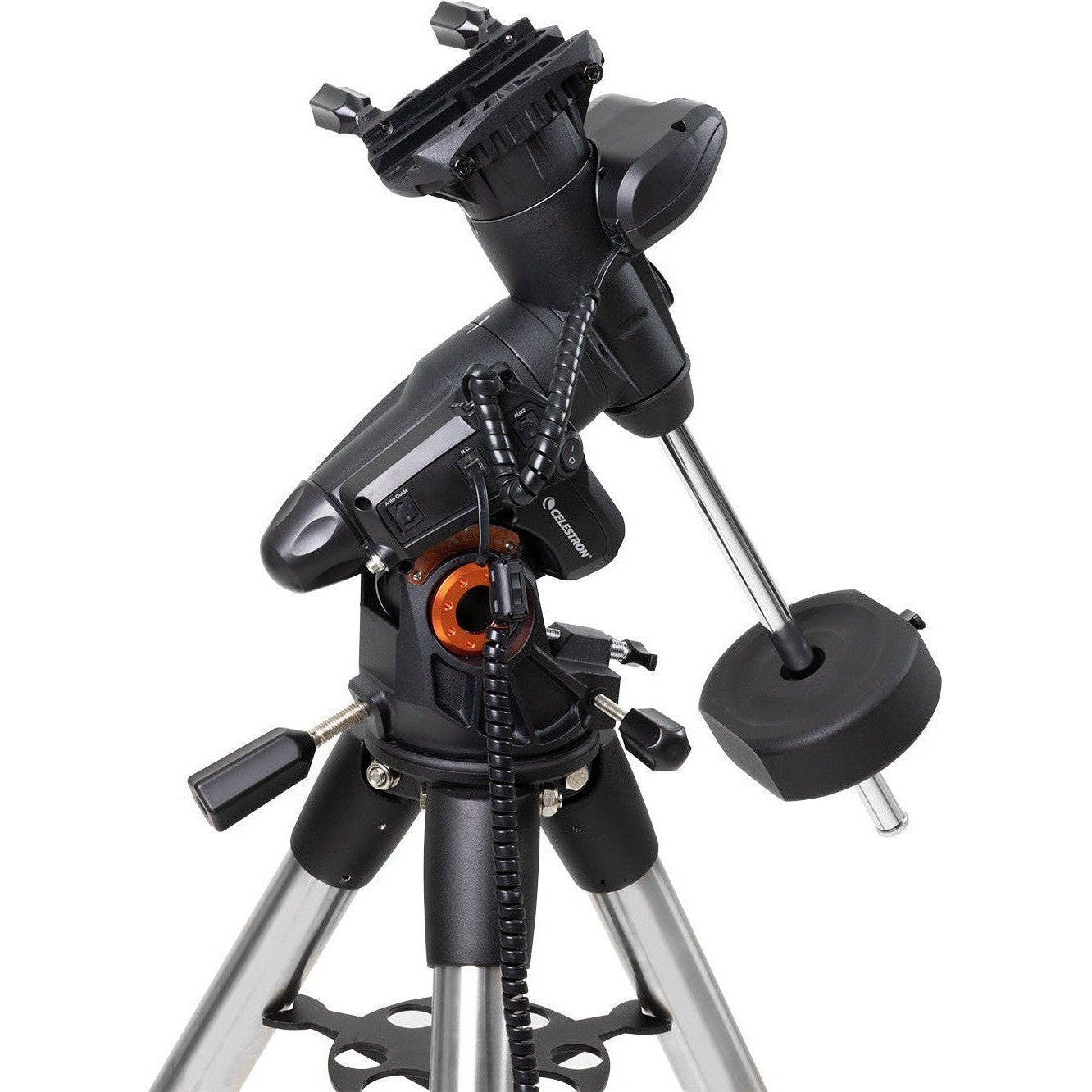

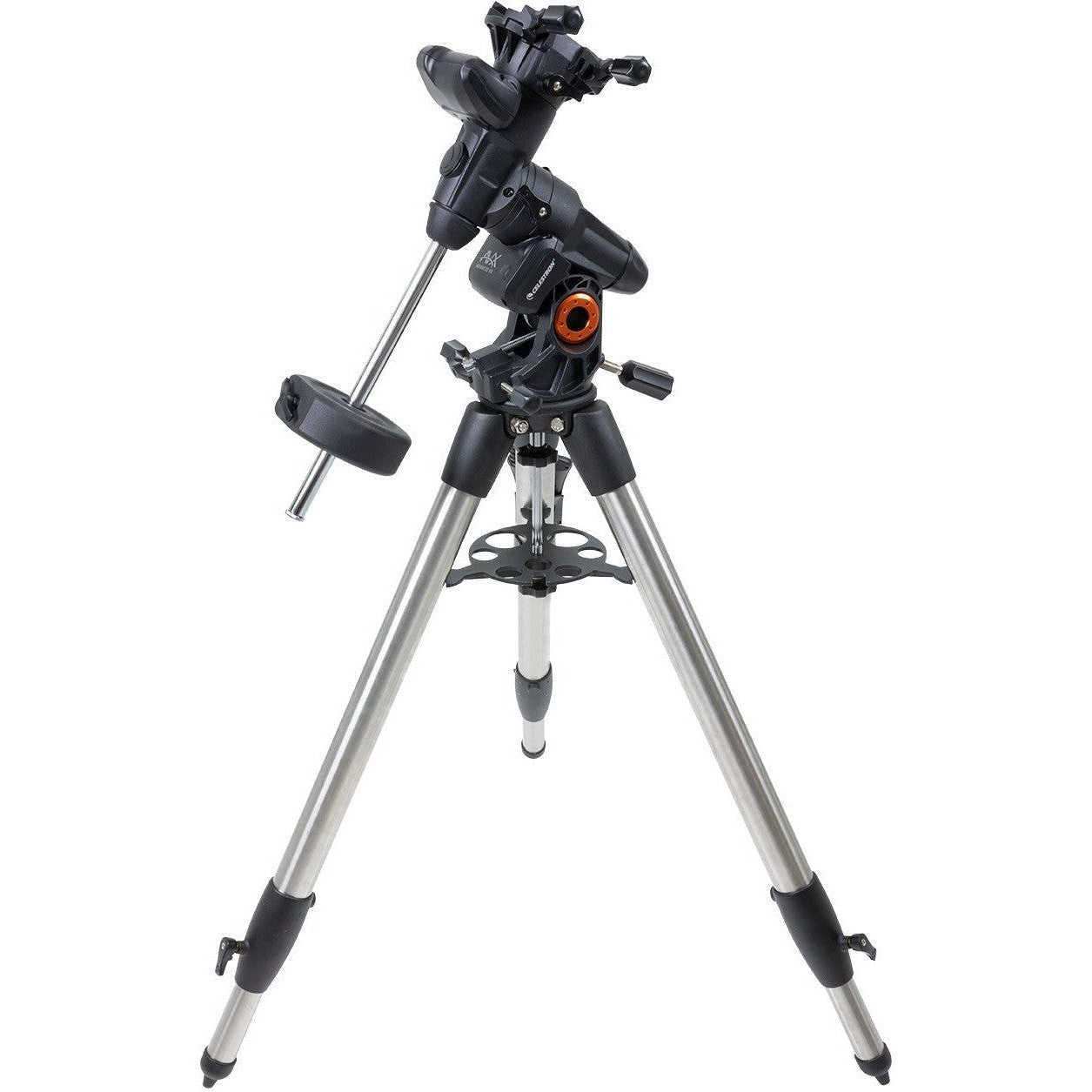

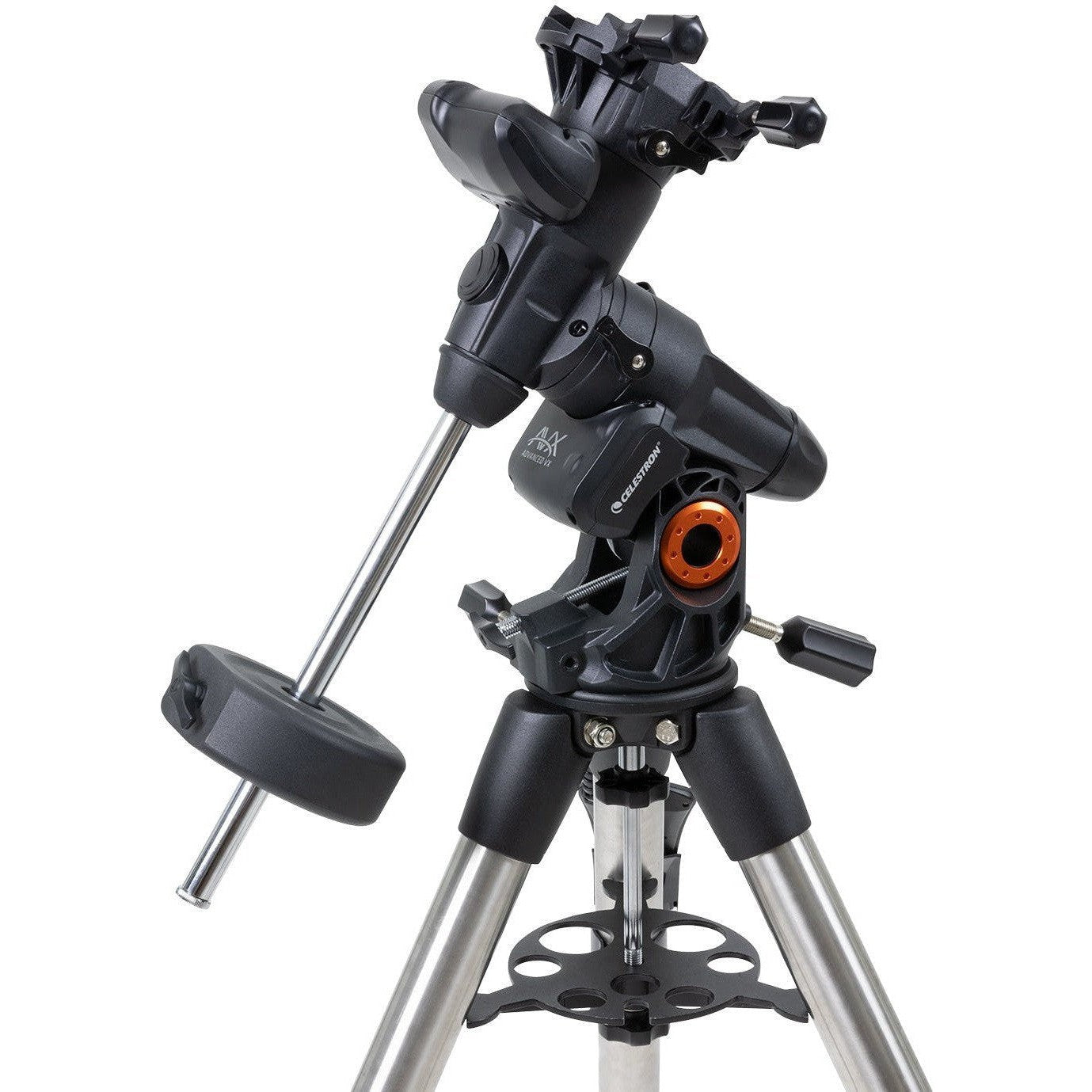

Used - Advanced VX Mount and Tripod
Used - Advanced VX Mount and Tripod
Item #: U91519
Low stock Only 1 left!
Couldn't load pickup availability
Free Ground Shipping! Contiguous USA only
30-Day Returns
2-Year Warranty
Please note: This is a gently used item. For complete product details, specs, and extras, please visit the original product page.
Gently Used, Fully Trusted
At Celestron, we believe the cosmos should be within everyone’s reach. That’s why our gently used items have been rigorously inspected and are in full working order—even if they show a few signs of past adventures. When you purchase this product, you’ll also enjoy the same comprehensive warranty as our new items, giving you confidence and peace of mind to explore the night sky.
Clear skies and happy stargazing!
Specifications
Specifications
| Mount Info: | |
|---|---|
| Mount Type: | Computerized Equatorial |
| Instrument load capacity: | 30 lbs (13.6 kg) |
| Height adjustment range (includes mount and tripod): | 1118mm - 1626mm (44" – 64") |
| Tripod Leg Diameter: | 50.8mm (2") Stainless Steel |
| Latitude adjustment range: | 7° - 77° |
| Mount Head Weight: | 17 lbs (7.71 kg) |

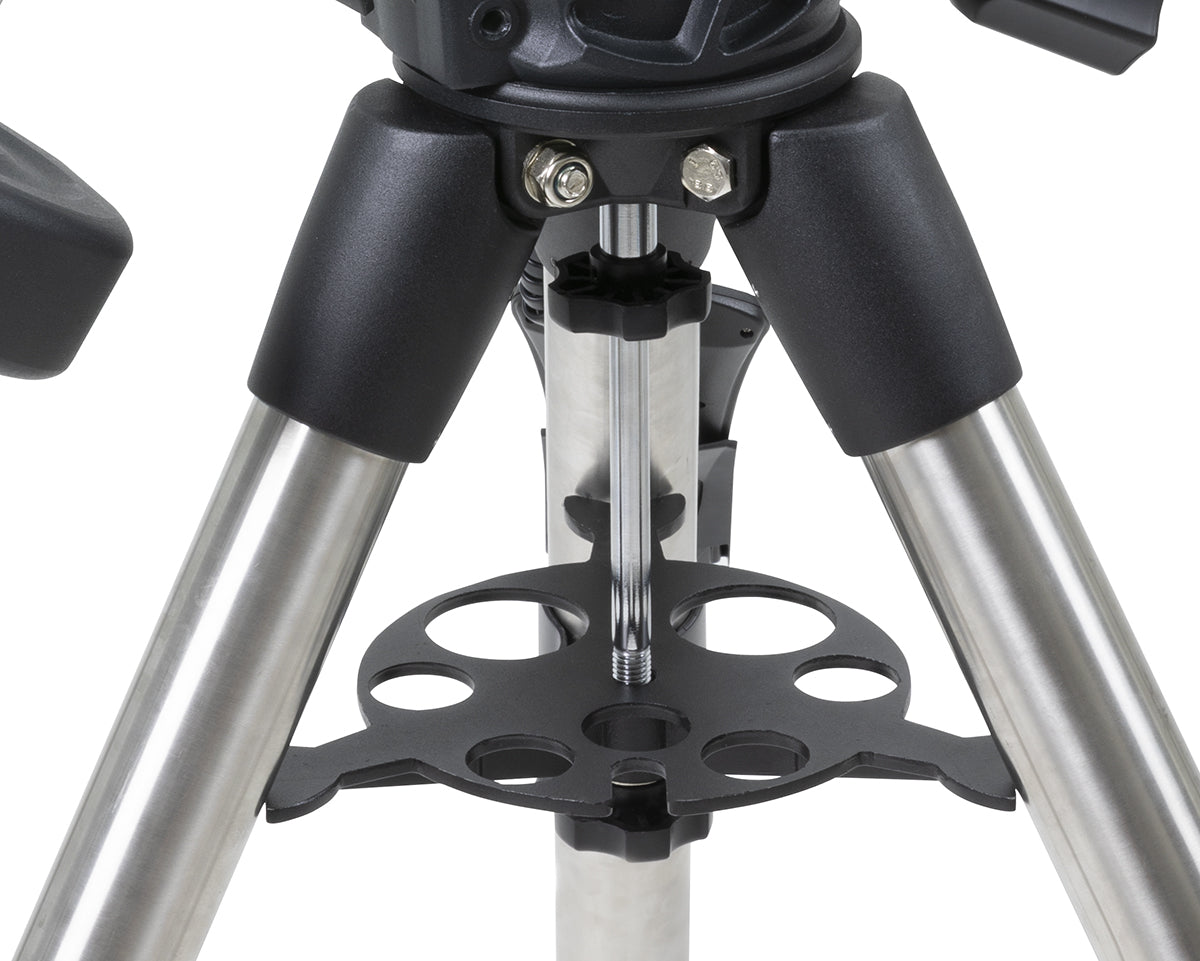

| Accessory Tray: | Yes |
| Tripod Weight: | 18 lbs (8.16 kg) |
| Weight of Counterweights: | 1 x 12 lbs |
| Slew Speeds: | 9 slew speeds - max speed 4°/second |
| Tracking Rates: | Sidereal, Solar and Lunar |
| Tracking Modes: | EQ North and EQ South |
| GPS: | N/A |

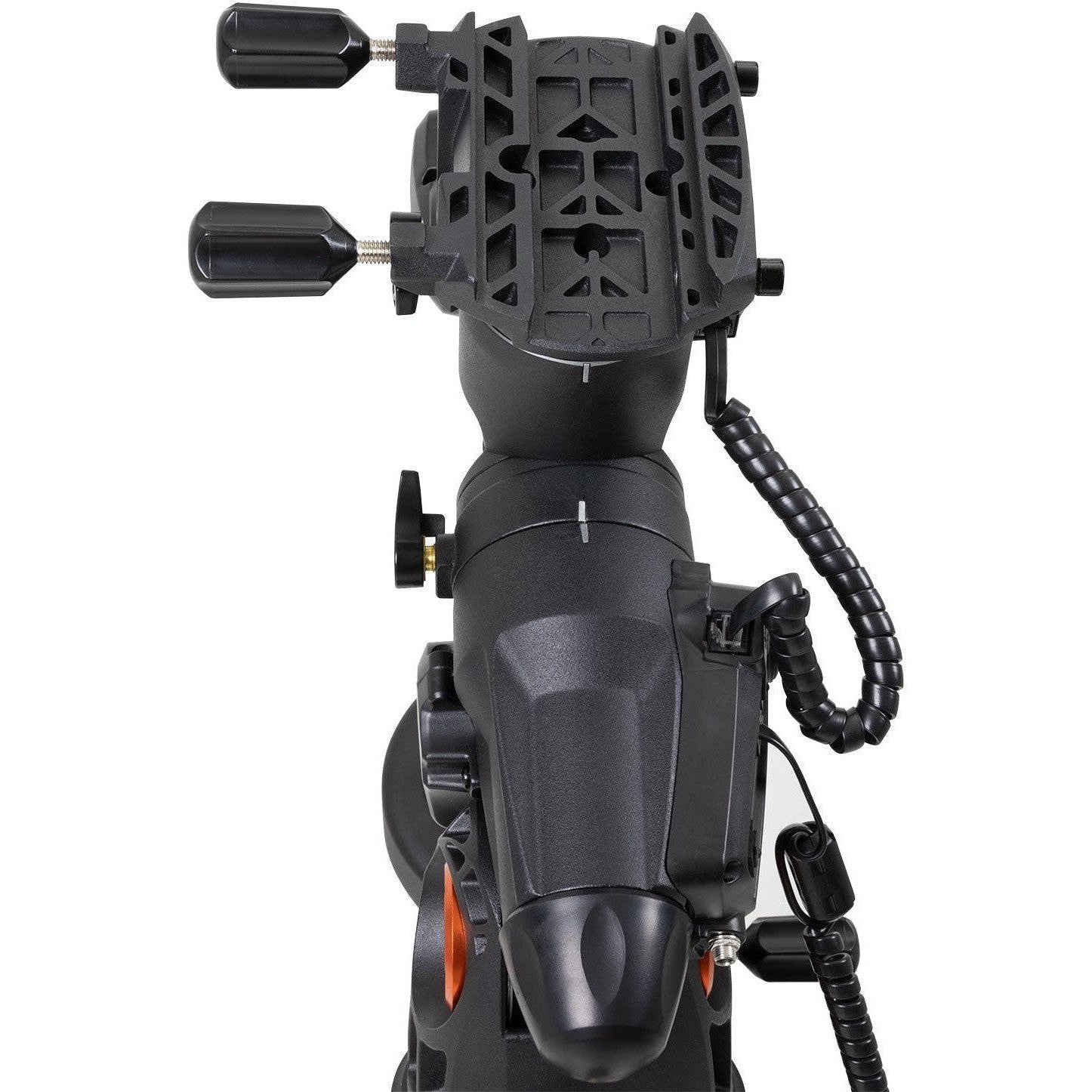

| Dovetail Compatibility: | Dual saddle plates (CG-5 and CGE saddle) |

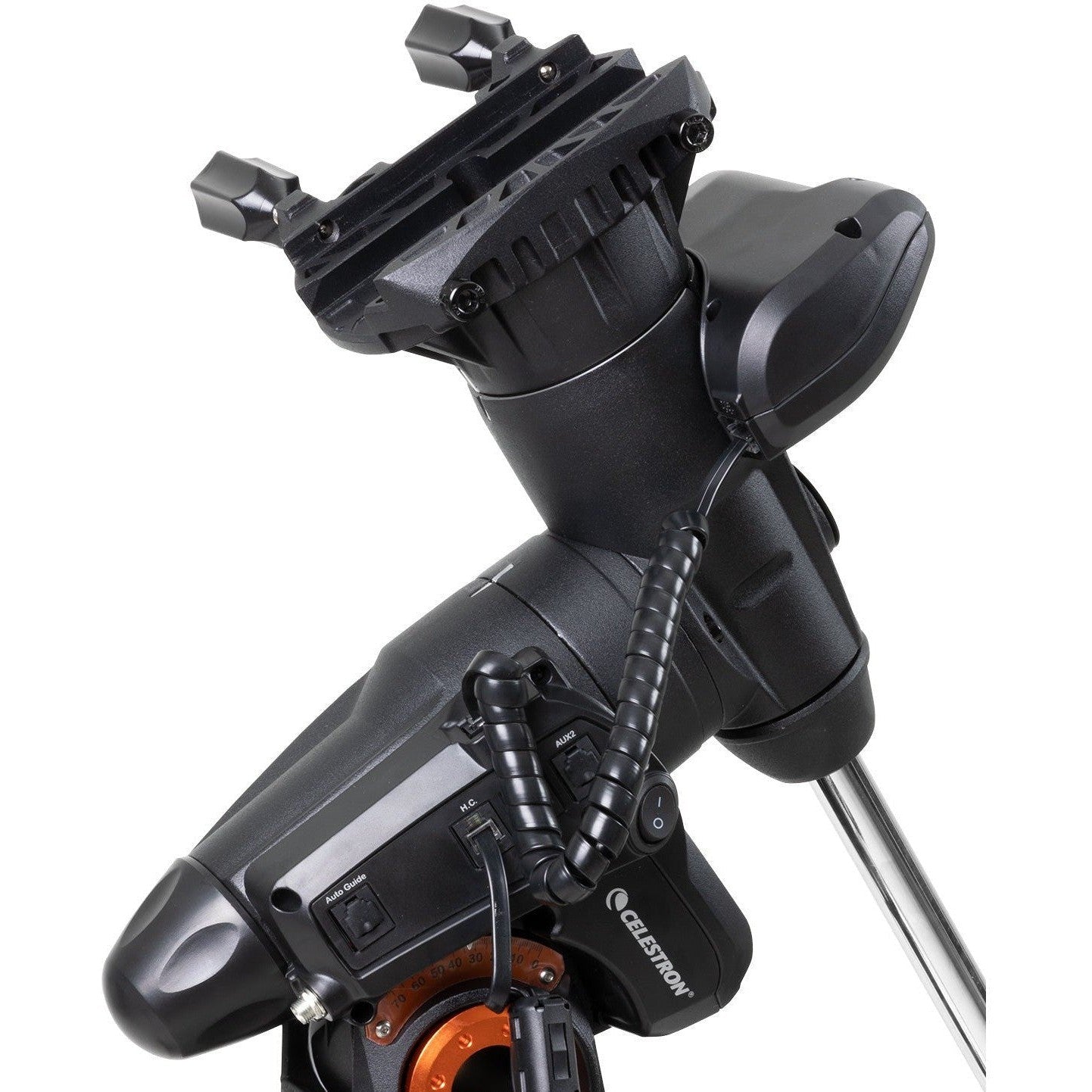

| Number of Auxiliary Ports: | 3 AUX Ports (1 hand control and 2 AUX Ports for optional accessories) |
| Autoguide Port: | Yes |
| USB Port: | Yes, input on Hand Control |
| Power Requirements: | 12V DC 3.5A (tip positive) |
| Motor Drive: | DC servo motors |
| Alignment Procedures: | 2-Star Align, 1-Star Align, Solar System Align, Last Alignment, Quick Align |
| Periodic Error Correction: | Yes |
| Computerized Hand Control: | NexStar+ hand control with LCD display, 19 fiber-optic backlit LED buttons |
| NexStar+ Database: | 40,000+ objects, 100 user defined programmable objects. Enhanced information on over 200 objects |
| Software: | Celestron Starry Night Special Edition Software | SkyPortal App |
| Total Kit Weight: | 47 lbs (21.31 kg) |
| Included Items: | Advanced VX Equatorial Head | Tripod | Accessory Tray | 1 x 12 lbs counterweight | NexStar+ Hand Control | DC Power Cable (plugs into cigarette lighter socket) |
| Additional Information | |
| California Prop 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
Included Celestron Technologies
Compatible Technologies
Customers Also Purchased
-
StarSense AutoAlign
Regular price $479.00Regular price -
SkyPortal WiFi Module
Regular price $143.95Regular price -
PowerTank Lithium Pro
Regular price $259.95Regular price -
CG-5/AVX/CGEM Polar Finderscope
Regular price $61.95Regular price -

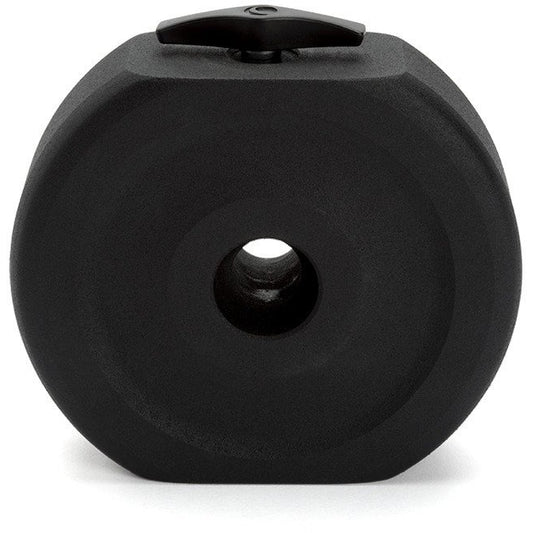

Counterweight, 12 lbs for 19mm Shaft
Regular price $61.95Regular price -
Sold out34" Tripod Bag
Regular price $104.95Regular price
Suggested Accessories
Categories
Q:
I have an optical tube equipped with a Losmandy D dovetail mounting plate. Will this work with the improved Advanced VX (AVX) mount?
I have an optical tube equipped with a Losmandy D dovetail mounting plate. Will this work with the improved Advanced VX (AVX) mount?
No, the Losmandy D dovetail plate will not fit the improved AVX mount. The improvement to the AVX mount allows it to be used with CGE format dovetail plates, but not Losmandy D format plates. The CGE and Losmandy D formats are similar, but not exactly the same. Losmandy plates are a millimeter or so wider, but CGE plates allow more surface area contact with the dovetail clamp.
Q:
What prevents the Losmandy D plates from working with the improved AVX?
What prevents the Losmandy D plates from working with the improved AVX?
The improved AVX can accept a dovetail with a maximum width of 74.5mm. The Losmandy D plate is a bit wider than that. Also, the improved AVX requires the height of the dovetail undercut to be at least 10.2mm, and the Losmandy D has a dovetail undercut which shorter than that.
Q:
So, how do I mount my optical tube with a Losmandy D dovetail plate onto the improved AVX?
So, how do I mount my optical tube with a Losmandy D dovetail plate onto the improved AVX?
You’ll need to replace the Losmandy D dovetail plate with a compatible dovetail plate, such as the Celestron #94214 CGE Universal Mounting Plate.
Q:
I have a Losmandy D format dovetail plate, but it is not manufactured by Losmandy. Will it work with the improved AVX?
I have a Losmandy D format dovetail plate, but it is not manufactured by Losmandy. Will it work with the improved AVX?
No, if the dovetail plate uses the Losmandy D format, then it is not compatible with the improved AVX, regardless of the manufacturer of the plate.
Q:
I have an optical tube equipped with a Vixen dovetail mounting plate. Will this work with the improved AVX mount?
I have an optical tube equipped with a Vixen dovetail mounting plate. Will this work with the improved AVX mount?
Yes, the improved AVX, like the original AVX, is compatible with Vixen format dovetail plates. However, the plate must have a dovetail length of 100mm or greater.
Q:
Why does my Vixen dovetail, or CG-5 dovetail, need to have a dovetail length of at least 100mm?
Why does my Vixen dovetail, or CG-5 dovetail, need to have a dovetail length of at least 100mm?

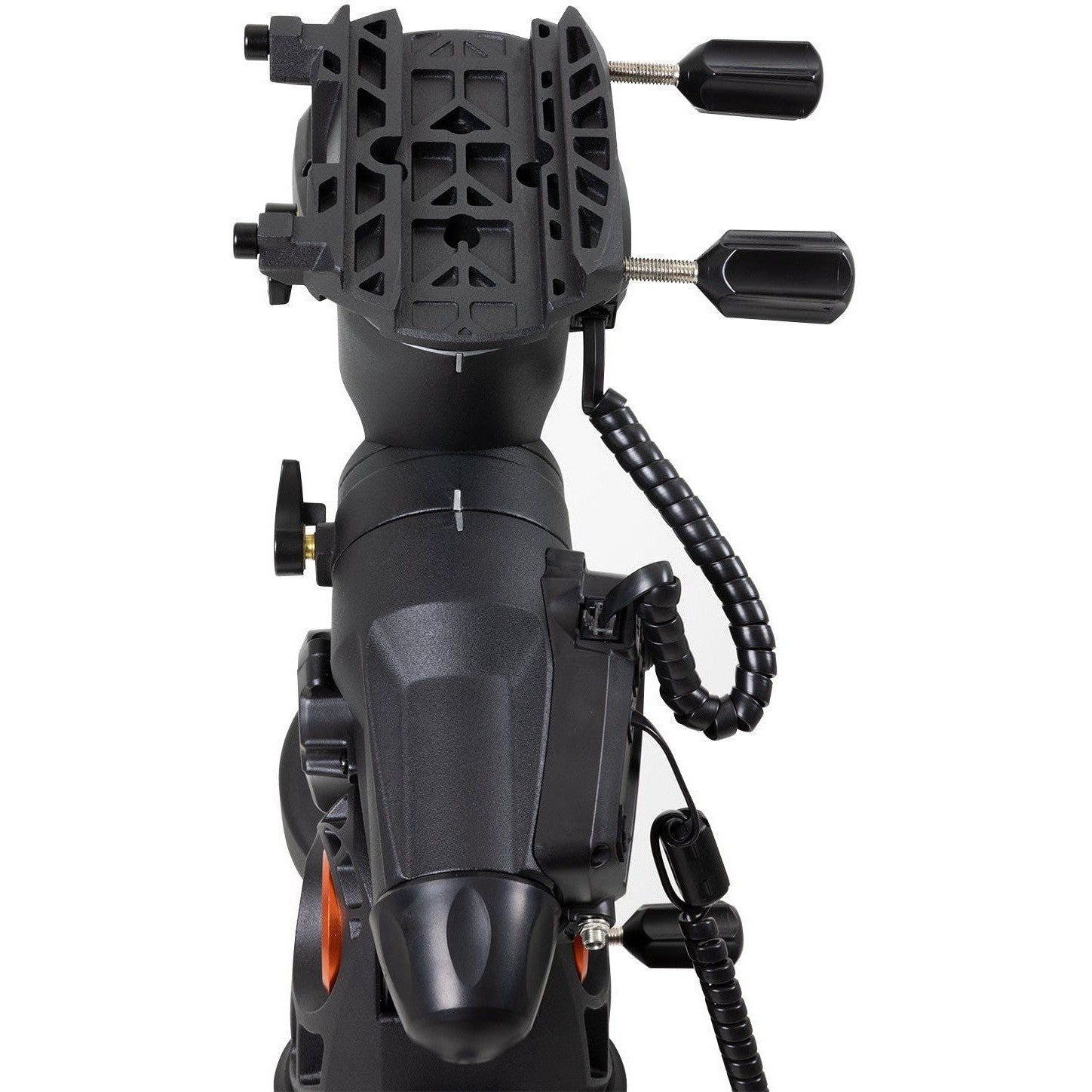

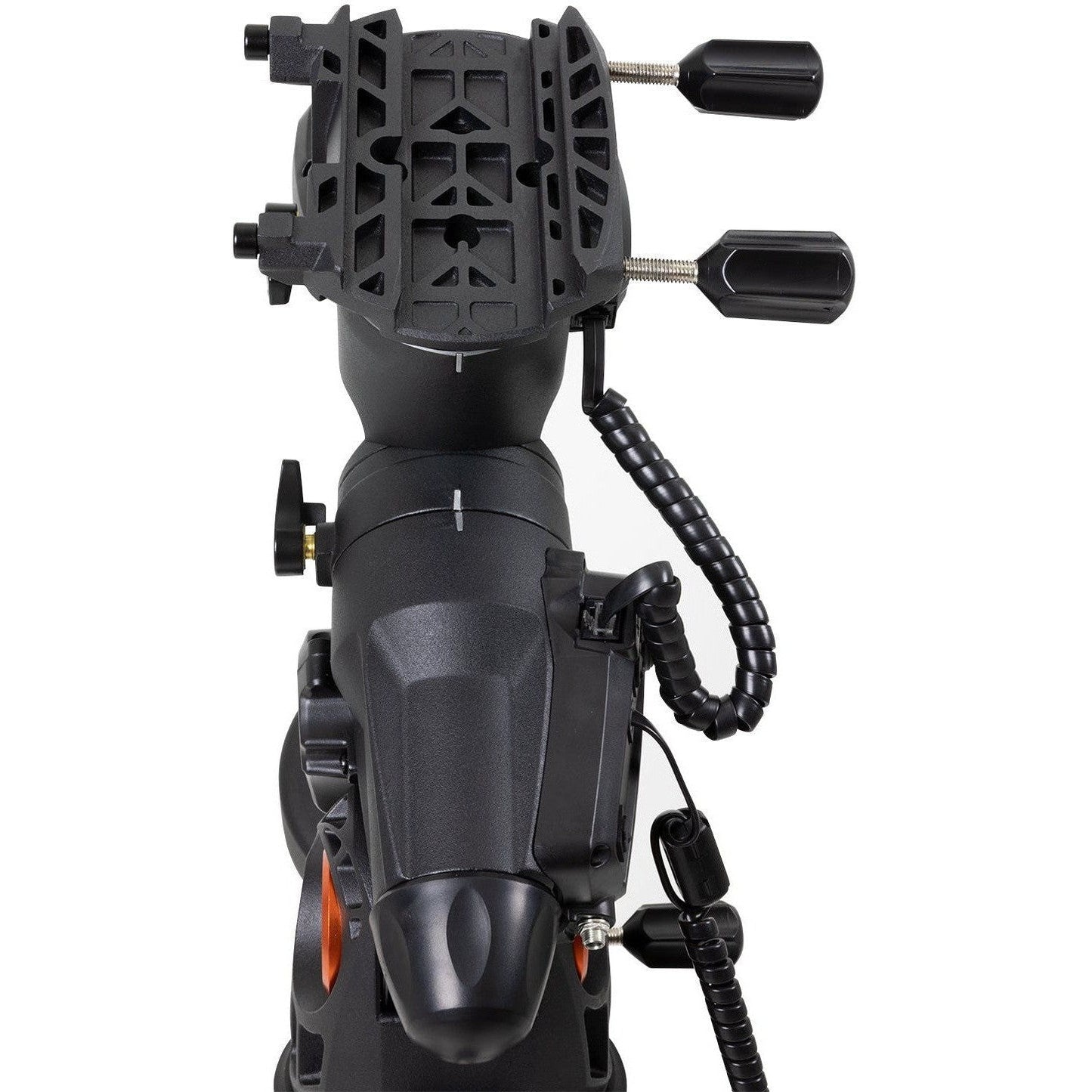

The knobs on the AVX that hold the dovetail plate in place are spaced 90mm apart. If the dovetail length is less than 100mm, then both knobs cannot come into contact the dovetail simultaneously. See the below engineering drawing.
Q:
My optical tube has a Vixen or CG-5 dovetail plate with a dovetail length of less than 100mm. How do I mount it onto the AVX?
My optical tube has a Vixen or CG-5 dovetail plate with a dovetail length of less than 100mm. How do I mount it onto the AVX?
You’ll need to replace the dovetail plate with a compatible dovetail plate, such as the Celestron #94213 Universal Mounting Plate, CG-5.
| Manuals: | |
|---|---|
| Advanced VX Manual | Download |
| NexStar Plus Hand Control Manual | Download |
| Software & Firmware: | |
| CPWI Software | Download |
| Celestron Firmware Manager (CFM) Software | Download |
| NexRemote Telescope Control Software | Download |
| Periodic Error Correction Tool (PECTool) | Download |
| Drawings: | |
| Advanced VX Mount Dimensional Drawing | Download |
| Advanced VX Tripod Dimensional Drawing | Download |
| Other Product Files: | |
| Celestron NexStar+ Hand Control Troubleshooting Guide | Download |
-
