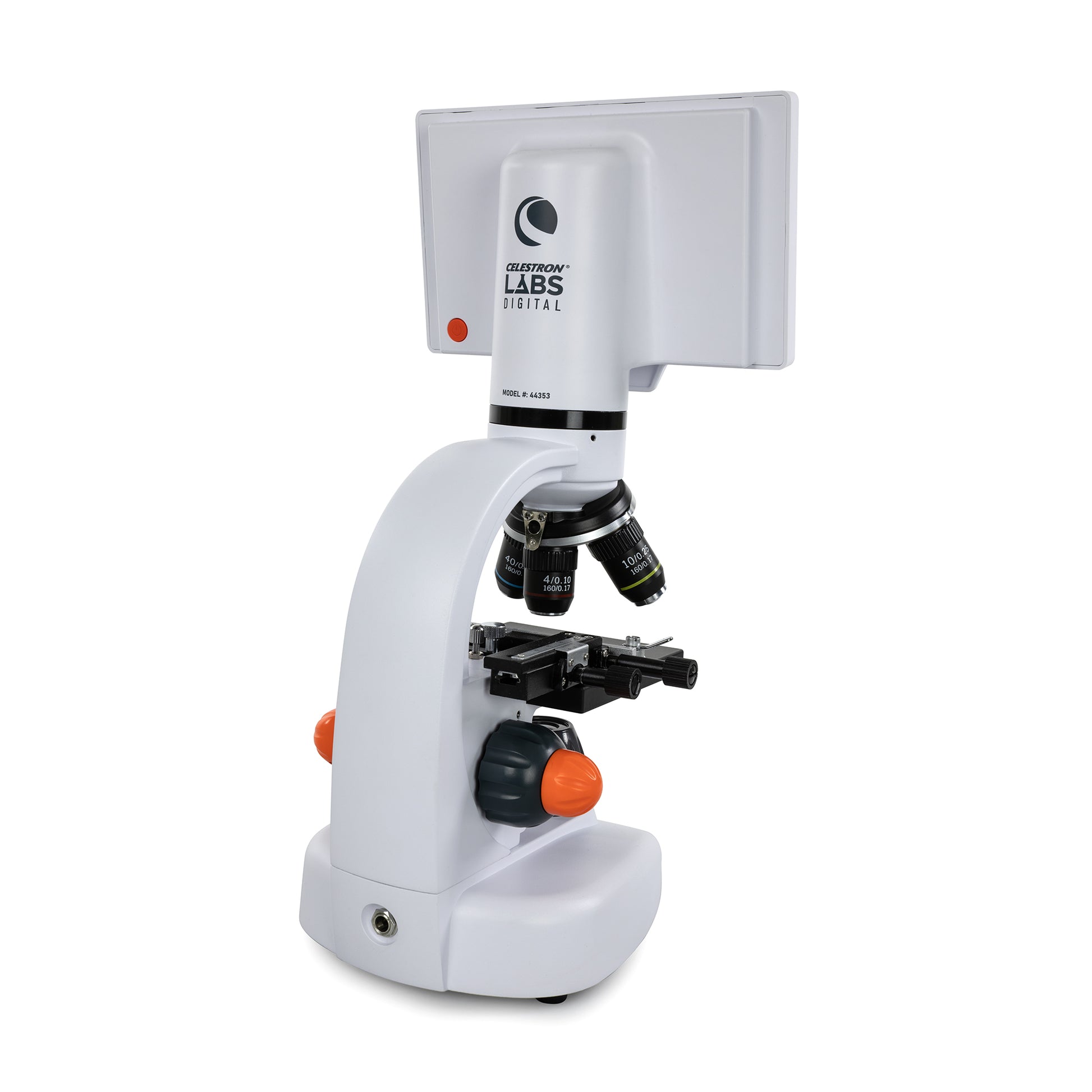

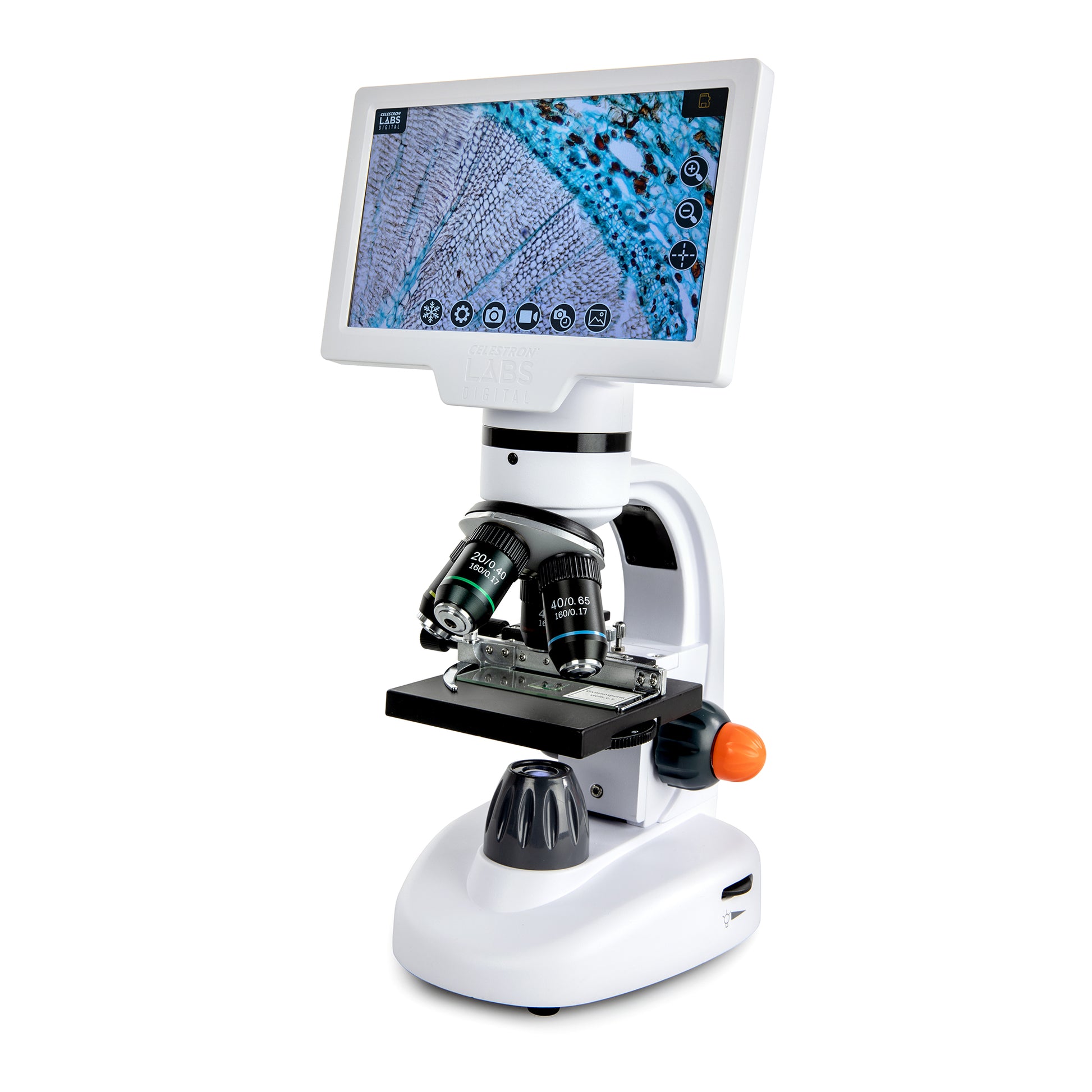

Celestron Labs Digital 7" LCD Desktop Microscope

Celestron Labs Digital 7" LCD Desktop Microscope

Item #: 44353

Out of stock

$539.95
$539.95

This item is currently out of stock.

Register to receive a notification when this item is available.

Free Ground Shipping! Contiguous USA only

30-Day Returns

2-Year Warranty

  • WIDE MAGNIFICATION RANGE: Features 4x, 10x, 20x, 40x, and detachable 60x objective lenses combined with a built-in 8MP CMOS digital camera for magnification powers from 120x to 1800x.
  • 7" TOUCHSCREEN WITH 180° ROTATION: Large high-definition LCD touchscreen rotates 180° for comfortable viewing from multiple angles and includes a stylus for intuitive control and image capture.
  • PRECISION COMPOUND MICROSCOPE DESIGN: Fully mechanical stage, coarse and fine focus controls, and lower LED illumination with built-in filter wheel provide accurate positioning and enhanced specimen contrast.
  • HDMI DISPLAY OUTPUT: Connect directly to a monitor or projector to share live microscope views for classrooms, presentations, demonstrations, and group observation.
  • CAPTURE PHOTOS & VIDEO: Integrated 8MP CMOS digital camera captures high-resolution images and video with storage available through an included 16GB microSD card or expandable by microSD cards up to 128GB.
  • VERSATILE POWER OPTIONS: Includes universal AC adapter with international plugs, with optional AA battery power available for short-term portable use.
  • READY TO USE OUT OF THE BOX: Includes ten prepared slides for immediate exploration plus a protective dust cover for storage and protection.

Specifications

General
Type of Microscope: LCD Digital Desktop
Head: 180° rotatable head w/7" TFT LCD Screen
Nosepiece: Quad with click stop
Objective(s) Type: (5) Achromatic objectives (5) on quad turret
Objective(s) Standard: DIN 35 RMS
Objective(s) Magnification: 4x, 10x, 20x, 40x, (60x also included-not connected)
Objective(s) Thread: WJ 4/5" x 1/36"
Focus Type(s): Course Focus and Fine Focus
Focus Travel (per rotation): 0.2mm to 35.3mm (.007" to 1.39") (est.)
Magnification Range: 120x, 300x, 600x, 1200x, 1800x
Illumination Type: LEDs
Illumination Position(s): Lower - under stage
Illumination Adjustability Mechanism: Adjustable wheels at base
Power Source: Universal 100 to 240V, 50/60 hz multi-country plug | (4) AA
Battery Options: Yes (4AA)
Stage: Fully mechanical with metal clips, 88mm x 88mm (3.5" x 3.5") - With Filter wheel (Red, blue, green | 1mm, 3mm, 6mm apertures)
Condenser Type: Aplantic
Condenser N.A.: N.A. 65
Stage Diaphragm: Multiple on wheel
Eyepiece Type: CMOS Sensor in lieu of eyepiece
Eyepiece Magnification: 30x
Sensor Size: 8MP - 1/2.8"
Pixel Size: 1.45 μm
Screen type: 7" LCD TLT - High definition touch, 1024 x 600 pixels resolution, 154.2144 (6.07"* 85.92 (3.38") with 4x digital zoom, rotates 180°
Screen Size: 7"
Memory Type: 16G MicroSD Card
Memory Size: Micro SD card slot supports up to 128G (16G card included)

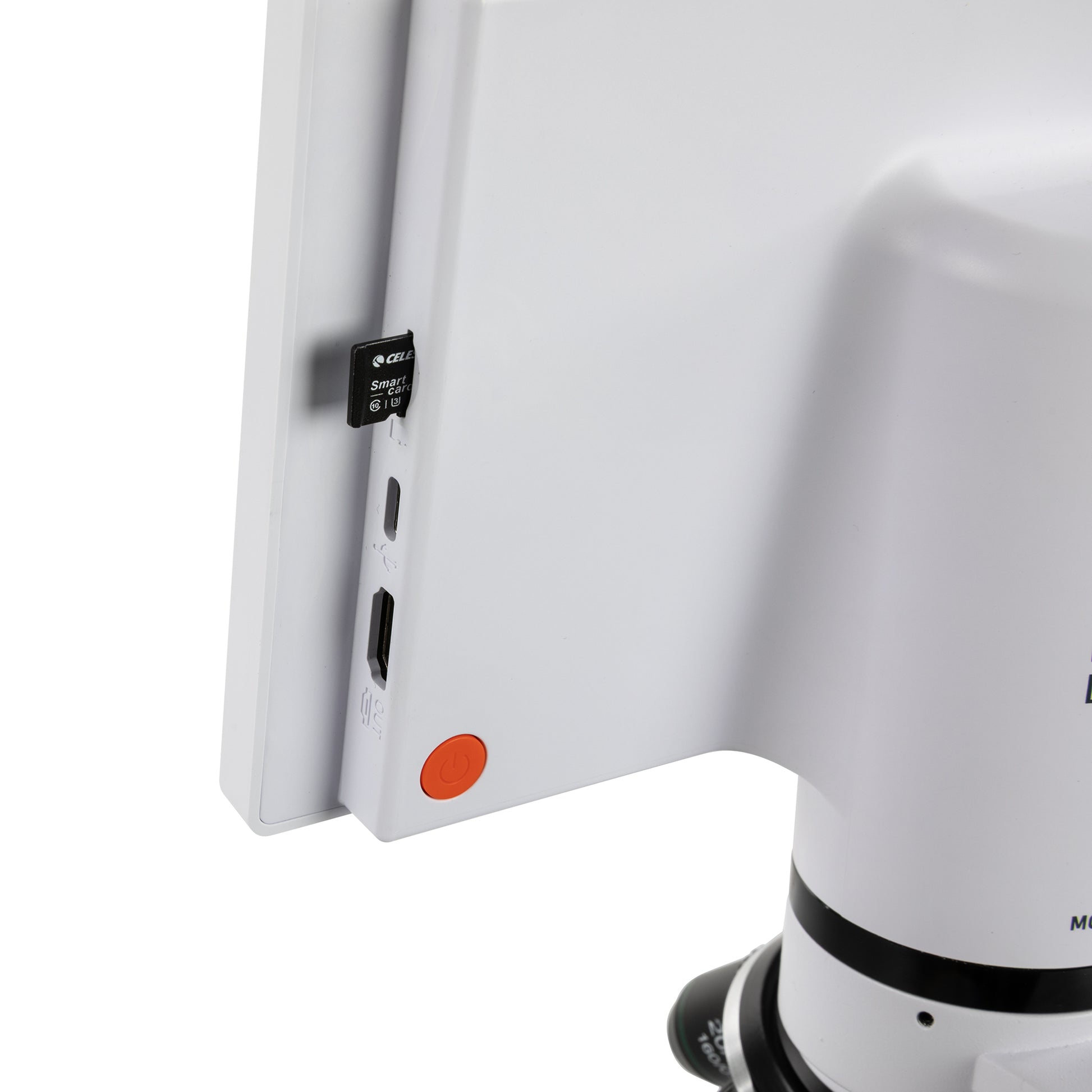

Port(s) In: AC Plug (power), MicroSD Card slot (supports up to 128G)
Port(s) Out: HDMI | USB-C
AC Adapter: 5-6V DC, 200-1000mA tip positive electrical input. Jack should be 5.5mm (.21") OD, 2.1mm (.08") ID and 12.5mm (.49") long
Still image capture resolution: (non-interpolated): 3840x2176 | 1920x1088 | 1280x736
(interpolated): 5736x3008 | 6114x3456 | 8448x 4736
Video resolution: 3840x2160 | 1920x1080 | 1280x720
Shutter trigger position: On LCD Screen
Software: Internal Firmware
Languages Supported: English, French, German, Italian, Spanish, Portuguese, Japanese, Russian, Simplified Chinese, Traditional Chinese
Microscope Dimensions: 177.8mm x 177.85mm x 342.9mm (7" x 7" x 13.50")
Microscope Weight: 4.6 lbs (2.08 kg)

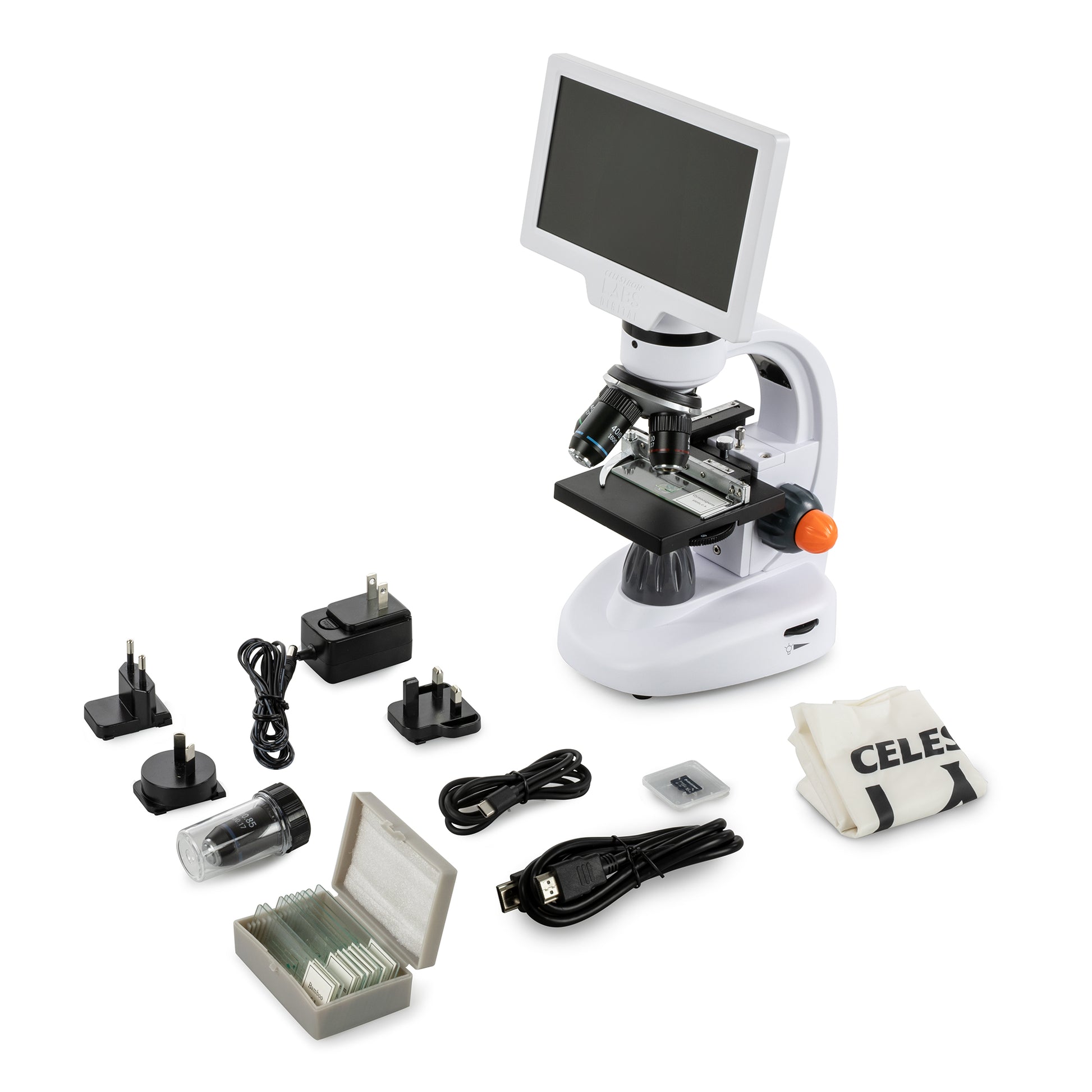

Included Items: USB-C cable (data transfer) | HDMI cable | 10 Prepared Slides | 4 plug, multi-country AC adapter | Dust Cover | 16G Micro SD Card
Additional Information
California Prop 65 California Prop 65 Warning

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
View full details

Customers Also Purchased

The Celestron Labs Digital 7” LCD Microscope makes microscopic exploration more comfortable, interactive, and easy to share. Its large, rotating touchscreen eliminates the need to hunch over a traditional eyepiece while allowing multiple people to observe specimens together. Ideal for students, hobbyists, classrooms, and labs, it combines powerful magnification with modern digital convenience in an easy-to-use design.

Powerful, Flexible Magnification

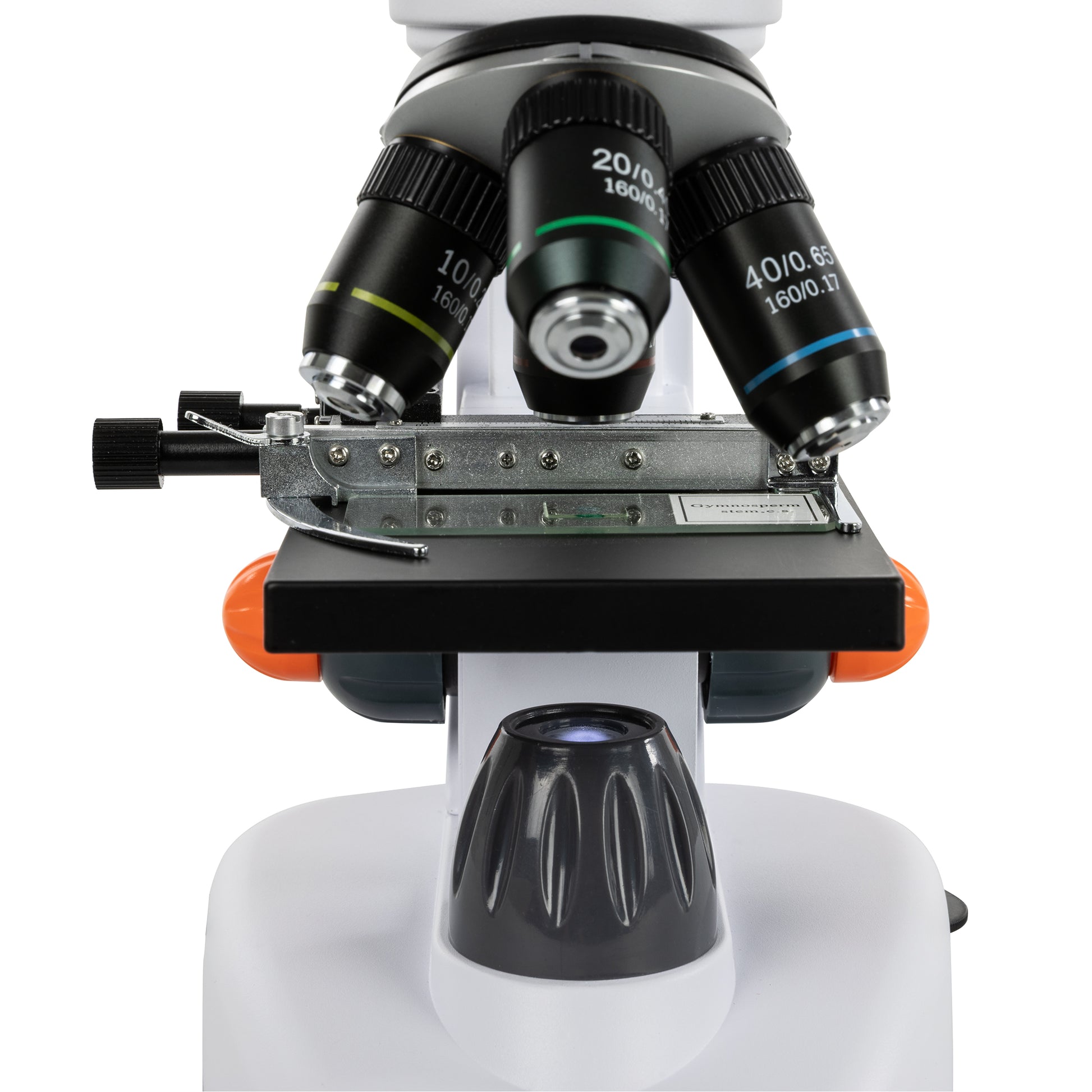

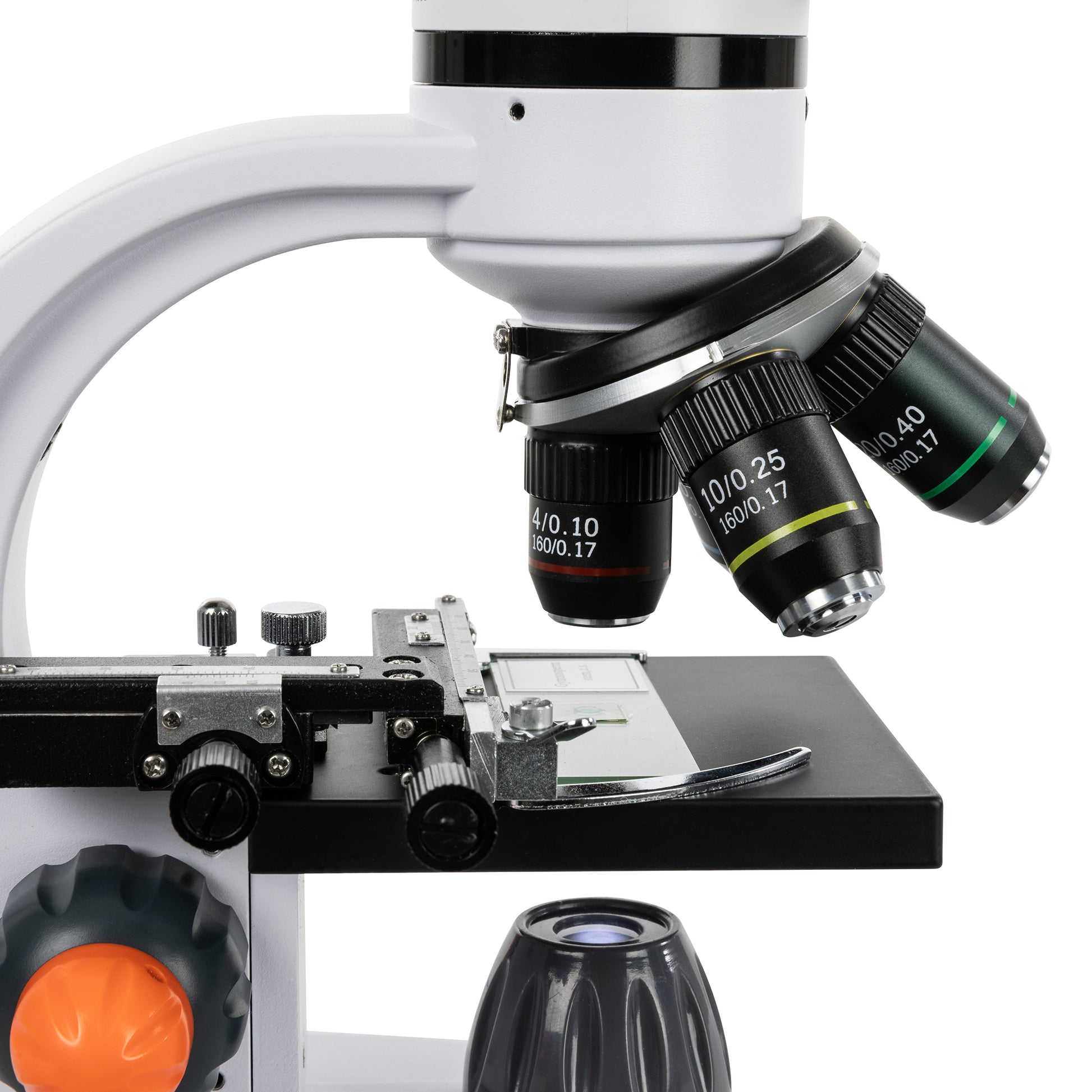

This compound microscope features a rotating turret with 4x, 10x, 20x, and 40x objective lenses, plus a detachable 60x lens for examining finer details. Instead of a traditional eyepiece, a built-in 8MP CMOS digital camera delivers live images directly to the 7-inch screen, creating a versatile magnification range from 120x to 1800x. Easily move from viewing larger specimen structures to close-up detail with smooth transitions between magnification levels.

8MP CMOS Built-In Digital Camera & Connectivity

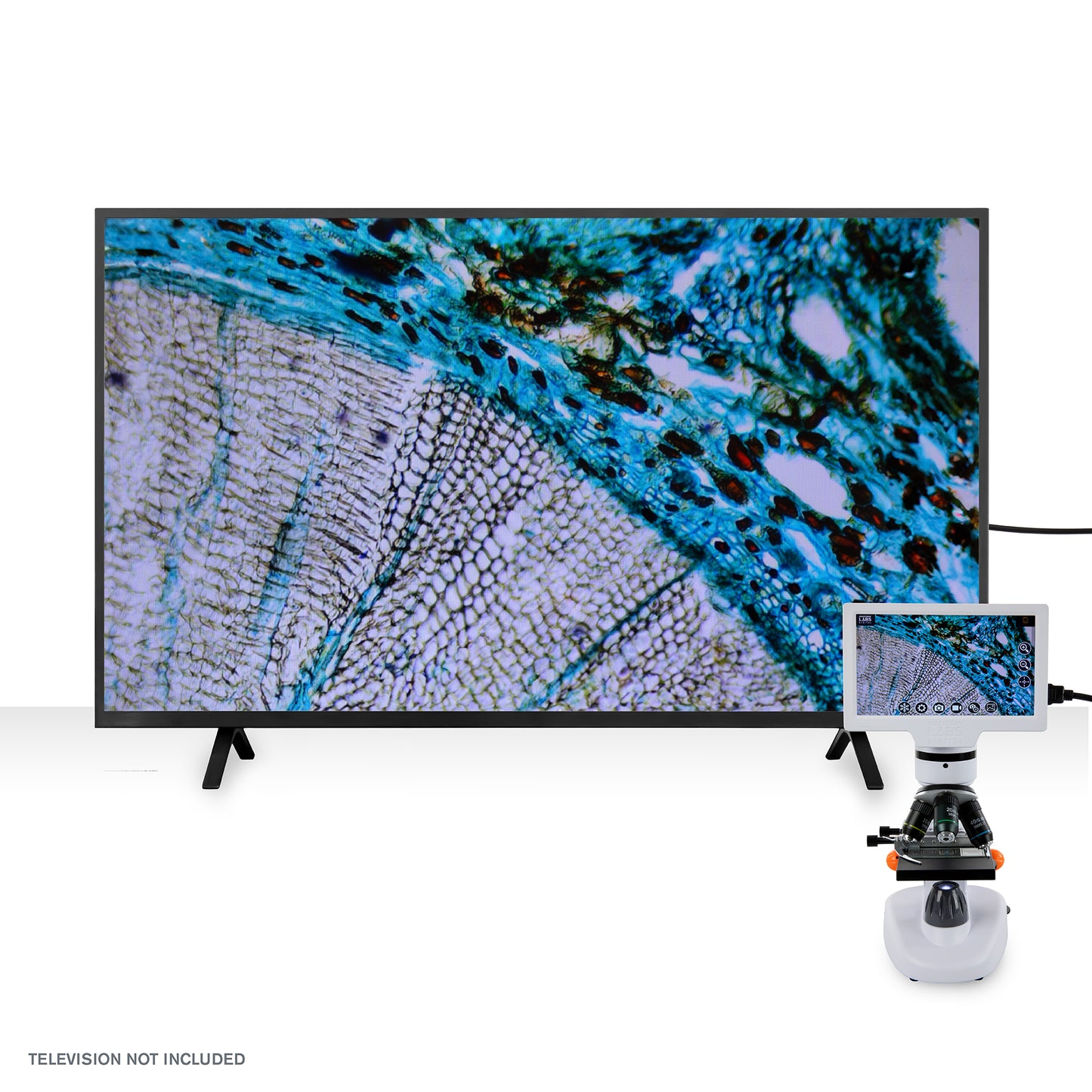

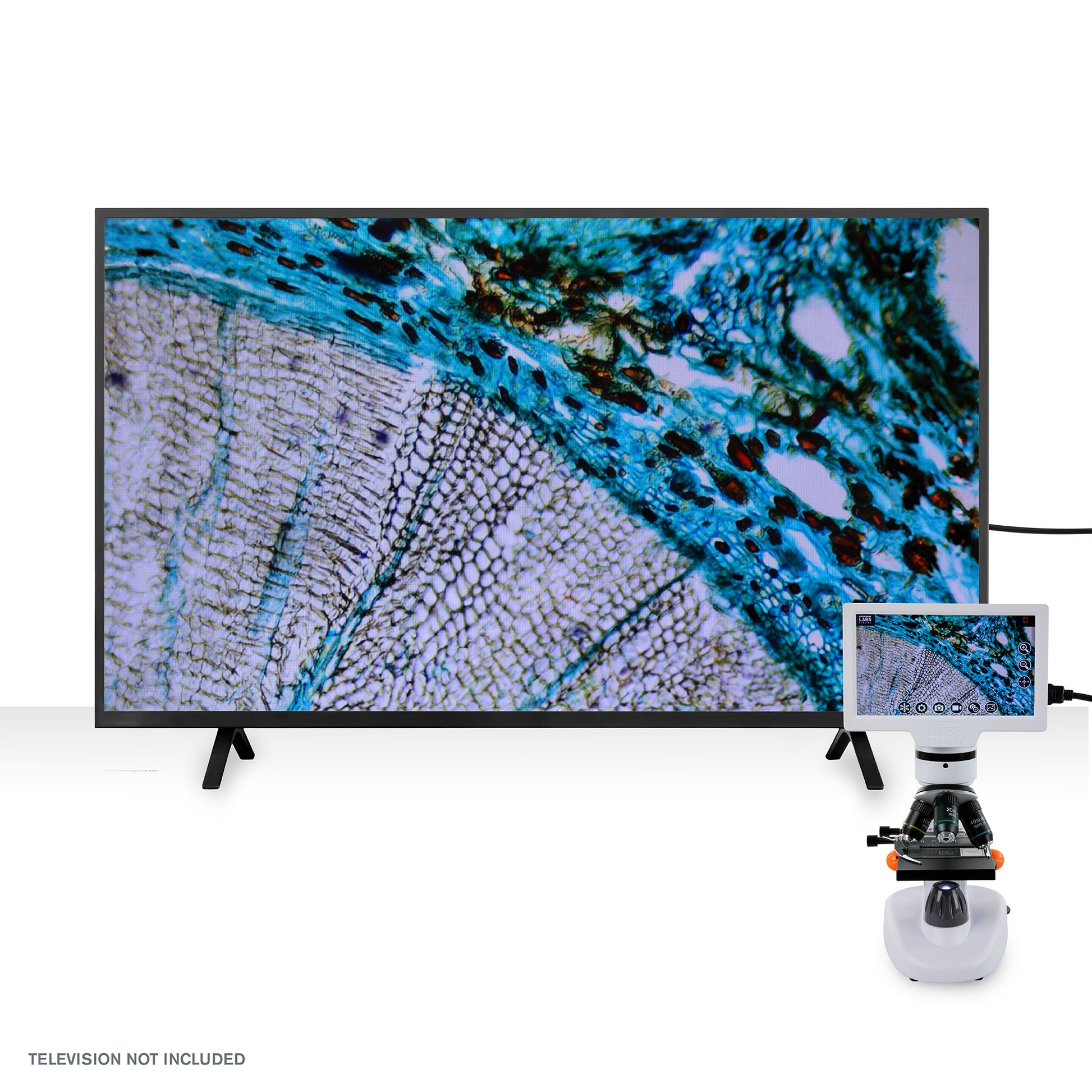

Capture high-resolution photos and video of your observations using the integrated 8MP CMOS digital camera. Save files directly to the included 16GB microSD card or expand capacity up to 128GB with a microSD card (sold separately). HDMI output allows you to connect the microscope to a monitor or projector for real-time viewing, making it an excellent choice for classrooms, demonstrations, and collaborative projects.

Large Rotating 7” Touchscreen

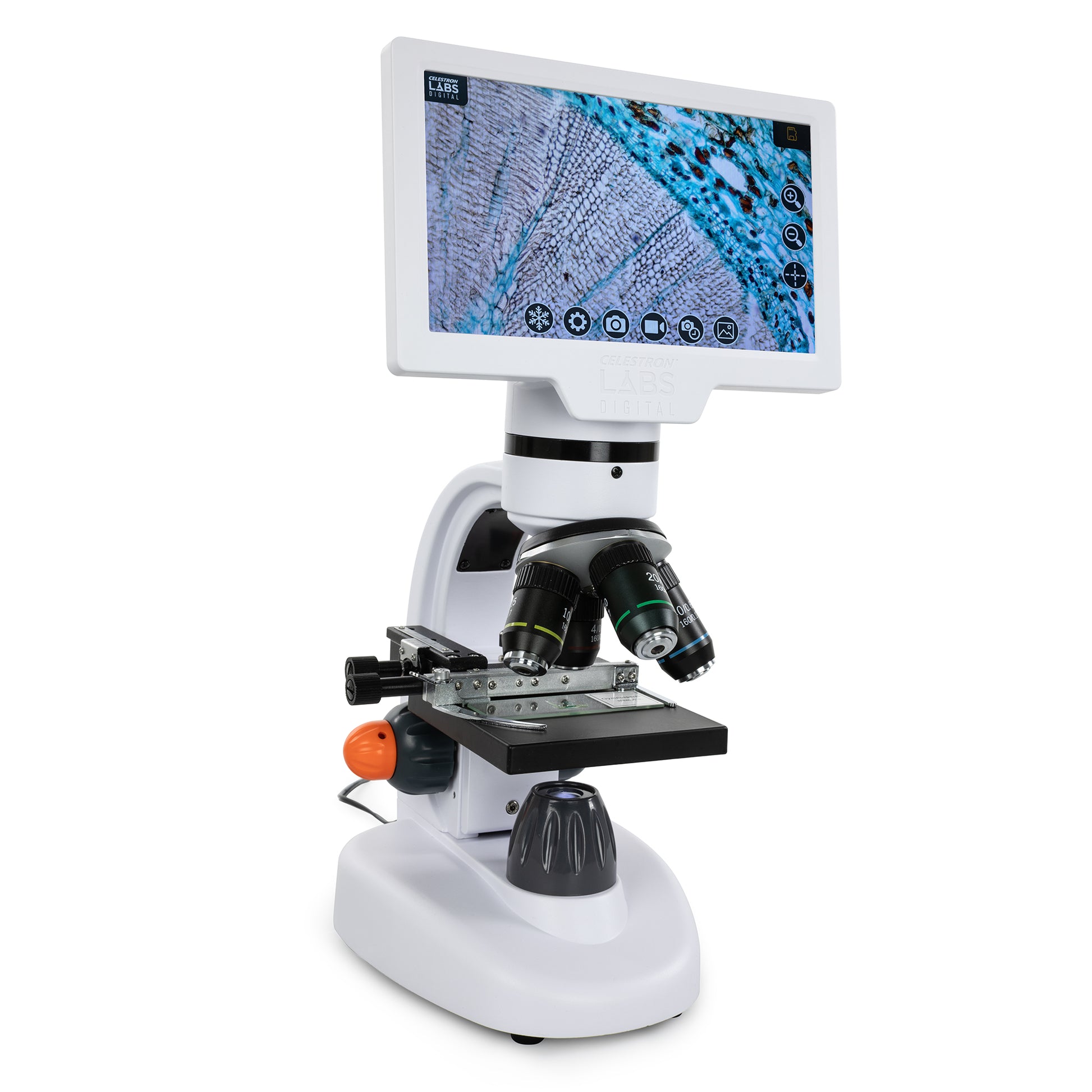

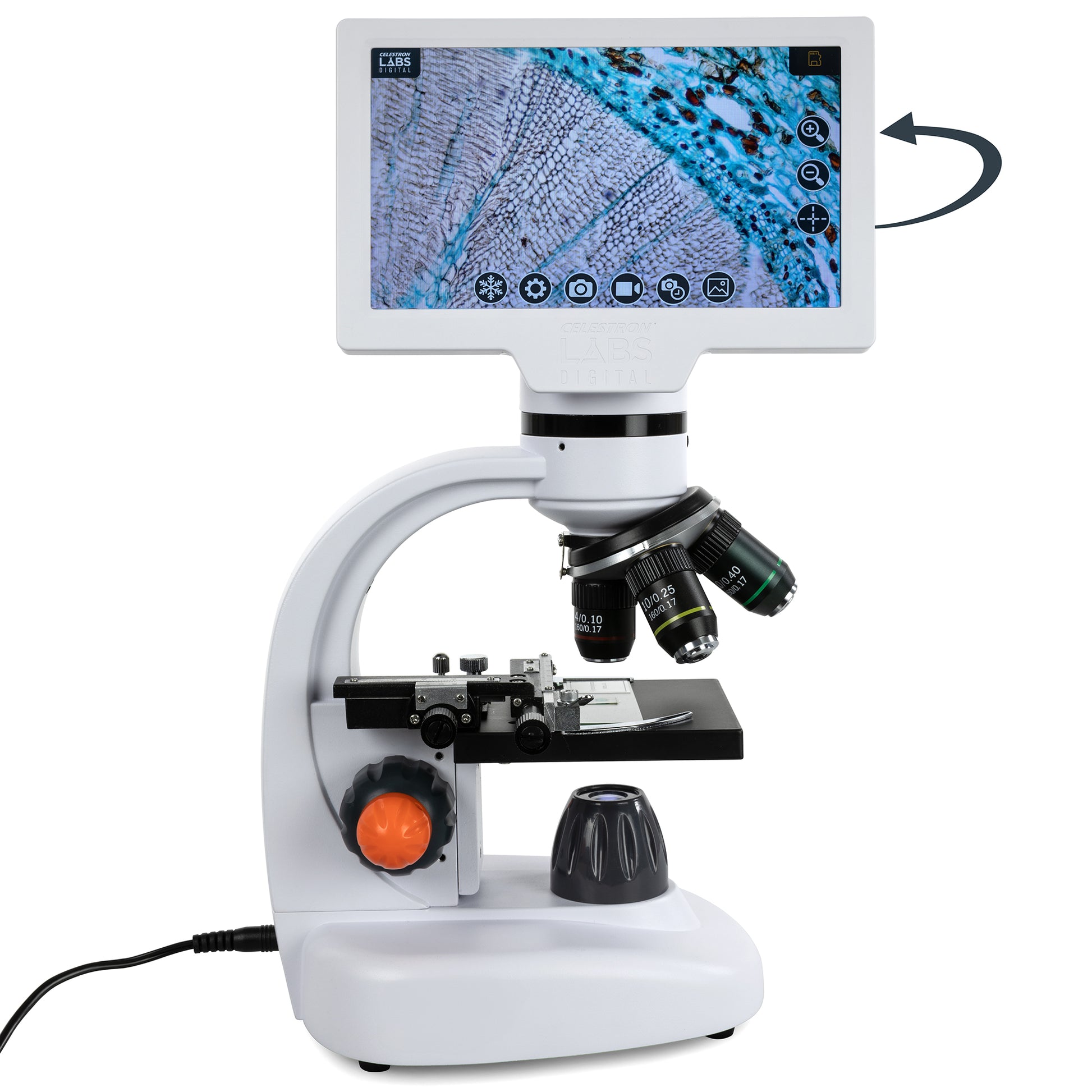

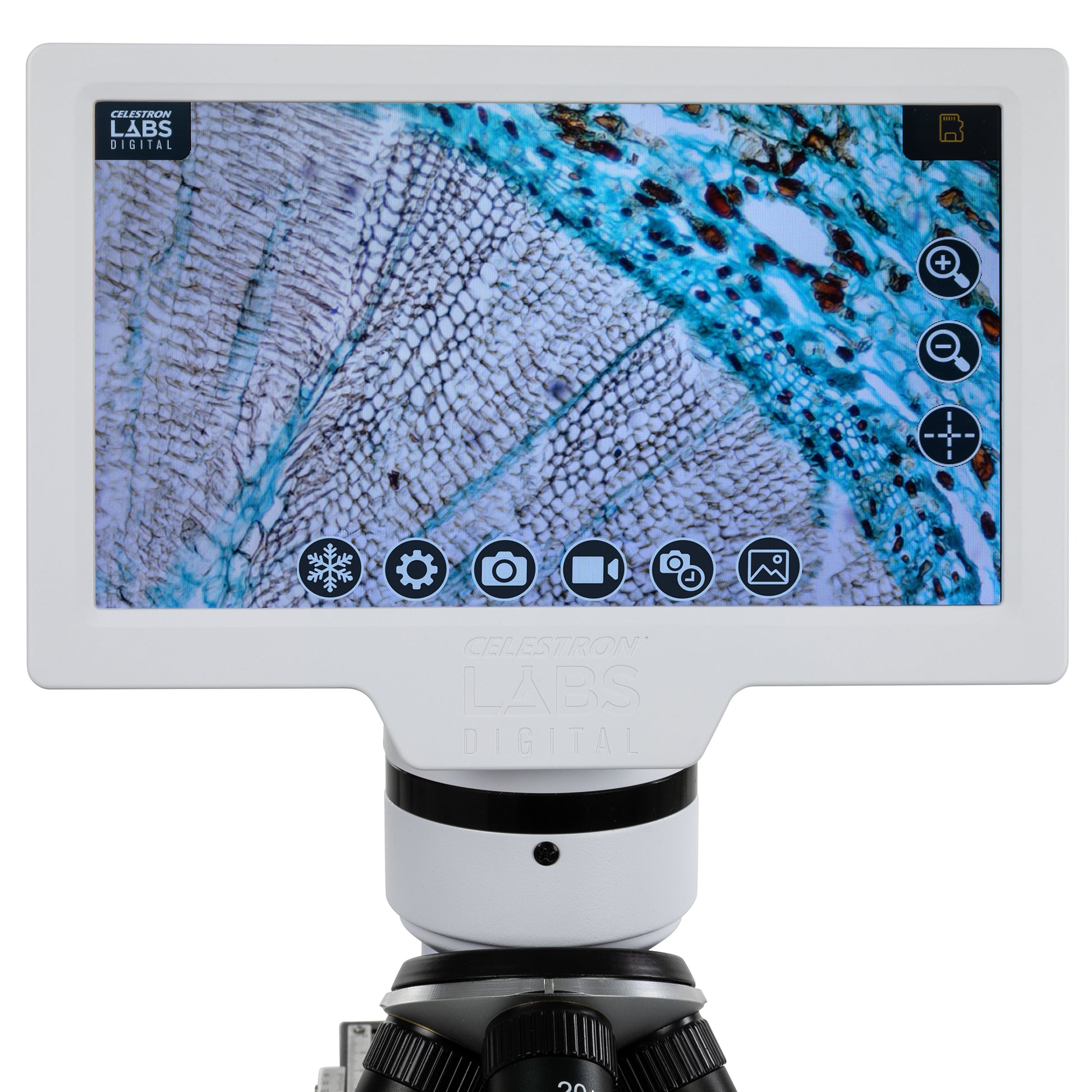

The bright 7-inch HD LCD touchscreen provides a comfortable viewing experience while reducing eye strain during extended sessions. The screen rotates 180° around the microscope head, making it easy to adjust viewing angles for individual use or group observation. Included touch controls and stylus make navigation, image capture, and settings adjustments fast and intuitive.

Precision Compound Microscope Design

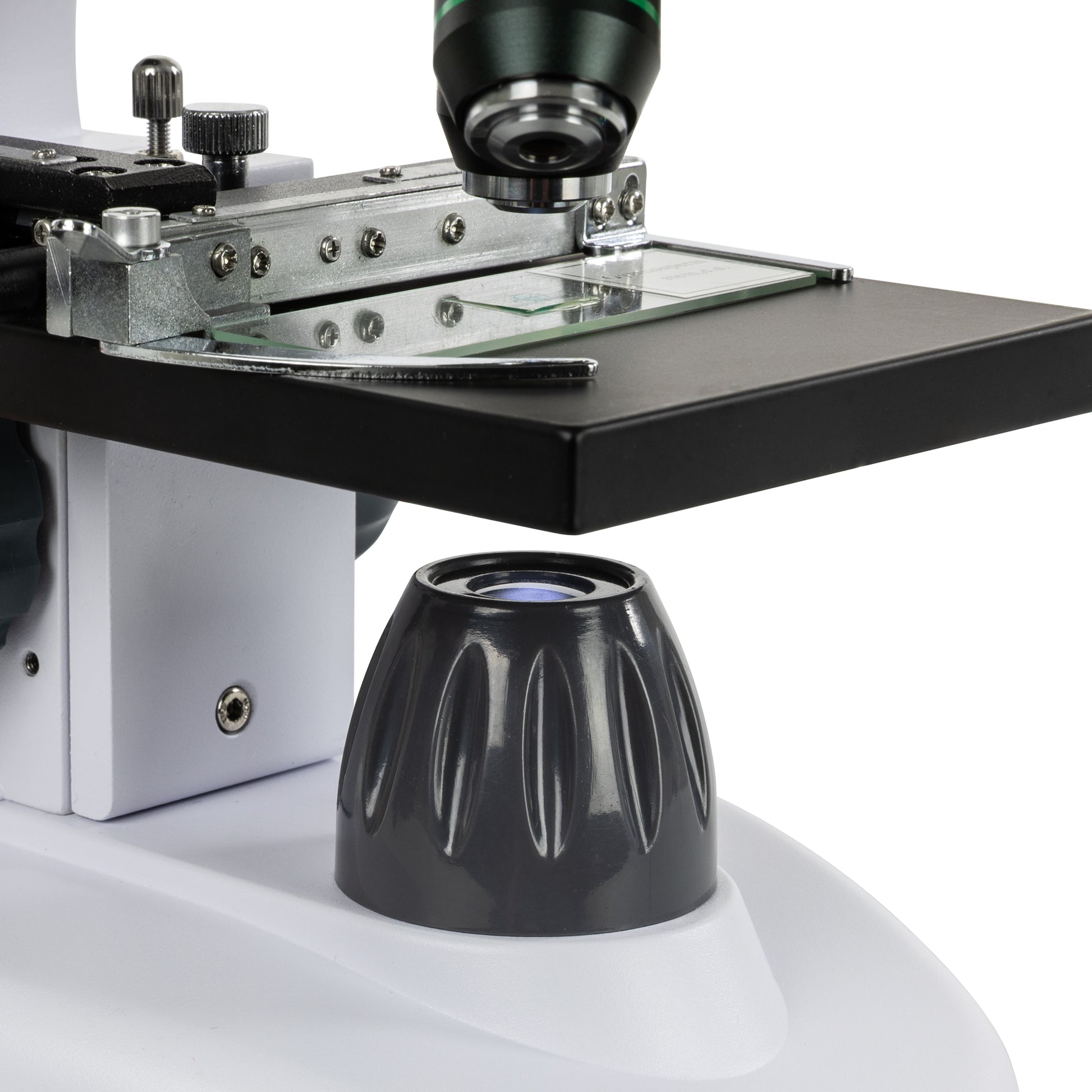

Designed for viewing thin specimens with transmitted light, the microscope features bottom-LED illumination for bright, even illumination beneath the stage. A built-in filter wheel allows you to adjust contrast and clarity to better highlight specimen details. The fully mechanical stage provides precise specimen positioning and includes integrated measuring tools for estimating specimen size and scale during observation. Coarse and fine focus knobs allow rapid focusing and precise fine-tuning at any magnification.

Flexible for Lab or Field Use

Designed for flexibility, the microscope can operate using the included AC adapter for extended indoor sessions or optional AA batteries for portable use in locations without easy access to power. Whether used in a classroom, laboratory, or outdoor environment, the microscope adapts easily to different learning and working conditions.

Ready to Explore

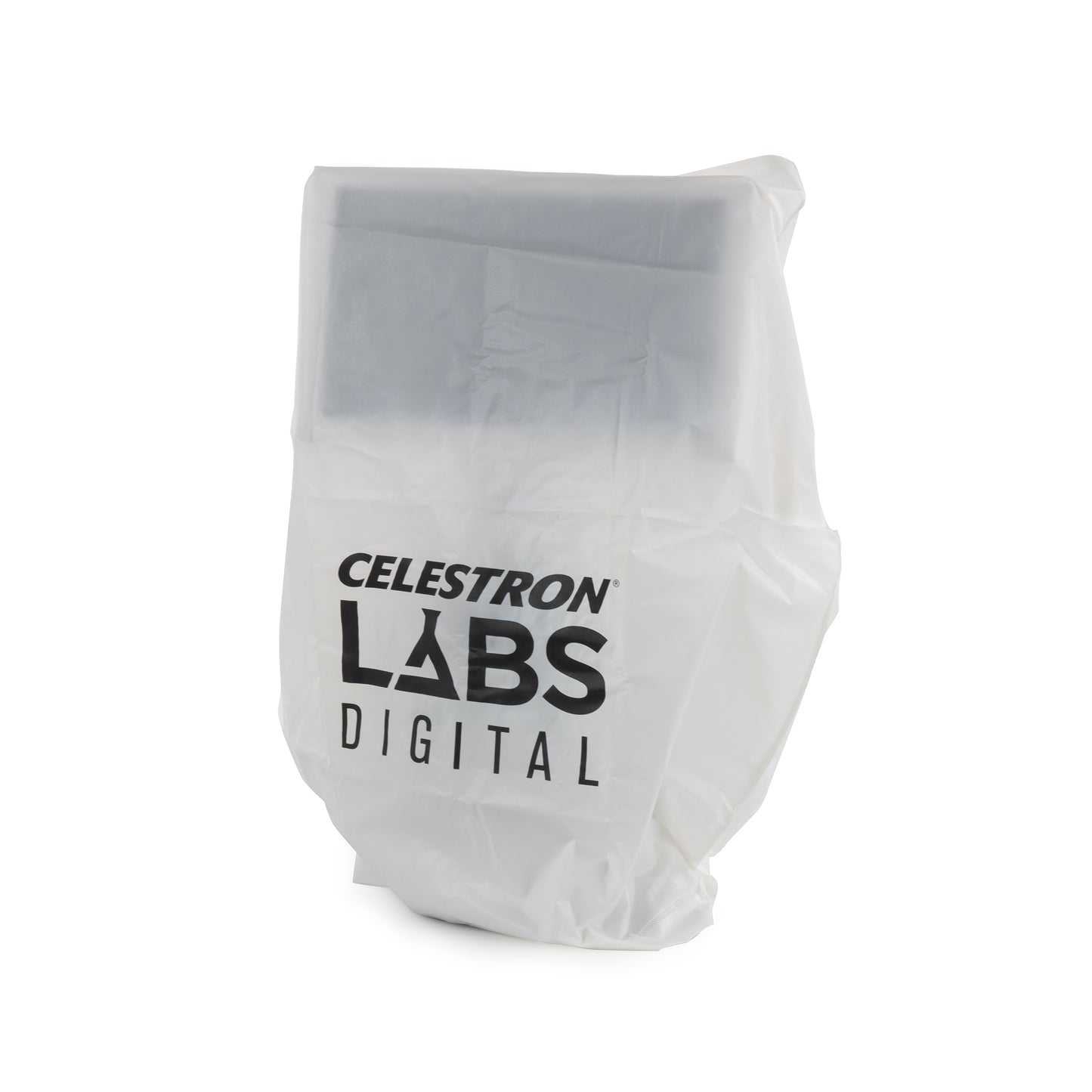

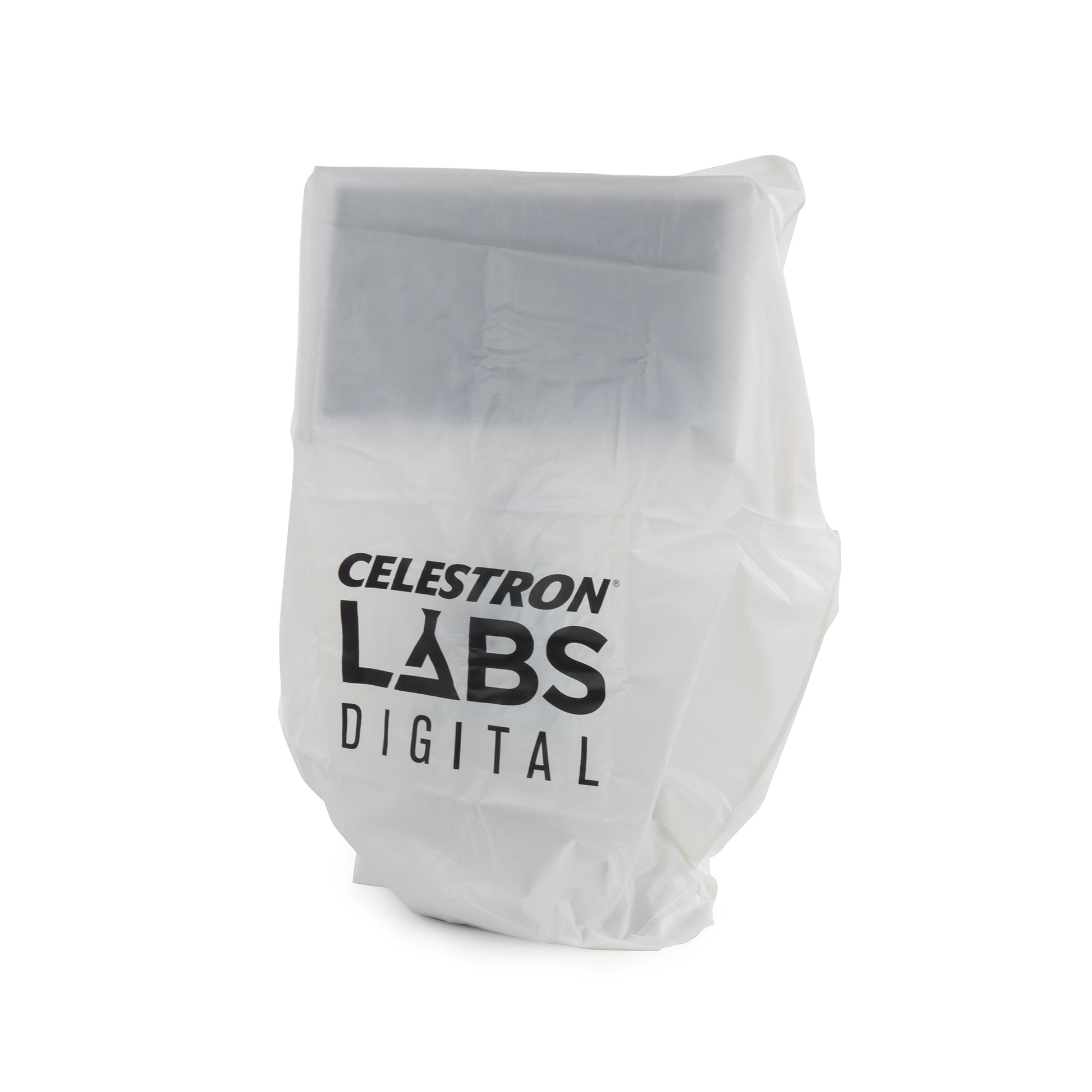

Everything you’ll need to begin observing is included right in the box. Ten prepared slides let you start exploring immediately, and the included protective dust cover keeps the microscope clean and protected between uses.
