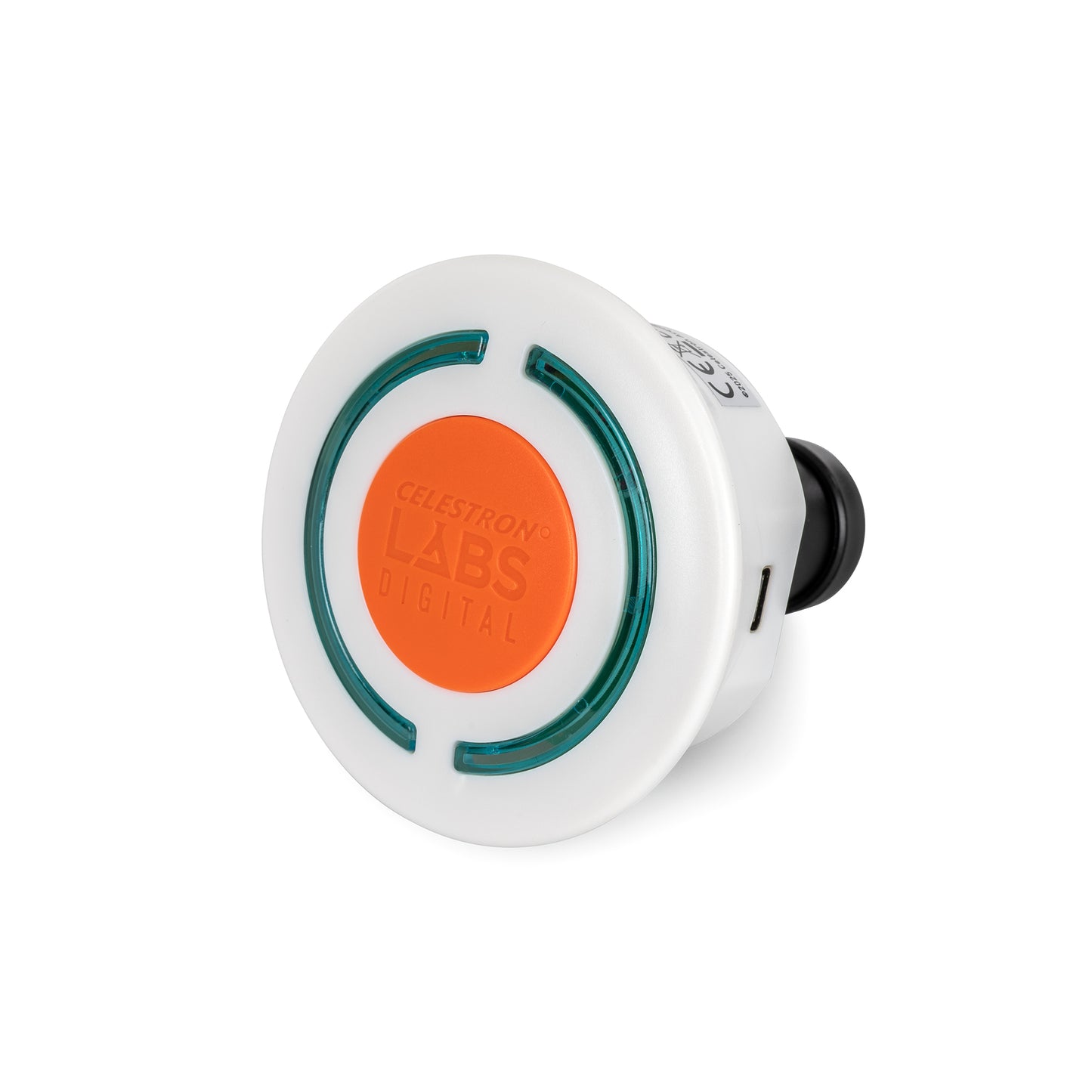

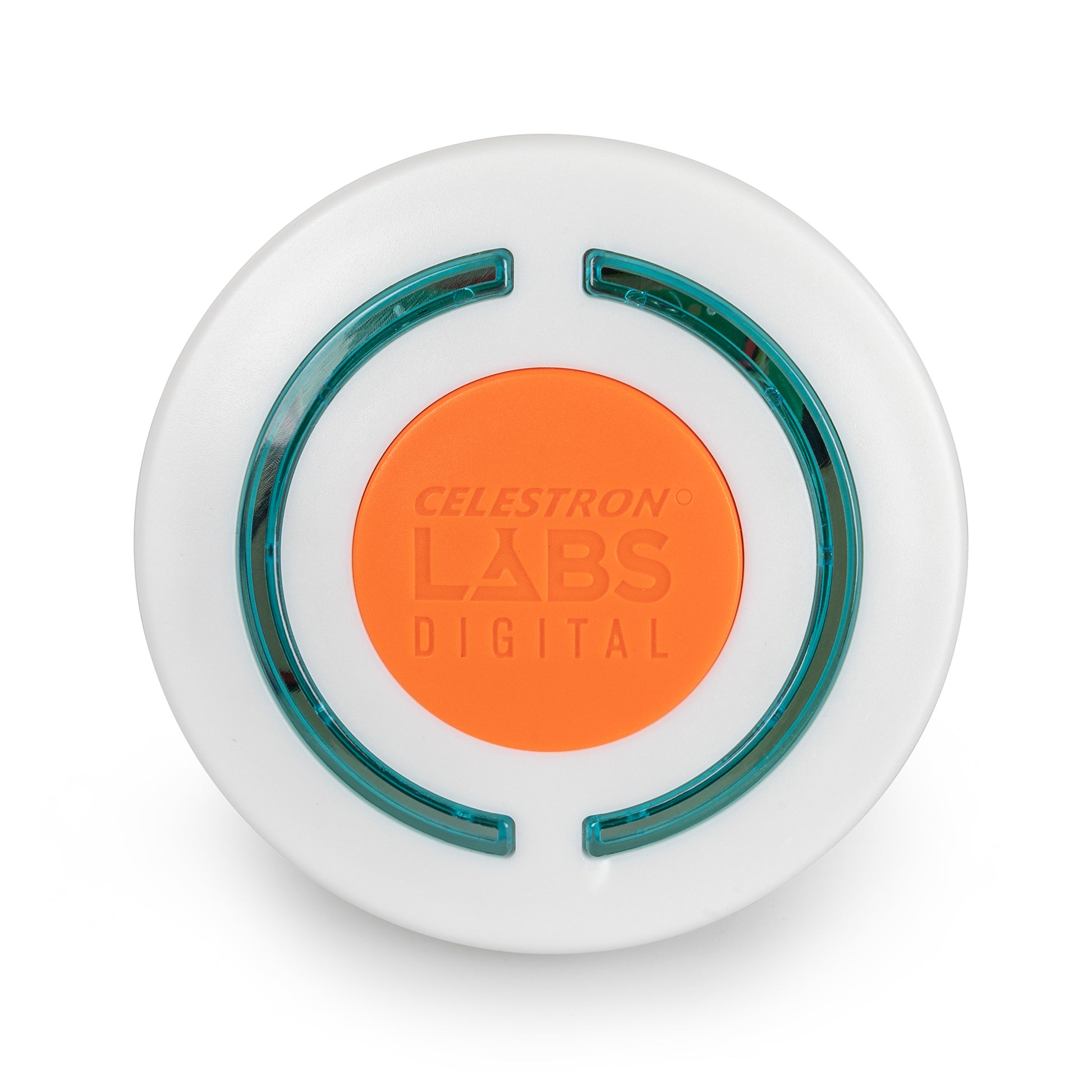

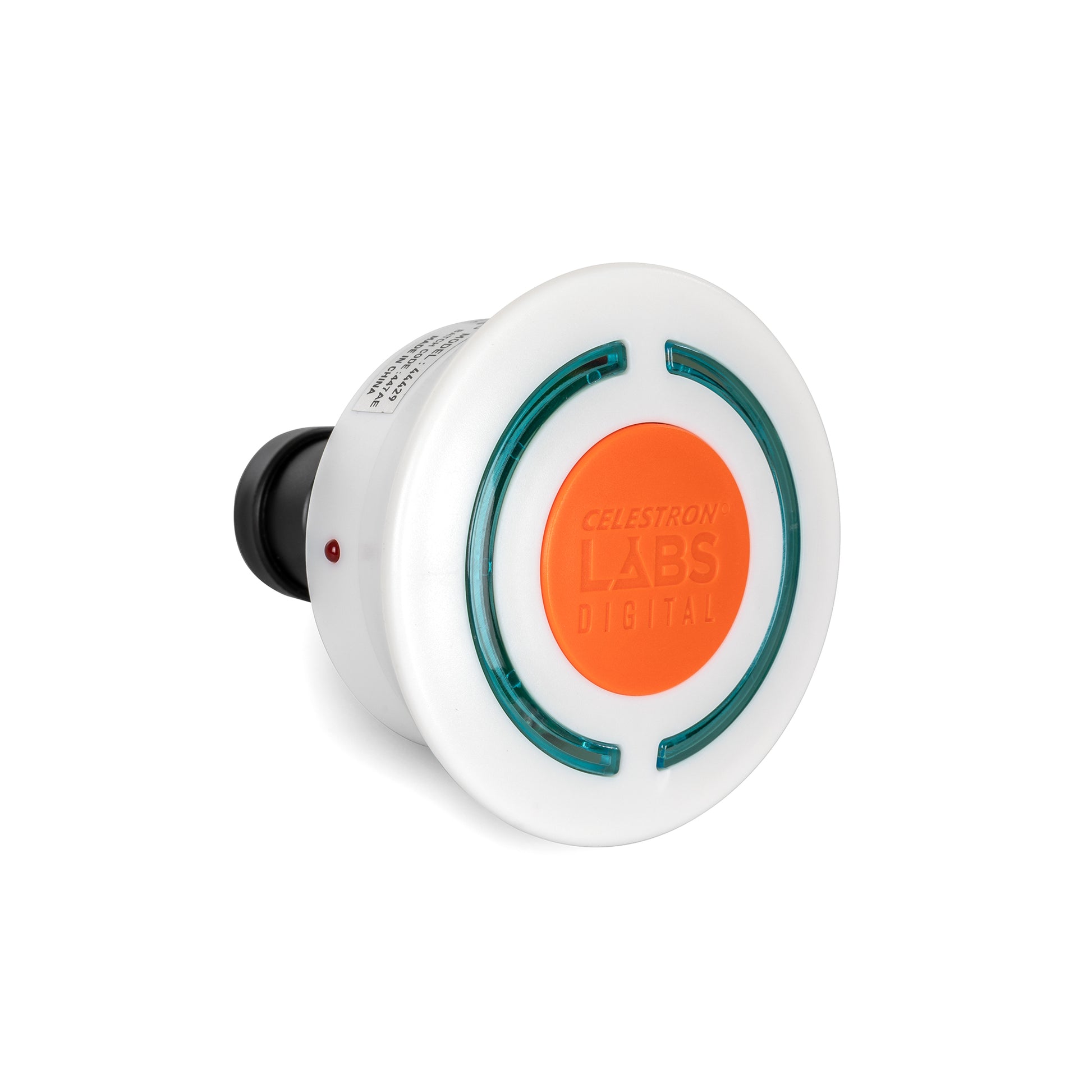

Celestron Labs Digital- 2MP Wi-Fi Microscope Imager

Celestron Labs Digital- 2MP Wi-Fi Microscope Imager

Item #: 44429

Out of stock

$149.95
$149.95

This item is currently out of stock.

Register to receive a notification when this item is available.

Free Ground Shipping! Contiguous USA only

30-Day Returns

2-Year Warranty

  • 2MP DIGITAL UPGRADE FOR YOUR MICROSCOPE: Replace your microscope’s standard 23mm or 30mm eyepiece and instantly convert it into a wireless digital imaging system.
  • BUILT-IN WI-FI CONNECTIVITY: Stream live views, capture images, and control everything from your smartphone or tablet. No cables. No crowding around the eyepiece.
  • UP TO 3 HOURS OF CORDLESS POWER: Rechargeable lithium-ion battery keeps you working untethered. USB-C cable included for fast, convenient charging.
  • INCLUDES ESSENTIAL ACCESSORIES: 30 mm adapter ensures a secure fit in larger eyepiece tubes; calibration ruler supports precise specimen measurements.
  • CELESTRON LABS WI-FI APP: Capture sharp still images, record smooth 30 fps video, and adjust image settings on iOS or Android devices.

Specifications

General
Type of Microscope: Wi-Fi enabled Microscope Camera
Sensor: 2MP CMOS
Sensor Size: 1/4" SONY
Sensor Magnification: 30x
Pixel Size: 2.9 μm x 2.9 μm
Memory Type: No memory- uses smart device memory to save images and video
Still image capture resolution: 1920x1080/1280x720/640x480
Video resolution: 1920x1080/1280x720/640x480
Video Format - Recording: MJPEG: 30 fps @ 1024x768/ 12fps @ 2592x1944
Shutter trigger position: in App
Software: Celestron Labs Digital Wi-Fi APP
Software Compatibility: iOS and Android
Power Source: Rechargeable lithium ion battery (1100 mAh)
Battery life on full charge: 3 hours

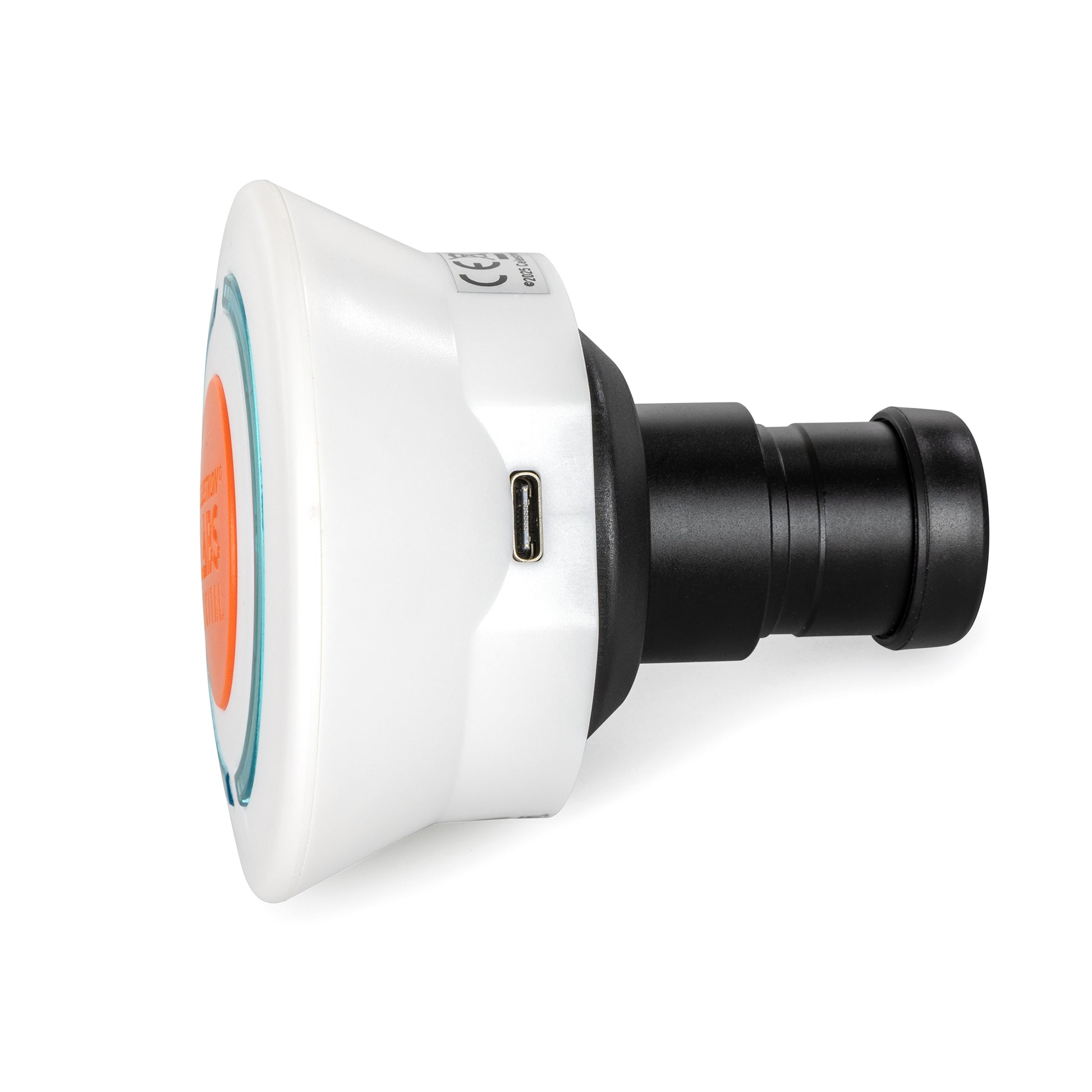

Port(s) In: USB-C Port for charging
Port(s) Out: N/A
Cable USB-C Cable for charging battery (compatible with most 5V-1A to 1.8A AC Adapters)
Dimensions: 75mm x 75mm x 81.3mm (2.95" x 2.95" x 3.20")
Weight 3.4 oz (97 g)

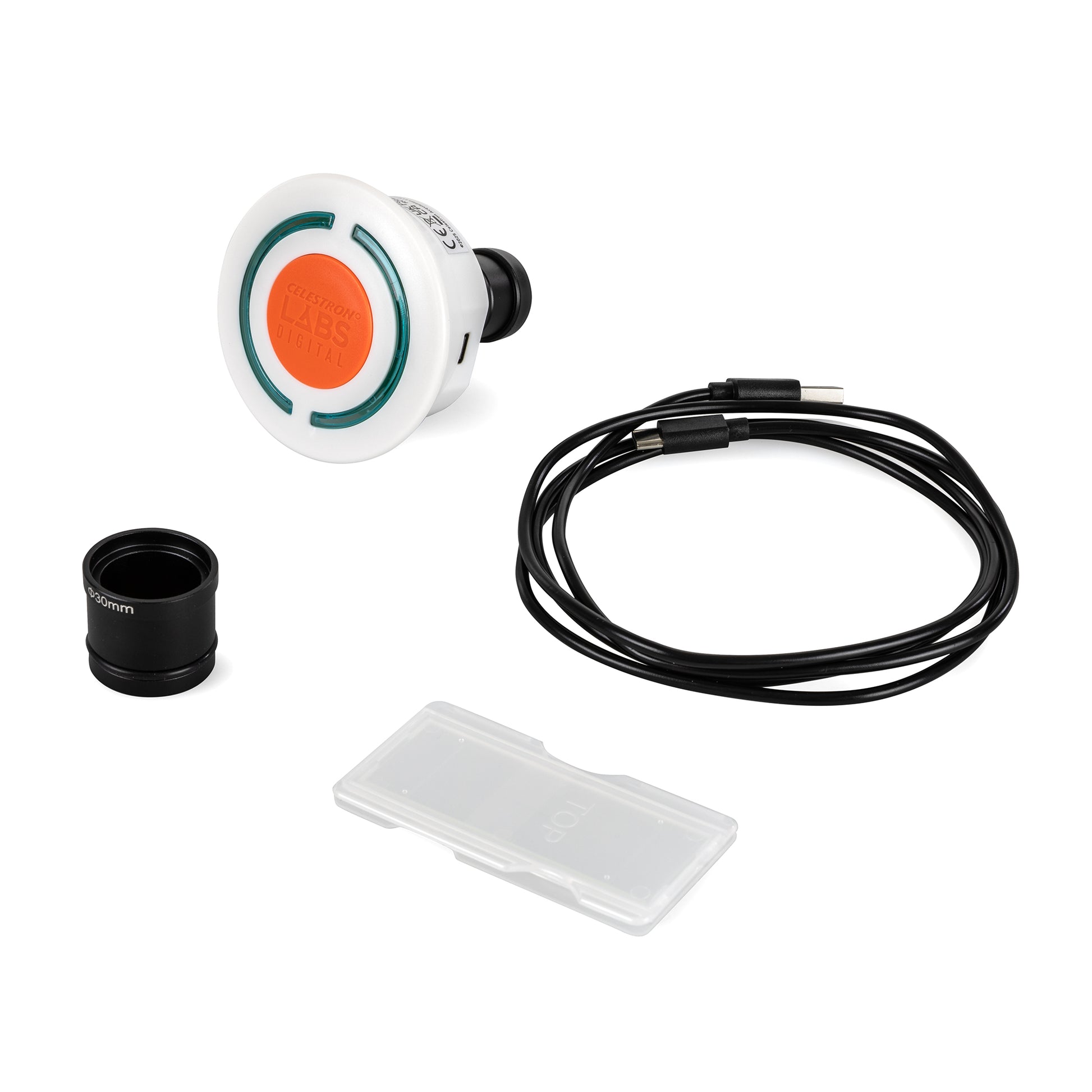

Included Items: (1) Aluminum collar adapter for 30mm stereo scope eyepiece tube
(1) Rubber Lens cover for protection
(1) Calibration ruler in plastic case
(1) USB-C charging cable
Additional Information
California Prop 65 California Prop 65 Warning

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
View full details

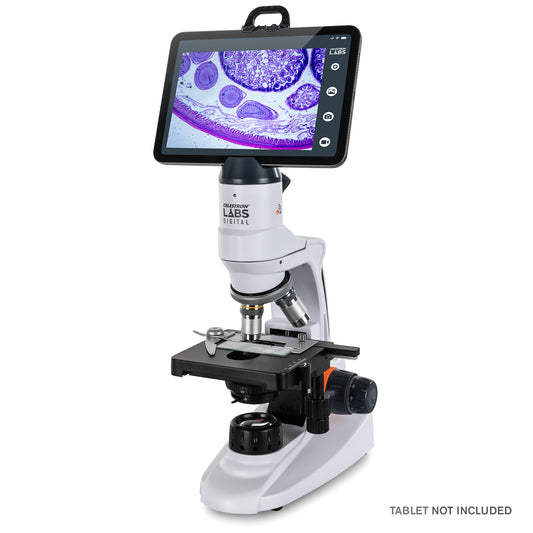

Customers Also Purchased

Upgrade Your Microscope to Wireless Digital Imaging

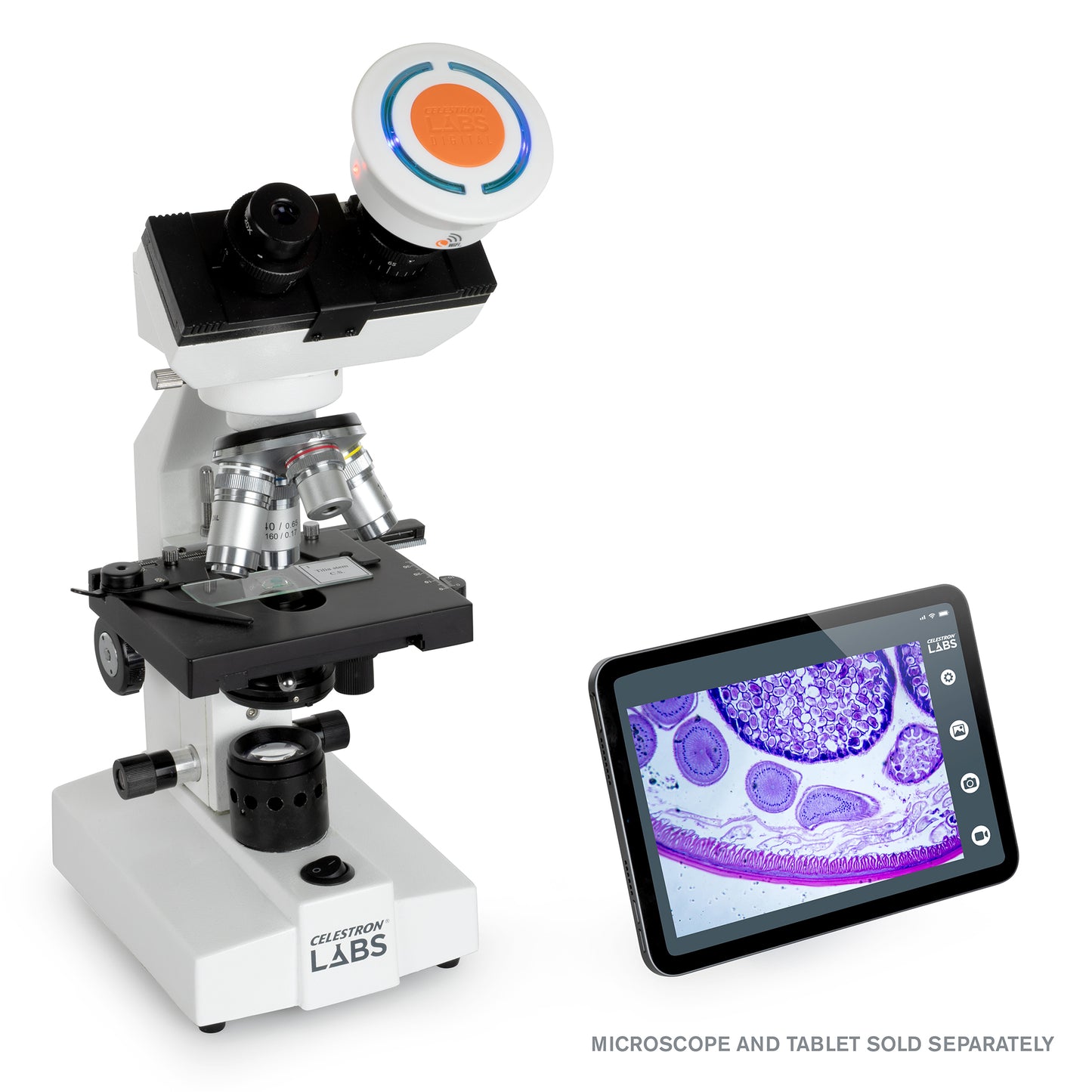

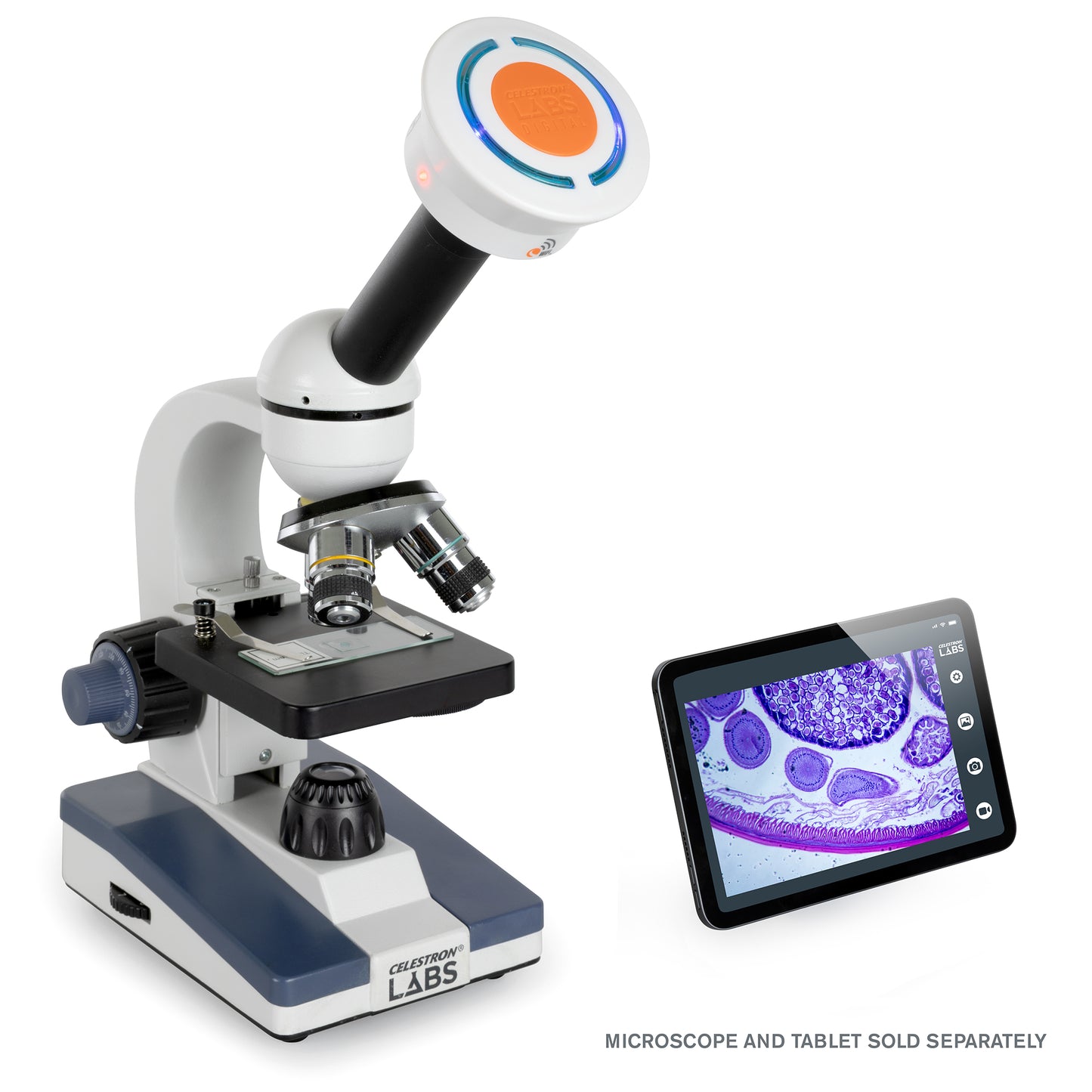

The Celestron Labs Digital 2MP Wi-Fi Microscope Imager replaces your existing 23mm or 30mm eyepiece and converts your optical microscope into a wireless digital imaging system. Once installed, it becomes your new digital eyepiece, transmitting a live image directly to your smartphone or tablet via built-in Wi-Fi.

Setting up takes seconds. Remove your eyepiece, insert the imager, and connect through the Celestron LABS Digital Wi-Fi HD App. (For microscopes with 30 mm eyepiece tubes, use the included adapter to ensure proper alignment and a secure fit.)



View, Capture, and Document with Ease

From your smartphone or tablet, you can observe specimens in real time, capture high-resolution still images, and record smooth 30 fps video. This makes it easy to project a live image in a classroom, document lab results, or share observations without rotating students or colleagues through the eyepiece.

The rechargeable lithium-ion battery provides up to 3 hours of cordless operation, giving you the flexibility to move around the lab or classroom without being tethered to a power source. A USB-C cable is included for easy recharging.



Designed for Accuracy and Reliability

Durable aluminum eyepiece barrel provides a secure connection to your microscope for steady imaging performance. Use the included calibration ruler to calibrate the system so your onscreen measurements match real-world dimensions. Recalibrate when changing magnification to maintain measurement accuracy.



Download our Celestron Labs Digital Wifi App from your preferred app store.
