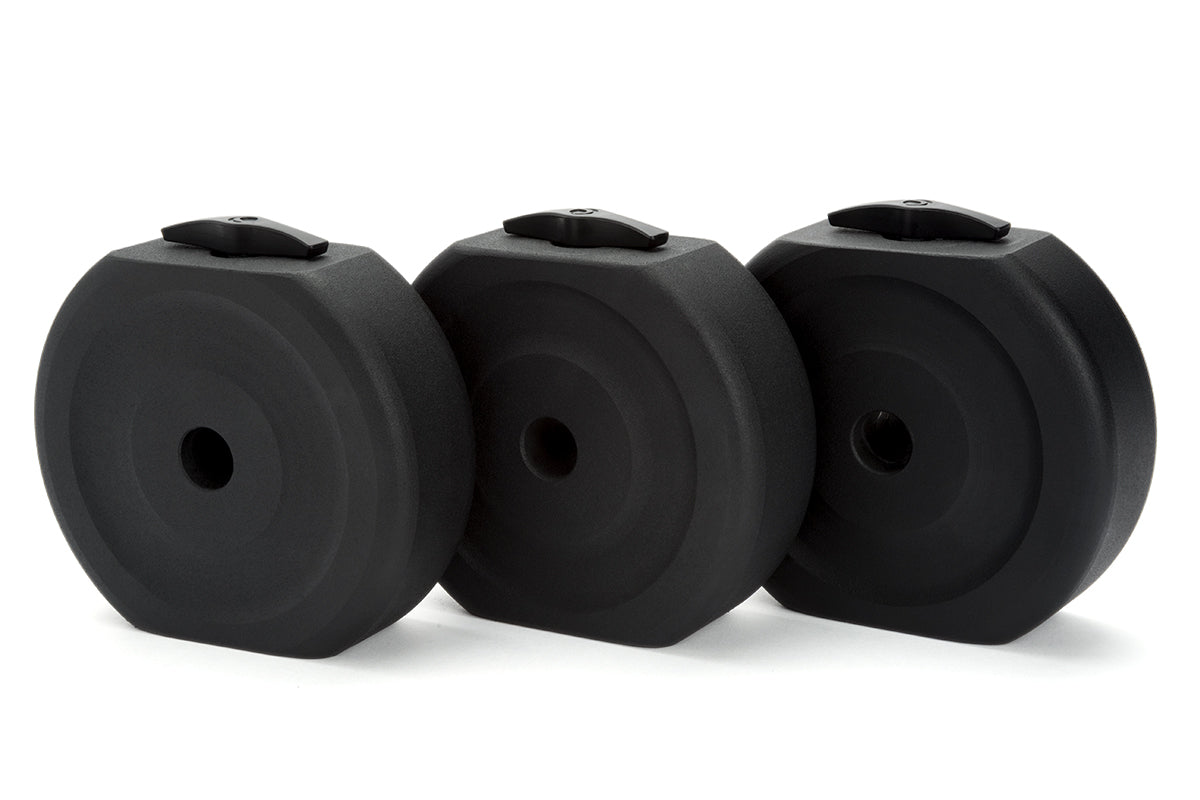

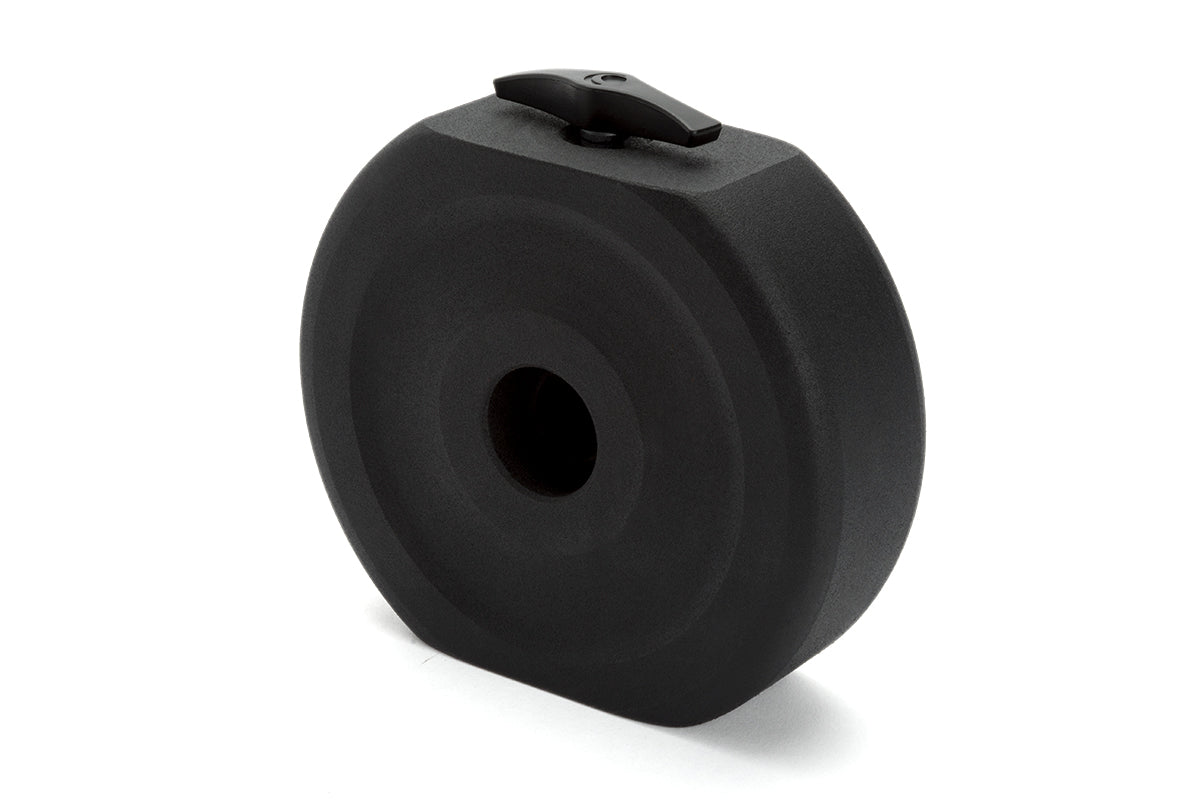

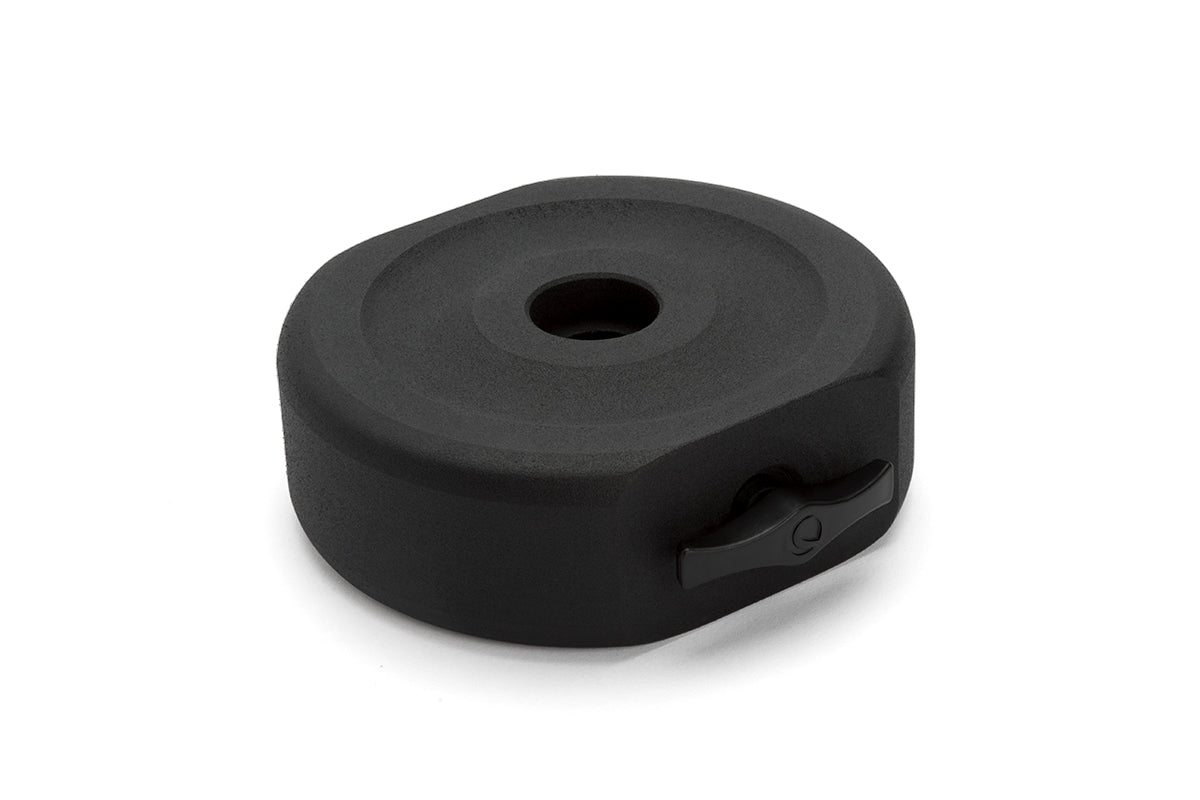

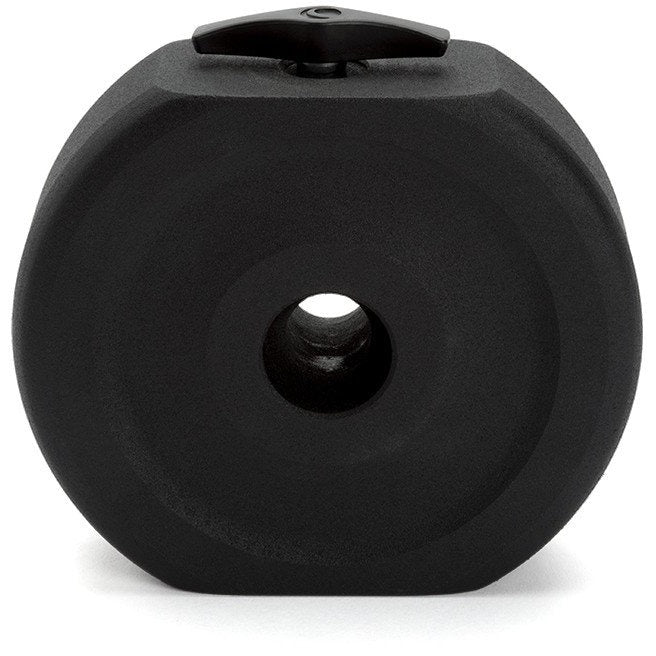

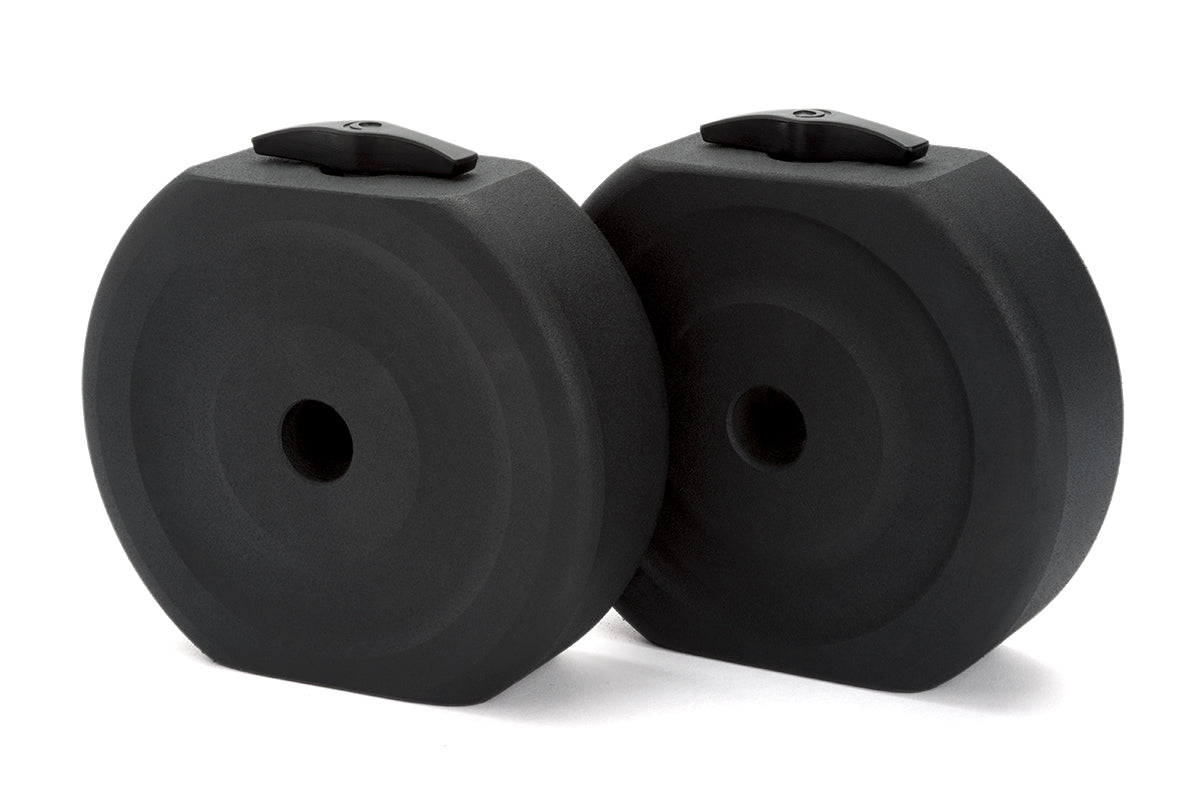

Counterweight, 12 lbs for 19mm Shaft
Item #: 94286 / 94286-CGL- Designed to fit 19mm counterweight shafts
- Sturdy lock knob keeps the counterweight safely on the shaft
- For full list of compatible telescopes, please see description section below
Overview
- Designed to fit 19mm counterweight shafts
- Sturdy lock knob keeps the counterweight safely on the shaft
- For full list of compatible telescopes, please see description section below
Customers Also Purchased
Description
Whether you are enhancing your mount setup or buying a replacement part, the counterweight is there to balance weight of the optical tube (OTA) and accessories on the other side of the Right Accession (RA Axis). If you add accessories to your telescope setup (ie camera, guider, etc), you may need to add additional counterweights to off-set the weight.
If the balance is off on one-side or the other, it can do damage to your OTA and setup, the motor gear, and/or may have issues with tracking accuracy. You can add additional counterweights to improve the responsiveness to the system by reducing the mass inertia, though you need to make sure you space out the counterweights along the shaft to reduce damage to your setup and that it is cost-effective and worth it for your telescope setup.
This counterweight comes with a sturdy knurled knob locks to safely hold in place on the counterweight shaft. The counterweight is designed to fit 19mm counterweight shafts
Below are the counterweights that go with each one of our recent Celestron mounts.
| Counterweight Model | Weight (pounds) | Shaft-hole size (approx) | Mount |
| 94203 | 11 lbs | 0.75" | Advanced VX/CG-5/CGEM/CGEM II/CGX |
|
94186 |
11.8 lbs. |
0.75" |
Advanced VX/CG-5/CGEM/CGEM II/CGX |
|
12 lbs. |
0.75" |
Advanced VX/CG-5/CGEM/CGEM II/CGX |
|
|
17 lbs. |
0.75" |
Advanced VX/CG-5/CGEM/CGEM II/CGX |
|
|
22 lbs |
1.25" |
CGX-L/CGE Pro/ CGEM DX |
| Mount | Counterweight Model(s) |
|
94186, 94189, 94203, 94286 |
|
|
Advanced CG-5 |
94186, 94189, 94203, 94286 |
|
CGEM |
94186, 94189, 94203, 94286 |
|
94186, 94189, 94203, 94286 |
|
|
94186, 94189, 94203, 94286 |
|
|
94187 |
|
| CGE Pro | 94187 |
|
CGEM DX |
94187 |
Specifications
| General | |
|---|---|
| Weight: | 12 lbs (5.44 kg) |
| Counterweight Shaft Diameter: | 19mm (0.74") |
| Counterweight Compatibility: | Advanced VX | CG-5 | CGEM | CGEM II | CGX |
Accessories
SELLER
SELLER
SELLER
SELLER
Support & Downloads
| Other Product Files: |
|---|
| Which Celestron counterweights work with which mounts? |
