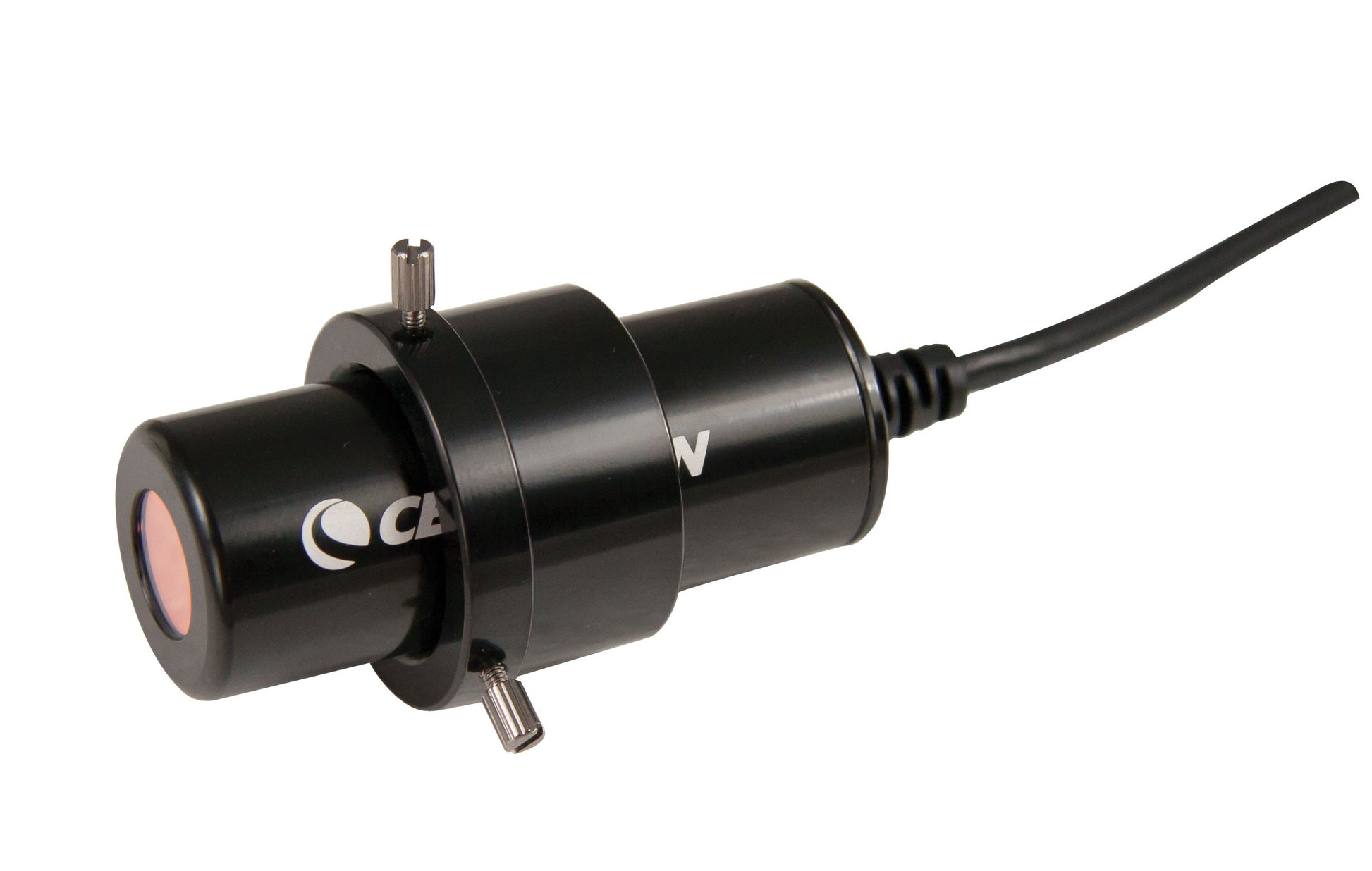

Digital Microscope Imager
Item #: 44421- View microscope specimens on your computer and capture 2MP images and video of your discoveries
- Works with any traditional microscope with 23 mm to 30 mm diameter eyepiece tubes
- Imager replaces the eyepiece of your microscope and attaches to your computer via USB 2.0 cable
- Imager compatible with Windows XP or later and Mac OSX 10.4.9 or better—included imaging software compatible with Windows only
Overview
- View microscope specimens on your computer and capture 2MP images and video of your discoveries
- Works with any traditional microscope with 23 mm to 30 mm diameter eyepiece tubes
- Imager replaces the eyepiece of your microscope and attaches to your computer via USB 2.0 cable
- Imager compatible with Windows XP or later and Mac OSX 10.4.9 or better—included imaging software compatible with Windows only
Description
The 2MP Celestron Digital Microscope Imager turns your traditional microscope into a high-resolution digital imager, using your personal computer. You’ll be able to record still images and even video of your specimens using the 2MP CMOS sensor. It’s the perfect tool for hobbyists, teachers, students, medical labs, and more.

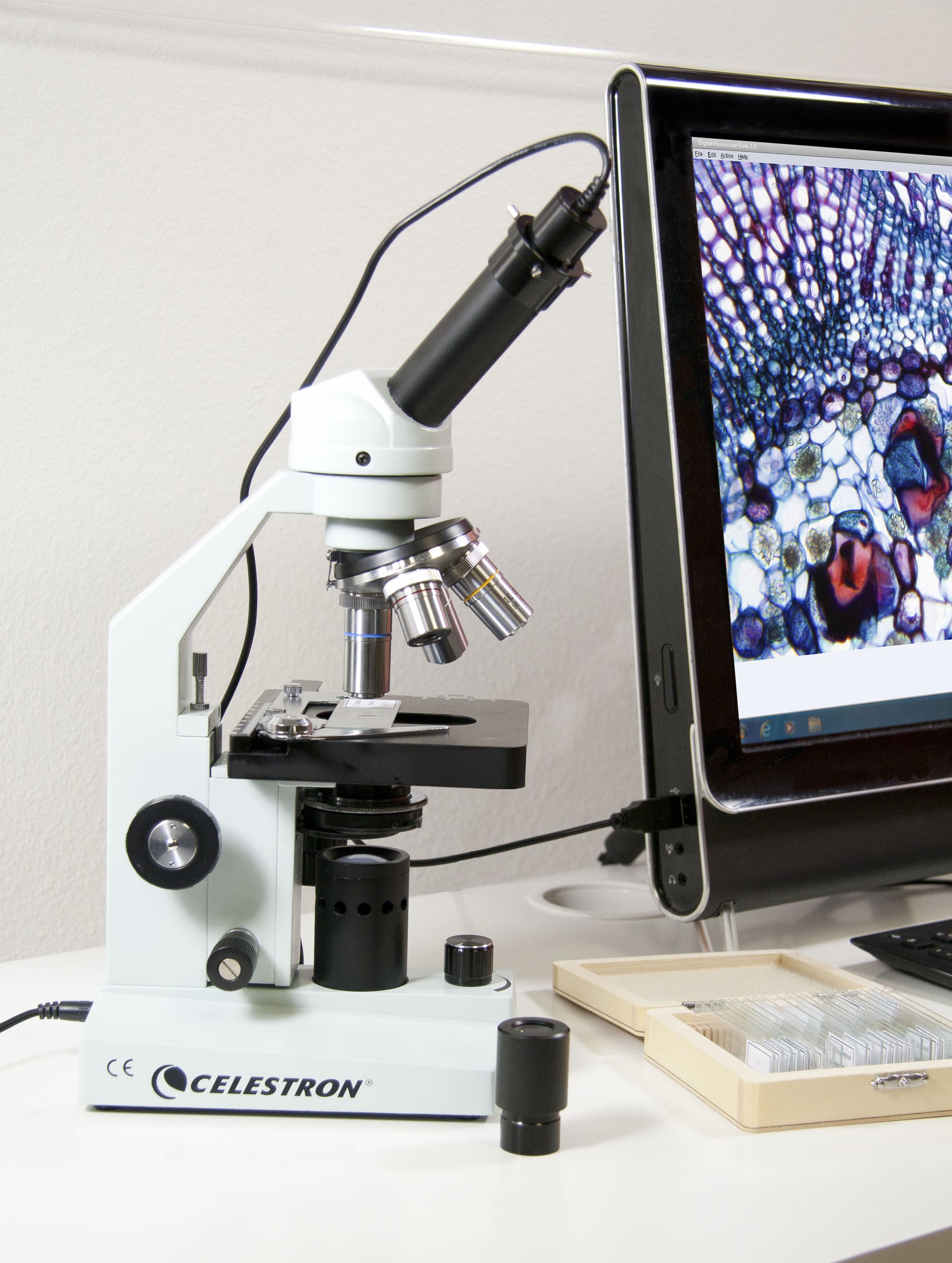

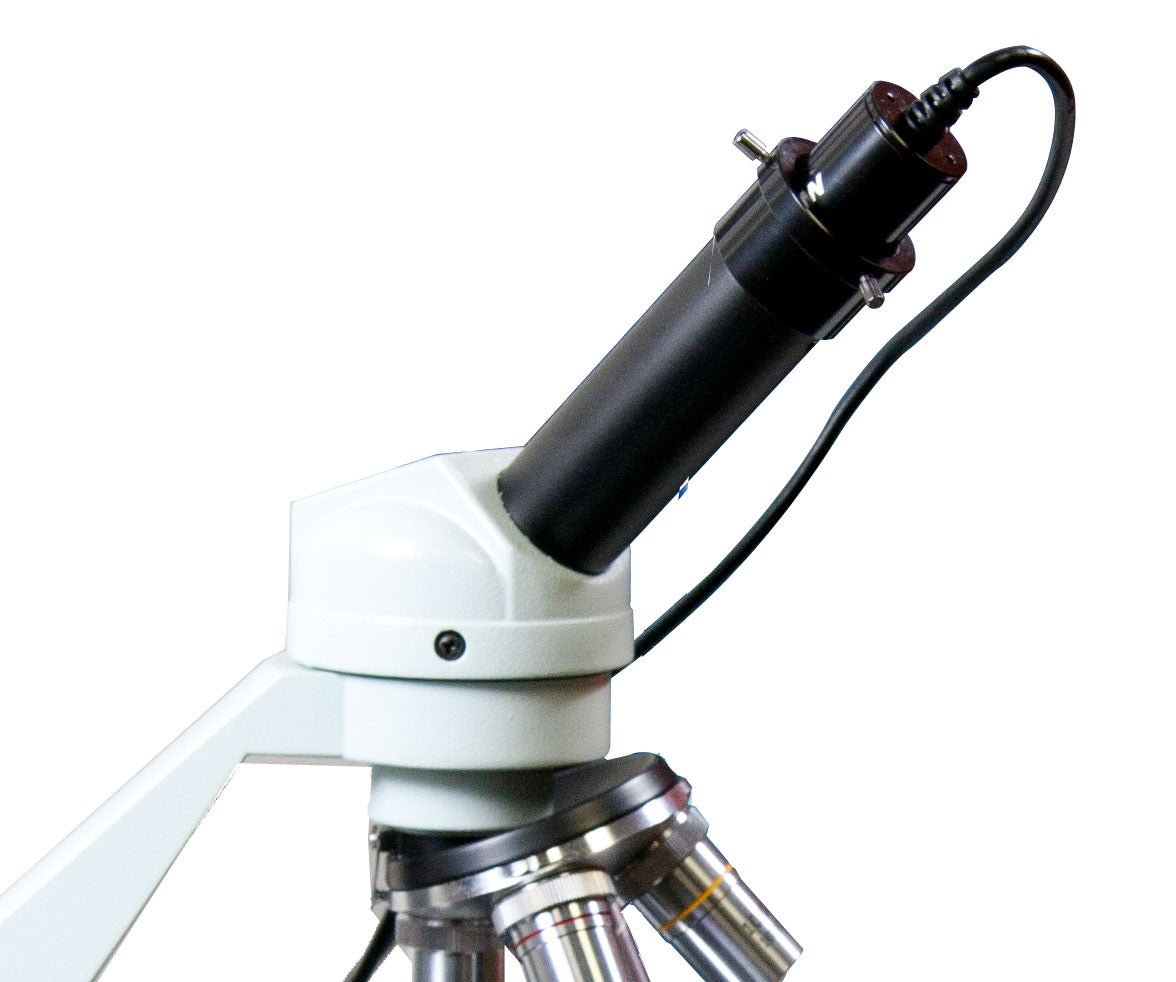

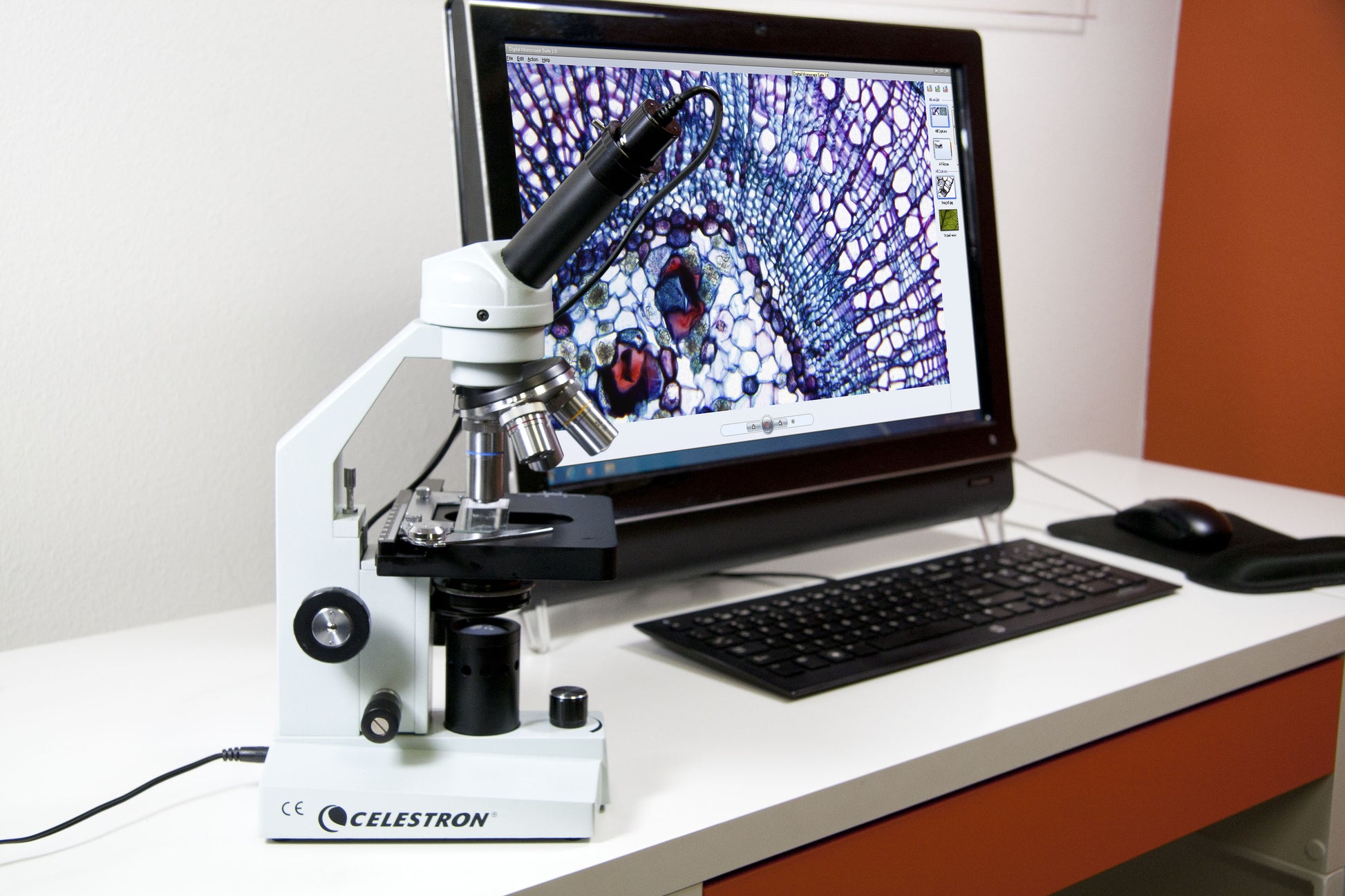

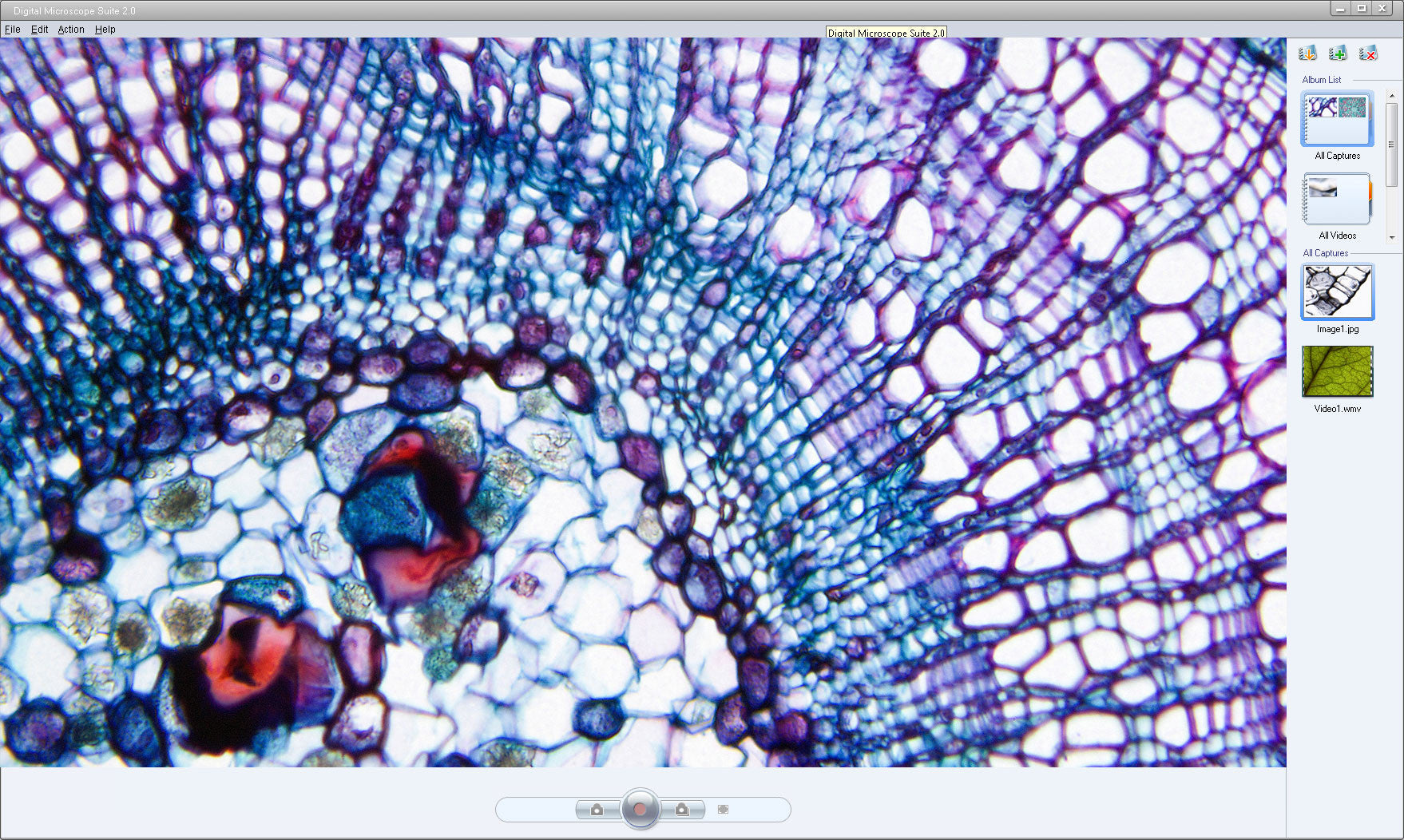

The imager replaces your eyepiece and connects directly to your PC, streaming images of the specimens you are viewing. This must-have accessory is compatible with almost any microscope, both biological and stereo.
NOTE: Windows 10 operating systems come in a number of editions, and the users of Windows 10 operating systems may encounter limited functionality or even incompatibility with the unit based on Windows 10 edition or update levels being used.
Specifications
General | |
---|---|
Imaging Sensor: | 2.0 MP CMOS, 10x in lieu of eyepiece |
Software Compatibility: | Windows XP or better, Mac OS X 10.4.9 or better |
USB Connection: | 2.0, cable attached |
Continuous Video (VGA): | Yes, 30 fps |

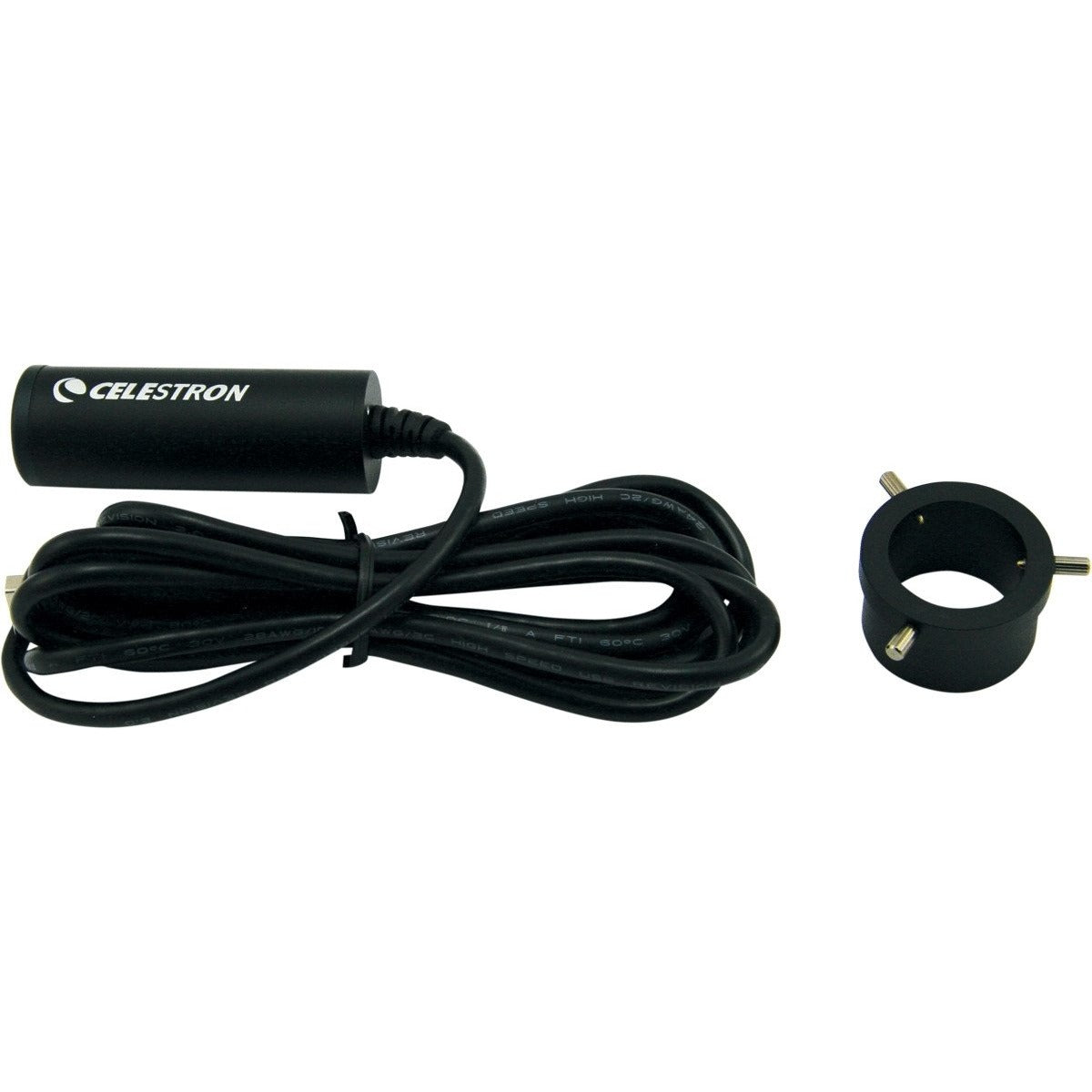

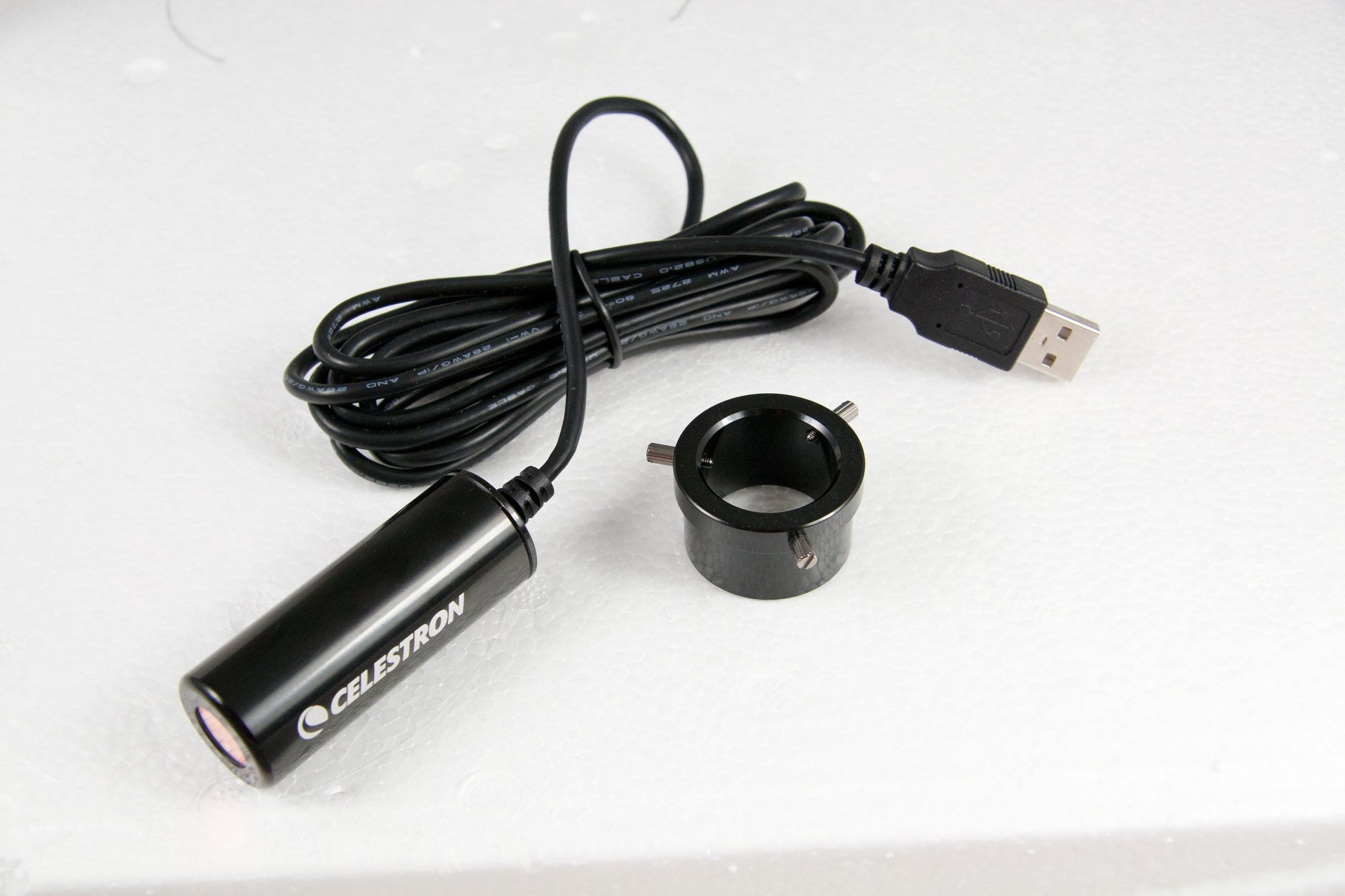

Included Items: |
1 adjustable collar with step for 30mm eyepiece diameter Digital Microscope Suite 2.0 software for Windows |
Dimensions: | 64mm x 22mm diameter (2.5" x .9" diameter) |
Weight: | 1.5 oz (42 g) |
