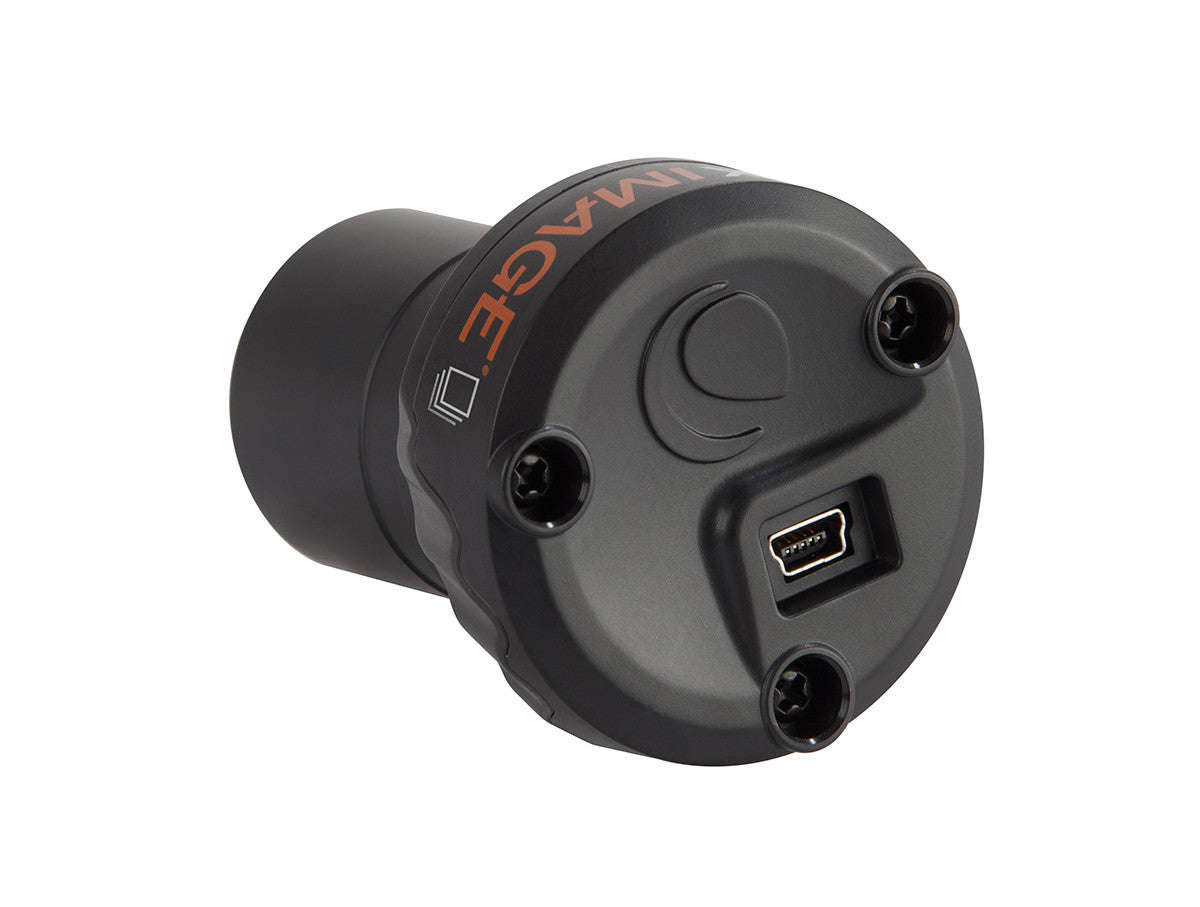

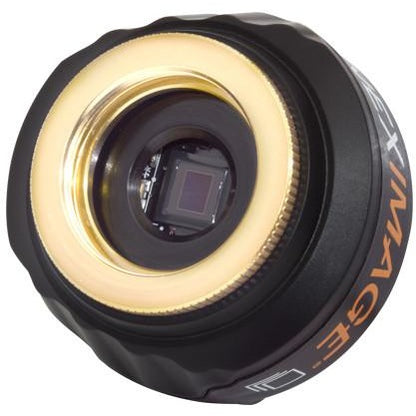

NexImage Burst Monochrome
NexImage Burst Monochrome
NexImage Burst Monochrome
NexImage Burst Monochrome
NexImage Burst Monochrome
NexImage Burst Monochrome
NexImage Burst Monochrome
NexImage Burst Monochrome
NexImage Burst Monochrome
NexImage Burst Monochrome
NexImage Burst Monochrome
NexImage Burst Monochrome

NexImage Burst Monochrome

$199.95

Item #: 95519

Style: NexImage 10 Solar System Color Imager NexImage 5 Solar System Imager (5MP) NexImage Burst Color

Warranty: 2 Years
No longer available on Celestron.com, but may be available at select retailers.

  • Features the Aptina AR0132 CMOS imaging sensor, a state-of-the-art chip used by imaging companies worldwide
  • View and capture live video of the Sun, Moon, and planets on your computer
  • Manually adjust gain, exposure time, and frame rate
  • Machined aluminum 1.25" adapter barrel with C-threads for direct threaded connection to almost any telescope
  • Included software automatically removes video frames affected by unstable air, leaving only the sharpest, clearest frames to be stacked and aligned into one high-quality image (compatible with PC only)

Overview

No longer available on Celestron.com, but may be available at select retailers.

  • Features the Aptina AR0132 CMOS imaging sensor, a state-of-the-art chip used by imaging companies worldwide
  • View and capture live video of the Sun, Moon, and planets on your computer
  • Manually adjust gain, exposure time, and frame rate
  • Machined aluminum 1.25" adapter barrel with C-threads for direct threaded connection to almost any telescope
  • Included software automatically removes video frames affected by unstable air, leaving only the sharpest, clearest frames to be stacked and aligned into one high-quality image (compatible with PC only)

Description

Celestron offers a wide array of high-quality, affordable, and user-friendly planetary imagers! Click here to learn more on how to choose an imager that’s right for you.

Capture high-resolution planetary, lunar and solar images with the NexImage Burst Solar System Imager. This innovative camera is easy enough for a beginner to use, but features one of the best CMOS sensors available for astroimaging. It’s compatible with any computerized telescope or a non-computerized telescope with a motor drive for tracking celestial objects.

Combined with the included software package, NexImage Burst brings out tremendous detail and produces images rivaling those taken with astronomical cameras costing hundreds more.

Ultra-Sensitive Aptina AR0132 CMOS Sensor
CMOS technology is emerging as the hottest trend in imaging, and Aptina’s AR0132 sensor leads the way. This updated version of the popular MT9M034 sensor offers the perfect combination of speed, sensitivity, and value. You won’t find the Aptina AR0132 sensor for a better price anywhere than NexImage Burst.

NexImage Burst Monochrome offers you the most senstivity for capturing the best possible astroimages. Attach a filter wheel such as the Skyris Filter Wheel to image in color.

A Great Choice for Those New to Imaging
Getting started with NexImage Burst is as easy as pointing your telescope at the Moon, Sun, or a planet and recording a video. For the sharpest possible images, NexImage Burst can record more than 120 frames per second when subframed.

The included software analyzes each frame of video, throws away the ones affected by atmospheric turbulence, and perfectly aligns the best frames. The result is a bright, clear astroimage with impressive detail.

Solar system imaging with NexImage Burst is a great way to enjoy the hobby of astroimaging if you live in a light-polluted area. If you can see the planet the sky, you can image it with NexImage Burst!

Specifications

General
A/D Conversion: 12 bit

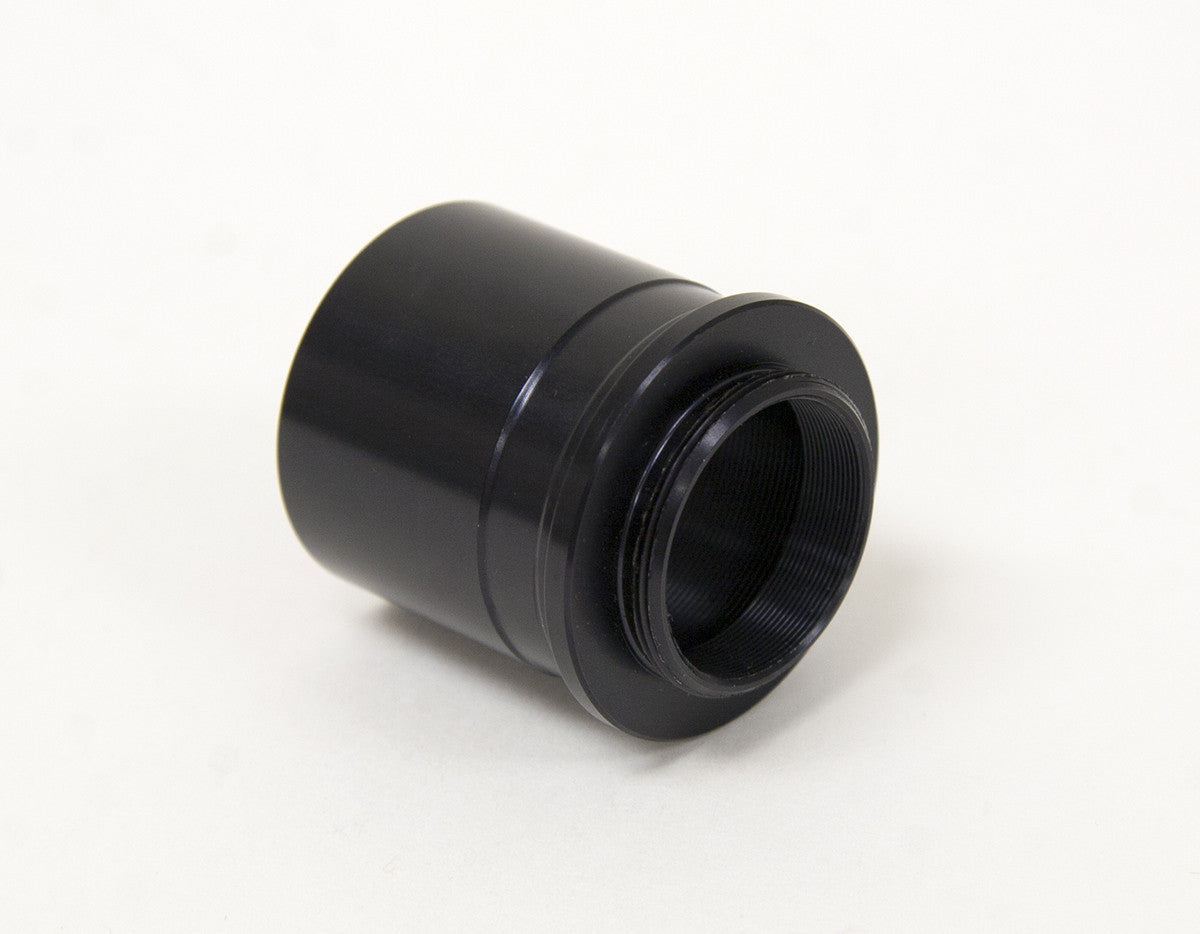

Back Focus Distance: 13.1mm (0.51") with nosepiece, 10.6mm (0.41") without nosepiece
Exposure Range: 0.0001 to 1 second
Imaging Sensor: Aptina AR0132AT CMOS (Monochrome)
Mounting: 1.25" barrel and C-thread
Operating Environment: 40° - -40°C
Shutter: Rolling
Operating System Compatibility: Windows 7, Windows 8, and Windows 10
Software Compatibility: iCap, IC Capture, DirectShow, FireCapture
Sub-Framing: Hardware selectable
Weight: 2 oz (57 g)
Power Requirements: Powered by USB
Camera Resolution: 1280 x 960
Sensor Size: 4.8mm x 3.6mm (0.18" x 0.14")
Pixel Size: 3.75 micron square
Frames per Second: Over 120 (30 fps at full frame)
USB Connection: High-speed 2.0, 5' cable length

Videos

Reviews

Sky at Night Magazine 2015 Award!

"A high-performance CMOS chip sets this Solar System imager apart."

Read Full Review
