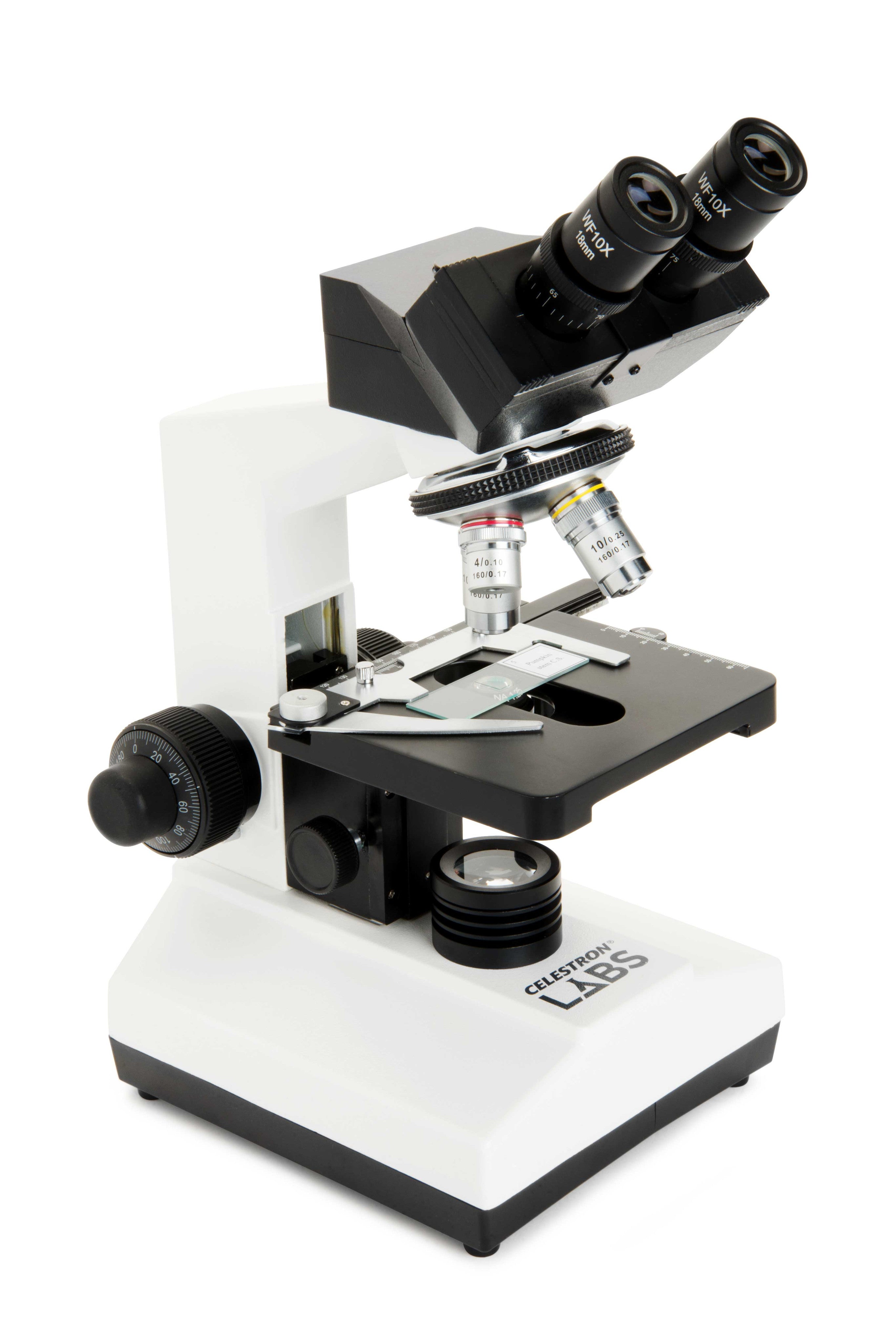

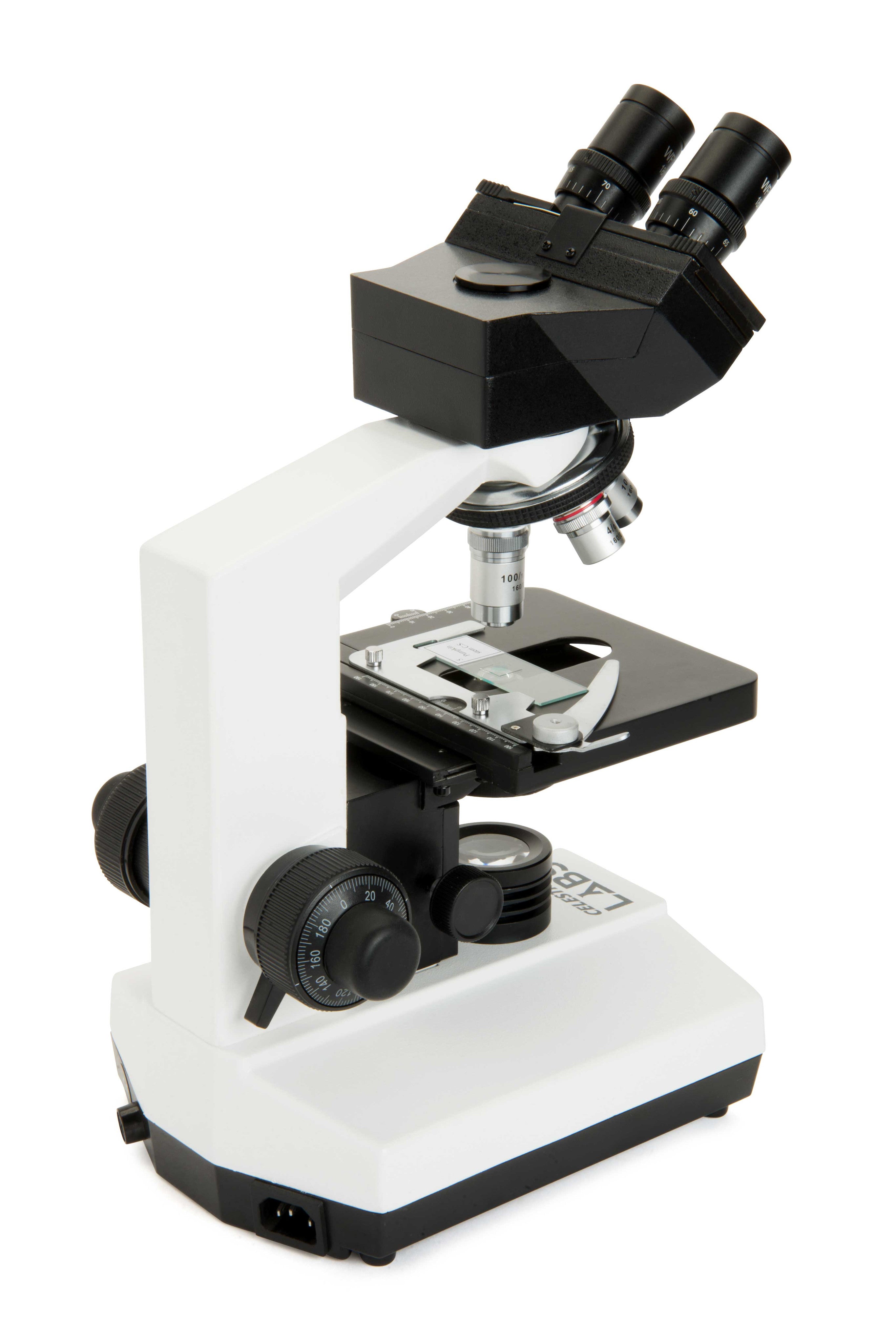

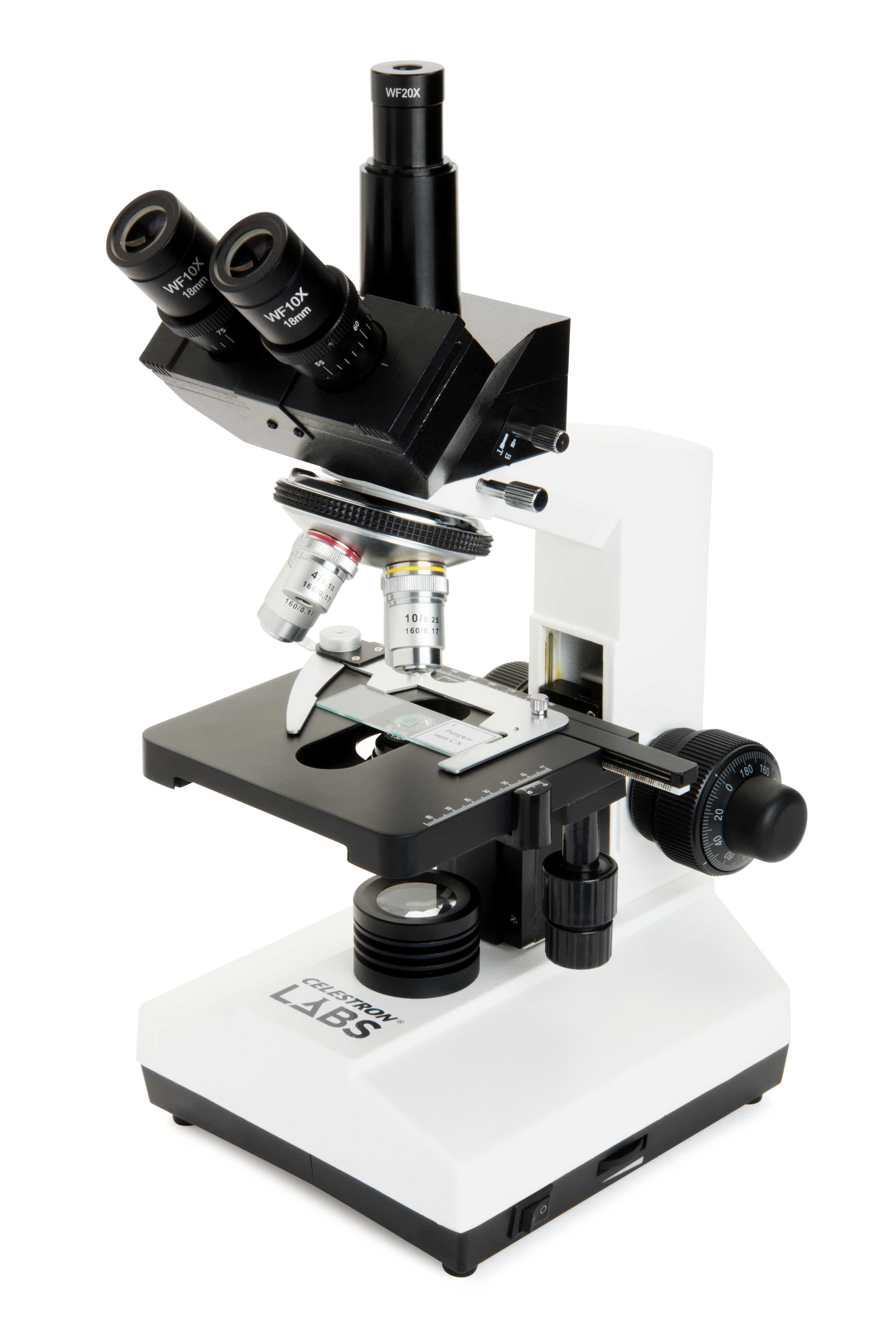

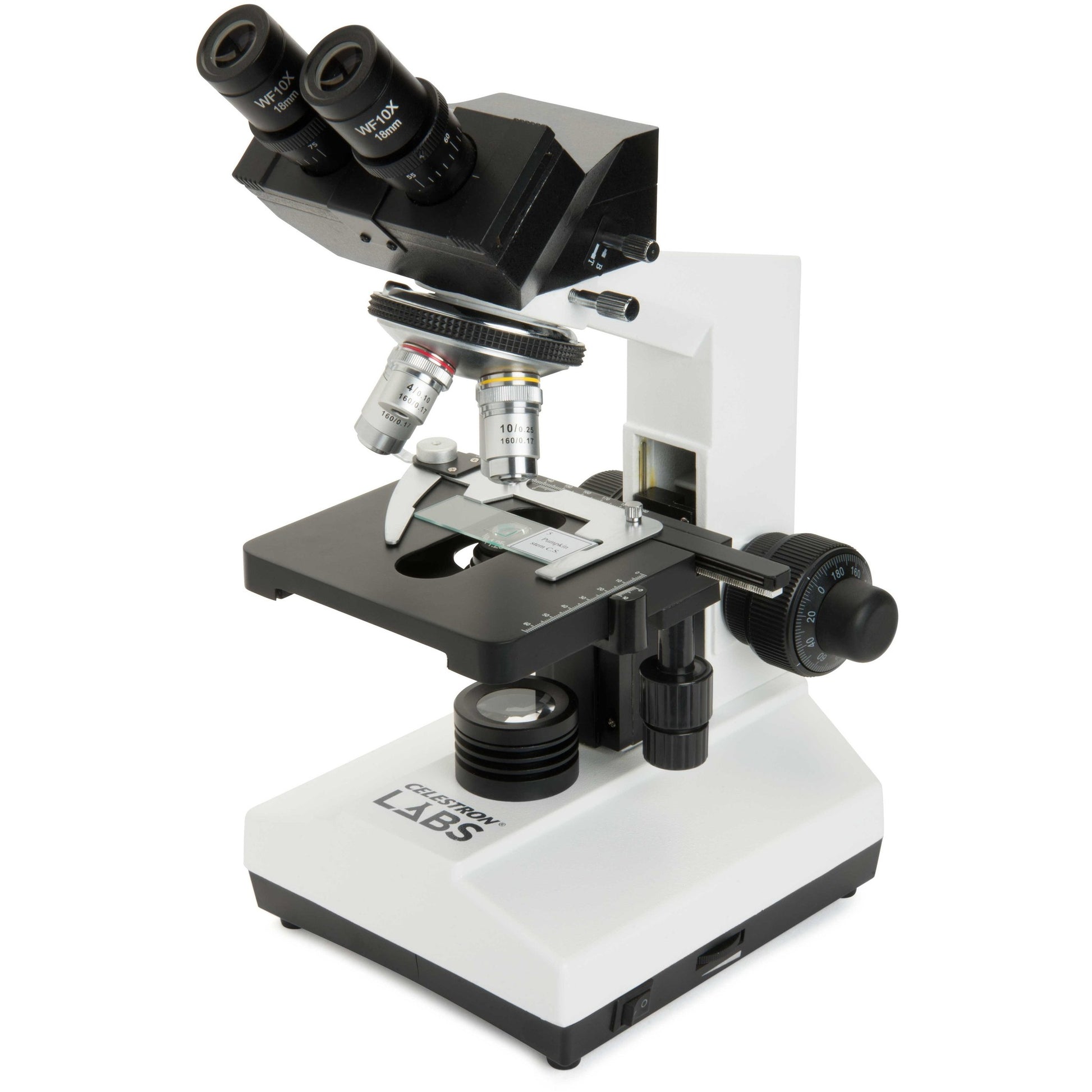

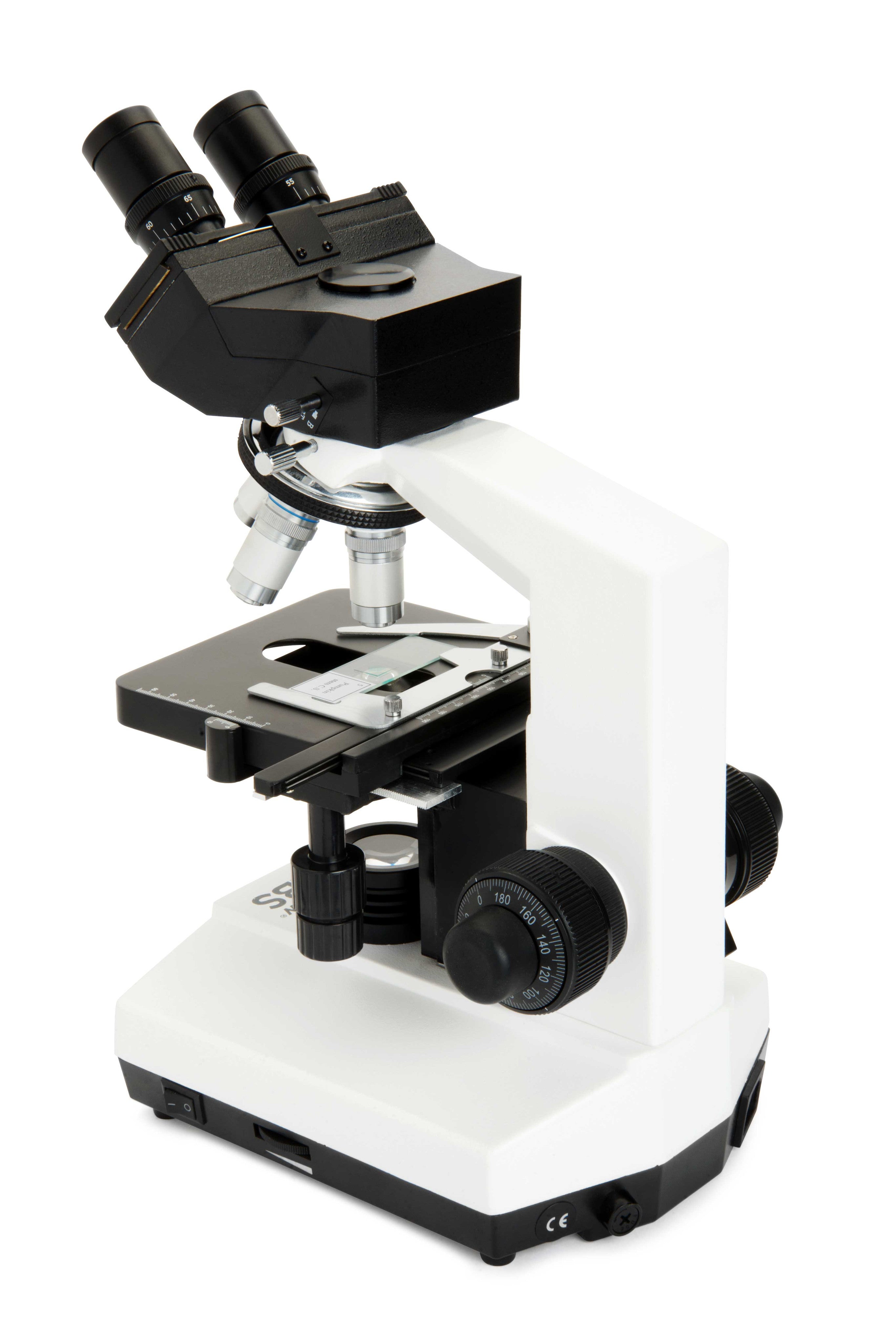

Celestron Labs CB2000C Compound Microscope
Item #: 44132 / 44132-CGL- Professional-grade compound binocular with trinocular adapter, microscope with 2000x power
- 10x and 20x eyepieces (10x with pointer)
- 4 fully achromatic objective lenses - 4x, 10x, 40x, 100x
- View specimens at 40x, 80x 100x, 200x, 400x, 800x, 1000x and 2000x magnification
- All-metal construction with fully mechanical stage and coaxial focus with coarse and fine focusing knobs
- Built-in, adjustable LED lower illumination with Abbe condenser and iris diaphragm
Overview
- Professional-grade compound binocular with trinocular adapter, microscope with 2000x power
- 10x and 20x eyepieces (10x with pointer)
- 4 fully achromatic objective lenses - 4x, 10x, 40x, 100x
- View specimens at 40x, 80x 100x, 200x, 400x, 800x, 1000x and 2000x magnification
- All-metal construction with fully mechanical stage and coaxial focus with coarse and fine focusing knobs
- Built-in, adjustable LED lower illumination with Abbe condenser and iris diaphragm
Description
The Celestron Labs CB2000C Binocular Compound Microscope offers all the advanced features you’re looking for. With 10x and 20x eyepieces and 4 included objective lenses (4x, 10x, 40x and 100x), you’ll achieve magnification ranging from 40x to 2000x. Improve the quality of your magnified images with the included 3 colored filters. A trinocular eyepiece tube is included, allowing for a camera to be adapted or for secondary eyepiece viewing. The 10 included prepared slides guarantee exciting discoveries right out of the box.
This microscope provides perfect illumination thanks its NA 1.25 Abbe condenser and iris diaphragm, which allow to you to control and concentrate light on your specimens. You can easily control brightness, contrast, depth of field, and evenness of illumination by adjusting the distance between the Abbe condenser and objective or by adjusting the condenser’s iris diaphragm, which controls the diameter of the light beam. The fully mechanical stage has knobs to control both axes for easy centering of your slides. An all-metal construction means you can rely on the CB2000C for years to come. The Trinocular adapter allows for the attachment of a camera for taking images of your specimens.
Specifications
General | |
---|---|
Type of Microscope: | Compound Trinocular |
Head: | Trinocular with 360° rotatable 45° incline and interpipilary distance adjustability |
Eyepiece(s) Magnification: | (1) 10x and (1) 20x (10x with pointer) |
Eyepiece(s) Diameter: | 23.2mm (.91") |
Nosepiece: | quadruple, rotational |
Objective(s) Type: | Refractive |
Objective(s) Standard: | DIN |
Objective(s) Magnification: | (4) 4x, 10x, 40x, 100x immersion, all achromatic |
Objective(s) Thread: | 4/5" x 1/36" |

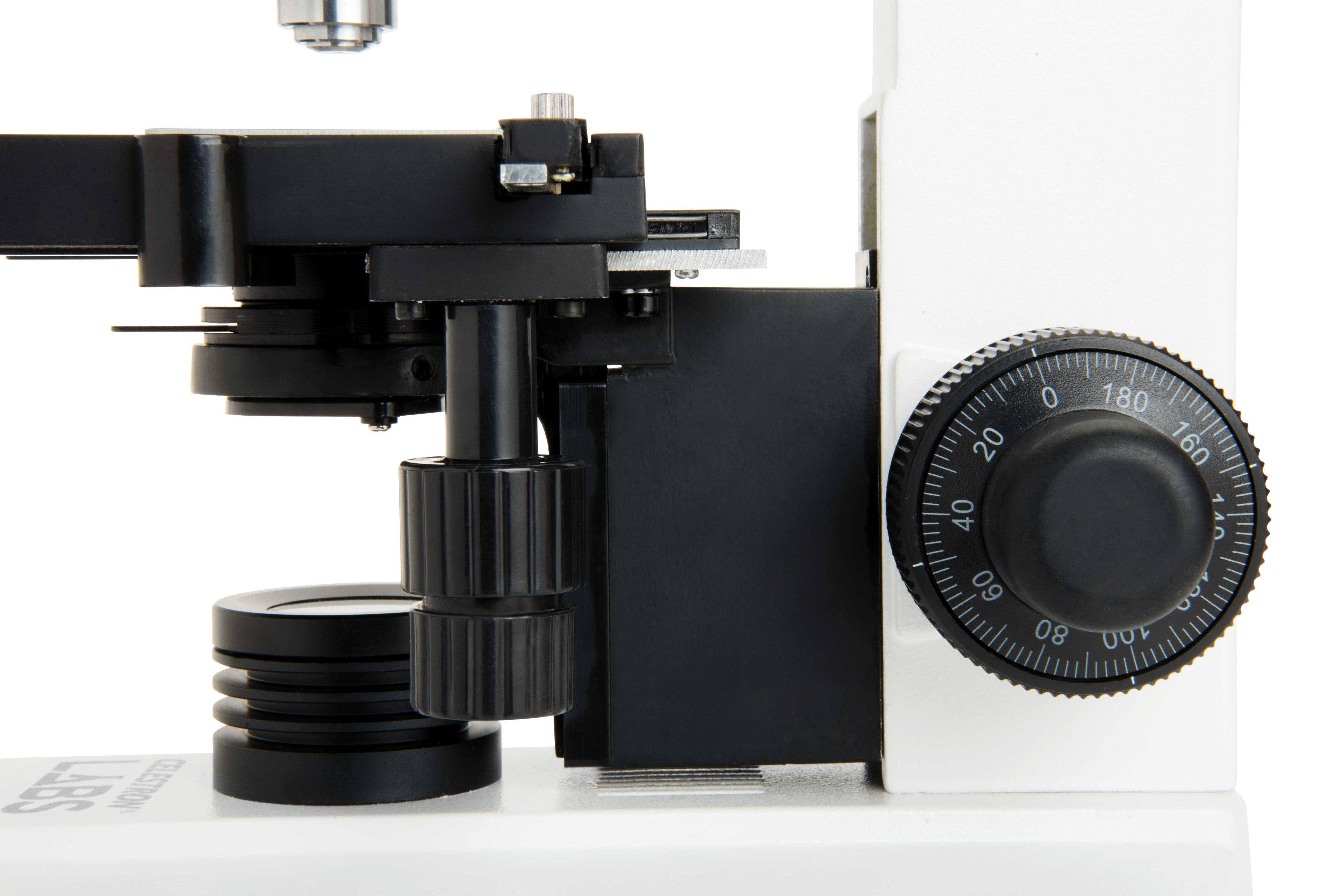

Focus Type(s): | Coaxial coarse and fine focus (individual dials) |
Focus Travel (per rotation): | 0.2mm (.0078") |
Magnification Range: | 40x to 2000x (40x, 80x, 100x, 200x, 400x, 800x, 1000x and 2000x) |
Illumination Type: | LED |
Illumination Position(s): | Lower |
Illumination Adjustability Mechanism: | Dial |
Power Source: | Universal AC 100-240V adapter and interchangeable plugs of type A, C, G, and I configurations |
Battery Option: | N/A |

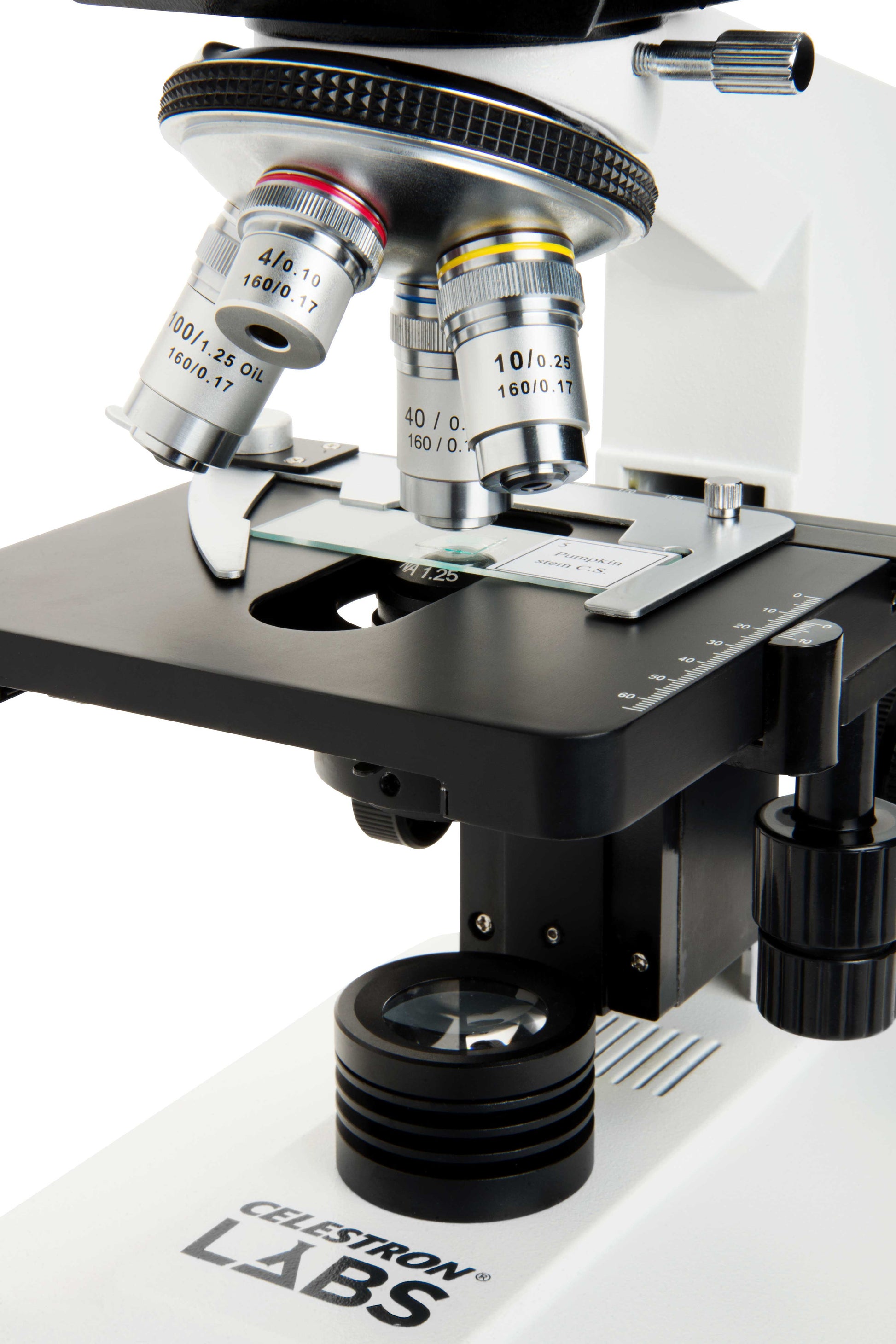

Stage: | Mechanical stage, 140mm x 140mm (5.5" x 5.5") |
Condenser Type: | Abbe with Iris adjustment |
Condenser N.A.: | 1.25 |
Stage Diaphragm: | N/A |
Included Items: |
Trinocular adapter tube 3 color filters (blue, white opaque, green) Immersion oil 10 Prepared Slides: 1. Wall of stomach, sec. 2. Stratified flat epithelium, sec. 3. Testis, sec. 4. Aspergillus, w.m. 5. Rhizopus nigricans, w.m. 6. Small intestine, c.s. 7. Lily anther, c.s. 8. Hydrilla verticallata, w.m. 9. Spirogyra, w.m. 10. Lily ovary, c.s. |
Videos
Accessories
FAQ
What is the diameter and focal adjustment capability of the microscope’s included trinocular adapter?
The trinocular adapter eyepiece tube is the same diameter as the eyepiece tube: 23.2mm. It is not threaded at the top and accepts drop-in eyepieces and C-mount adapters just like the binocular eyepiece tubes. The tube is adjustable by being turned in the male-to-female threading for focal depth adjustment. This position can then be retained by means of a finger-twistable screw lock. If the trinocular adapter eyepiece tube is removed by being unthreaded from the trinocular adapter itself, the exposed threading is female.
Why are my specimens different from the ones listed on the website?
In the event that a particular specimen becomes unavailable, a substitution may be made to any one listed below.
Specimen Mounted Slides included:
i. Wall of stomach, sec.
ii. Stratified flat epithelium, sec.
iii. Testis, sec.
iv. Aspergillus, w.m.
v. Rhizopus nigricans, w.m.
vi. Small intestine, c.s.
vii. Lily anther, c.s.
viii. Hydrilla verticallata, w.m.
ix. Spirogyra, w.m.
x. Lily ovary, c.s.
