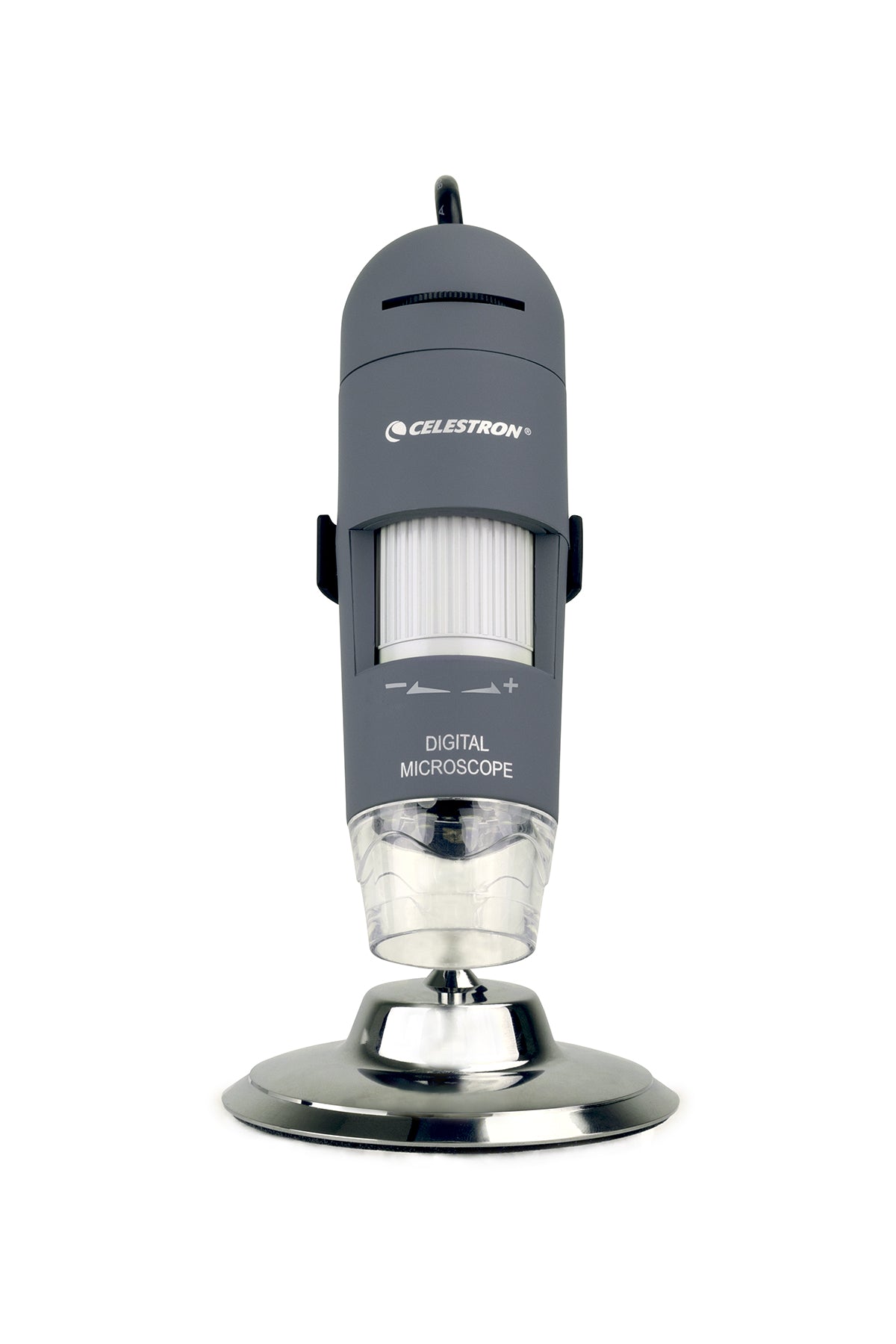

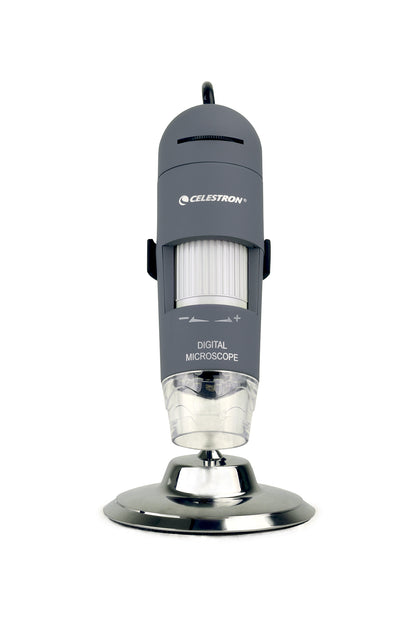

Deluxe Handheld Digital Microscope
Item #: 44302-C / 44302-C-CGL- USB-powered handheld digital microscope.
- Built-in 2MP digital camera for capturing images and videos.
- Wide range of magnification for a wide range of uses: 10x - 200x magnification.
- Image captures up to 1920 X 1080 pixels.
- Eight adjustable white LED illumination points.
- Downloadable MicroCapture Pro software available for both Mac and Windows PCs.
Overview
- USB-powered handheld digital microscope.
- Built-in 2MP digital camera for capturing images and videos.
- Wide range of magnification for a wide range of uses: 10x - 200x magnification.
- Image captures up to 1920 X 1080 pixels.
- Eight adjustable white LED illumination points.
- Downloadable MicroCapture Pro software available for both Mac and Windows PCs.
Description

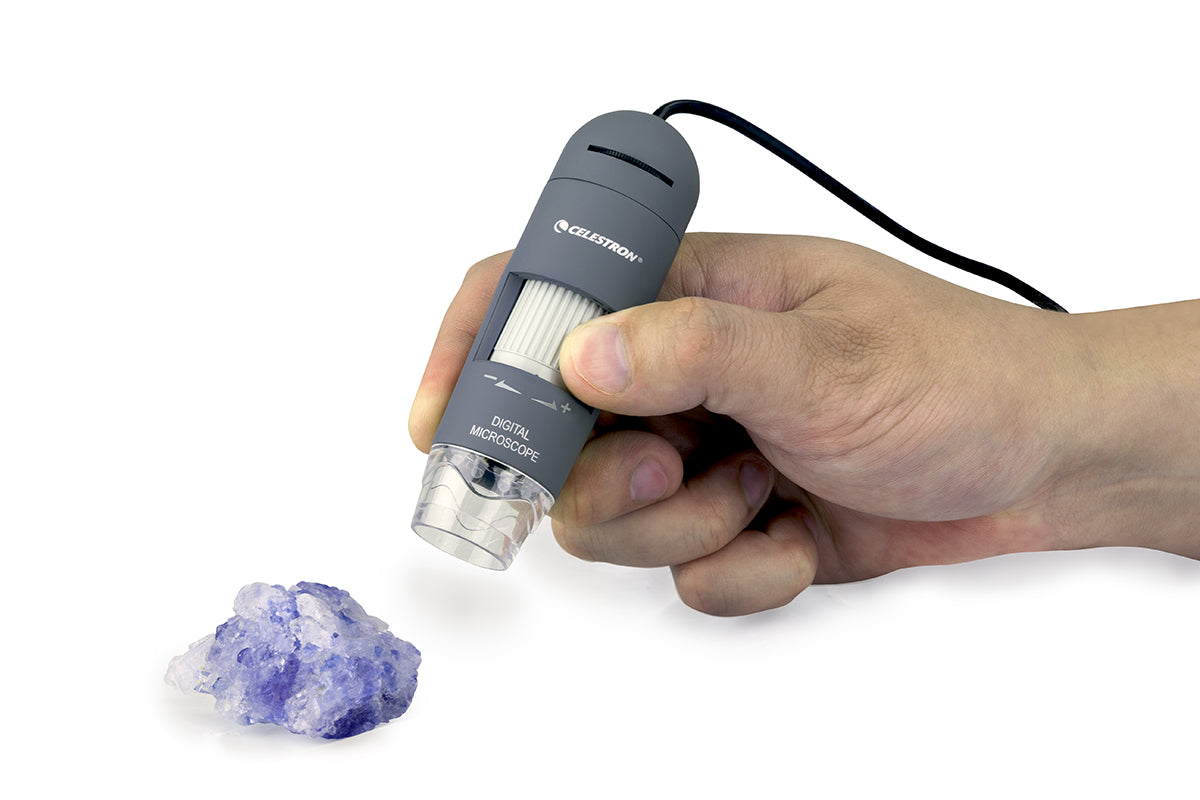

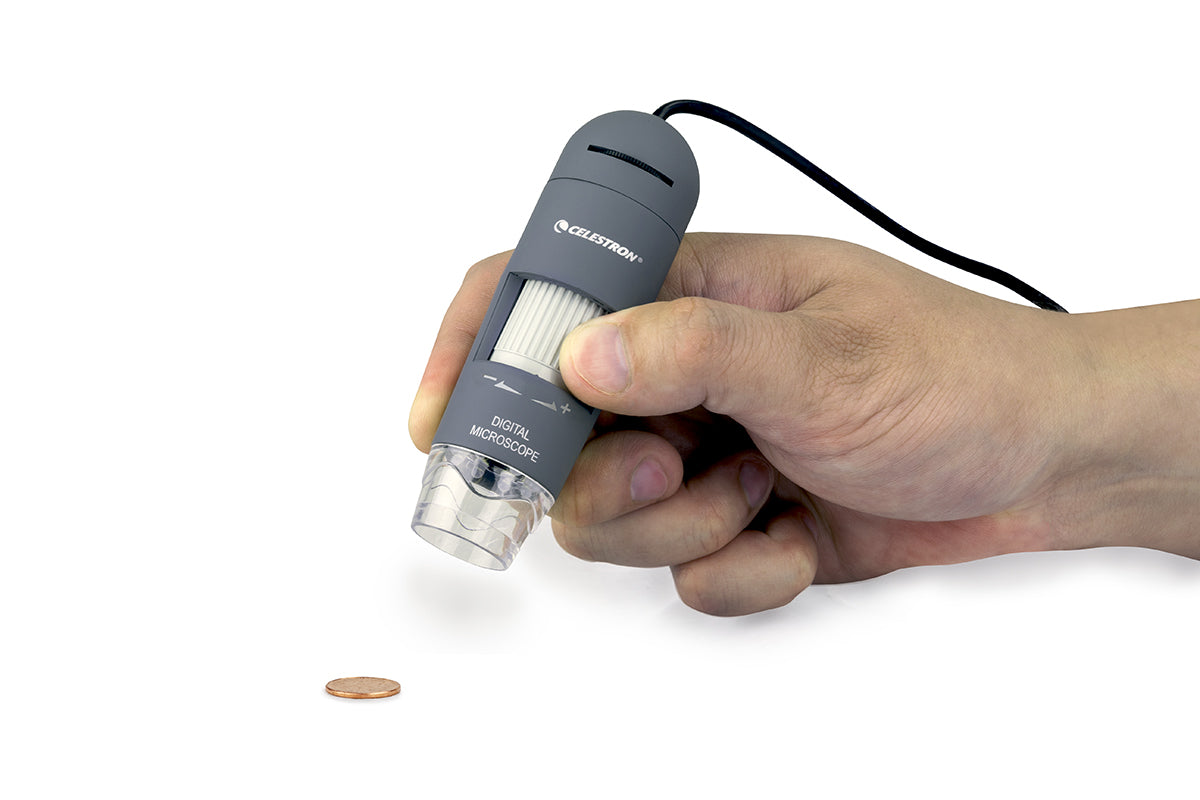

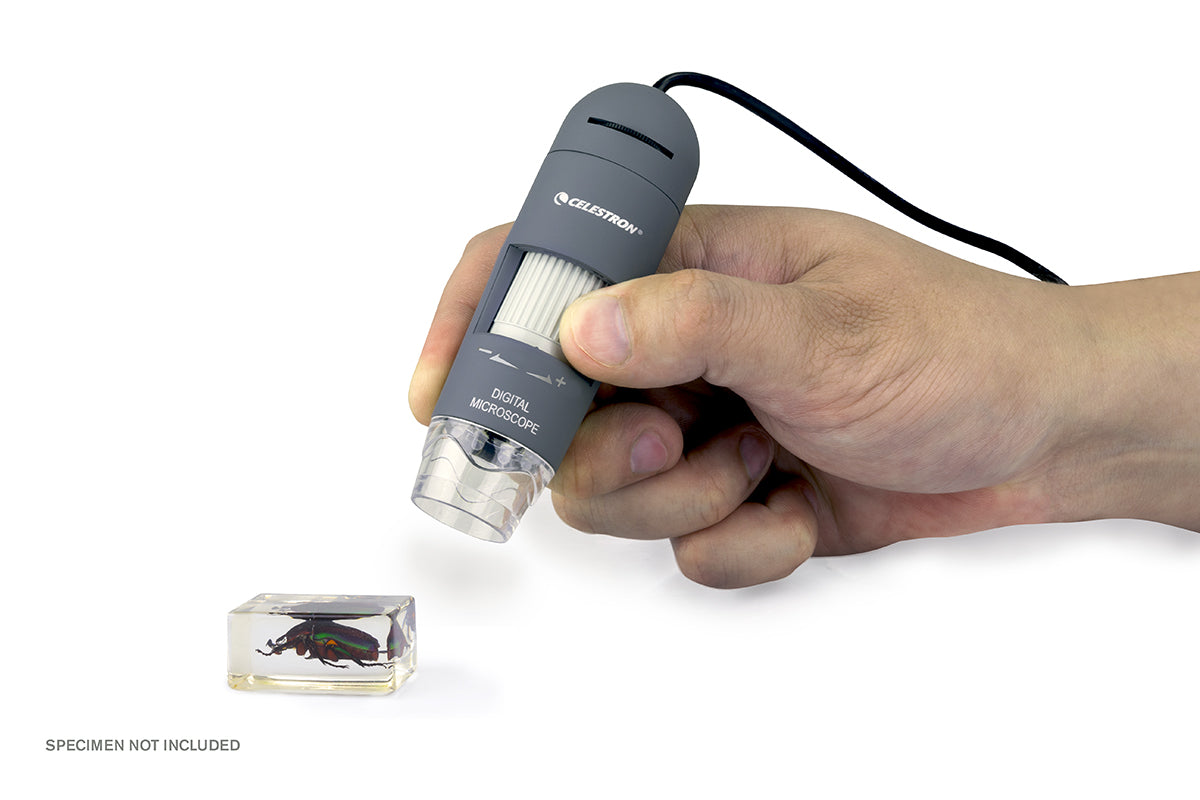

The intermediate-level Celestron Deluxe Handheld Digital Microscope is an easy to use, low power microscope. With powers of 10x to 200x, it’s ideal for viewing stamps, coins, bugs, plants, rocks, skin, gems, circuit boards, and more. With the higher power magnifications, you can even view traditional microscope slides.

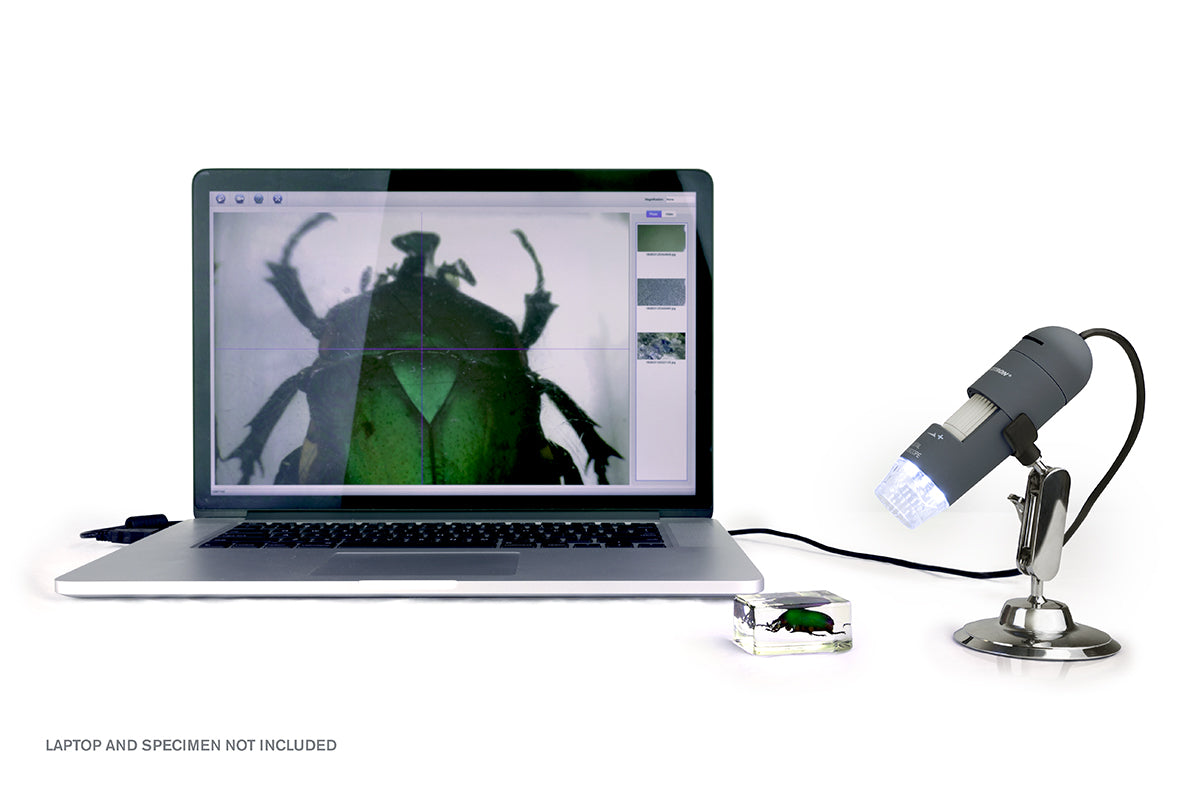

Best of all, you can capture your discoveries using the built-in 2.0 MP camera. Press the camera button, through the software interface on your PC, to save images and VGA-quality video directly to your PC. Image captures up to 1920 X 1080 pixels to view your subject with clarity even on large monitors.

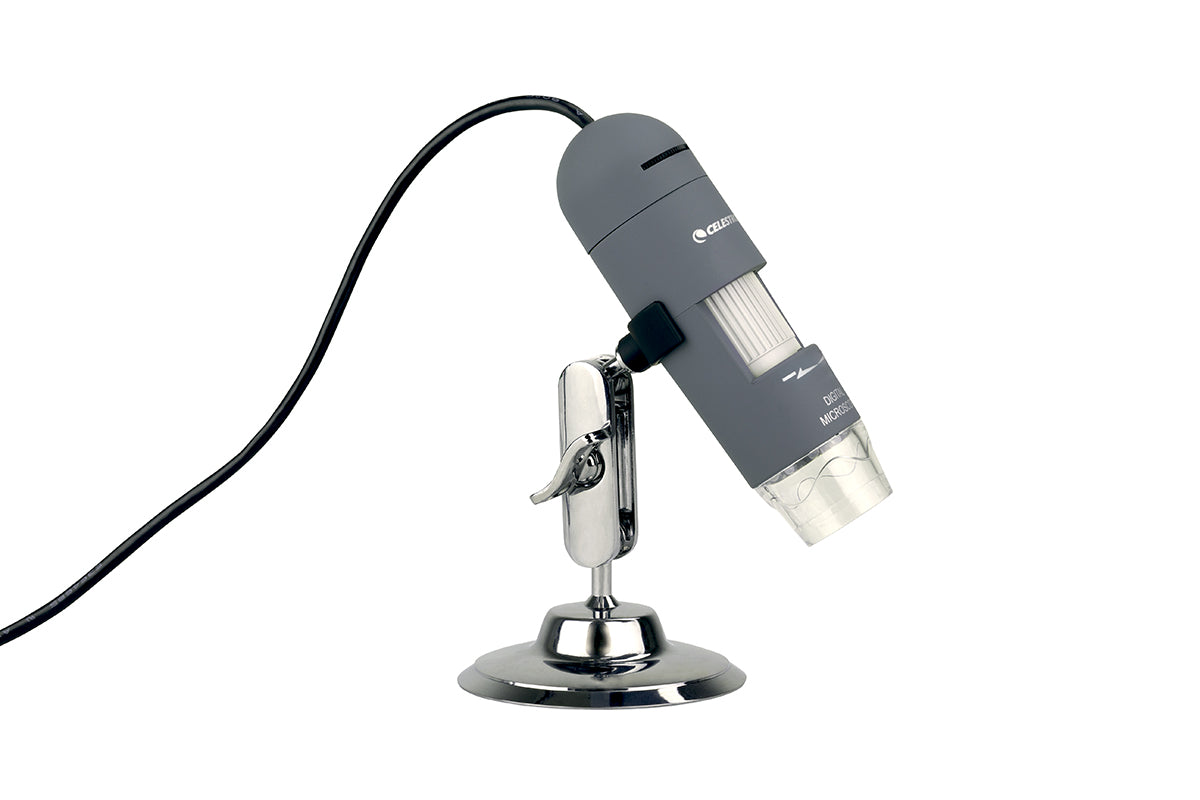

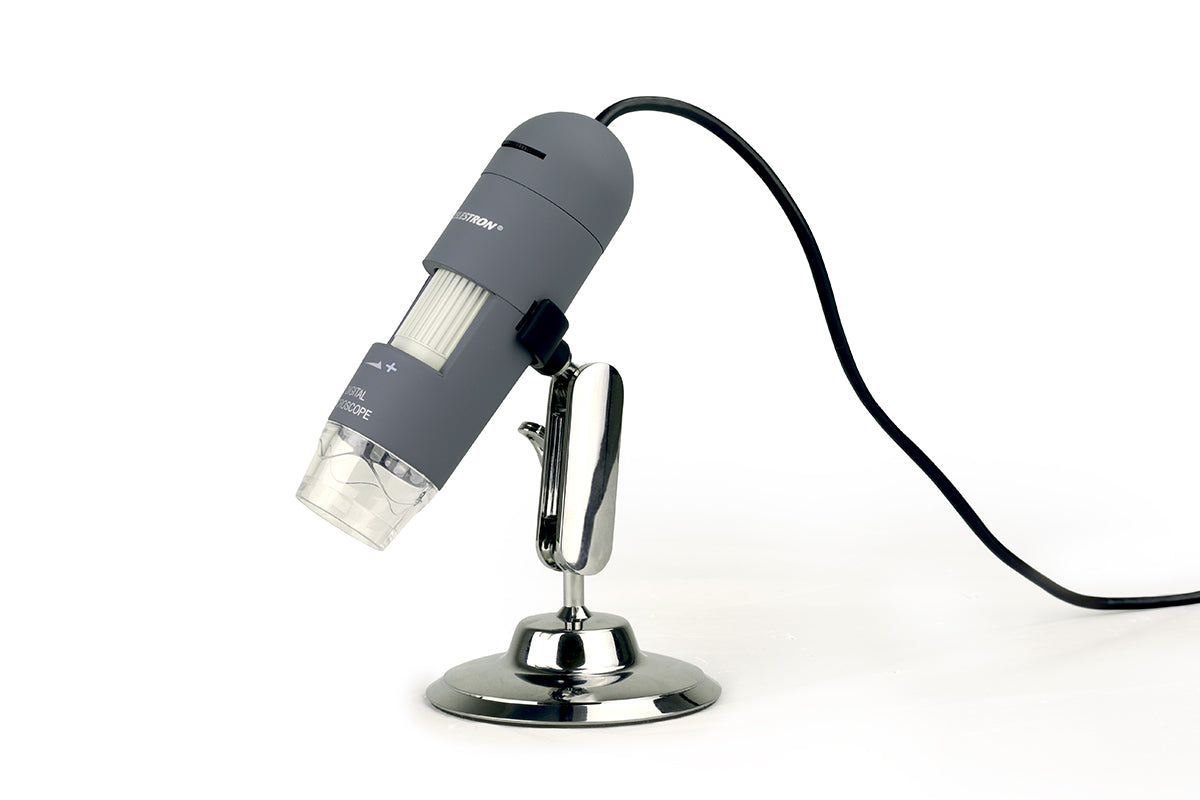

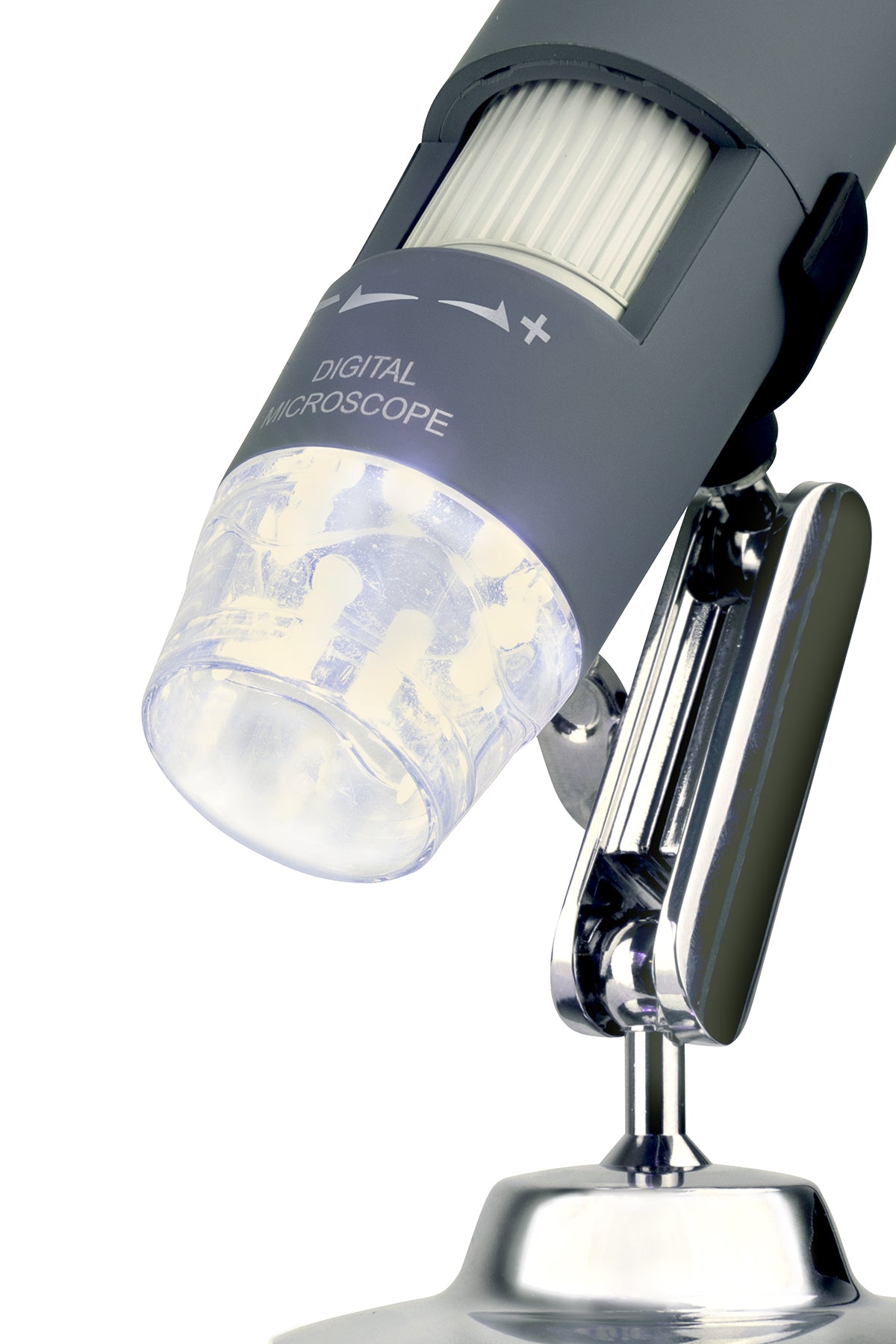

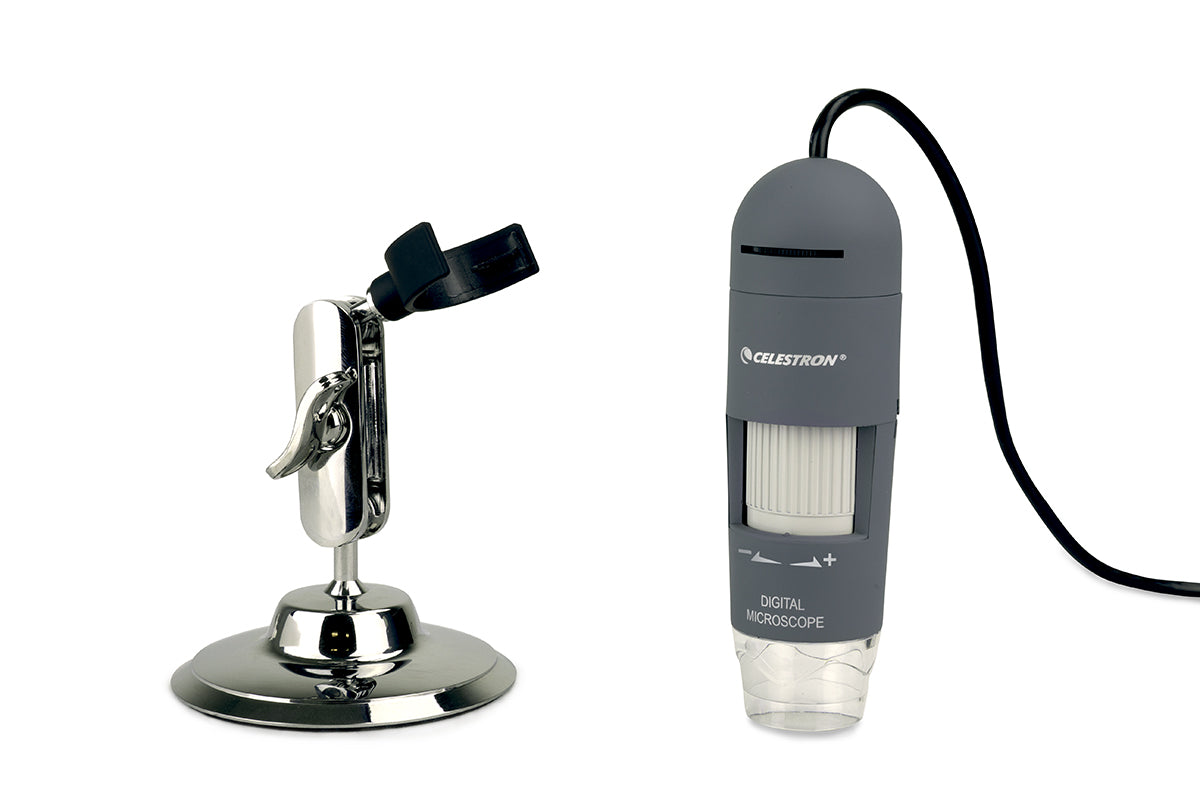

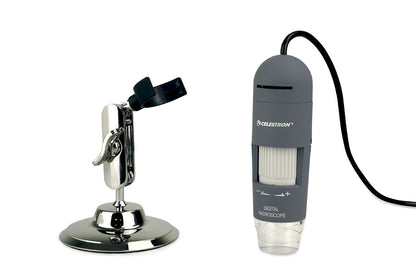

The LED illuminator ensures your specimens are clear and bright. An included metal stand allows for steady shots and comes in handy when viewing at higher powers, minimizing shaking and keeping your specimen in sharp focus.
For teens and adults alike, the Deluxe Handheld Digital Microscope is a fun, educational tool. It’s well suited for hobbyists, quality control inspectors, medical professionals, and scientific researchers.
MicroCapture Pro Software
Use the included software to capture images and video of your discoveries. Measure your specimens with built-in measurement tool.
Compatible Operating Systems downloadable Windows 7/8/10; MAC OS 10.12 and up.
Specifications
General | |
---|---|
Type of Microscope: | Handheld Digital |
Nosepiece: | Clear plastic |
Objective(s) Type: | Single adjustable internal objective |
Focus Type(s): | Barrel focus: Course Focus and Fine Focus |
Magnification Range: | 10x to 200x |
Illumination Type: | Ring Illuminator- 8 LED-Adjustable |
Illumination Position(s): | Upper- At Nose |
Illumination Adjustability Mechanism: | Adjustment Wheel- On barrel |
Power Source: | USB Connection with computer |
Eyepiece Type: | CMOS Sensor in lieu of eyepiece |
Sensor Size: | 2MP - 1/3.2" |
Pixel Size: | 2.2 μm |
Screen type: | Screen is your PC |
Screen Size: | Screen is your PC |
Memory Type: | No on-board memory |
Port(s) Out: | 2.0 USB - 5V (non-removable cable) |
Still image capture resolution: | 1920 x 1080, 1280 x 720, 640 x 480 |
Video resolution: | 1920 x 1080, 1280 x 720, 640 x 480, Max frame rate 30fps |
Shutter trigger position: | Through Software |
Software: | Celestron MicroCapture Pro |
Software compatibility: |
Windows: 10/8/XP Mac: OSX 10.4- 10.14 |
Microscope Dimensions: |
Microscope: 110mm x 35mm (4.33" x 1.38") Stand: 175mm x 140mm x 110mm (6.90" x 5.51" x 4.33") |
Microscope Weight: | 1.0 lbs (453 g) (including stand) |

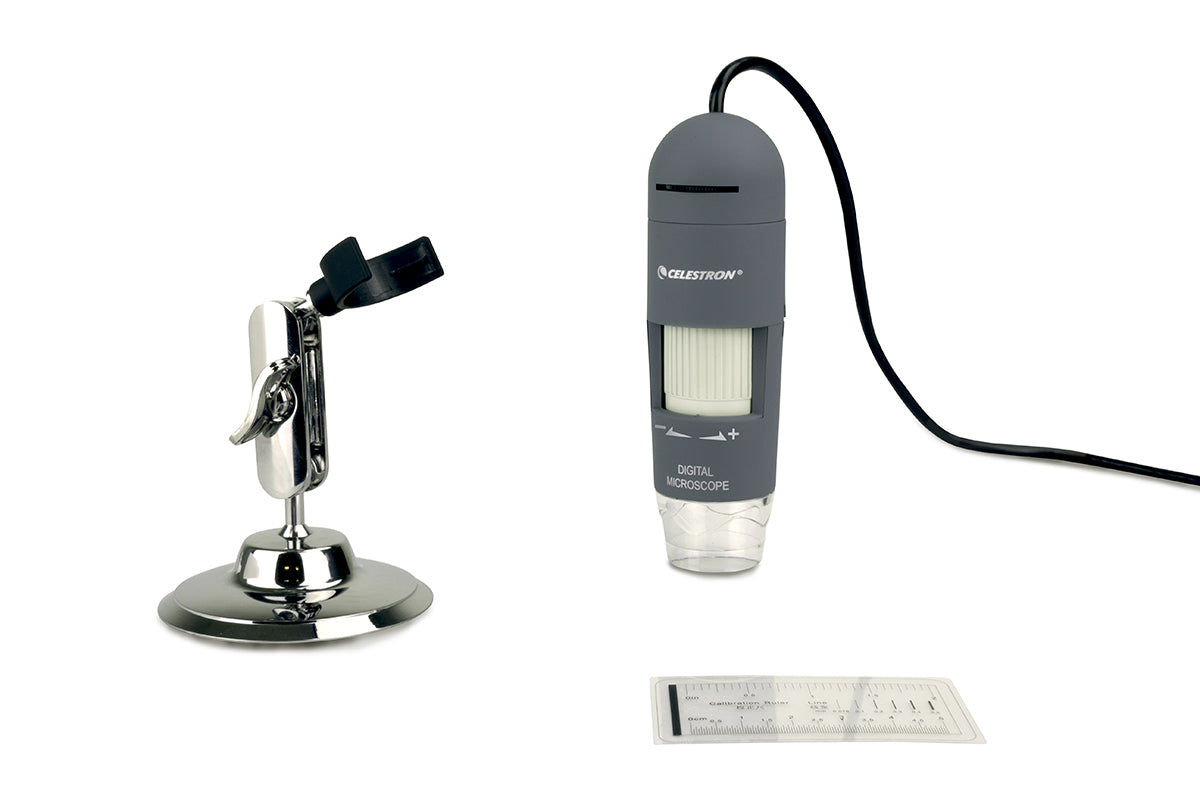

Included Items: |
Adjustable Stand Calibration ruler |
FAQ
Which version of Deluxe Handheld Digital Microscope do I have?
The 44302 Deluxe Handheld Digital Microscope recently underwent a major upgrade. To determine which software you need to download, you must first identify which version of microscope you have. The OLD version of the 44302 looks like IMAGE 1 below. The NEW version 44302-C looks like IMAGE 2 below. Choose the correct software from the Support & Downloads page for the version you have.
What are the differences between the earlier version and the NEW 44302-C?
The original 44302-C now has an adjustable illuminator wheel. It is located on the microscope’s barrel above the focus wheel (see IMAGE 3). The Celestron MicroCapture Pro V2.5 software is more robust and runs on the latest Mac and Windows operating systems.
Support & Downloads
Manuals: |
---|
Deluxe Handheld Digital Microscope Manual |
Deluxe Handheld Digital Microscope Quick Setup Guide |
Software & Firmware: |
Windows OS - MicroCapture Pro V2.5 44302-C (NEW)
System requirements: Windows 7 or higher |
MAC OS - MicroCapture Pro V3.5 44302-C (NEW)
System requirements: OS 10.12 - Snow Leopard and higher |
Windows OS - Celestron Digital Software Suite 44302-A (OLD)
System requirements: Windows XP through Vista |
MAC OS - Photobooth Software for 44302-A (OLD)
System requirements: Mac 10.4 - Tiger through 10.13 - High Sierra |
NOTE: There are two versions of the 44302. To determine which version of the software you need, refer to the 44302 FAQ page. |
