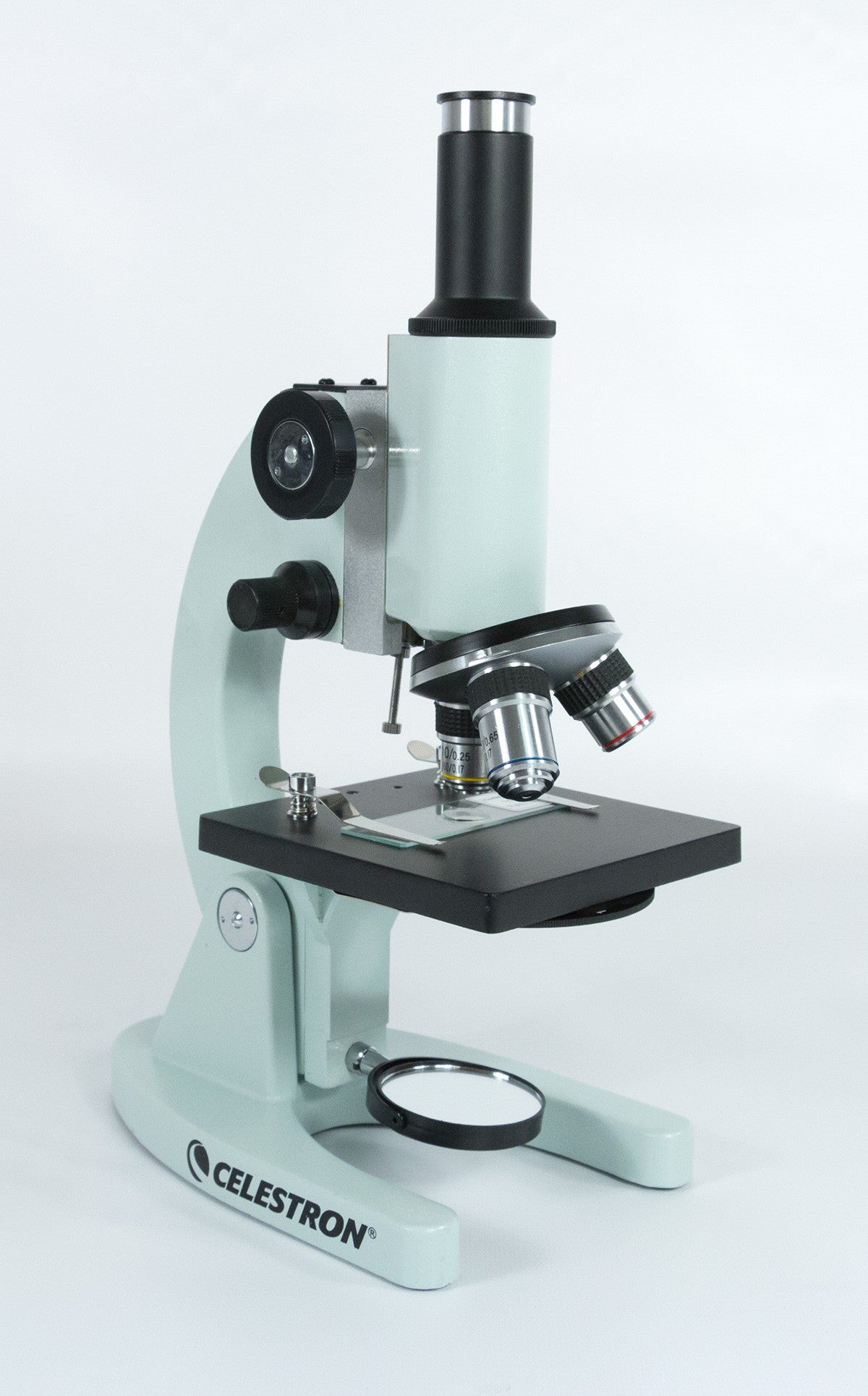

Laboratory Biological Microscope
Item #: 44102- Feature-packed entry-level biological microscope at an economical price
- 10x eyepiece and 4x, 10x, and 40x objective lenses combine to provide powers of 40x, 100x, and 400x
- Fully coated glass optics
- All-metal body with monocular head
- 50 mm (2") mirror provides illumination to make details of specimen slides easier to see
- Basic condenser concentrates light onto the specimen
- 5-position disc diaphragm
- Coarse and fine focus knobs

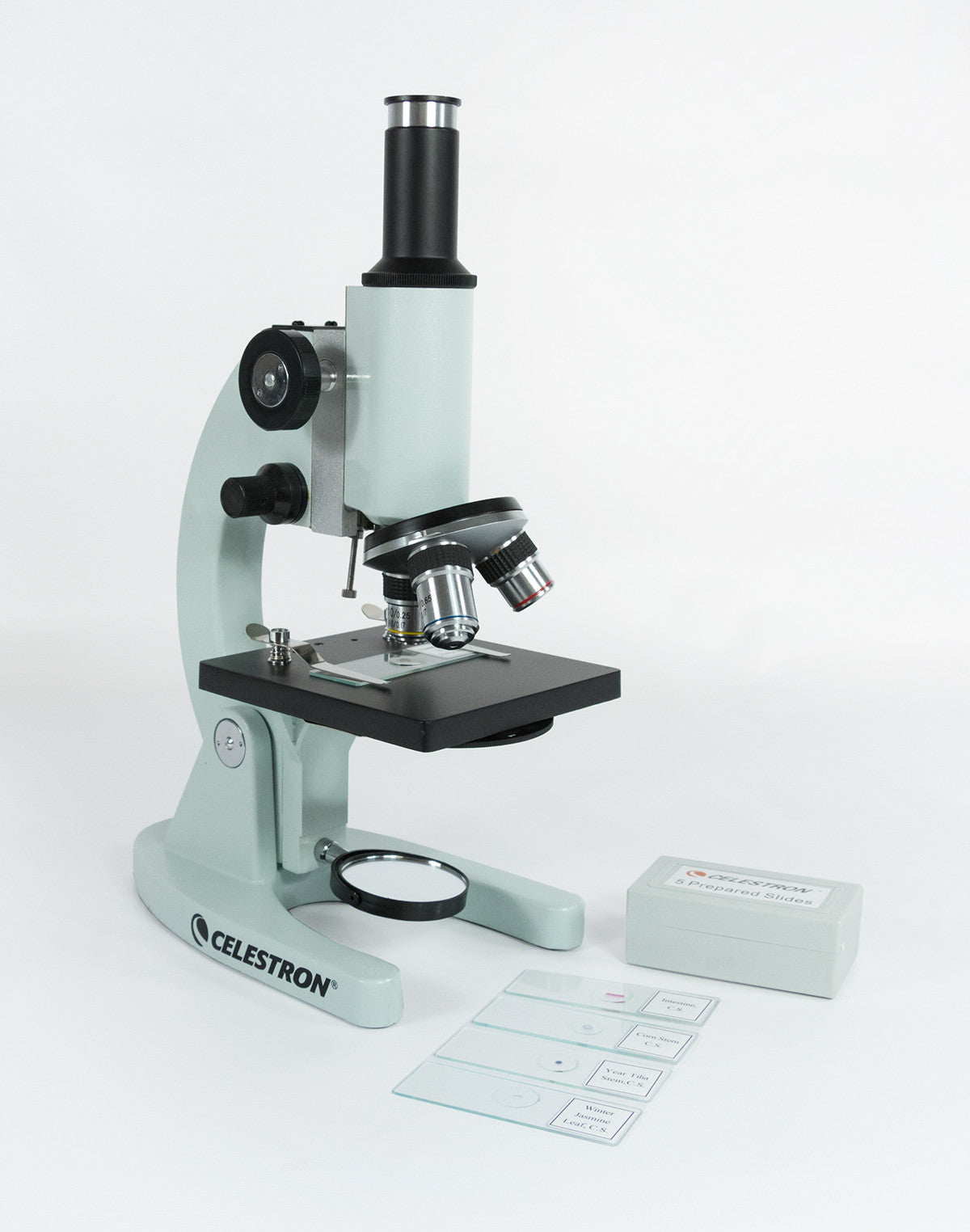

- Five prepared slides included
- Adjustable arm (0° to 60°) for comfortable viewing
Overview
- Feature-packed entry-level biological microscope at an economical price
- 10x eyepiece and 4x, 10x, and 40x objective lenses combine to provide powers of 40x, 100x, and 400x
- Fully coated glass optics
- All-metal body with monocular head
- 50 mm (2") mirror provides illumination to make details of specimen slides easier to see
- Basic condenser concentrates light onto the specimen
- 5-position disc diaphragm
- Coarse and fine focus knobs
- Five prepared slides included
- Adjustable arm (0° to 60°) for comfortable viewing
Description
The Celestron 400x Laboratory Biological Microscope is an all-metal bodied microscope with fully coated glass optics and advanced features usually offered on only higher priced microscopes, like a basic condenser and 5-position disc diaphragm. With both coarse and fine focus knobs, 3 objective lenses, an adjustable head (0° to 60°), and 5 specimen slides, it’s a great entry-level microscope that will last for years.
A condenser concentrates and focuses light when using high-power objective lenses. Since these lenses tend to have very small apertures, a condenser combined with an iris diaphragm provides increased illumination and resolution. You can easily adjust brightness, contrast, depth of field, and evenness of illumination on your specimen.
Specifications
| General | |
|---|---|
| Magnification (low power): | 40x |
| Magnification (high power): | 400x |
| Included Items: | 5 prepared slides| dust cover |
| Microscope Head: | Angle choice from 0" to 60" |
| Objective Nosepiece: | Triple with click stop |
| Objective Lense Diameter: | 3 achromatic - 4x, 10x, 40x |
| Eyepiece 1 Magnification: | 10x - 12mm (0.47") field of view |
| Condenser Lens: | +HEADER+ 0.65 |
| Diaphragm: | Disc diaphragm with 5 aperture sizes |
| Illumination: | 50mm (1.97") Plano concave mirror |
| Stage: | Plain stage with spring loaded clips - 120mm x 110mm (4.72" x 4.33") |
| Dimensions: | 254mm x 382mm x 203mm (10" x 15" x 8") |
| Weight: | 5.62 lbs (2.56 kg) |
| Fine Focus: | Yes |
| Course Focuser: | Yes |
