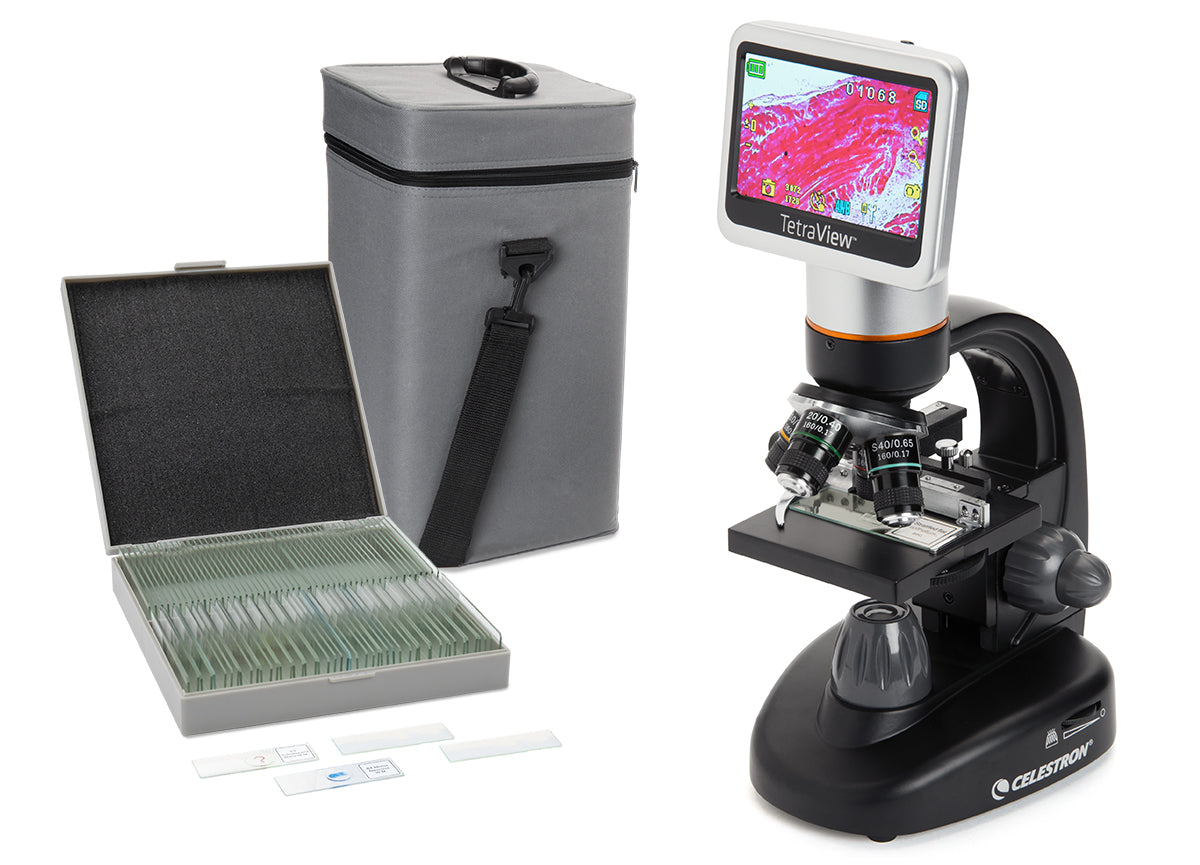

TetraView LCD Digital Microscope with 100 Slide Kit
Item #: 44349- 40x to 400x magnification (up to 1600x with digital zoom)
- 4.3" LCD touchscreen with 180° rotation
- 5-megapixel CMOS built-in digital camera
- 4 fully achromatic objective lenses: 4x, 10x, 20x, 40x
- Adjustable LED bottom illumination
- Fully adjustable mechanical stage
- Coarse and fine focus knobs
- Filter wheel/diaphragm
- AV/TV output
- AC or battery power option (4 AA batteries – user supplied)
- 4GB SD card included (SD card slot supports up to 32GB)
- Accessories include: 4GB SD Card, USB 2.0 Cable (data transfer), 100 Prepared Slides, 4 plug, multi-country AC adapter, Carrying Case
Overview
- 40x to 400x magnification (up to 1600x with digital zoom)
- 4.3" LCD touchscreen with 180° rotation
- 5-megapixel CMOS built-in digital camera

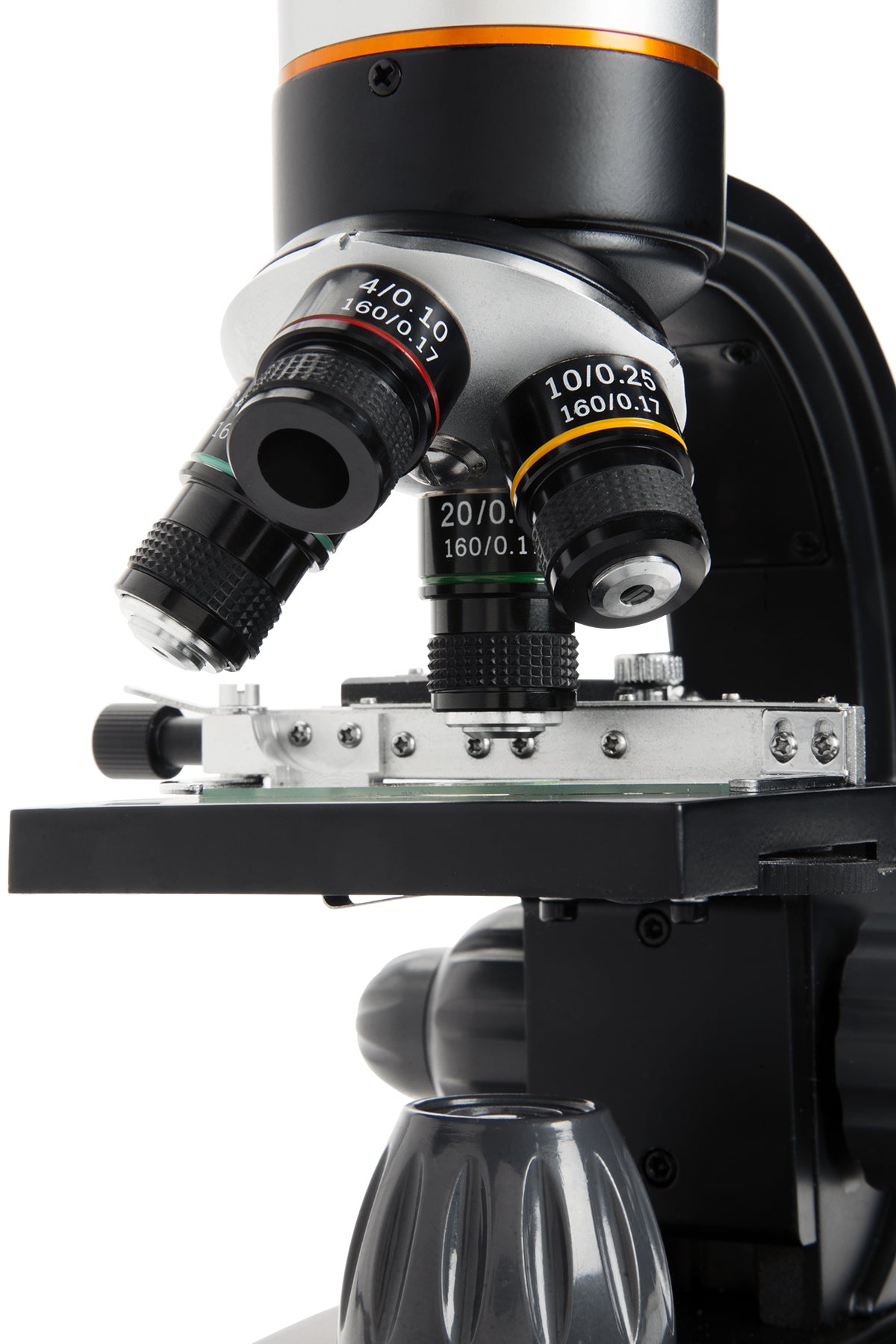

- 4 fully achromatic objective lenses: 4x, 10x, 20x, 40x
- Adjustable LED bottom illumination

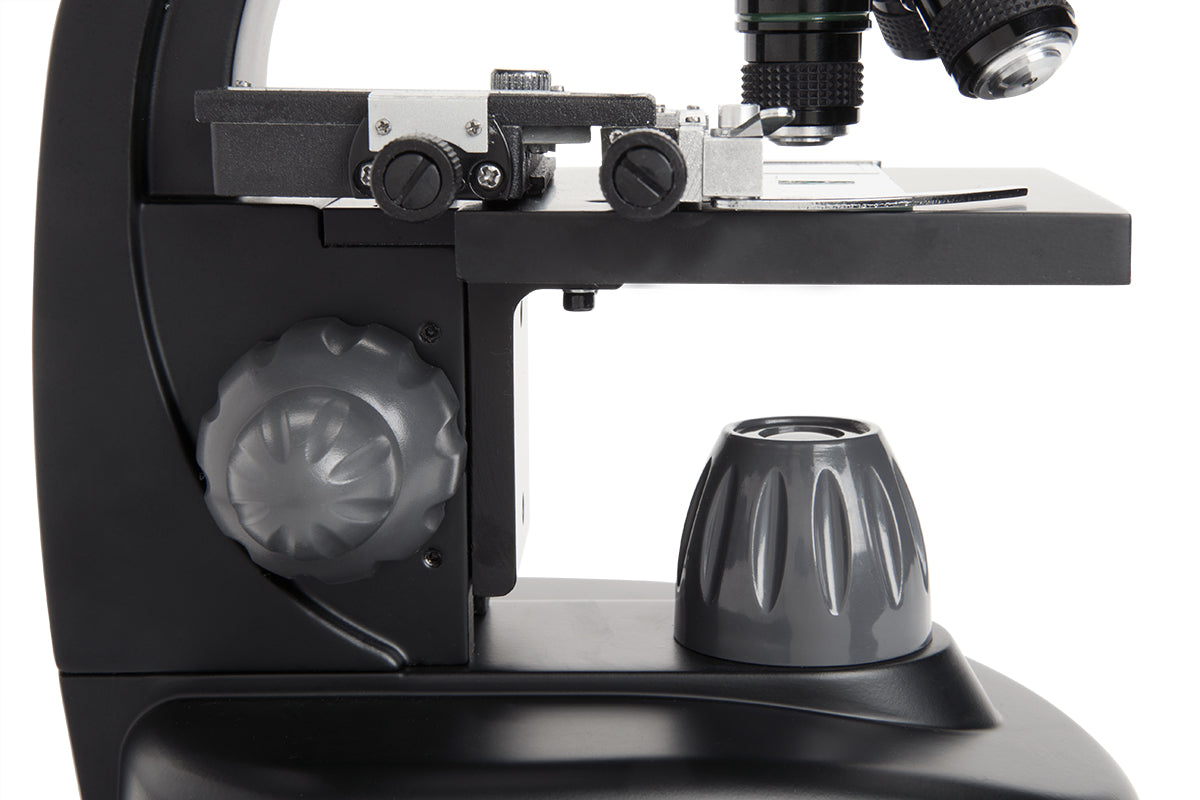

- Fully adjustable mechanical stage
- Coarse and fine focus knobs
- Filter wheel/diaphragm
- AV/TV output
- AC or battery power option (4 AA batteries – user supplied)
- 4GB SD card included (SD card slot supports up to 32GB)
- Accessories include: 4GB SD Card, USB 2.0 Cable (data transfer), 100 Prepared Slides, 4 plug, multi-country AC adapter, Carrying Case
Description

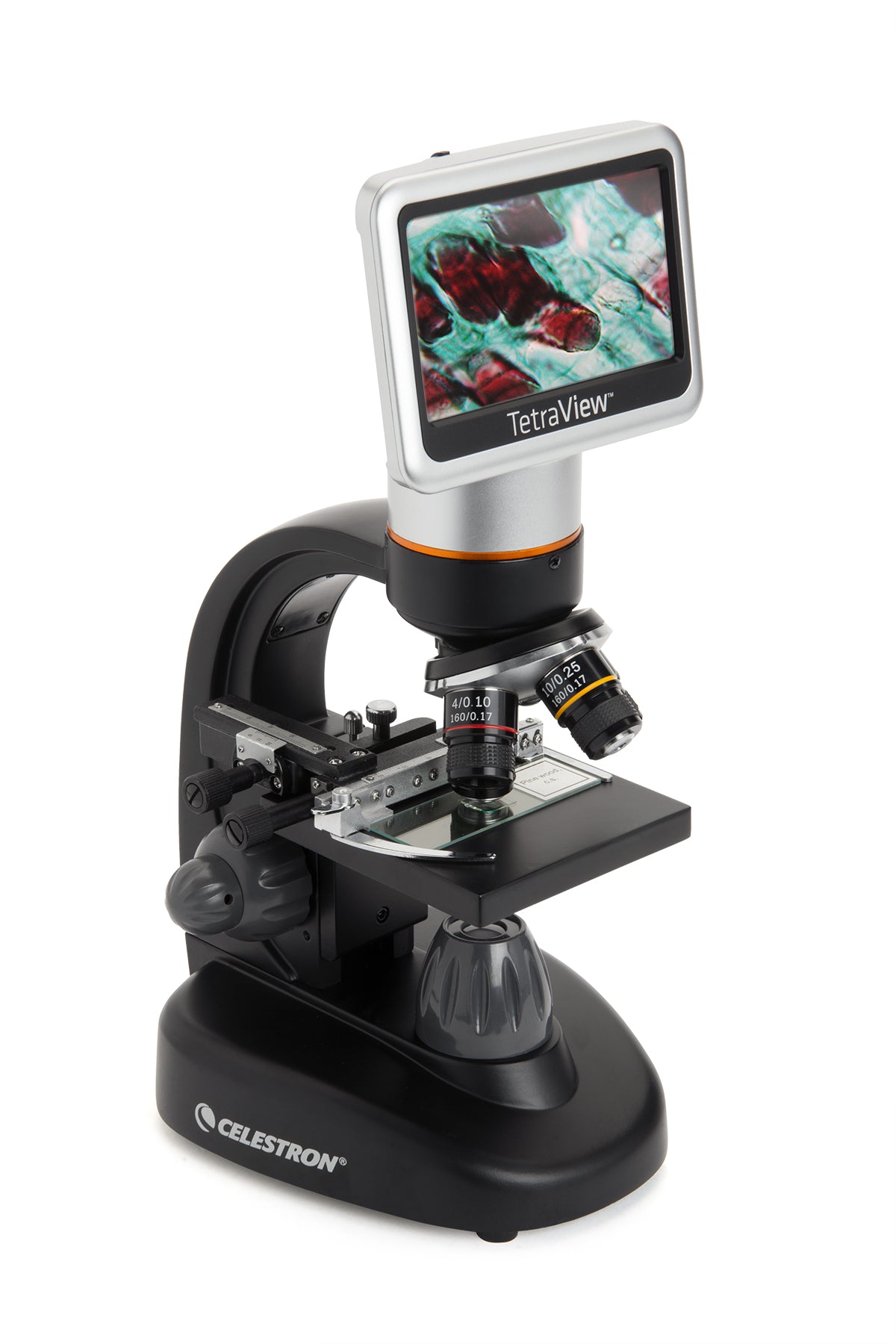

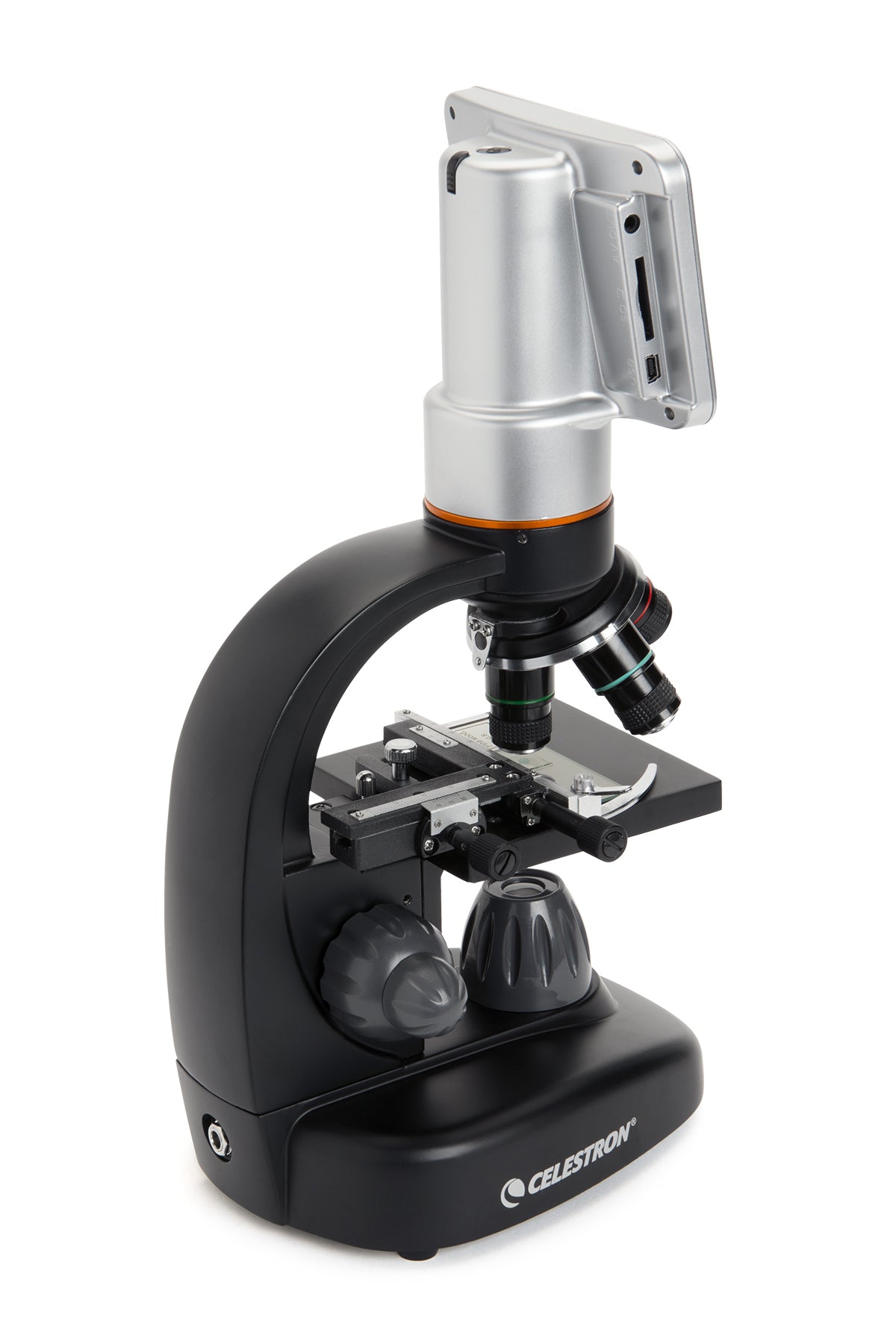

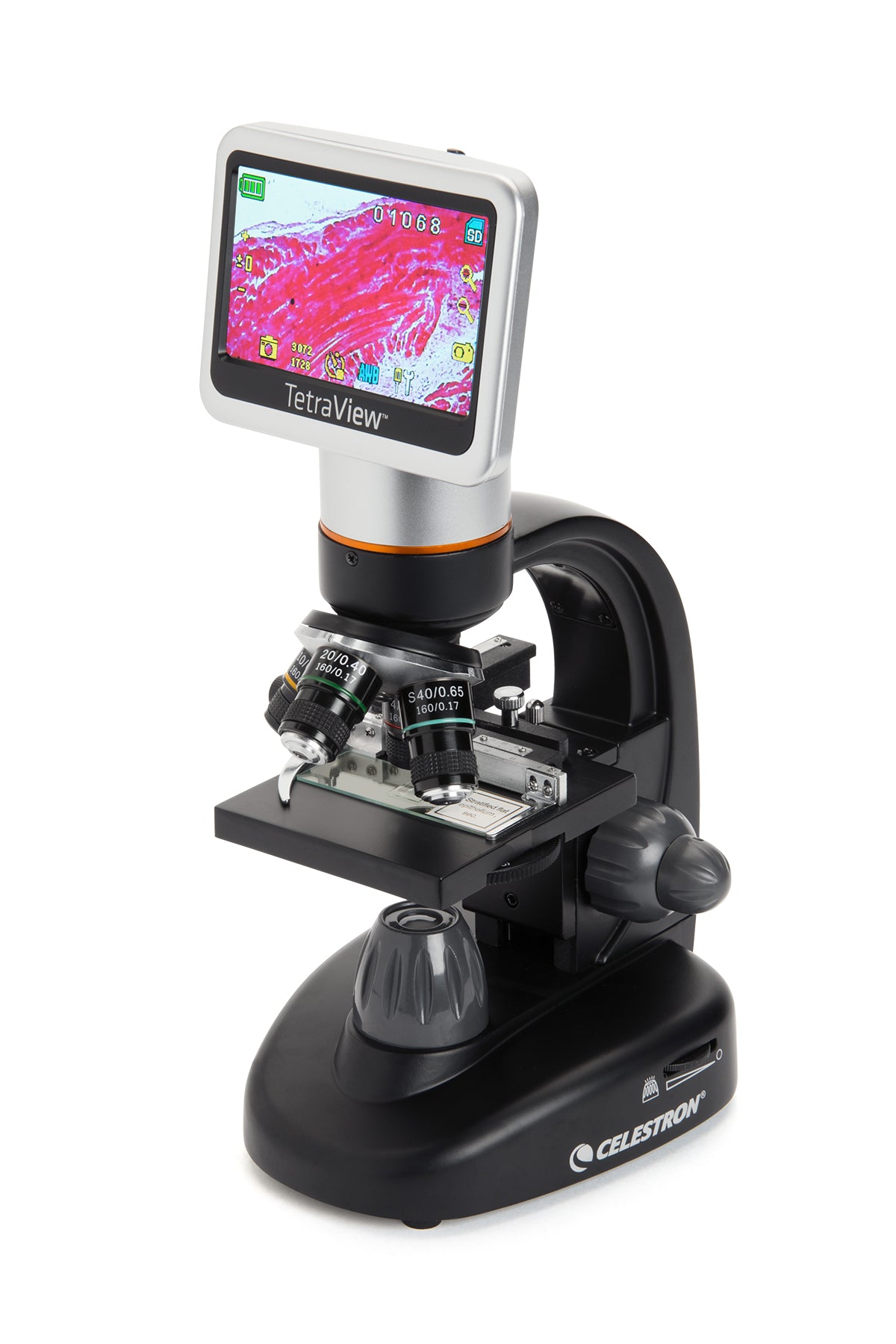

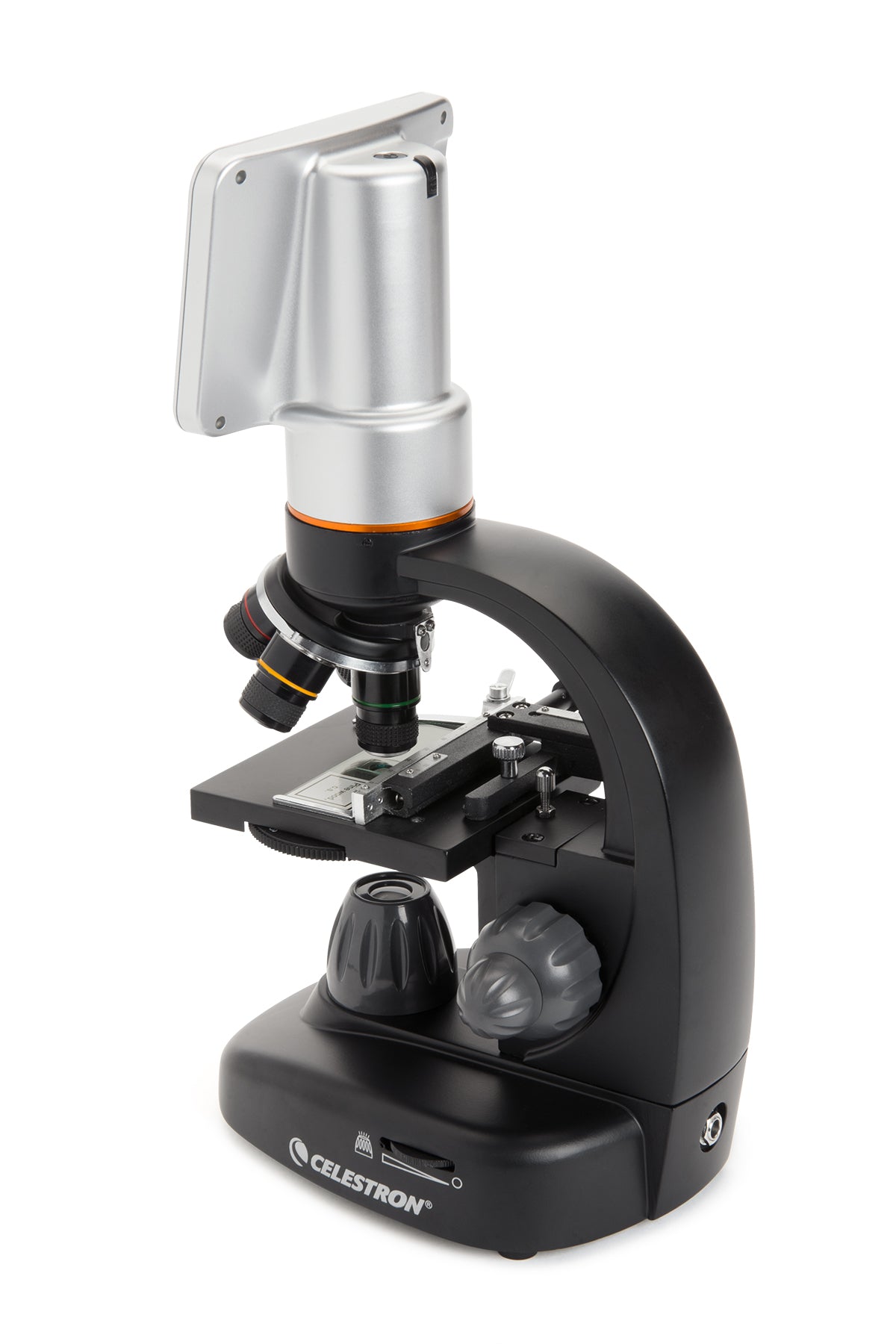

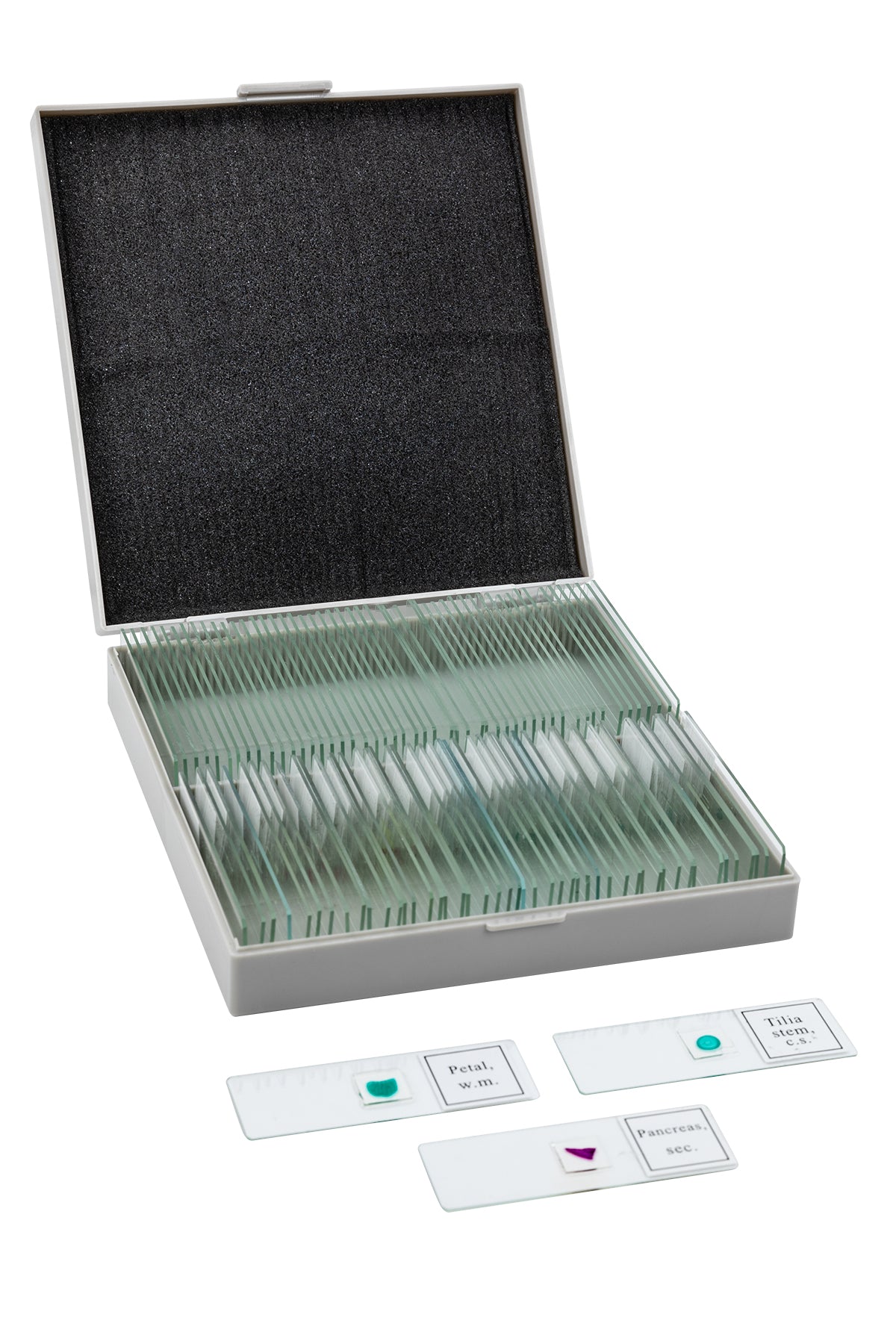

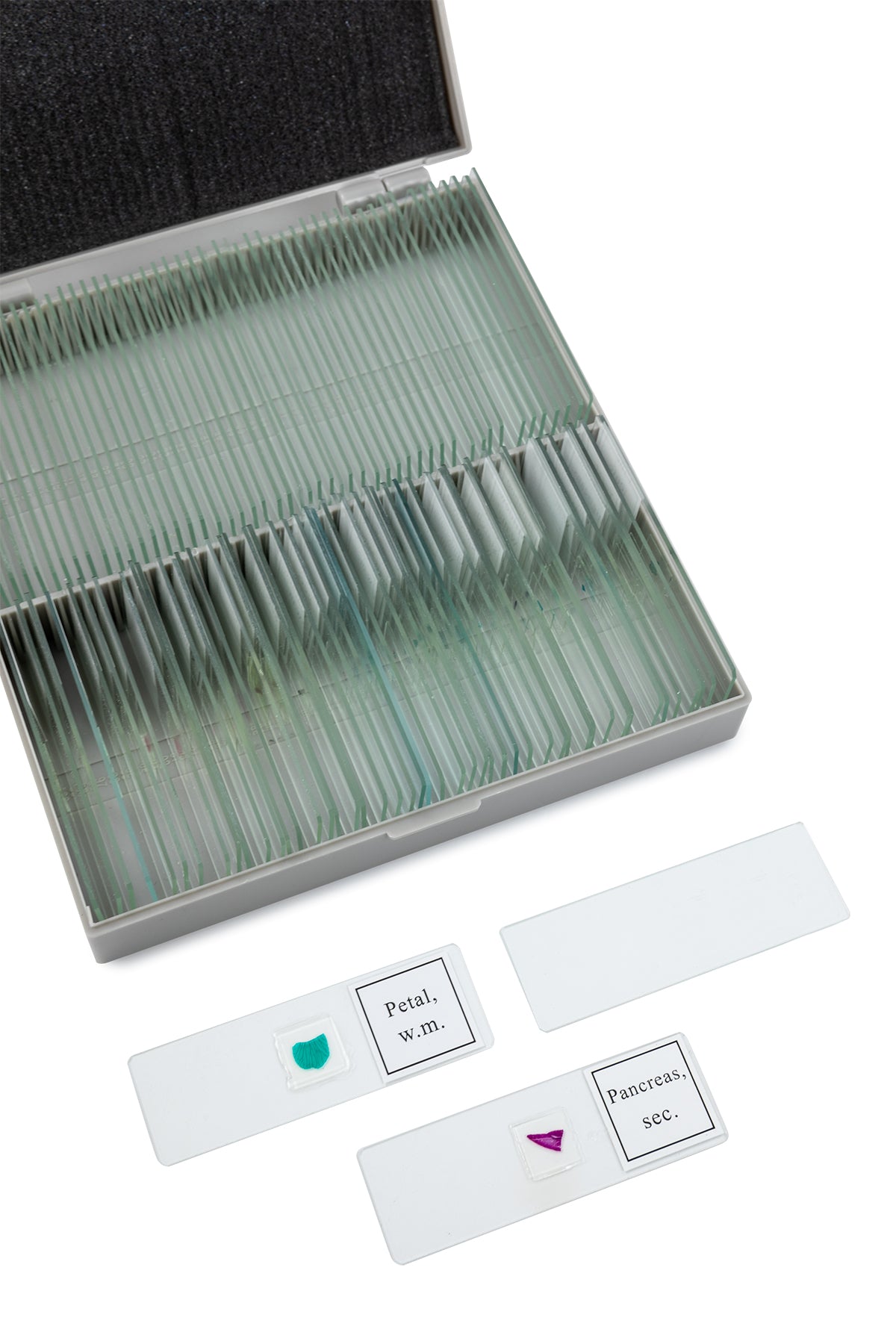

The professional-level Celestron TetraView LCD Digital Microscope is a touchscreen LCD microscope with advanced features. Taking high-resolution images and video of microscopic specimens has never been easier. TetraView features 4 objective lenses, a mechanical stage, a 4.3” TFT full color touch screen, 5-megapixel CMOS sensor, adjustable LED lighting, and a 4GB SD card for storing your photos and videos. You’ll also receive a set of 100 microscope slides in a case, with 50 prepared specimen slides and 50 blank slides to prepare your own.
The microscope’s LCD screen rotates 180 degrees, so you can easily share your view with others. For an even bigger audience, use the TV output to display on a television or projector. With magnification from 40 to 400x (1600x with digital zoom), TetraView is ideal for viewing a range of cellular specimens on slides. Great for the discriminating professional or serious hobbyist, the Celestron TetraView is an excellent choice for schools, scientific research, home schooling, and more.

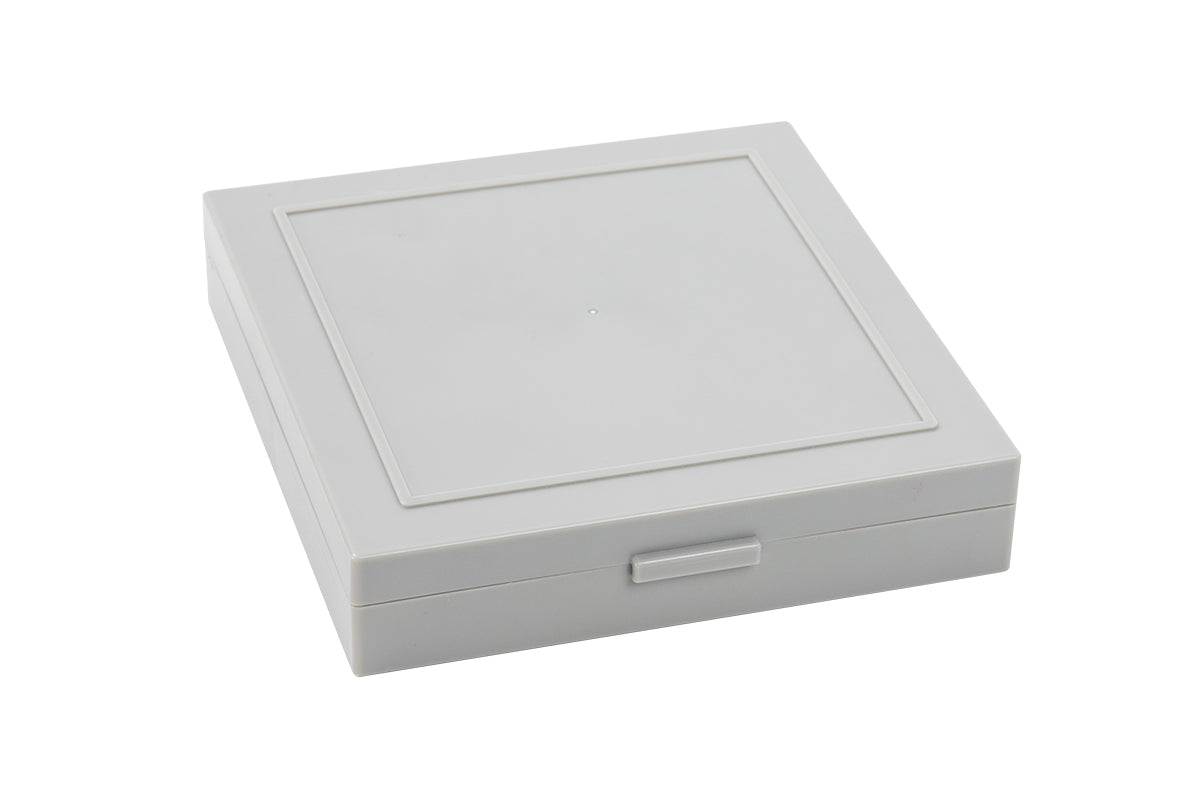

Includes:

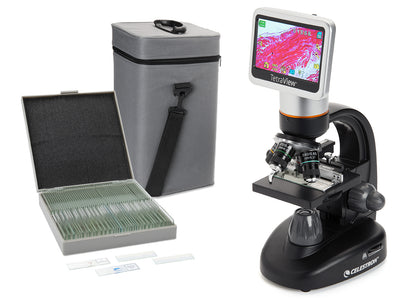

LCD digital desktop microscope with mechanical and adjustable stage, durable carrying case with handle, box with 100 slides, 4GB SD memory card, USB 2.0 cable (for transferring images to PC), AC adapter, TV out/AV cable, stylus
Specifications
| General | |
|---|---|
| Type of Microscope: | LCD Desktop |
| Head: | 180° rotatable head w/4.3" TFT LCD Screen |

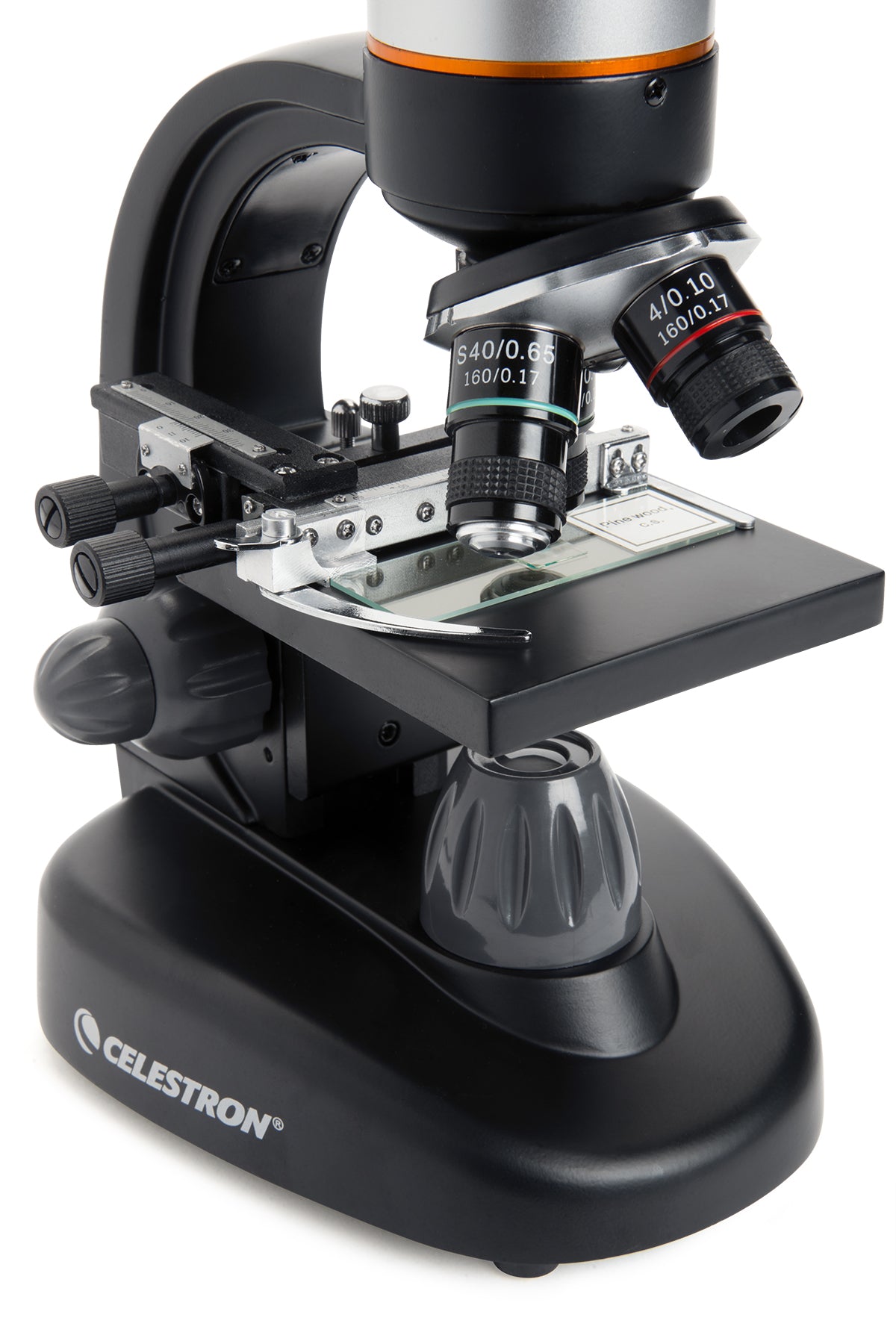

| Nosepiece: | Quad with click stop |
| Objective(s) Type: | (4) Achromatic objectives on turret |
| Objective(s) Standard: | DIN 35 RMS |
| Objective(s) Magnification: | 4x, 10x, 20x, 40x |
| Objective(s) Thread: | WJ 4/5" x 1/36" |
| Focus Type(s): | Course Focus and Fine Focus |
| Focus Travel (per rotation): | 0.7mm to 35.3mm (.027" to 1.39") (est.) |
| Magnification Range: | 40x, 100x, 200x, 400x, Up to 1600x with digtial zoom |
| Illumination Type: | LEDs |
| Illumination Position(s): | TBD |
| Illumination Adjustability Mechanism: | Adjustable wheels at base |
| Power Source: | Universal 100 to 240V, 50/60 hz multi-country plug and (4) AA (optional) |
| Battery Options: | Yes (4AA) |
| Stage: | Fully mechanical with metal clips, 88mm x 88mm (3.5" x 3.5") - With Filter wheel (Red, blue, green | 1mm, 3mm, 6mm apertures) |
| Condenser Type: | Aplantic |
| Condenser N.A.: | N.A. 65 |
| Stage Diaphragm: | Multiple on wheel |
| Eyepiece Type: | CMOS Sensor in lieu of eyepiece |
| Sensor Size: | 5MP - 1/2.5" |
| Pixel Size: | 2.2 μm |
| Screen type: | High definition touch, 480 x 272 pixels resolution, 109mm (4.3") with 4x digital zoom, rotates 180° |
| Screen Size: | 4.3" |
| Memory Type: | SD Card |
| Memory Size: |
8G SD included Supports up to 32G |

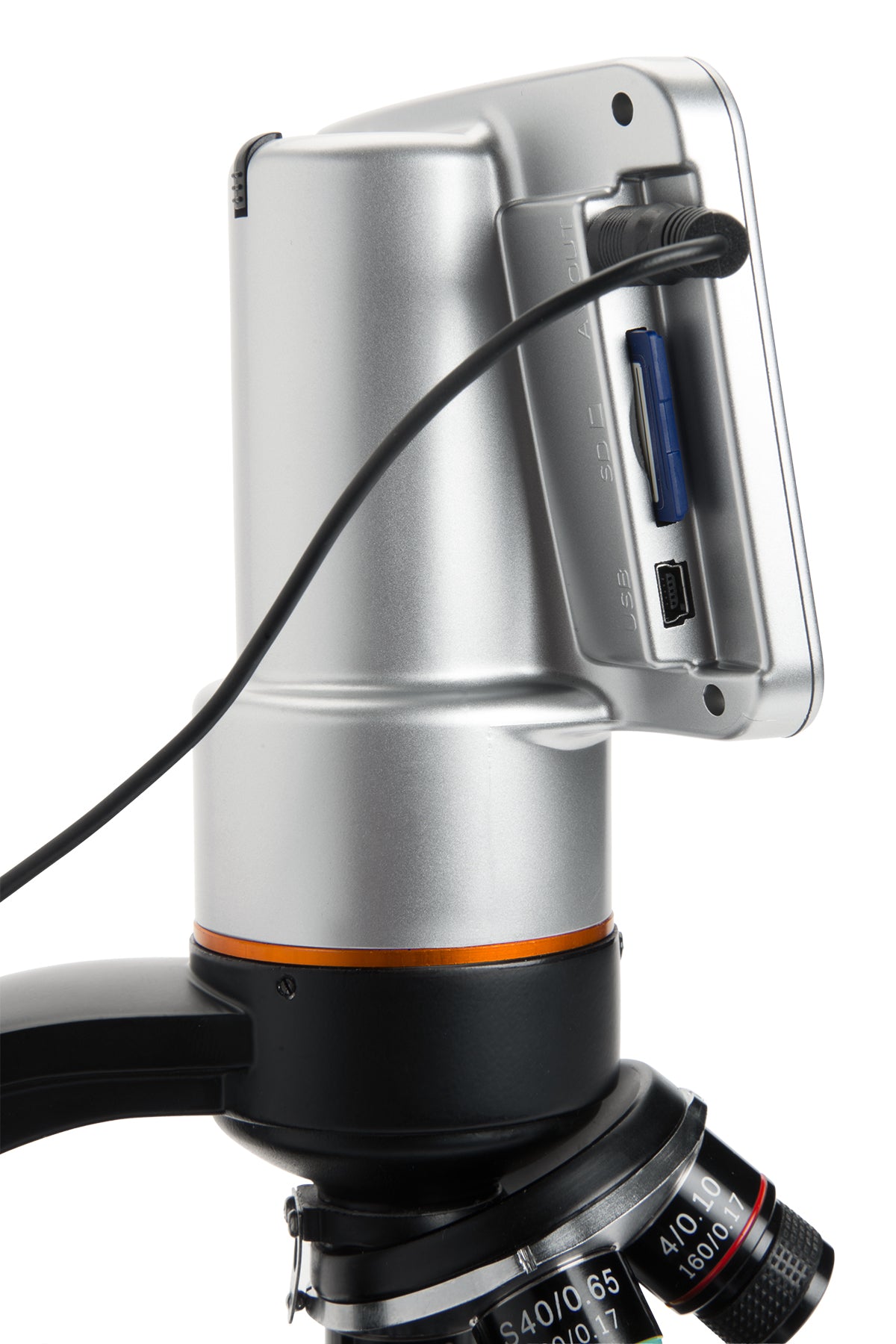

| Port(s) In: |
AC Plug (power) SD Card slot (32Gmax) |
| Port(s) Out: |
Video/ TV out USB 2.0 |
| AC Adapter: | 5-6V DC, 200-1000mA tip positive electrical input. Jack should be 5.5mm (.21") OD, 2.1mm (.08") ID and 12.5mm (.49") long |
| Still image capture resolution: |
1920x1080 2048x1152 2560x1440 3072x1728 3648x2048 3072x1728 |
| Video resolution: | VGA (640 x 480) |
| Shutter trigger position: | On LCD Screen |
| Software: | Internal Firmware |
| Microscope Dimensions: | 78mm x 140mm x 330mm (7" x 5.5" x 13") |
| Microscope Weight: | 67 oz (1.9 kg) |
| Included Items: |
4GB SD Card USB 2.0 Cable (data transfer) 100 Slides (50 prepared, 50 blank) 4 plug, multi-country AC adapter Carrying Case |
Videos
Accessories
FAQ
Can I output the signal from the microscope to a TV? If so, which cable do I need?
Your LCD Desktop Microscope (44341, 44347, 44348, 44349) ships with a VIDEO OUT cable for this purpose. The cable has a bright yellow RCA male plug on one end and 1/8” mono male plug on the other. The 1/8” mono plug plugs into the port on the base of your LCD microscope and the RCA male plug connects to your monitor, TV, or projector.
