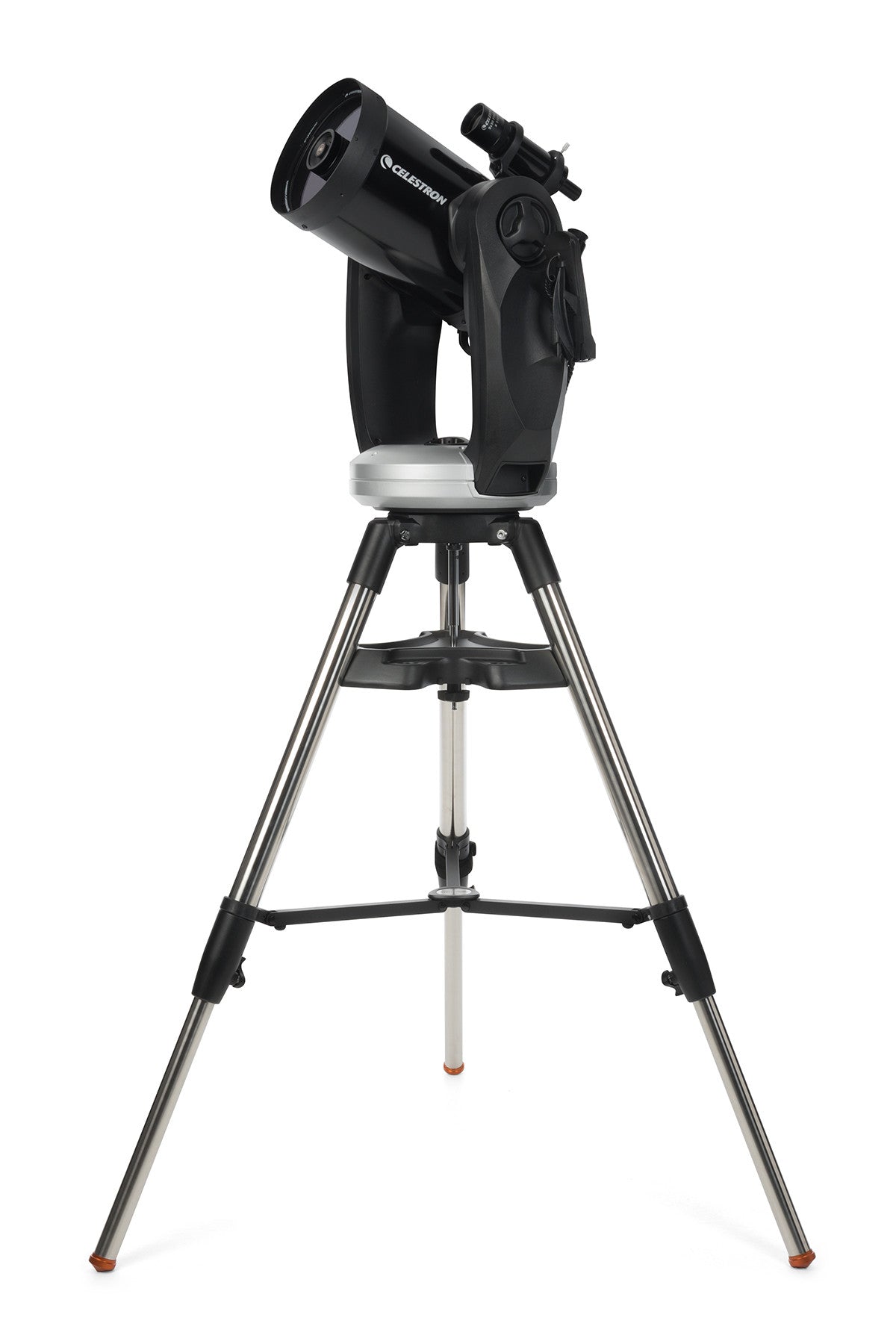

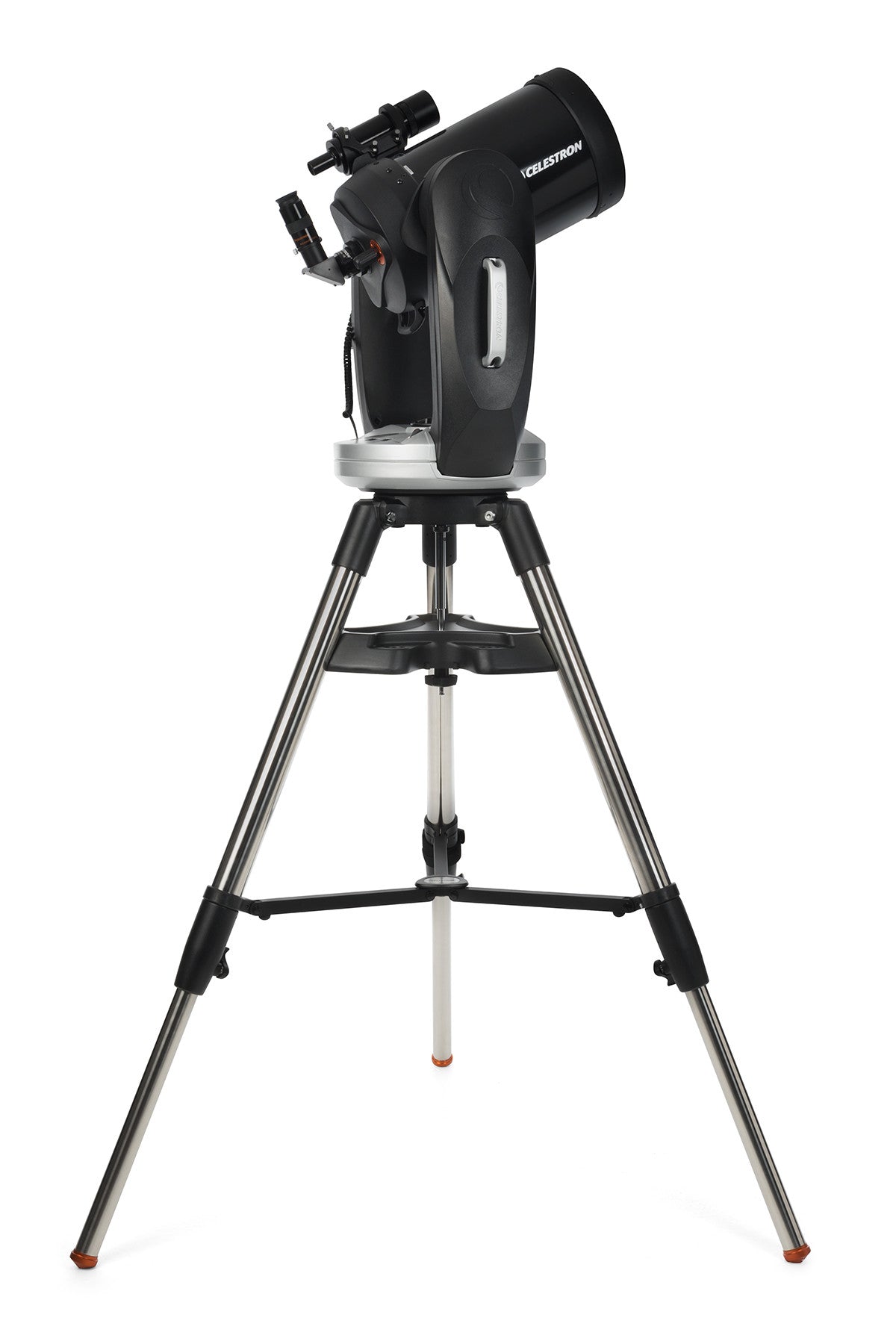

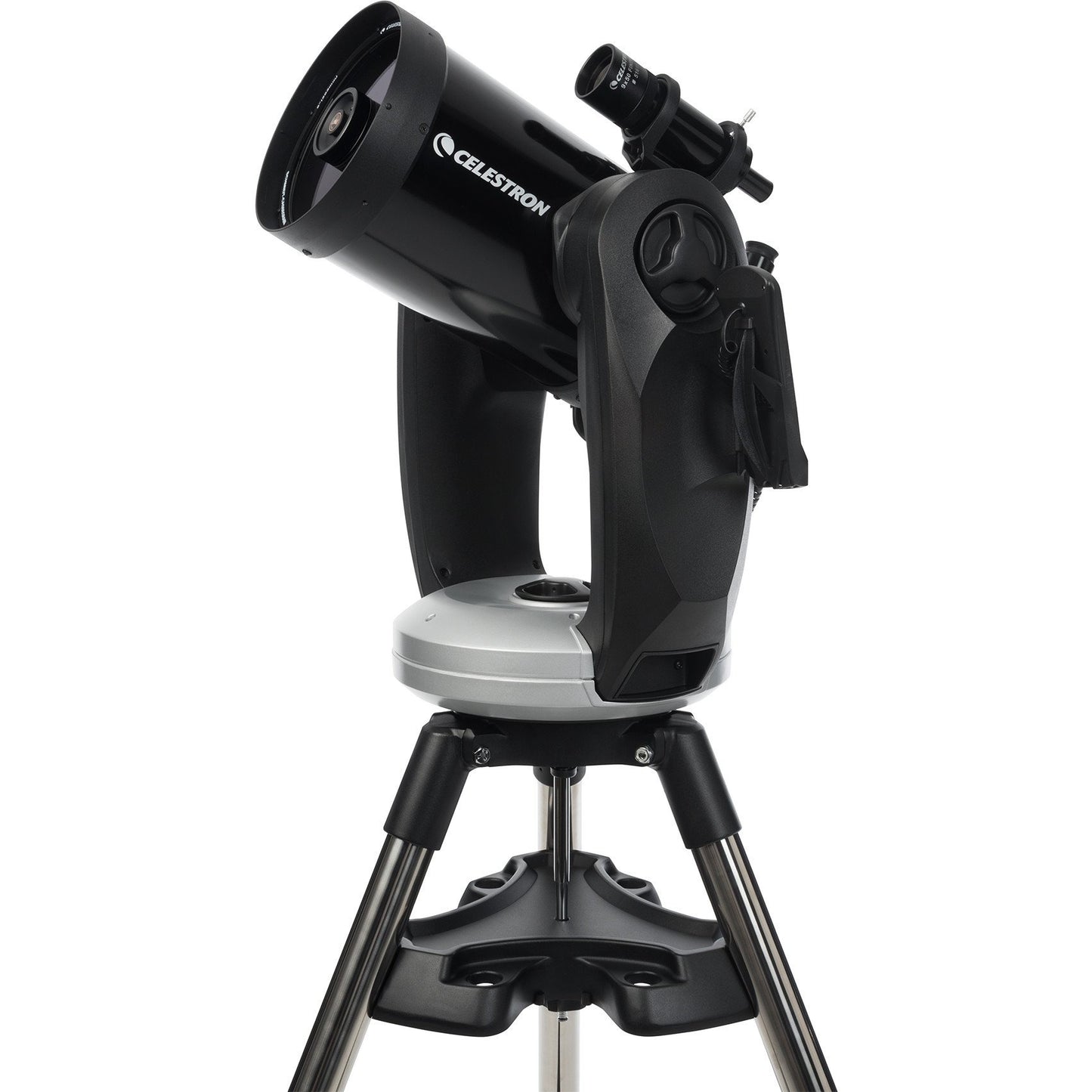

CPC 800 GPS (XLT) Computerized Telescope
Item #: 11073-XLT
Warranty: 2 Years

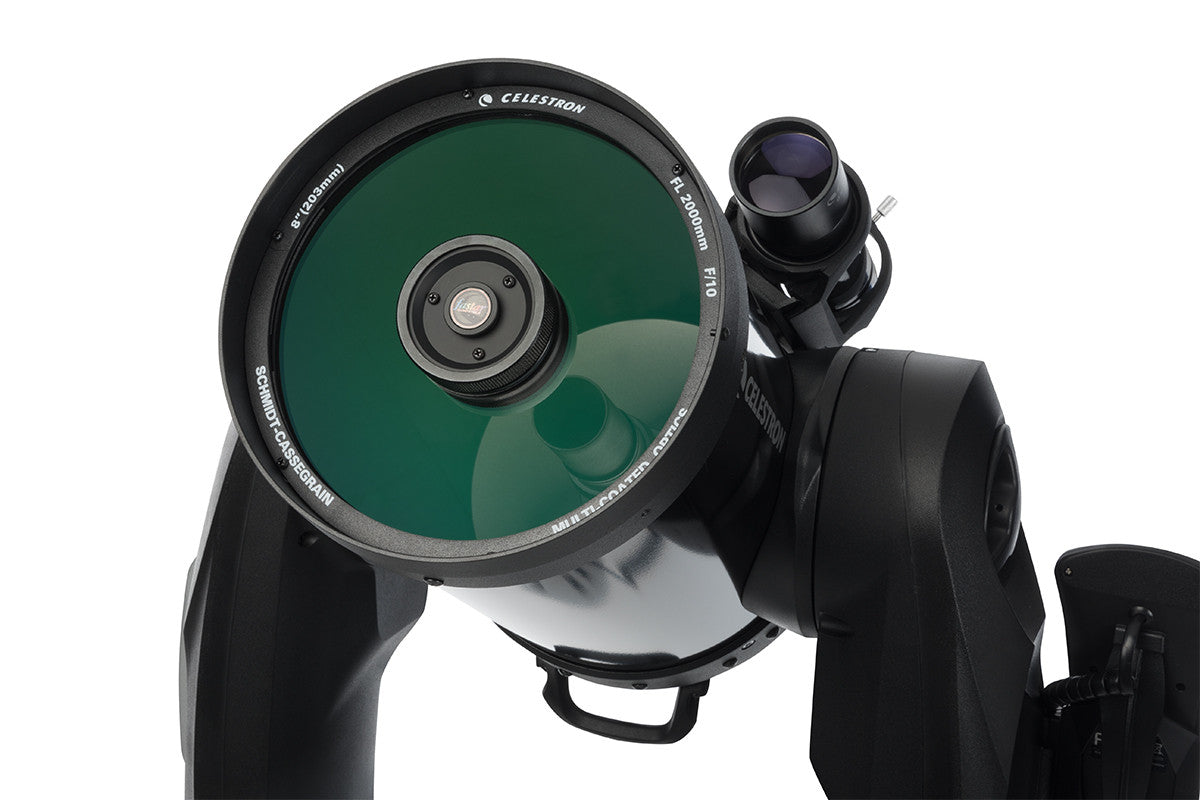

- 8" diffraction limited Schmidt-Cassegrain telescope
- Celestron's premium StarBright XLT coatings

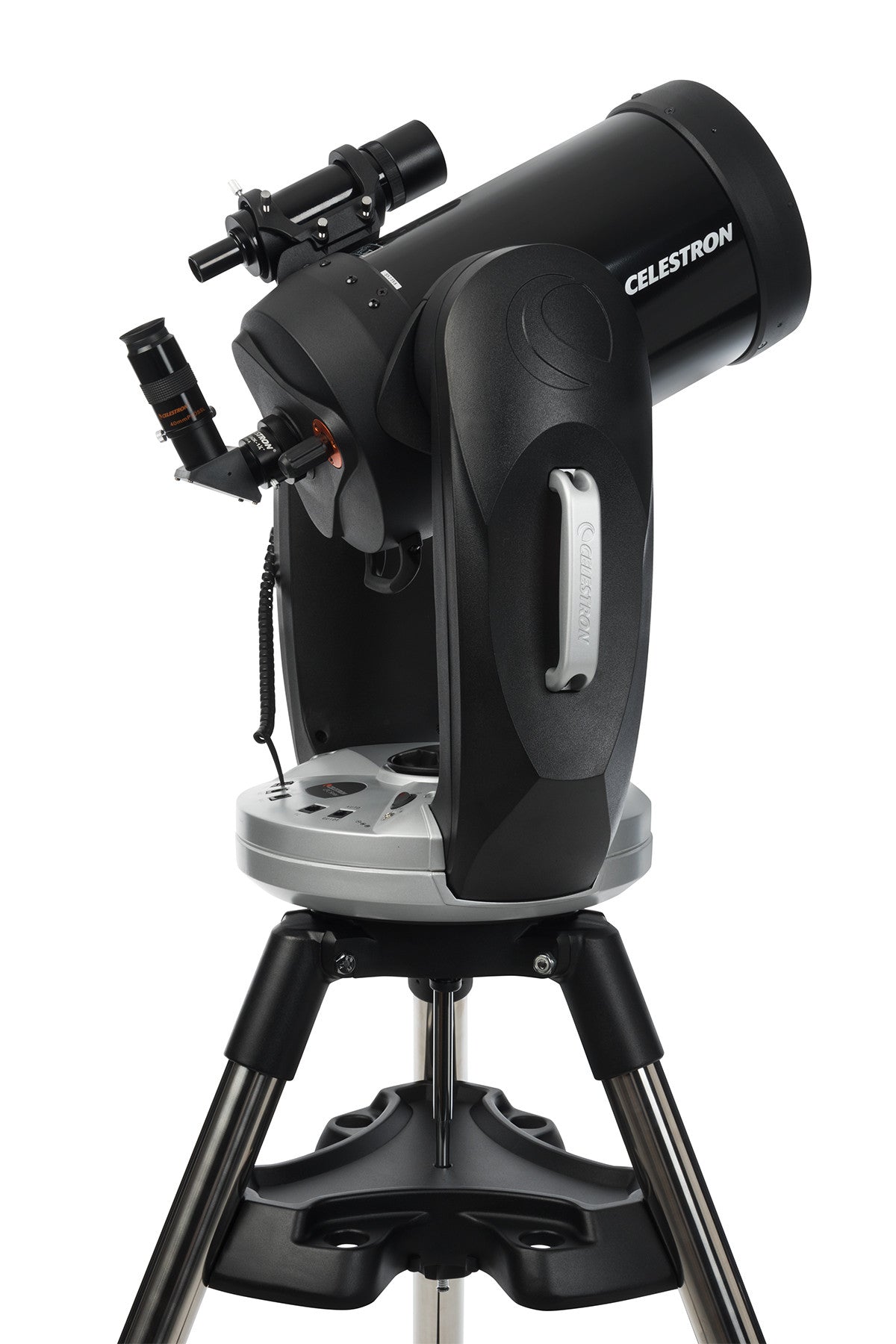

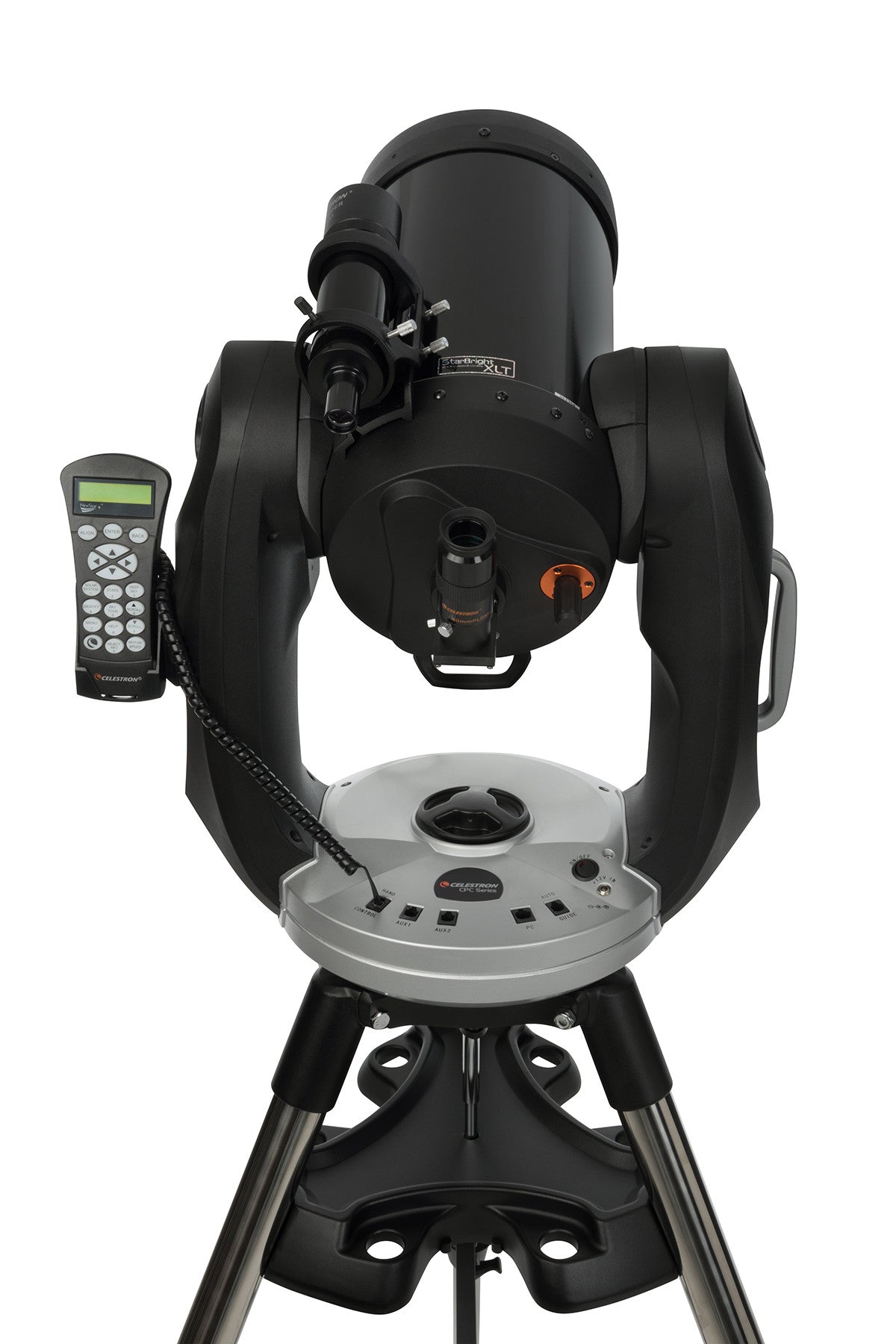

- Fully computerized dual fork arm Altazimuth mount
- 9x50 finderscope to help accurately find objects
- Newly designed heavy-duty tripod makes attaching the telescope so easy you can do it in the dark; also features sturdy 2" steel legs and accessory tray
- Ergonomic design - Comfortably lift and move the telescope from location to location
- Star diagonal provides more comfortable viewing position when observing objects that are high in the sky

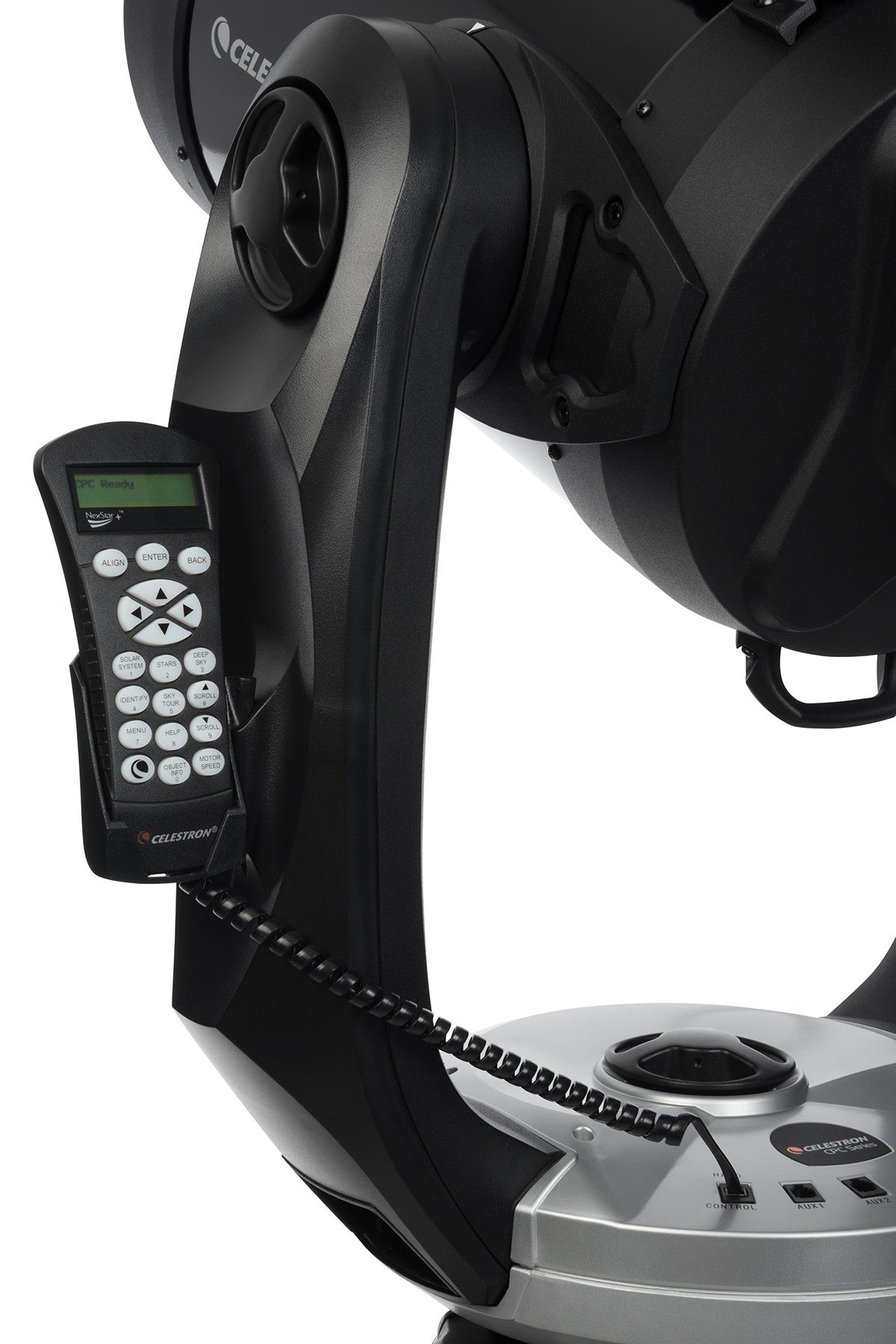

- Convenient remote hand control holder - Allows you to view information hands-free while using the scope
Overview
- 8" diffraction limited Schmidt-Cassegrain telescope
- Celestron's premium StarBright XLT coatings
- Fully computerized dual fork arm Altazimuth mount
- 9x50 finderscope to help accurately find objects
- Newly designed heavy-duty tripod makes attaching the telescope so easy you can do it in the dark; also features sturdy 2" steel legs and accessory tray
- Ergonomic design - Comfortably lift and move the telescope from location to location
- Star diagonal provides more comfortable viewing position when observing objects that are high in the sky
- Convenient remote hand control holder - Allows you to view information hands-free while using the scope
Includes These Celestron Technologies
Compatible With
Customers Also Purchased
Description
General Features
- 8" diffraction limited Schmidt-Cassegrain telescope
- Celestron's premium StarBright XLT coatings
- Fully computerized dual fork arm Altazimuth mount
- 9x50 finderscope to help accurately find objects
- Newly designed heavy-duty tripod makes attaching the telescope so easy you can do it in the dark; also features sturdy 2" steel legs and accessory tray
- Ergonomic design - Comfortably lift and move the telescope from location to location
- Star diagonal provides more comfortable viewing position when observing objects that are high in the sky
- Convenient remote hand control holder - Allows you to view information hands-free while using the scope
Technology
Computerized Mount Features
- Proven NexStar computer control technology
- 40,000 object database with over 100 user-definable objects and expanded information on over 200 objects
- Custom database lists of all the most famous deep-sky objects by name and catalog number; the most beautiful double, triple and quadruple stars; variable stars; solar system objects and asterisms
- Re-designed drive base and drive mechanics - Quiet operation; large drive gears, quick release clutch
- SkyAlign allows you to align on any three bright celestial objects, making for a fast and easy alignment process
- Flash upgradeable hand control software and motor control units for downloading product updates over the Internet
- Permanent PEC
- Auxiliary port for additional accessories such as Autoguider, GPS accessory
- NexRemote telescope control software and RS-232 cable included for advanced control of your telescope via computer
Specifications
| Optical Tube Info: | |
|---|---|
| Optical Design: | Schmidt-Cassegrain |
| Aperture: | 203.2mm (8") |
| Focal Length: | 2032mm (80") |
| Focal Ratio: | f/10 |
| Focal Length of Eyepiece 1: | 40mm (1.57") |
| Magnification of Eyepiece 1: | 51x |
| Finderscope: | 9x50 Finderscope with quick release bracket |
| Star Diagonal: | 1.25" Star Diagonal |
| Optical Tube: | Aluminum |
| Highest Useful Magnification: | 480x |
| Lowest Useful Magnification: | 29x |
| Limiting Stellar Magnitude: | 14 |
| Resolution (Rayleigh): | 0.69 arc seconds |
| Resolution (Dawes): | 0.57 arc seconds |
| Light Gathering Power (Compared to human eye): | 843x |
| Secondary Mirror Obstruction: | 64mm (2.5") |
| Secondary Mirror Obstruction by Diameter: | 31% |
| Secondary Mirror Obstruction by Area: | 9.77% |
| Optical Coatings: | Starbright XLT |
| Optical Tube Length: | 432mm (17") |
| Optical Tube Diameter: | 238mm (9.37") |
| Optical Tube Weight: | 42 lbs (19.1 kg) with mount |
| Dovetail: | None |
| Mount Info: | |
| Mount Type: | Computerized Altitude-Azimuth Dual Fork Arm |
| Height adjustment range (includes mount and tripod): | 1295.4mm - 1422.4mm (51" - 66") |
| Tripod leg diameter: | 50.8mm (2") Stainless Steel |
| Mount Head Weight: | 42 lbs (19.1 kg) with optical tube |
| Accessory Tray: | Yes |
| Tripod Weight: | 19 lbs (8.6 kg) |
| Slew Speed: | 9 slew speeds - max speed 5°/second |
| Tracking Rates: | Sidereal, Solar and Lunar |

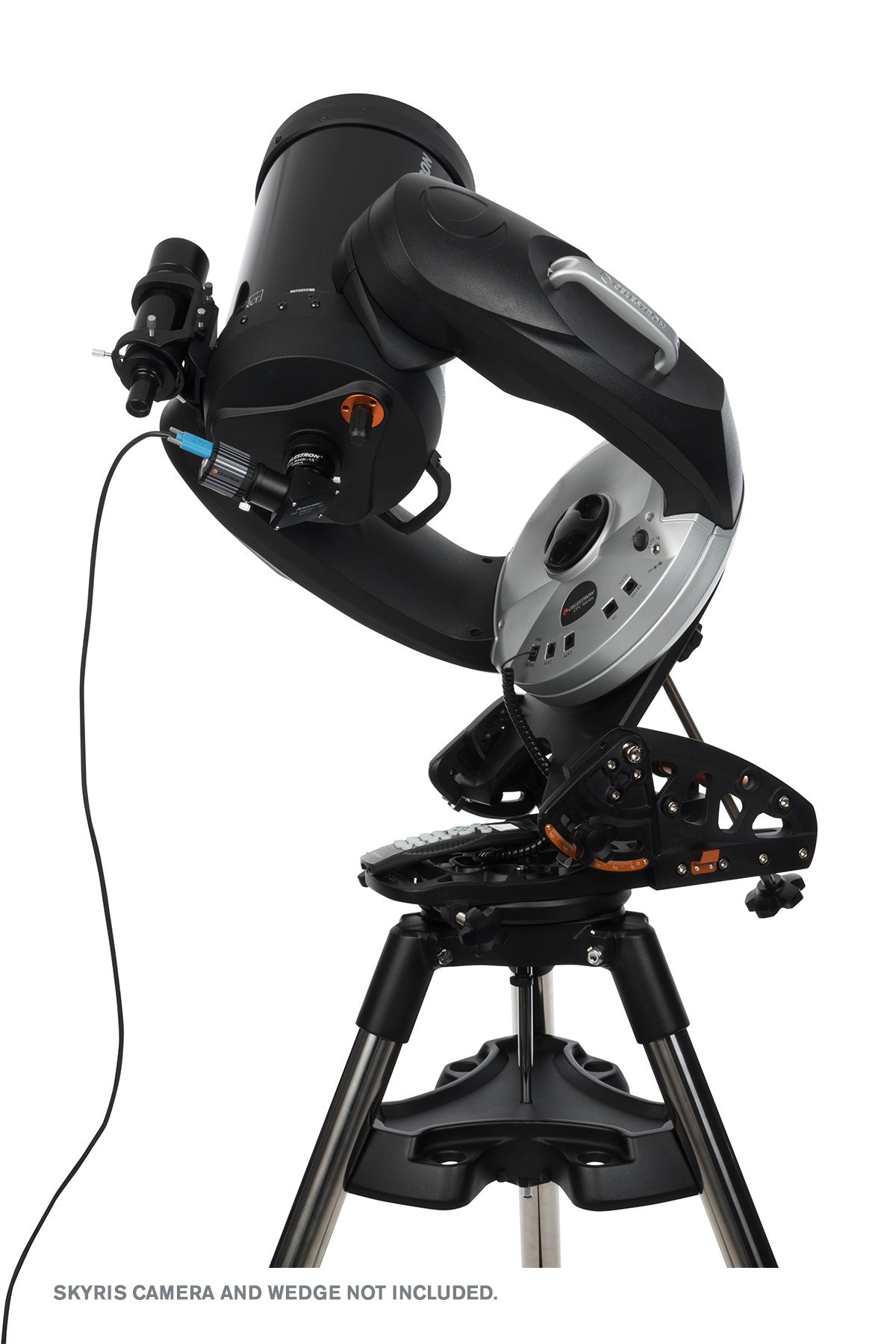

| Tracking Modes: | Altazimuth, EQ North and EQ South |
| GPS: | Internal 16 channel |
| Dovetail Compatibility: | none |

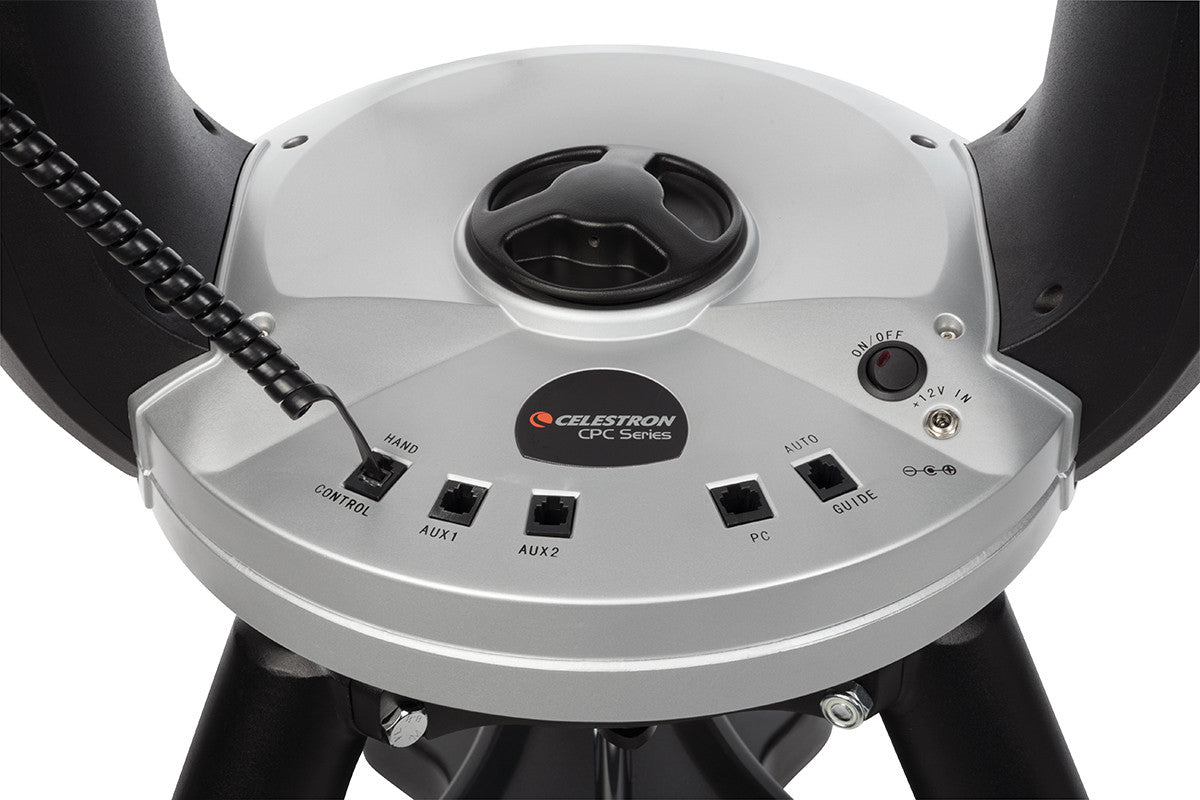

| Number of Auxiliary Ports: | 2 AUX Ports (Hand Control can use any of the AUX Ports) |
| Autoguide Port: | Yes |
| USB Port: | Yes, on hand control |
| Power Requirements: | 12 VDC-1.5A (Tip positive) |
| Motor Drive: | DC servo motors |
| Alignment Procedures: | Sky Align, Auto Two-Star Align, Two-Star Align, Solar System Align, EQ North Align and EQ South Align |
| Periodic Error Correction: | Yes |
| Computerized Hand Control: | 2 line x 18 character backlit Liquid Crystal Display, 19 LED backlit buttons, USB 2.0 Port for PC connection |
| NexStar+ Database: | 40,000+ objects, 100 user defined programmable objects. Enhanced information on over 200 objects |
| Software: | Celestron Starry Night Special Edition Software and SkyPortal App |
| Total Telescope Kit Weight: | 61 lbs (27.6 kg) |
| Included Items: |

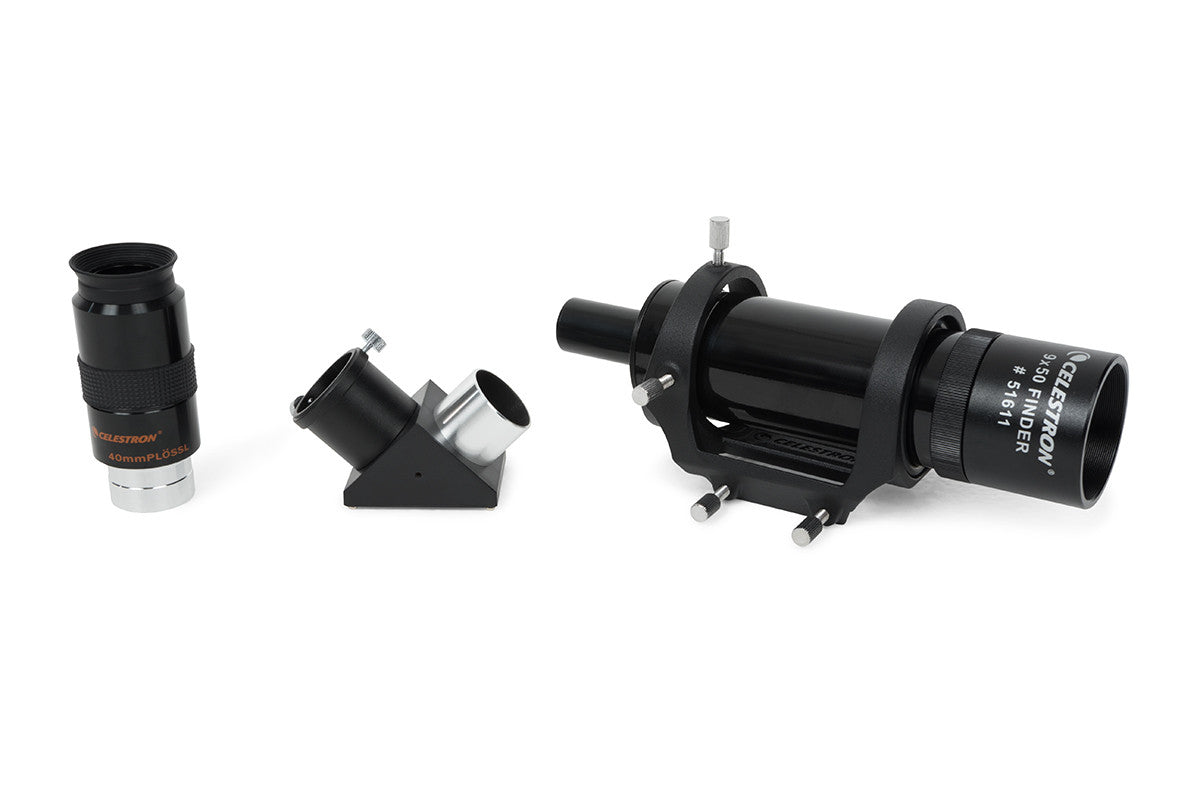

Optical tube Mount and Tripod Accessory Tray 40mm eyepiece 1.25" Star Diagonal 50mm 9x50 Finderscope with Bracket Instruction Manual |
Videos
Accessories
TOP
SELLER
SELLER
FREE
SHIPPING
SHIPPING
NEW
NEW
FREE
SHIPPING
SHIPPING
NEW
TOP
SELLER
SELLER
NEW
NEW
NEW
NEW
NEW
FAQ
Q:

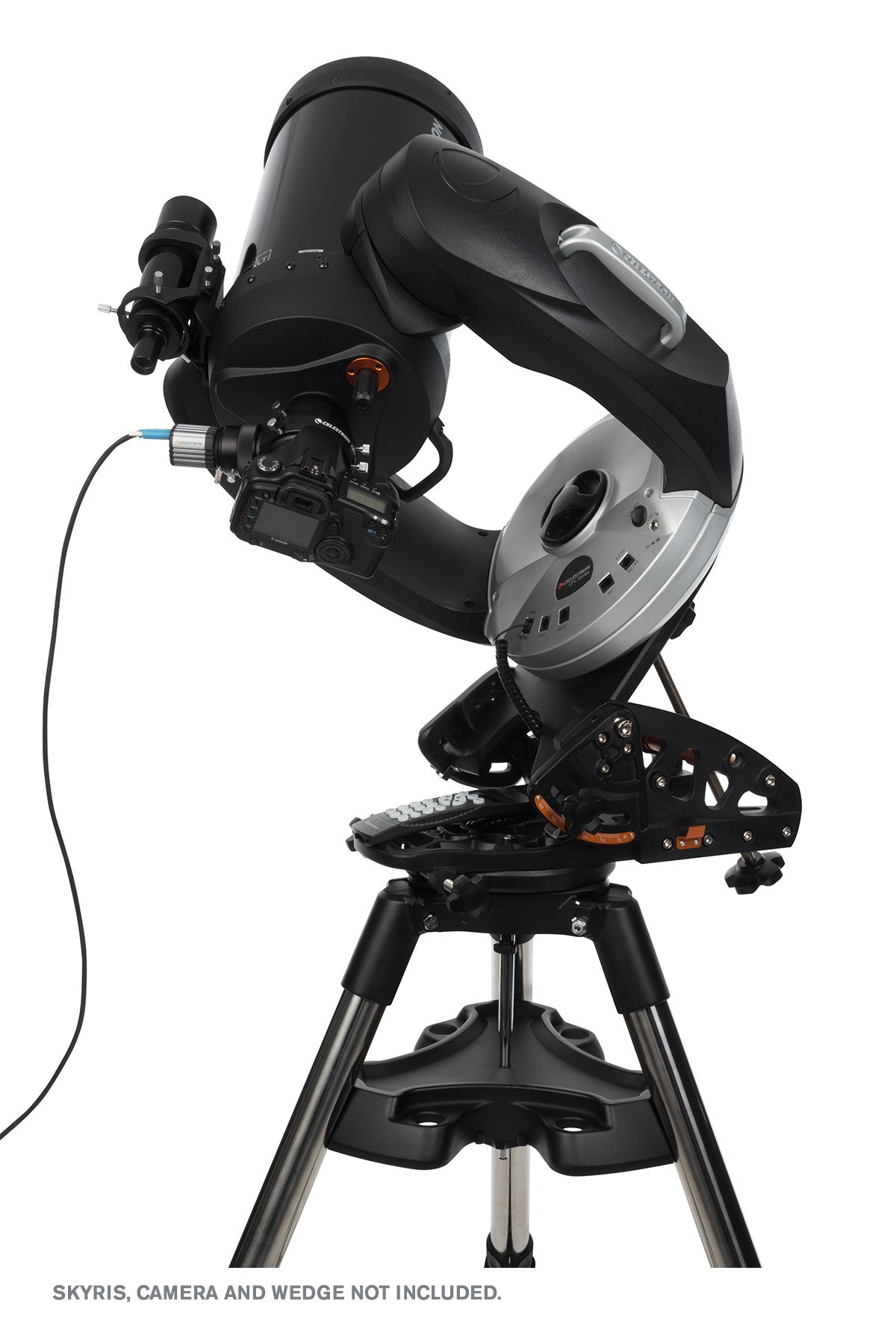

What is the heaviest recommend load for mounting a camera in the Fastar / HyperStar configuraton?
A:
We recommend a load of no more than 20 lbs. at 4.5 inches away from the 8" Schmidt corrector.
Support & Downloads

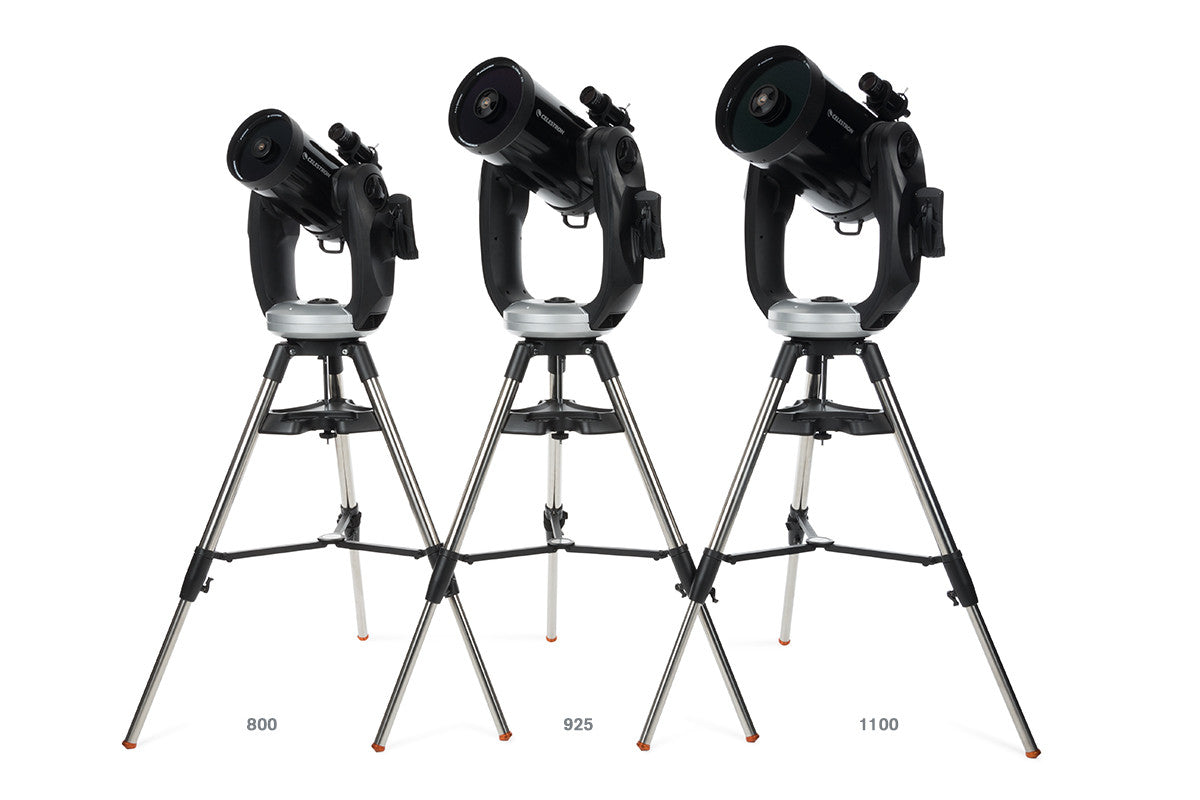

Browse the Series
