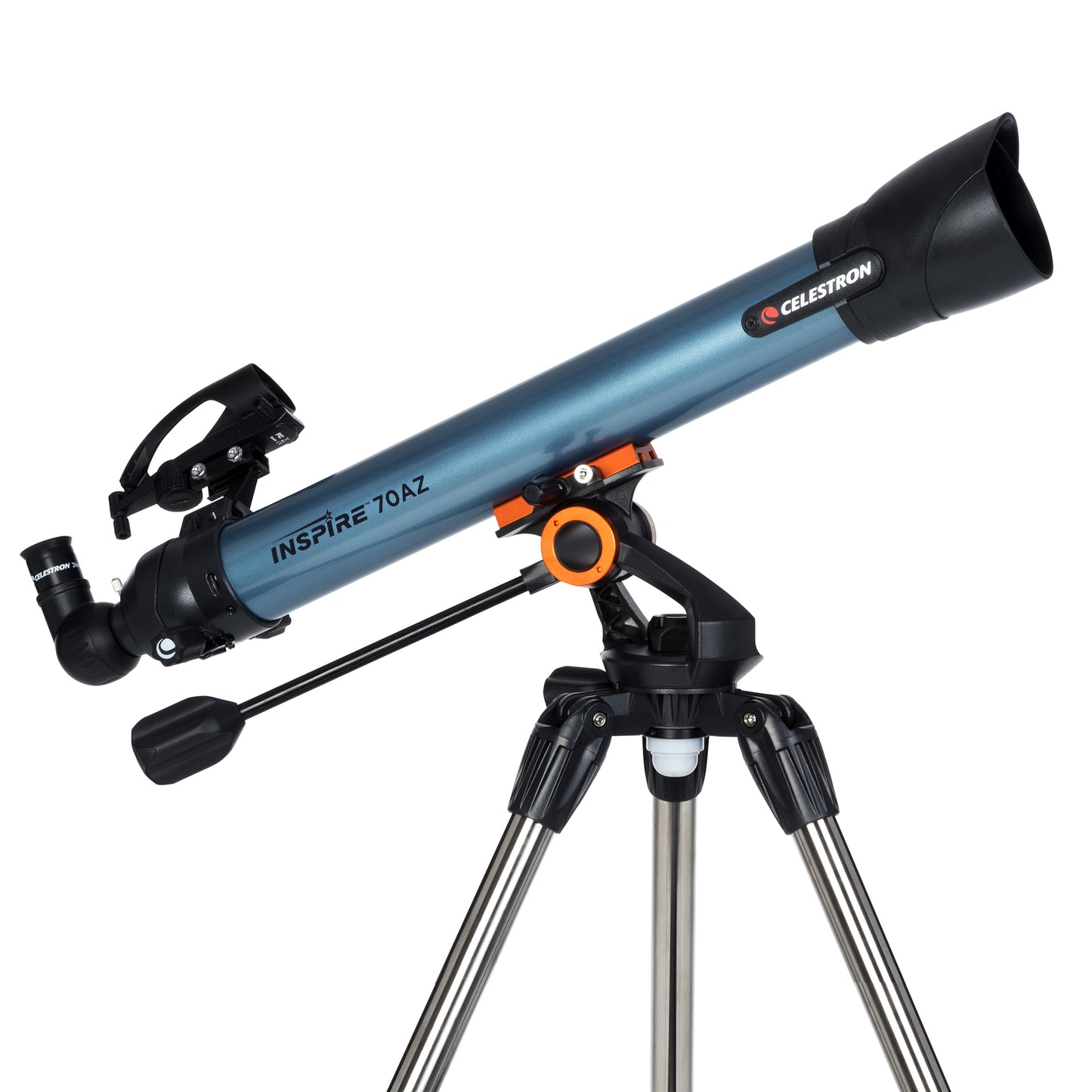

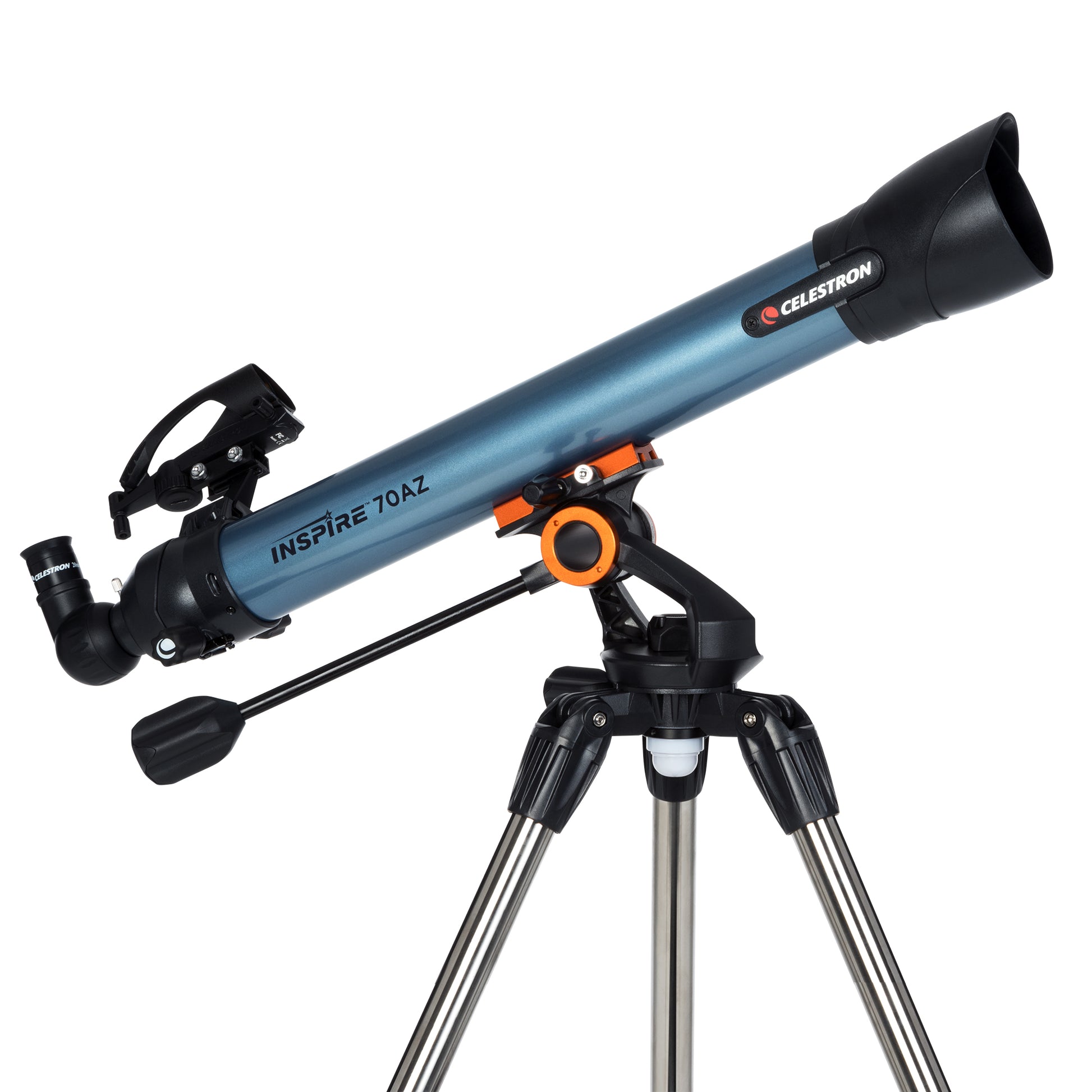

Inspire 70AZ Refractor Telescope
Item #: 22401 / 22401-CGL- 70mm refractor telescope with fully coated glass optics and a lightweight frame.
- Observe in no time with a quick and easy, no-tool setup.
- Accessories include: two Kellner eyepieces (20mm and 10mm), an erect image star diagonal, an integrated red LED flashlight/mount light, StarPointer® Pro finderscope, and an integrated smartphone adapter.
- Panning handle Alt-Az control with clutch for smooth and accurate pointing.

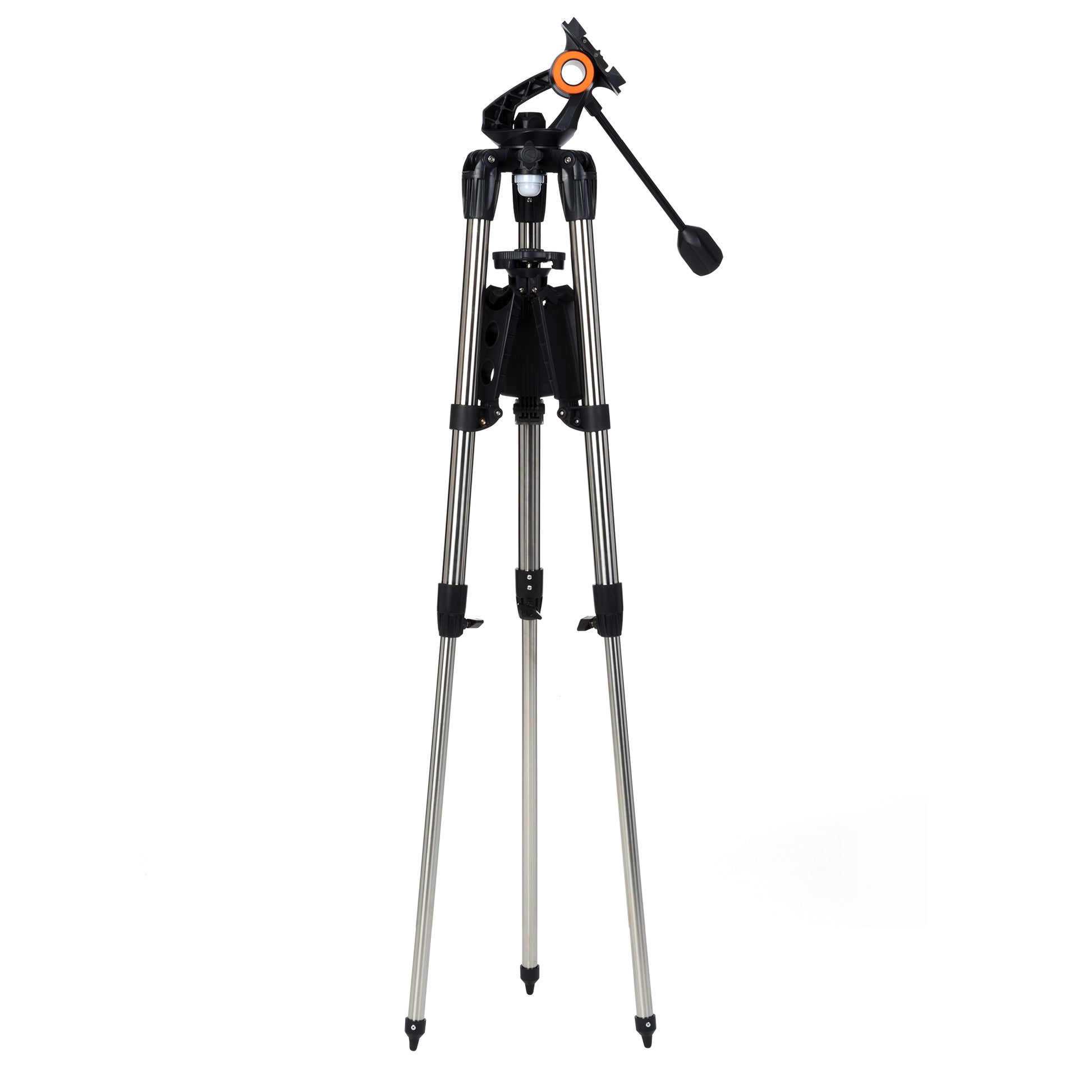

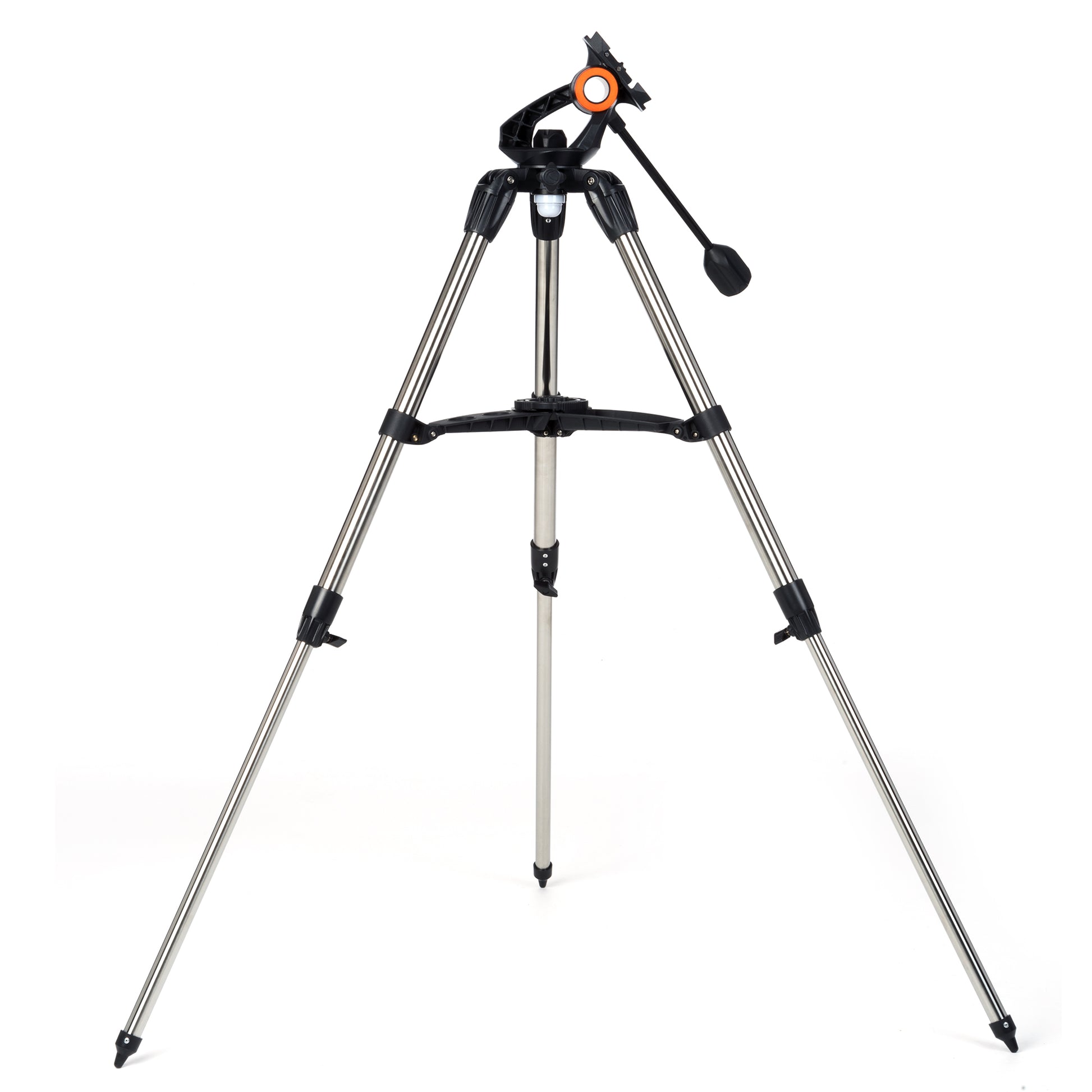

- Adjustable height tripod with a built-in accessory tray allows for easy setup and breakdown.
Overview
- 70mm refractor telescope with fully coated glass optics and a lightweight frame.
- Observe in no time with a quick and easy, no-tool setup.
- Accessories include: two Kellner eyepieces (20mm and 10mm), an erect image star diagonal, an integrated red LED flashlight/mount light, StarPointer® Pro finderscope, and an integrated smartphone adapter.
- Panning handle Alt-Az control with clutch for smooth and accurate pointing.
- Adjustable height tripod with a built-in accessory tray allows for easy setup and breakdown.
Includes These Celestron Technologies
Description

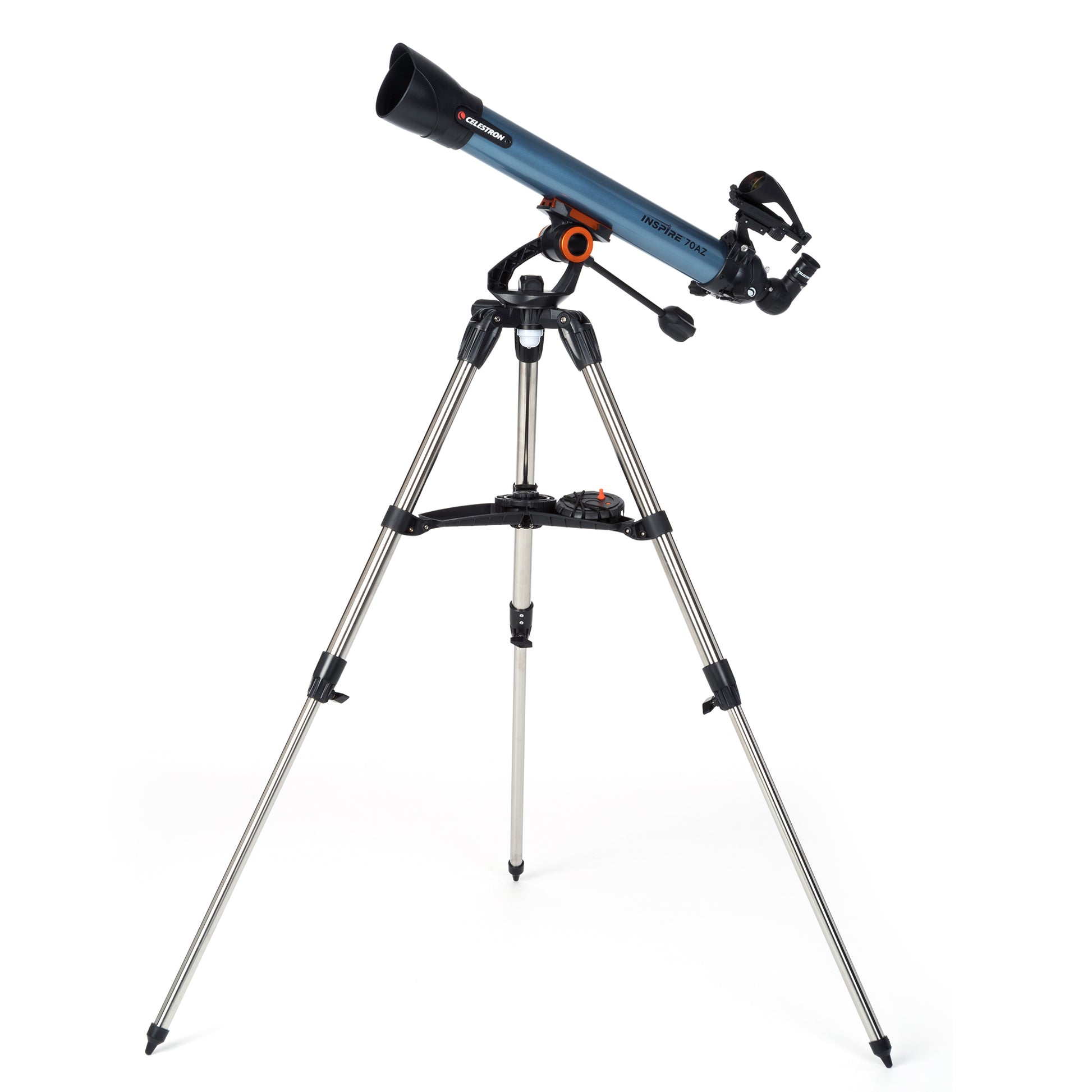

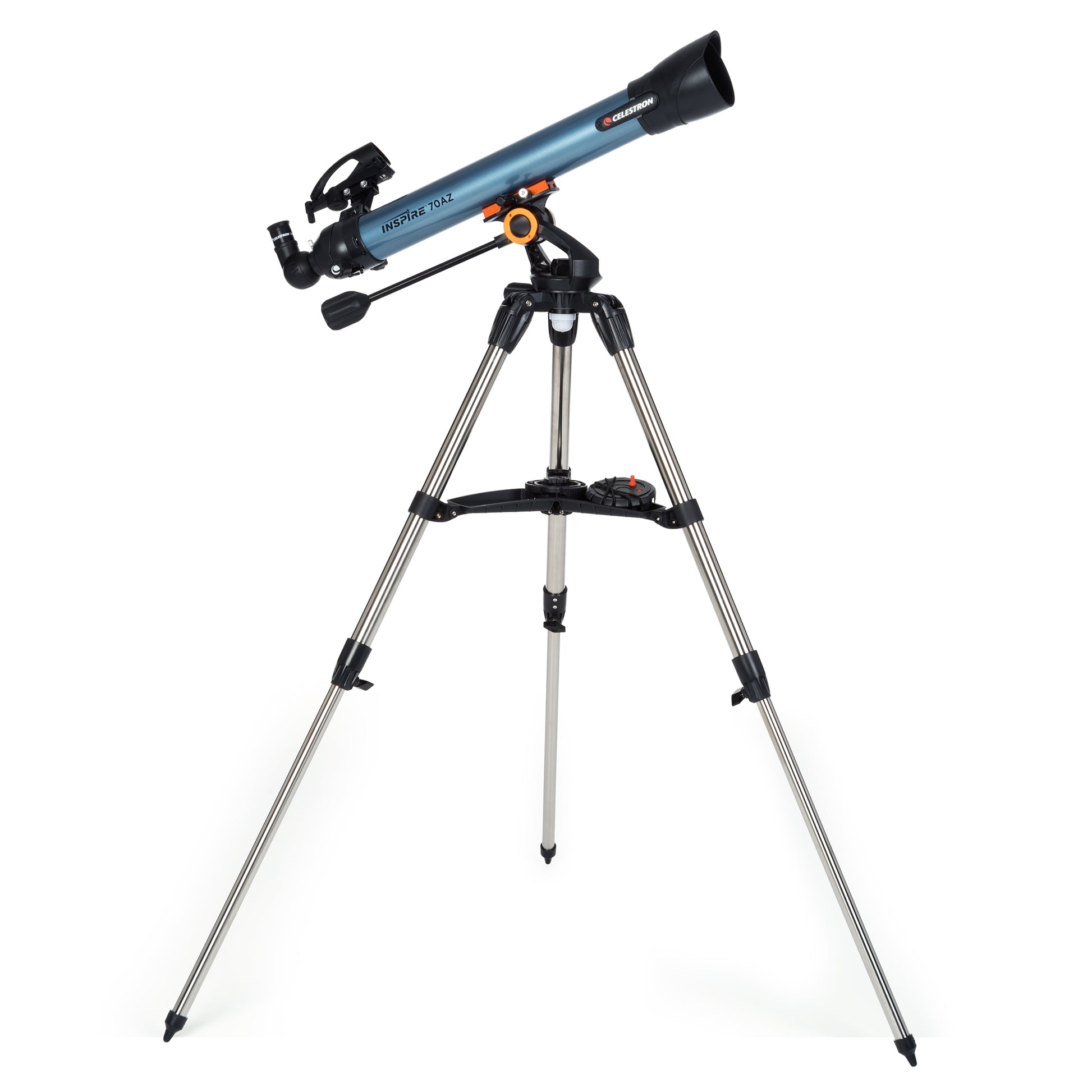

The Inspire 70 is a refractor telescope perfect for terrestrial and celestial viewing on the go. The Inspire can view the planets, moon, star clusters and brighter deep sky objects like the Orion Nebula and Andromeda Galaxy at night and with the erect image star diagonal makes the optical tube ideal for using as a spotting scope during the day.

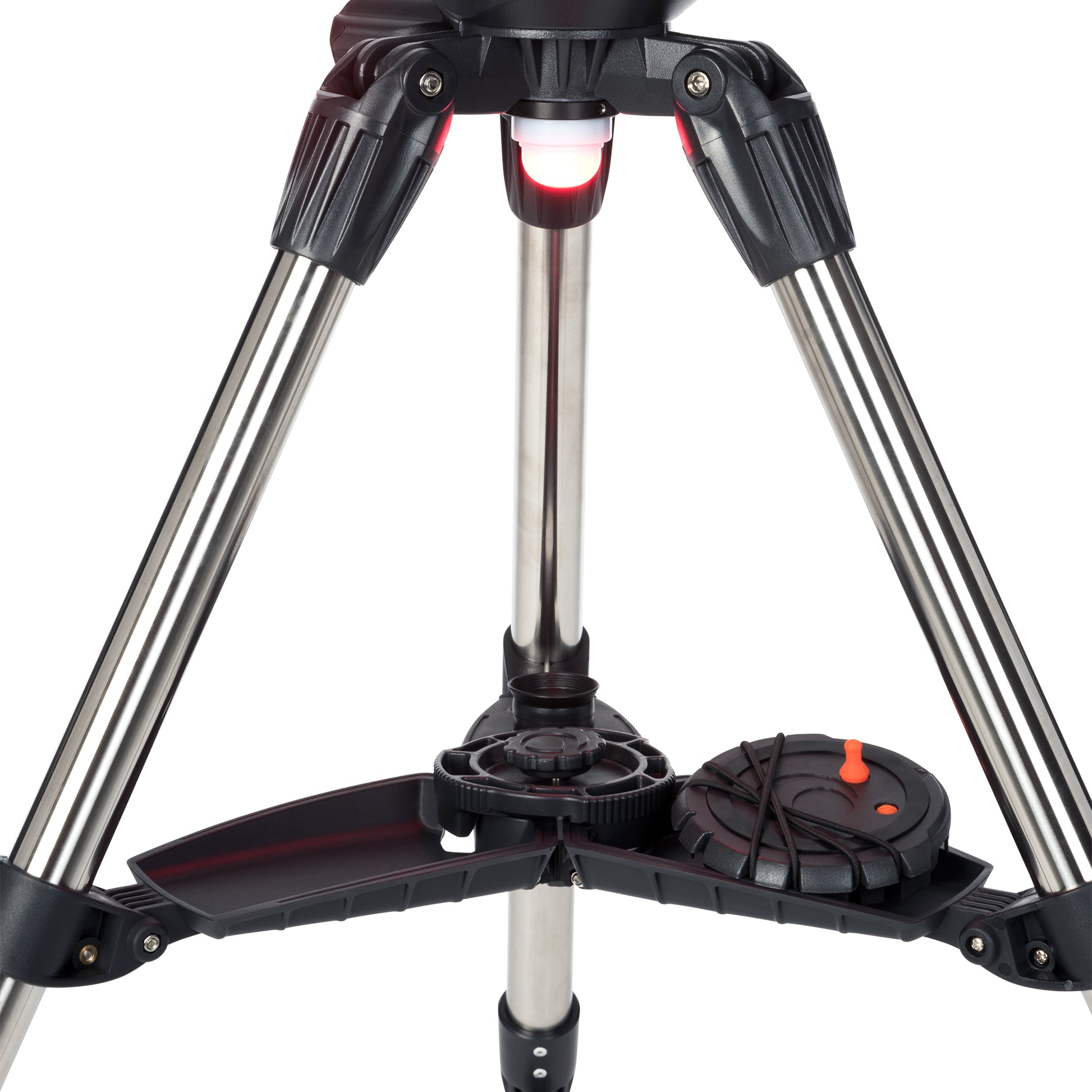

Setting up the telescope is a breeze and will have you observing in no time. Even on your first time out, you can assemble the telescope and its accessories in just a few minutes. There is no extra tray to attach to the tripod; it is built-in. The adjustable tripod legs allow you to customize the telescope’s height or place it on raised surfaces like a picnic table. The integrated flashlight fits in the mount to illuminate the tripod tray, so you can easily observe your accessories. The total telescope kit is lightweight and perfect for impromptu observing sessions or transporting wherever life’s adventures take you.
Manual Alt-Azimuth telescope
Navigate the sky with a panning handle Alt-Az control with clutch for smooth and accurate pointing. Move the clutch in an up/down, left/right fashion to track your object in the eyepiece.
Accessories Included

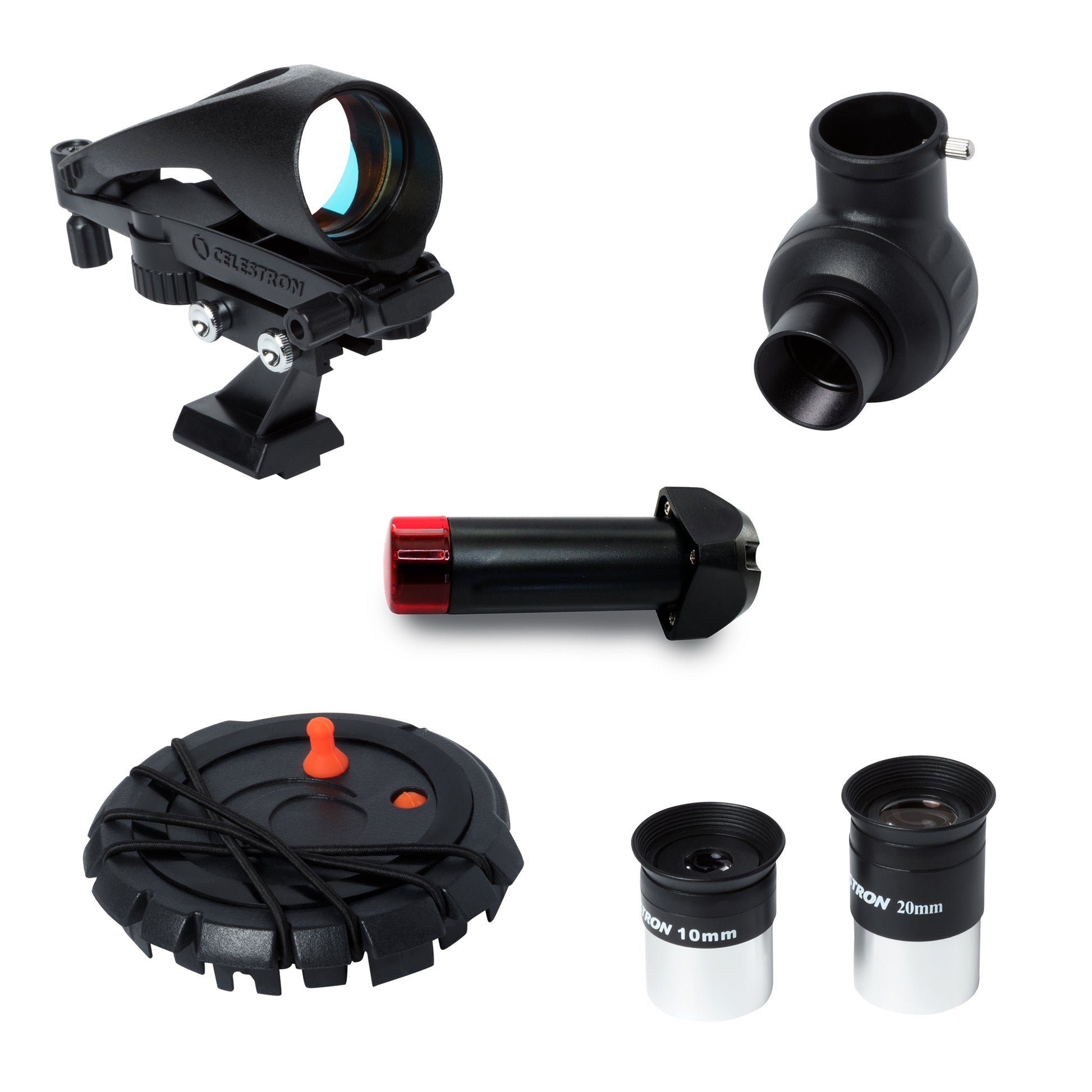

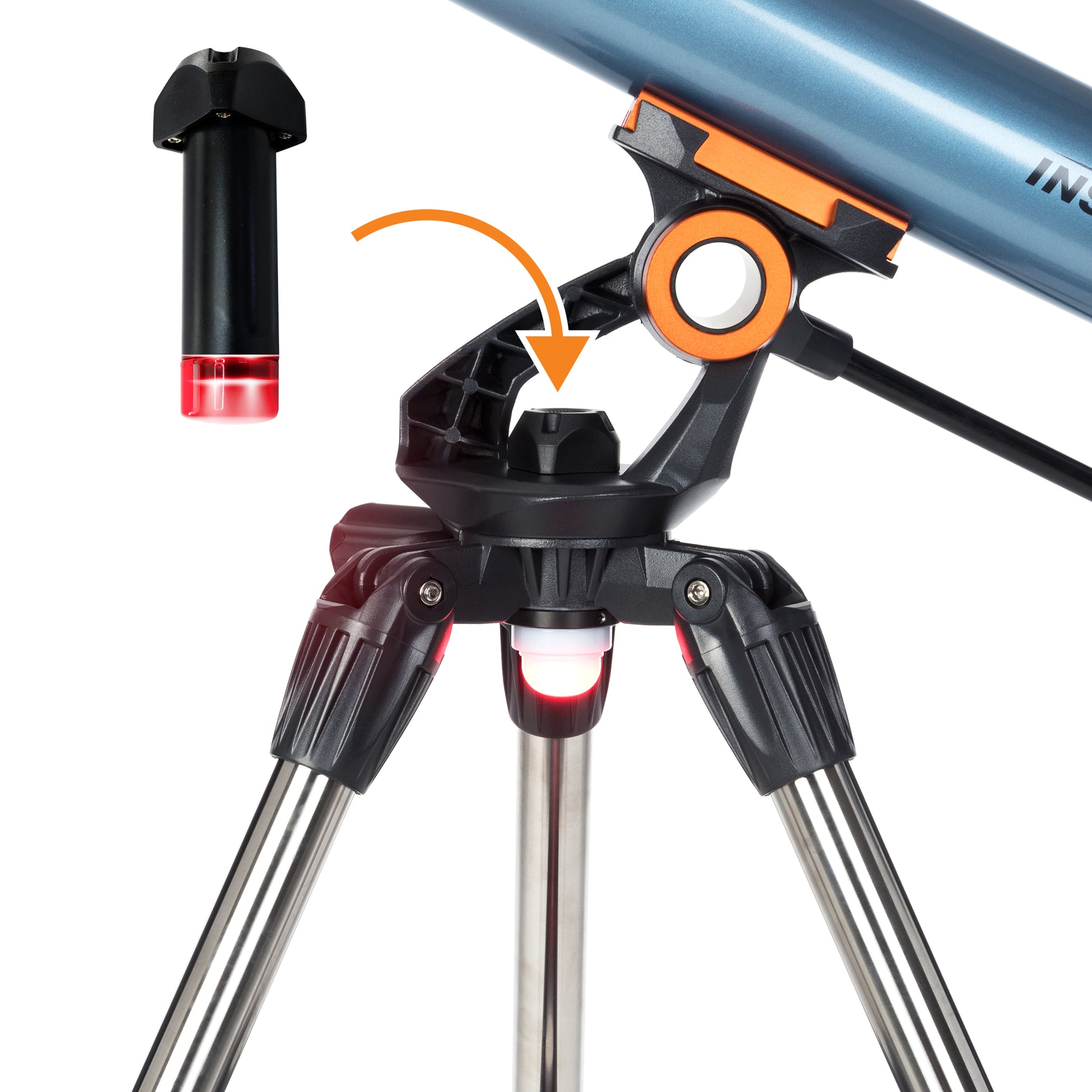

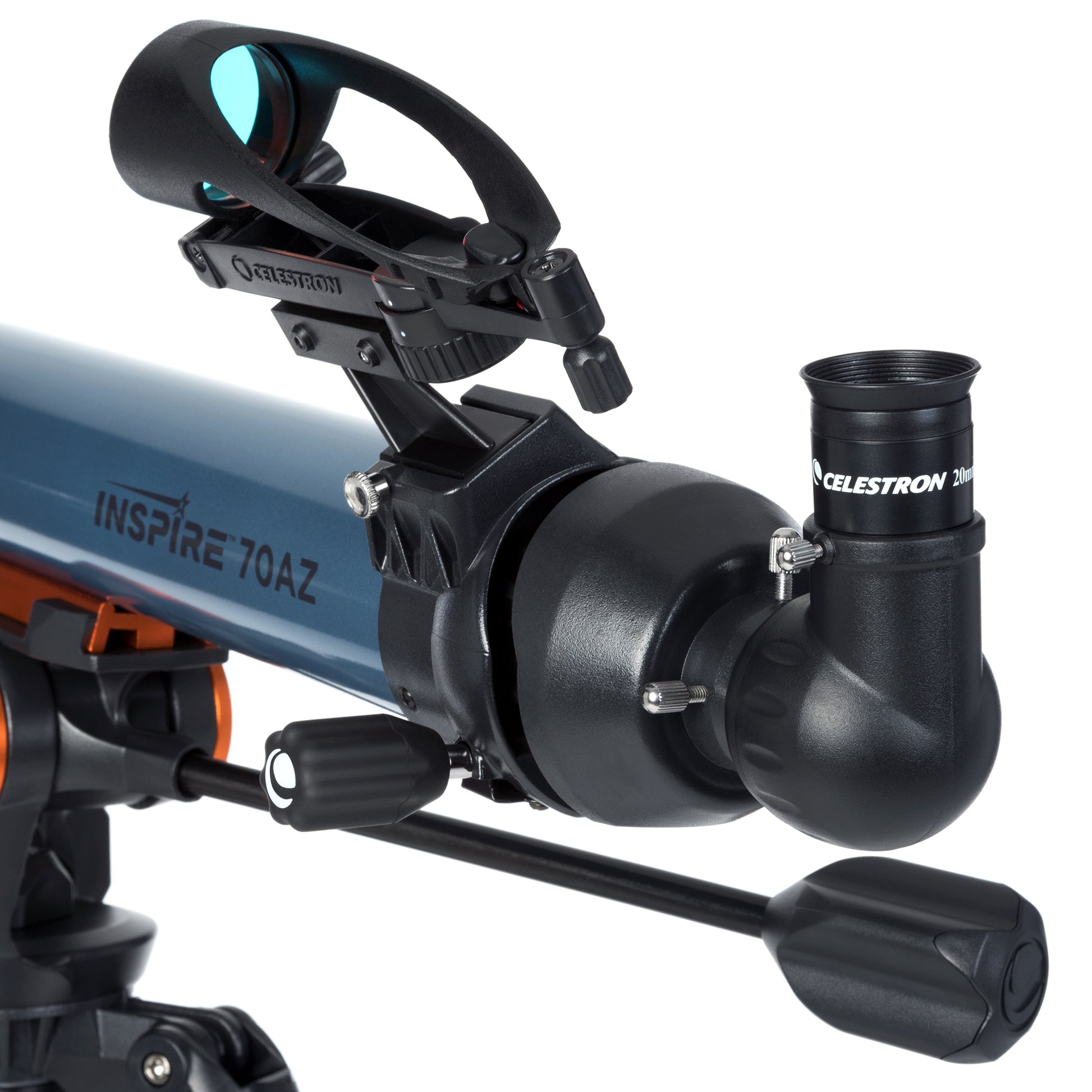

The Inspire 70 comes with two Kellner eyepieces (20mm and 10mm), a 90° erect image diagonal, an integrated smartphone adapter, a StarPointer® Pro finderscope, and a an integrated red LED flashlight/mount light. The two Kellner eyepieces offer different magnifications to view your intended object. The erect image diagonal allows for right-side-up viewing ideal for terrestrial subjects but can also be used for celestial objects. The StarPointer® Pro red dot finderscope will help you quickly center an object in your eyepiece for easier observing. The integrated flashlight/mount light can be used in to illuminate the built-in accessory tray and can be removed from the mount to use as a flashlight where you need it most.

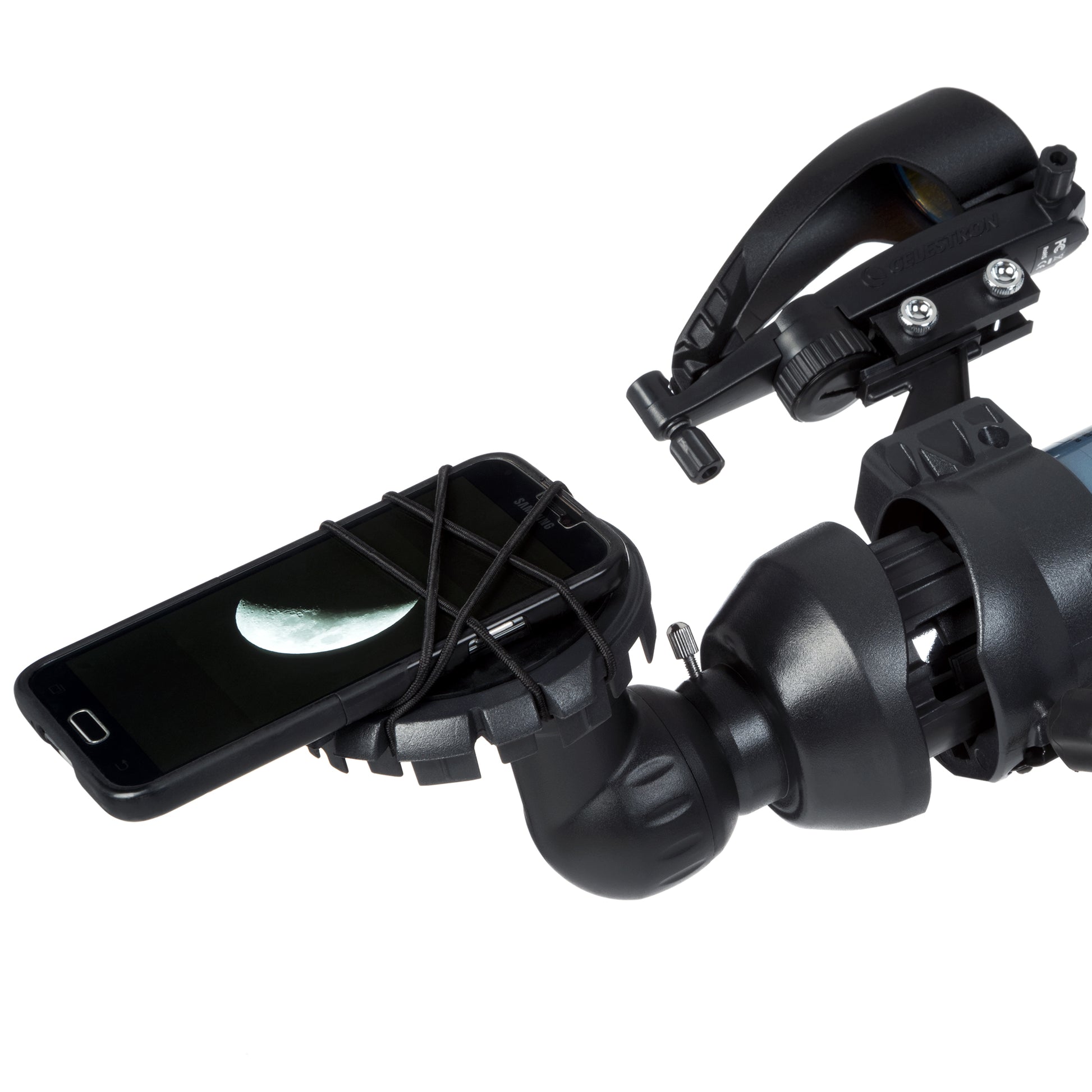

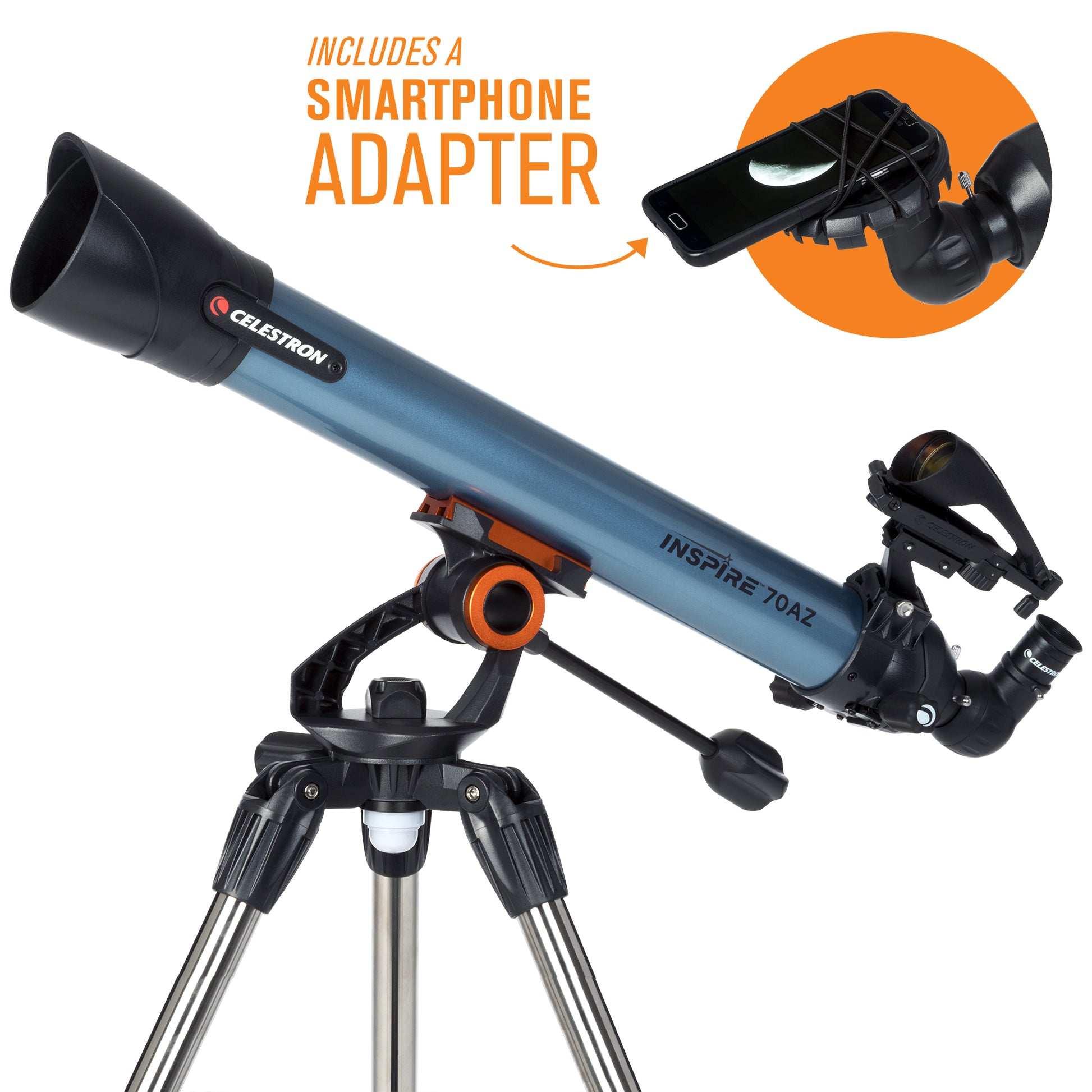

Smartphone Adapter – Image celestial or terrestrial objects with this smartphone adapter! With its light, rigid frame, this accessory allows you to connect any smartphone to any telescope eyepiece with an outside diameter of 45mm or smaller. The additional magnification provided by the eyepiece allows your phone to capture great images of the Moon, planets, and terrestrial targets like birds and wildlife. This smartphone adapter installs easily by clamping over the top of an eyepiece. The smartphone is held in position with the help of bungee cords that securely lock your phone in place. While the vast majority of smartphones can be used with the case on, some very large and/or bulky phone cases (such as folio style cases) may need to be removed for the phone to fit in the adapter.
Starry Night Software
Download Celestron’s Starry Night Software and learn about the night sky, celestial objects, and how to plan your next observing session. Celestron Starry Night Software is the premier astronomy software package on the market, providing resources and knowledge to view our solar system and beyond.
Specifications
| Optical Tube Info: | |
|---|---|
| Optical Design: | Refractor |
| Aperture: | 70mm |
| Focal Length: | 700mm |
| Focal Ratio: | f/10 |
| Optical Coating: | Fully Coated glass optics |
| Focal Length of Eyepiece 1: | 20mm (1.25") |
| Magnification of Eyepiece 1: | 35x |
| Focal Length of Eyepiece 2: | 10mm (1.25") |
| Magnification of Eyepiece 2: | 70x |
| Star Diagonal: | Erect image 90° (1.25") |
| Finderscope: | StarPointer® Pro finderscope |
| Resolution (Rayleigh): | 1.99 arc seconds |
| Resolution (Dawes): | 1.66 arc seconds |
| Light Gathering Power: | 100x the unaided eye |
| Highest Useful Magnification: | 165x |
| Lowest Useful Magnification: | 10x |
| Limiting Stellar Magnitude: | 11.7 |
| Optical Coatings: | Fully Coated |
| Optical Tube Length: | 512mm (20.2") |
| Optical Tube Diameter: | 73mm (2.87") |
| Optical Tube Weight: | 2.9 lbs (1.3 kg) |
| Dovetail: | CG-3 Dovetail bar |
| Mount Info: | |
| Mount Type: | Manual Alt-Azimuth |
| Height adjustment range (includes mount and tripod): | 812.8mm - 1295.4mm (32" - 51") |
| Tripod Leg Diameter: | 31.75mm (1.25") steel |
| Accessory Tray: | Yes |
| Tripod Weight: | 8 lbs (3.64 kg) includes weight of mount |
| Slew Speeds: | Manual |
| Dovetail Compatibility: | CG-3 saddle plate |
| Software: | Celestron Starry Night Basic Edition Software and SkyPortal App |
| Total Kit Weight: | 10.9 lbs (4.94 kg) |
| Included Items: |
Optical tube Mount with tripod and folding accessory tray connected Red LED flashlight 90° erect image diagonal 20mm and 10mm Kellner eyepieces StarPointer™ Pro red dot finderscope Free download of SkyPortal |
