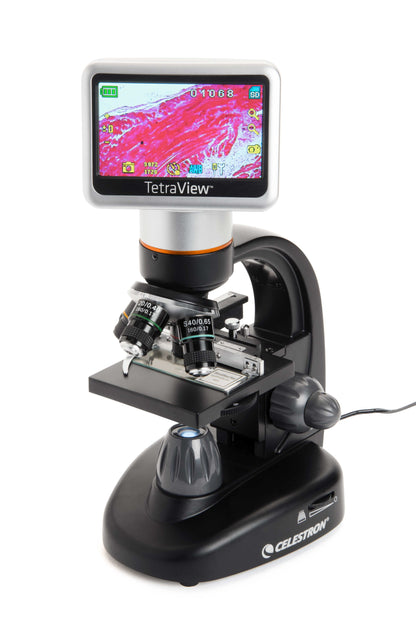

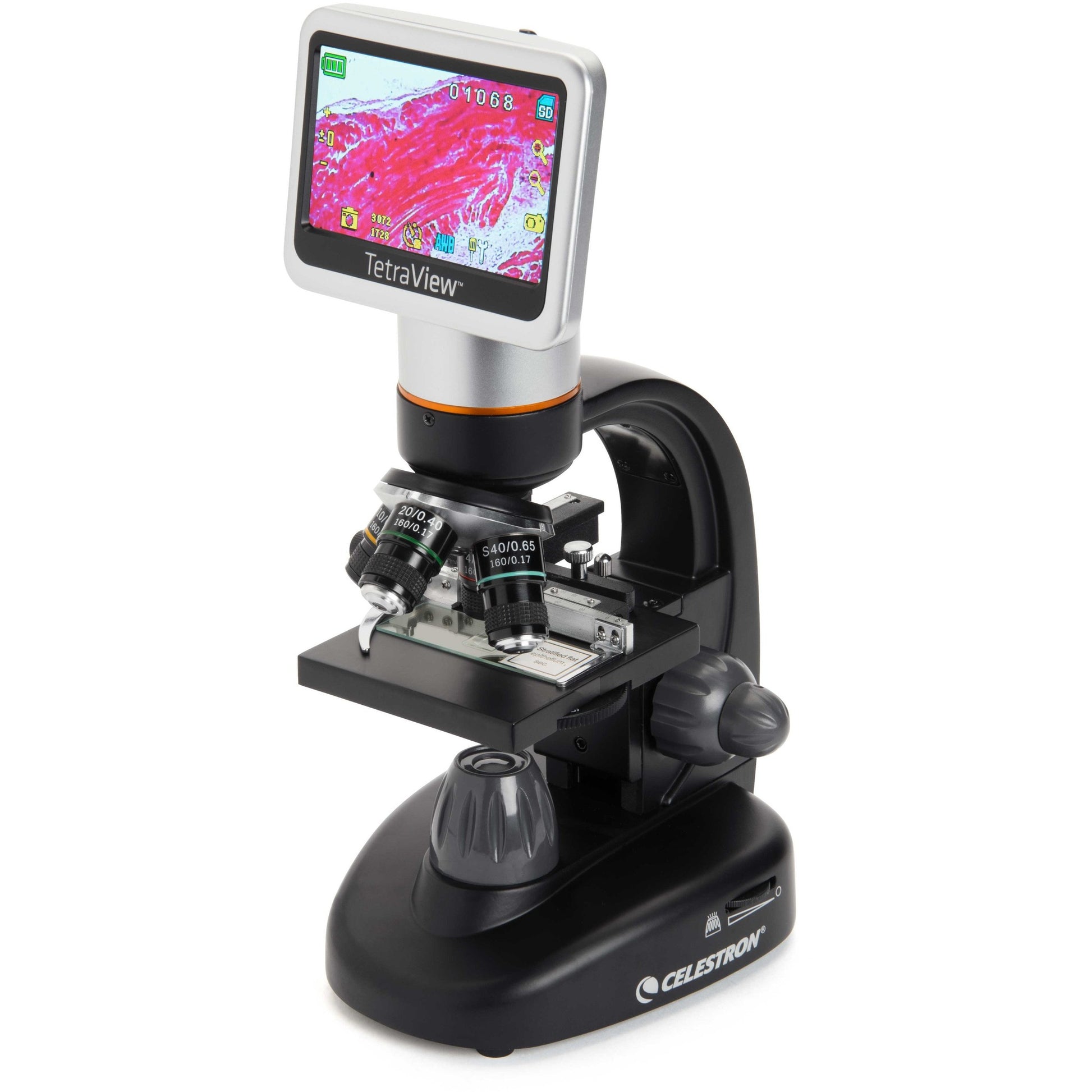

TetraView LCD Digital Microscope

TetraView LCD Digital Microscope

Item #: 44347

In stock

$499.95
$499.95
 More payment options

Free Ground Shipping! Contiguous USA only

30-Day Returns

2-Year Warranty

  • 40x to 400x magnification (up to 1600x with digital zoom)
  • 4.3" LCD touchscreen
  • 5MP CMOS built-in digital camera

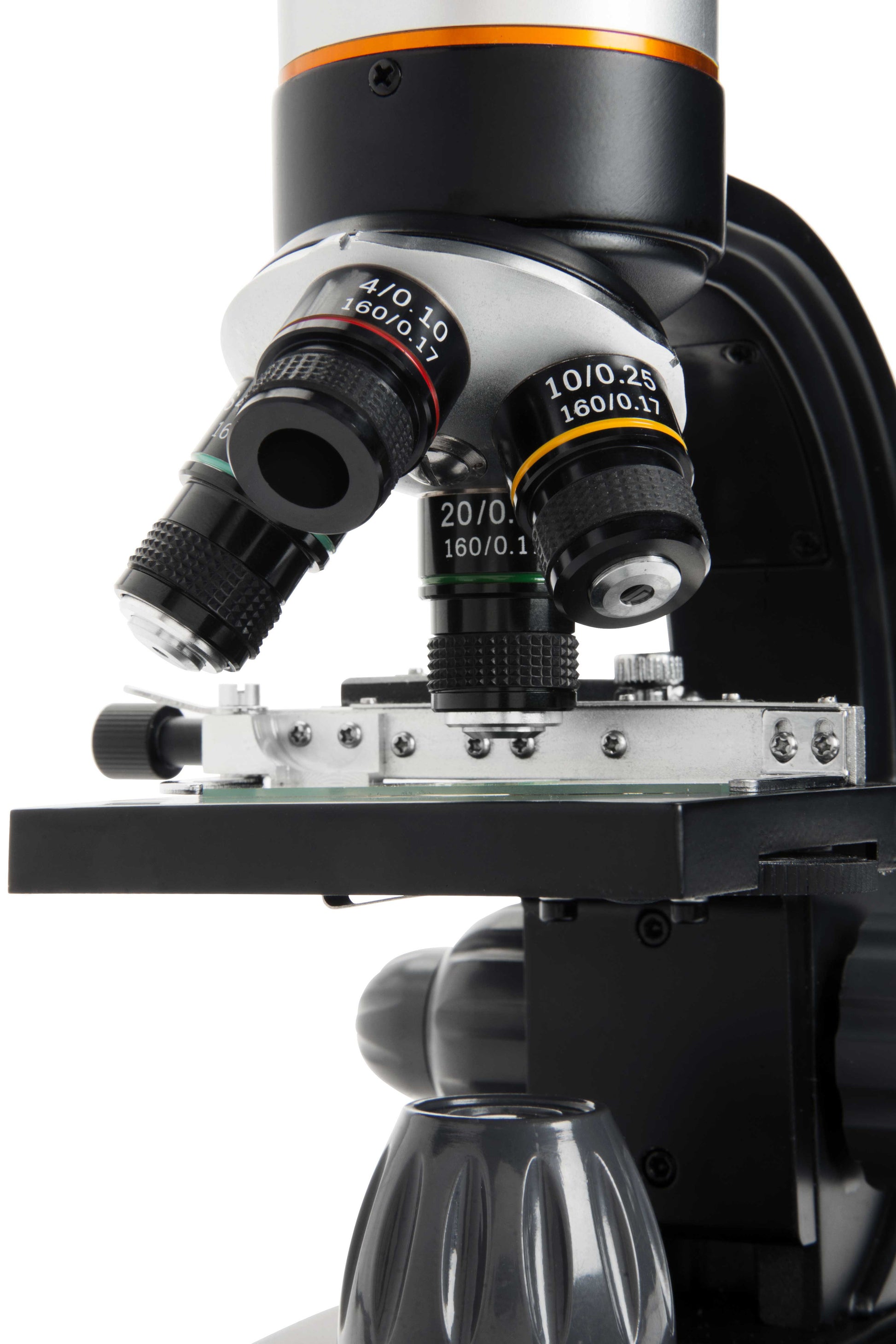

  • 4 fully achromatic objective lenses: 4x, 10x, 20x, 40x
  • Adjustable LED bottom illumination
  • 180° rotatable LCD screen

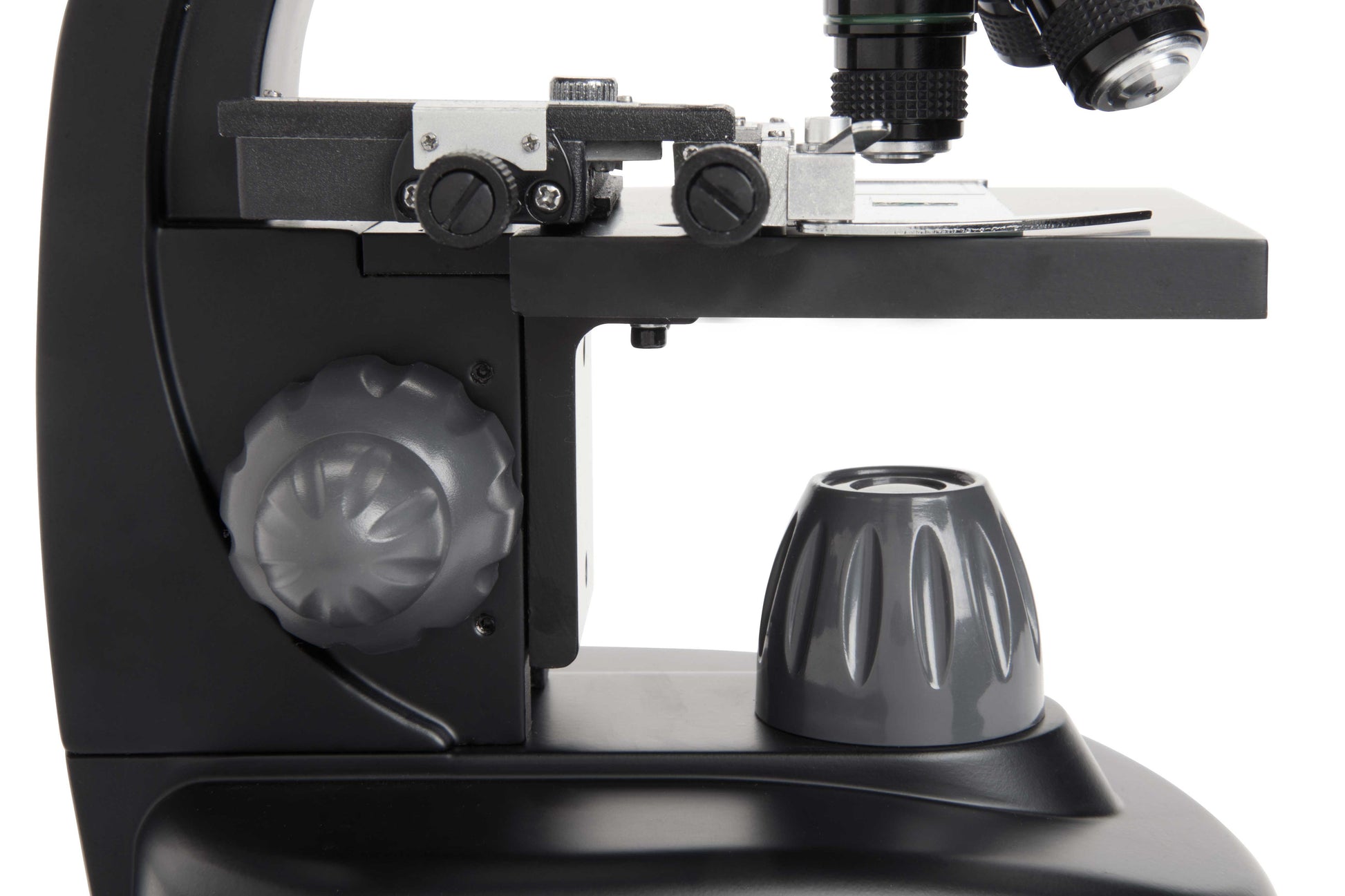

  • Fully mechanical stage
  • Coarse and fine focus knobs
  • Filter wheel/diaphragm
  • AV/TV output
  • Battery power option (4AA batteries)
  • 8GB SD card included (SD card slot supports up to 32GB)
  • Universal AC adapter with multi-plugs for international usage
  • Accessories included: 7 prepared slides, hard carrying case, dust cover, touch pen, USB cable, AV out cable
General
Type of Microscope: LCD Desktop
Head: 180° rotatable head w/4.3" TFT LCD Screen
Nosepiece: Quad with click stop
Objective(s) Type: (4) Achromatic objectives on turret
Objective(s) Standard: DIN 35 RMS
Objective(s) Magnification: 4x, 10x, 20x, 40x
Objective(s) Thread: WJ 4/5" x 1/36"
Focus Type(s): Course Focus and Fine Focus
Focus Travel (per rotation): 0.7mm to 35.3mm (.027" to 1.39") (est.)
Magnification Range: 40x, 100x, 200x, 400x, Up to 1600x with digtial zoom
Illumination Type: LEDs
Illumination Position(s): TBD
Illumination Adjustability Mechanism: Adjustable wheels at base
Power Source: Universal 100 to 240V, 50/60 hz multi-country plug and (4) AA (optional)
Battery Options: Yes (4AA)
Stage: Fully mechanical with metal clips, 88mm x 88mm (3.5" x 3.5") - With Filter wheel (Red, blue, green | 1mm, 3mm, 6mm apertures)
Condenser Type: Aplantic
Condenser N.A.: N.A. 65
Stage Diaphragm: Multiple on wheel
Eyepiece Type: CMOS Sensor in lieu of eyepiece
Sensor Size: 5MP - 1/2.5"
Pixel Size: 2.2 μm
Screen type: High definition touch, 480 x 272 pixels resolution, 109mm (4.3") with 4x digital zoom, rotates 180°
Screen Size: 4.3"
Memory Type: SD Card
Memory Size: 8G SD included, Supports up to 32G
Port(s) In: AC Plug (power), SD Card slot (32Gmax)
Port(s) Out: Video/ TV out, USB 2.0
AC Adapter: 5-6V DC, 200-1000mA tip positive electrical input. Jack should be 5.5mm (.21") OD, 2.1mm (.08") ID and 12.5mm (.49") long
Still image capture resolution: 1920x1080
2048x1152
2560x1440
3072x1728
3648x2048
3072x1728
Video resolution: VGA (640 x 480)
Shutter trigger position: On LCD Screen
Software: Internal Firmware
Microscope Dimensions: 78mm x 140mm x 330mm (7" x 5.5" x 13")
Microscope Weight: 67 oz (1.9 kg)
Included Items: 8GB SD Card
USB 2.0 Cable (data transfer)
7 Prepared Slides
4 plug, multi-country AC adapter
Dust Cover
Carrying Case
Additional Information
California Prop 65 California Prop 65 Warning

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
View full details

Customers Also Purchased

The professional-level Celestron TetraView LCD Digital Microscope is a touchscreen LCD microscope with advanced features at a reasonable price. TetraView features four fully achromatic lens objectives, a fully mechanical stage, a 4.3” TFT full color touch screen, 5MP CMOS sensor, and a 8GB SD card for storing your photos and videos. Taking high-resolution images and video of specimen slides has never been easier.

The LCD screen rotates 180° so you can easily share your viewing with others. For an even bigger audience, use the TV output to display on a television or projector. With magnification from 40 to 400x (1600x with digital zoom), TetraView is ideal for viewing a range of cellular specimens on slides.

Great for the discriminating professional or serious hobbyist, the TetraView microscope is an excellent tool for labs, schools, scientific research, and more.

Coin and stamp collectors or those seeking lower magnification to observe large objects (2mm and larger), please see our popular low-power digital microscopes:
