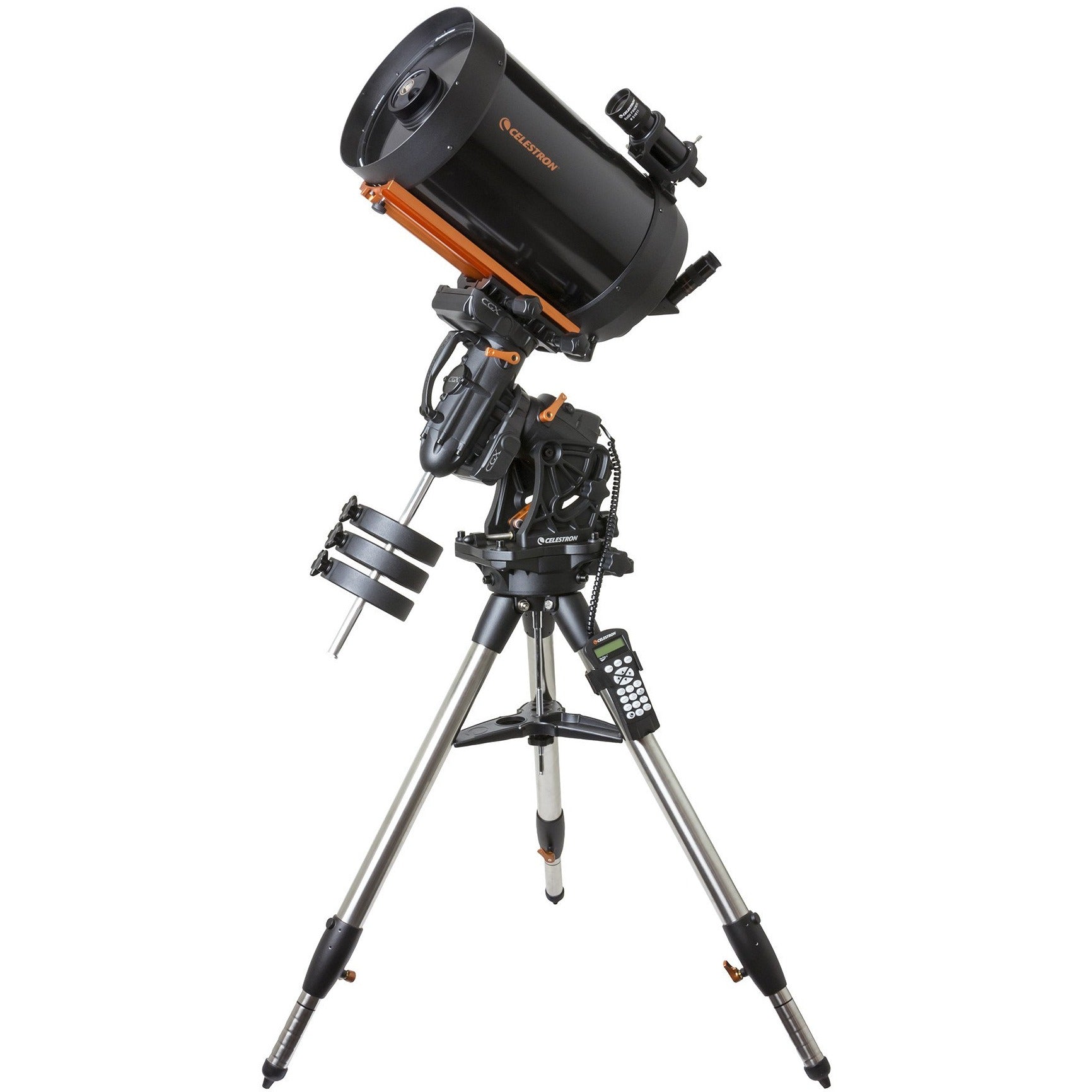

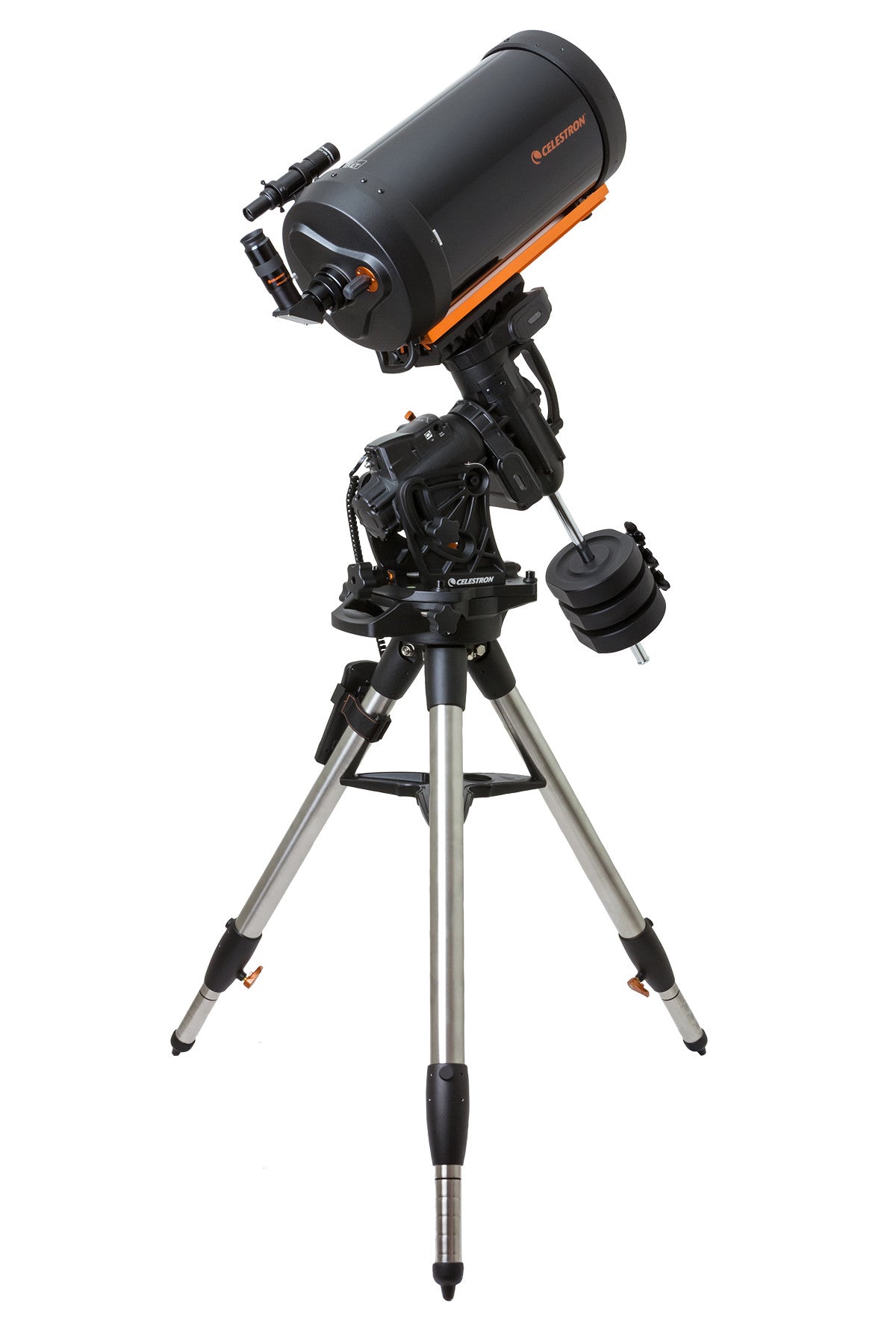

CGX Equatorial 1100 Schmidt-Cassegrain Telescope
CGX Equatorial 1100 Schmidt-Cassegrain Telescope
CGX Equatorial 1100 Schmidt-Cassegrain Telescope
CGX Equatorial 1100 Schmidt-Cassegrain Telescope

CGX Equatorial 1100 Schmidt-Cassegrain Telescope

$5,299.00

In Stock
Item #: 12052 / 12052-CGL
Free Ground Shipping!
Contiguous USA only

Style: CGX Equatorial Mount and Tripod CGX Equatorial 1100 HD Telescope CGX 1100 Rowe-Ackermann Schmidt Astrograph (RASA) Equatorial Telescope CGX 800 Rowe-Ackermann Schmidt Astrograph (RASA) Telescope CGX Equatorial 925 Schmidt-Cassegrain Telescope CGX Equatorial 925 HD Telescope CGX Equatorial 800 Schmidt-Cassegrain Telescope CGX Equatorial 1100 Schmidt-Cassegrain Telescope CGX 700 Maksutov Cassegrain Telescope CGX Equatorial 800 HD Telescope

Warranty: 2 Years
Find a Retailer
  • 11" Schmidt-Cassegrain Optical Tube Assembly
  • Aluminum Optical Tube
  • Celestron's premium StarBright XLT coatings
  • 2800mm focal length (f/10)
  • 40mm eyepiece included (70x)
  • Visual back allows for use with 1.25" accessories 9x50 finderscope to help accurately find objects
  • Star diagonal provides more comfortable viewing position when observing objects that are high in the sky
  • Includes dovetail rail compatible with CGE mount

Overview

  • 11" Schmidt-Cassegrain Optical Tube Assembly
  • Aluminum Optical Tube
  • Celestron's premium StarBright XLT coatings
  • 2800mm focal length (f/10)
  • 40mm eyepiece included (70x)
  • Visual back allows for use with 1.25" accessories 9x50 finderscope to help accurately find objects
  • Star diagonal provides more comfortable viewing position when observing objects that are high in the sky
  • Includes dovetail rail compatible with CGE mount

Includes These Celestron Technologies

Compatible With

Customers Also Purchased

Description

The CGX 1100 Schmidt-Cassegrain Telescope features Celestron’s premium StarBright XLT coated optics and the CGX computerized equatorial mount. With the optical tube assembly of the CGX 1100 weighing only 27.5 lb, this telescope is still portable enough to be taken to dark skies, and it has 89% more light gathering power than an 8" telescope and more than 40% more than the 9.25".

CGX Mount

Celestron’s workhorse CGEM mount lineup has been the German Equatorial backbone for telescopes ranging from 6 to 11 inches of aperture. Since that time, many more astro-imagers and planetarium controlled setups have emerged as backyard telescope technology has evolved. Celestron’s engineering team applied their years of experience designing German Equatorial mounts to the CGX EQ, a culmination of all the advancements made to our technologies, value, and ease-of-use.

The CGX was designed to better support your telescope for both visual and astro-imaging pursuits. Key design goals included a lower profile EQ head, which provides a more compact and therefore more stable setup; a better drive system; remote operation-friendly with home and limit optical sensors; easier polar alignment adjustments; and better cable management. In addition to that, we’ve made mechanical and ergonomic improvements throughout to make the mount sturdier, easier to use, and transport. The CGX is our Equatorial backbone to support a wide range of telescopes.

Technology

CGX Mount and Tripod Features

  • Sturdier and more rigid with quicker dampening time
  • Increased load capacity to 55 lbs.
  • Motors provide more torque, better slewing and tracking under heavy loads
  • Heavy Duty belt-drive system minimizes backlash while providing smooth motor operation under heavy loads
  • Smootherbelt Drivesystem

  • Spring-loaded brass worm wheel and stainless steel worm gear reduce friction and provide optimum gear mesh
  • Internal cabling for worry-free remote operation. Power input and accessory ports remain stationary while the mount slews to avoid snags
  • Internal hard stops for both axes prevents cable tension and tripod strike
  • Mechanical Hard Stops

  • Internal optical sensors on both axes for simple and safe remote operation
  • Home And Limit Sensors

  • Home sensors allow the mount to always start in the index position regardless of orientation before a power reset
  • Limit sensors automatically shut off slewing or tracking before reaching the hard stop fail safe
  • Control software developed in conjunction with PlaneWave Instruments for professional level control operation and imaging
  • Software includes multi-point mount modeling for extremely precise pointing accuracy and many more additional features for remote astroimaging
  • Wider tripod stance for improved stability
  • Adjustable EQ head position to optimize center of gravity over the tripod and fully utilize the increased 3°-65° latitude range
  • Dual-fit CG-5/Vixen and CGE/Losmandy dovetail saddle
  • Dual Dovetail Saddle

Tripod includes:

  • 2" steel legs with height index marks for quick leveling
  • "Jack of all trays" can hold three 1.25" eyepieces, two 2" eyepieces, your smartphone, or other accessories
  • +20° of additional tracking past the meridian on either side
  • Tripod legs can be collapsed with accessory tray installed for faster setup and transport

Tripod

Ergonomics:

  • Two handles for easy pickup and transport
  • Ergonomic Carry Handles

  • Ergonomically designed dovetail clamping knobs
  • Innovative and improved polar alignment adjustment system
  • Polar Alignment Adjustment System

  • Ergonomic latitude adjuster for smooth and easy adjustment under full loads
  • Optional add-on polar axis finderscope

Electronics

  • NexStar+ hand control with USB port
  • Two AUX accessory ports to support wireless/WiFi alignment and operation with StarSense AutoAlign and SkyPortal WiFi Module accessories (sold separately)
  • USB 2.0 port, used to connect directly to PC with included software
  • Autoguider port
  • PPEC ready
  • Threaded 12VDC power input barrel connector
  • Internal Real Time Clock (keeps time and site information saved

Specifications

Optical Tube Info:
Optical Design: Schmidt-Cassegrain
Aperture: 279.4mm (11")
Focal Length: 2800mm (110")
Focal Ratio: f/10
Focal Length of Eyepiece 1: 40mm (1.57")
Magnification of Eyepiece 1: 70x
Finderscope: 9x50
Star Diagonal: 1.25" Star Diagonal
Optical Tube: Aluminum
Highest Useful Magnification: 660x
Lowest Useful Magnification: 40x
Limiting Stellar Magnitude: 14.7
Resolution (Rayleigh): 0.5 arc seconds
Resolution (Dawes): 0.42 arc seconds
Light Gathering Power (Compared to human eye): 1593x
Secondary Mirror Obstruction: 95mm (3.75")
Secondary Mirror Obstruction by Diameter: 34%
Secondary Mirror Obstruction by Area: 12%
Optical Coatings: StarBright XLT
Optical Tube Length: 610mm (24")
Optical Tube Diameter: 312.42mm (12.3")
Optical Tube Weight: 27.5 lbs (12.4 kg)
Dovetail: CGE Dovetail Bar
Mount Info:
Mount Type: Computerized Equatorial
Instrument load capacity: 55 lbs (25 kg)
Height adjustment range (includes mount and tripod): 1200.15mm - 1968.5mm (47.25" - 77.5")
Tripod Leg Diameter: 50.8mm (2") Steel tripod with graduated markings on lower section
Latitude adjustment range: 3° - 65°
Mount Head Weight: 44 lbs (20 kg)
Accessory Tray: Yes
Tripod Weight: 19.2 lbs (8.7 kg)
Weight of Counterweights: 3 x 11 lbs
Slew Speeds: 9 slew speeds - max speed 4°/second
Tracking Rates: Sidereal, Solar and Lunar
Tracking Modes: EQ North and EQ South
GPS: N/A
Dovetail Compatibility: Dual saddle plates (CG-5 and CGE saddle)
Number of Auxiliary Ports: 2 AUX Ports (Hand Control can use either AUX Port)
Autoguide Port: Yes
USB Port: Yes, input for Mount and Hand Control
Power Requirements: 12V DC, 4 amps
Motor Drive: DC servo motors
Alignment Procedures: 2-Star Align, 1-Star Align, Solar System Align, Last Alignment, Quick Align
Periodic Error Correction: Yes
Computerized Hand Control: 2 line x 18 character backlit Liquid Crystal Display, 19 LED backlit buttons, USB 2.0 Port for PC connection
NexStar+ Database: 40,000+ objects, 100 user defined programmable objects. Enhanced information on over 200 objects
Software: CPWI Telescope Control Software, Celestron Starry Night Special Edition Software, and SkyPortal App
Total Kit Weight: 123.7 lbs (56.11 kg)
Included Items: CGX Equatorial Head
CGX Tripod
Accessory Tray
3 x 11 lbs counterweights
NexStar+ Hand Control
8mm Allen Wrench
12V DC Power Cable
Hand Control Holster

Videos

Reviews

Hot Product Sky & Telescope Award 2017

Sky at Night Magazine Award 2017

“Celestron has gone to town in engineering the CGX with improved latitude and azimuth controls and a low-profile mount head.”

Sky & Telescope – CGX Review

“Slewing is smooth and very quiet, and the mount responded precisely and without backlash when I pressed the direction keys on the hand control.”

Accessories

FAQ

Q:

What is the heaviest recommend load for mounting a camera in the Fastar / HyperStar configuraton?

A:

We recommend a load of no more than 33 lbs. at 5.0 inches away from the 11" Schmidt corrector.
