Popular Science by Celestron Labs CM400 Compound Microscope
Item #: 44136- Lab-ready compound microscope with rotatable monocular head
- 4x, 10x and 40x objective lenses
- 10x eyepiece allows you to view specimens at 40x, 100x, 400x magnification
- Built-in, adjustable, upper and lower LED illumination
- Smartphone adapter and Bluetooth remote included so you can capture still or video images through the monocular
- Runs on AC power or 3 AA batteries (included) for field use
- 10 prepared slides included
Overview
- Lab-ready compound microscope with rotatable monocular head
- 4x, 10x and 40x objective lenses
- 10x eyepiece allows you to view specimens at 40x, 100x, 400x magnification
- Built-in, adjustable, upper and lower LED illumination
- Smartphone adapter and Bluetooth remote included so you can capture still or video images through the monocular
- Runs on AC power or 3 AA batteries (included) for field use
- 10 prepared slides included
Description
Popular Science by Celestron Labs CM400 compound microscope offers all the essential features you need in a lab or classroom microscope. The 10x eyepiece and three objective lenses (4x, 10x and 40x) allow for magnifications of 40x, 100x, and 400x.
Upper and lower lighting provides bright, detailed views with true-to-life colors for both opaque and translucent specimens. These LED illuminators stay cool to the touch even during long viewing periods. The simple condenser with rotating disc adjusts the lower illumination for enhanced viewing. All these features make the CM400 an excellent tool for students and professionals alike.
Strong and stable thanks to its all-metal construction, this special edition microscope features an adjustable stage with metal clips to center your specimen slides. The 10 included prepared slides guarantee exciting discoveries right out of the box. Rotate the monocular head to view the specimen comfortably and share the view with someone sitting across the table.
Take your microscope out of the lab and into the field with its 3 AA batteries. There’s also a universal AC power cord so you can travel internationally with your microscope.

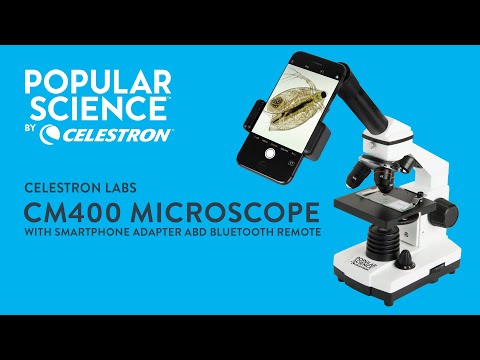

Digiscoping is easy with the Celestron Smartphone Adapter and Bluetooth Remote
Share your greatest discoveries with friends and family by pairing the Celestron Labs with the included smartphone adapter. This accessory connects any smartphone to the microscope eyepiece.
The eyepiece’s magnification bumps up the image scale, so you can capture stunning images of your specimen! This light, rigid smartphone adapter installs in seconds by clamping over the top of the eyepiece. Tightening knobs securely lock your phone in place. Note that some large and/or excessively bulky phone cases (including folio style cases) may need to be removed for the phone to fit in the adapter.
This special edition bundle has also provided a Bluetooth shutter release that allows you to trigger the camera’s shutter on any Android or iOS smartphone remotely, without disturbing the placement of your phone and microscope.
More about Popular Science
For nearly 150 years, POPULAR SCIENCE has pointed people to the wonders of science, technology, and the future. We partner with designers & manufacturers who share our values of INNOVATION, QUALITY and SCIENCE to bring meaningful products to consumers like you.
Specifications
| General | |
|---|---|
| Type of Microscope: | Compound |
| Head: | Monocular with 45° incline |
| Eyepiece(s) Magnification: | (1) WF 10x |
| Eyepiece(s) Diameter: | 23.2mm (.91") |
| Nosepiece: | triple, rotational |
| Objective(s) Type: | Refractive |
| Objective(s) Standard: | JIS |
| Objective(s) Magnification: | (3) 4x/10x/40x, all achromatic |
| Objective(s) Thread: | WJ3/5"-1/40" |
| Focus Type(s): | Rack & pinion, coarse focus only |
| Focus Travel (per rotation): | 8mm (.31") |
| Magnification Range: | 40x to 400x (40x, 100x, 400x) |
| Illumination Type: | LED |
| Illumination Position(s): | Lower and upper |
| Illumination Adjustability Mechanism: | Dial, both upper and lower offer adjustable intensity |
| Power Source: | AC Adapter- 100-240V |
| Battery Option: | (3) AA (Included) |
| Stage: | Plain stage with metal clips, 88mm x 88mm (3.46" x 3.46") |
| Condenser Type: | None |
| Condenser N.A.: | 0.65 |
| Stage Diaphragm: | Simple, rotating disc with six aperture sizes |
| Included Items: |
10x WF eyepiece Universal AC adapter- 100-240V; plugs A, C, G, and I Power adapter cord 10 prepared slides 3 AA batteries Smartphone adapter Bluetooth shutter release |
Videos
Accessories
FAQ
Is the Celestron NexYZ Smartphone Adapter compatible with the Popular Science by Celestron CM400 microscope?
Yes, in addition to smartphone adapter included with Popular Science by Celestron CM400 microscope, the Celestron NexYZ Smartphone Adapter may also be used with it for greater position control of any smartphone to be used.
Why are my specimens different from the ones listed on the website?
In the event that a particular specimen becomes unavailable, a substitution may be made to any one listed below.
Specimen Mounted Slides included:
i. Wall of stomach, sec.
ii. Stratified flat epithelium, sec.
iii. Testis, sec.
iv. Aspergillus, w.m.
v. Rhizopus nigricans, w.m.
vi. Small intestine, c.s.
vii. Lily anther, c.s.
viii. Hydrilla verticallata, w.m.
ix. Spirogyra, w.m.
x. Lily ovary, c.s.
Support & Downloads
| Manuals: |
|---|
| Popular Science by Celestron CM400 Microscope Manual |
| Info Sheets: |
| How to Use the Bluetooth Remote Control |
| Other Product Files: |
| Microscope basics |
